SECTION G – FUEL AND EXHAUST

CAUTION:

Before performing any Service Operation or other procedure described in this Section, refer to Section 00

CAUTIONS AND NOTES for correct workshop practices with regard to safety and/or property damage.

1.1 GENERAL INFORMATION

The fuel system as fitted to HSV GTO and GTS Coupe Series Models carries over from Holden V2 Series Models.

For inf orm ation relat ing to t he fuel s yst em as fitted to HSV G T O and GT S Cou pe Seri es Mod els n ot cover ed in th is

section, refer to Section 8A1 FUEL T ANK in the Hol den V2 Ser i es Service I nf o rmation, in c o nj unctio n with Sec ti o n

8A FUEL TANK in the Holden VT Series I and VT Series II Service Information.

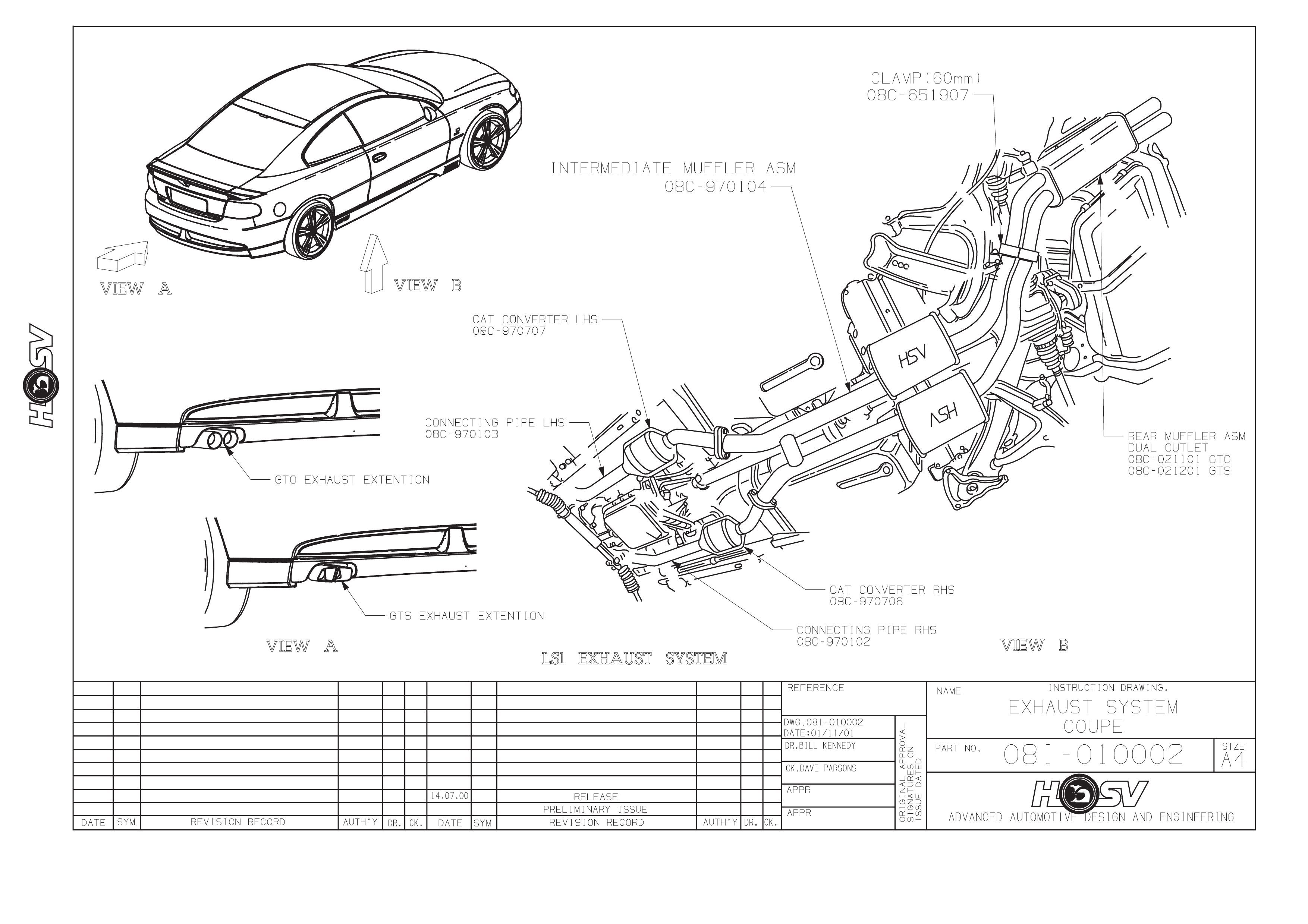

The exhaust system as fitted to the HSV GTO and GTS Coupe Series Models is a unique design. The exhaust

system is the same as that fitted to the HSV VX sedan models, except for a unique rear muffler design, refer to

Drawing 08I-010002. The GT O model has a twin outlet exhaust extens ion. The GTS model has a unique double

“D” design extension.

1.2 SERVICE OPERATIONS

All service operations for the fuel tank fitted to the HSV GTO and GTS Coupe Series Models carry over from the

Holden V2 Ser ies Mode ls.

For information relating to service operations on the fuel tank fitted to the HSV GTO and GTS Coupe Series

Models, refer to Section 8A1 FUEL TANK in the Holden V2 Series Service Inf or mation.

For all service operations for the exhaust system fitted to the HSV GTO and GTS Coupe Series Models, refer to

Drawing 08I-010002 and the HSV VT Clubsport Service Information.
