SECTION H - WHEELS, TYRES AND

STEERING WHEEL

CAUTION:

HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-

tensioners (fitted to all front seats), and a driver’s-side air bag or a driver’s-side air bag AND a passenger’s-

side air bag and left and right hand side airbags. Refer to CAUTIONS, Section 12M, in Volume 12 of the

Holden series VX Service Manual before performing any service operation on or around SRS components,

the steering mechanism or wiring. Failure to follow the CAUTIONS could result in personal injury or

unnecessary SRS system repairs.

PURPOSE

The purpos e of this sec tion is to pr ov ide inf orm ation o n the whee ls, t yres and ste ering whee ls f itted to the H SV VU

model. The information is designed to supplement that given in the Holden VU Series Service Information and

details are given where differences occur between the HSV models and standard Holden models. A series of

instruction drawings describe the design changes and indicate specific part numbers, fitting instructions and

relevant notes for vehicle servicing.

NOTE:

If specific technical data on a HSV model is not contained in this supplement, obtain data for that model from the

relevant Holden VU Series Service Information. References are made throughout this section to Holden Service

Information, to assist in providing information for specific service operations.

CAUTION:

W hen hoisting (or jac king) HSV models , ensure that the lifting h ead of the hoist lifts on the chass is before the arm

of the hoist contacts the side-skirt

1. WHEELS AND TYRES

1.1. GENERAL DESCRIPTION

HSV VU models are fitted with alloy wheels developed specifically for each HSV application.

NOTE:

Specific wheel nuts are used to attach ‘T’ Design wheels to the vehicle. These nuts are fitted with a plastic dress

cap, which must be removed prior to undoing the wheel nuts.

CAUTION:

HSV VU whee ls do not ha ve a s teel i nsert an d ther efore r equire wheel nuts with a f langed seat as per th e VT , VT 2

and VX wheel nuts . Do not use VS wheels nuts on HSV VU wheels.

SERVICE OPERATIONS

Allo y wheels f itted to all HS V vehic les ar e to be servic ed in acc orda nce with t he proc edures detailed i n the re levant

Holden Service Information refer to Section 10 – Wheels And Tyres, of the VT Series II Service Information. In

addition, p ar tic ular c are s houl d be taken wit h the sur f ac e f inis h of alloy wheels. The m anuf ac turer rec ommends that

alloy surfaces be treated the same as high-gloss painted services to prevent corrosion and general deterioration.

1.2. WHEEL AND TYRE BALANCING

In order to balance the HSV Design wheels and tyre assemblies, refer to the relevant Holden Series Service

Information, refer to Section 10 – Wheels And Tyres, of the VT Series II Service Information.

NOTE:

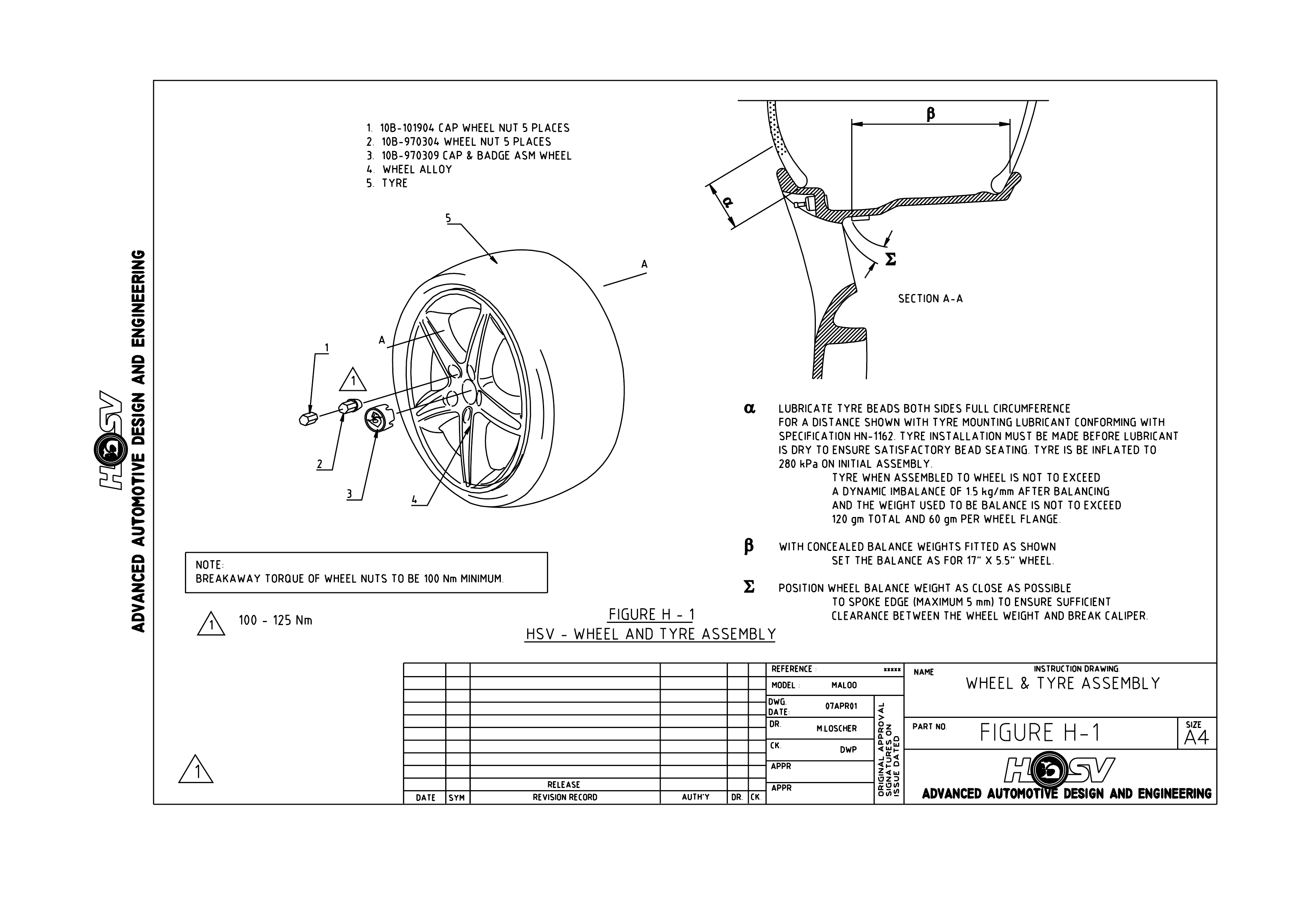

HSV wheels are bal anced with c once aled weights. T he later al dis tance be tween t hese weights is consid erab ly less

than the ac tual width of the wheel. T o achieve whe el balance wit hin specif ication with conc ealed balance weights,

set the balancing machine for a wheel width of 5.5". Figure H-1 also expla ins this r equirement.

1.3 HSV WHEEL AND TYRE COMBINATIONS

The following HSV Wheels and tyre combination are fitted to VU.

Model Wheel Tyre

Maloo and Maloo R8 5-spoke, 18” x 8” (48P) 235/40 ZR18

1.4 TYRE PLACARD AND PRESSURES

The HSV Tyre Placard is positioned on the opening of the right hand door. The Tyre Placard details important

inform ation on the t yre pre ssures recomm ended for the HS V VU Maloo. C old Pr essur es for the 235/ 40 ZR18 tyres

are 250k Pa. If car rying load , or tr ave ll ing at hi gh s pe ed , the t yre pr es sur es nee d to be incr eas e d, as detailed o n the

placard. This is ver y important for tyre wear a nd also t o ensure that the t yres have suf ficient lo ad carr ying capac ity

for the load in the HSV Maloo.

1.5 LOADING THE HSV MALOO

Also on the right hand door opening are the HSV Maloo payload details. The Maloo is restricted to a maximum

payload of 490kg, with the driver and passenger in the car, this leaves approximately 350kg load capacity for the

rear tra y. The load is r est ricted by the c ar r ying c a pac ity of the 2 35/ 40 Z R 18 t yres. As noted abo ve, it is impor tant t o

increase tyre pressures when vehicle load is increased, refer to the tyre placard.

1.6 HSV MALOO TEMPORARY SPARE TYRE

All HSV Ma loo’s are f itted with a tem porar y spare wh eel/t yre. This tem porary use spar e is for em ergenc y use onl y,

do not exceed 80km/h when it is fitted. Refer to the owner’s manual for further details.

2. STEERING WHEEL

CAUTION:

HSV VU vehicles are equipped with AIR BAGS. An AIR BAG is a Supplemental Restraint System (SRS).

Refer to CAUTIONS, Section 12M, of the Holden VU Series Service Information before performing any

service operation on or around SRS components, the steering mechanism or wiring. Failure to follow the

CAUTIONS could result in air bag deployment, resulting in possible personal injury or unnecessary SRS

system repairs .

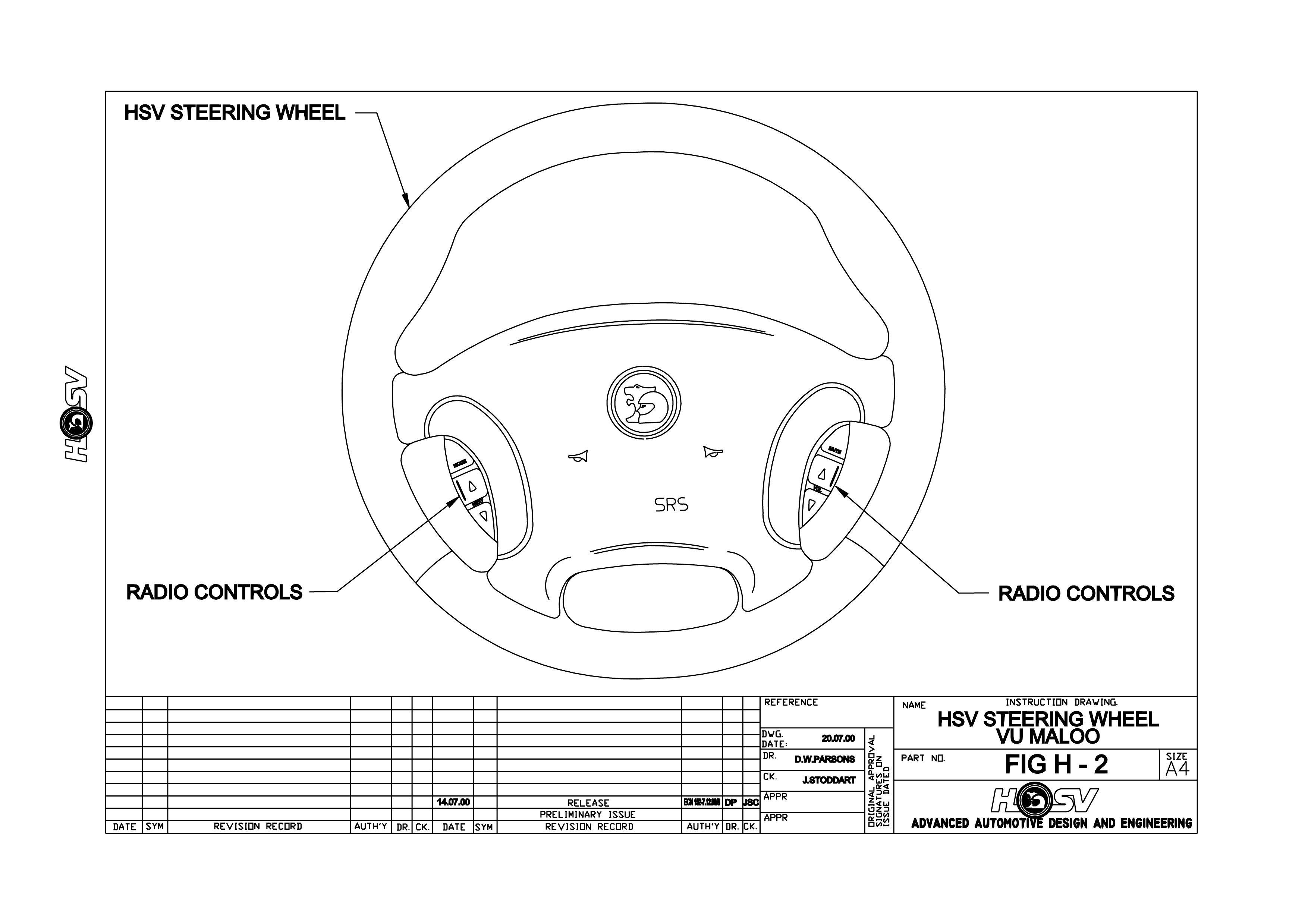

The steering wheel assembly fitted to all HSV VU models incorporates a HSV-design central horn pad complete

with HSV logo (see Figure H-2). The central horn pad also incorporates the driver’s-side air bag. All other

components , fixt ures and f asteners are identic al to standar d Hold en par ts an d th erefor e, an y service oper ations on

the assembly should be carried out in accordance with the relevant Holden Service Information, refer to

Section 9A – Steering of the VT Series I Service Information.
