SECTION B - BODY

CAUTION:

HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-

tensioners (fitted to all front seats), and a driver’s-side air bag or a driver’s-side air bag AND a passenger’s-

side air bag and left and right hand side air bags. Refer to CAUTIONS, Section 12M, of the Holden VX

Series Service Information before performing any service operation on or around SRS components, the

steering mechanism or wiring. Failure to follow the CAUTIONS could result in personal injury or

unnecessary SRS system repairs.

PURPOSE

The purpos e of this sect ion is to provide inform ation on the bod y and bod y componen ts fitted to HSV VX vehicles.

The information is designed to supplement the information contained in the Holden VX & WH Series Service

inform ation, and deta ils are given wher e diff erences occ ur between the H SV models and stan dard Hold en m odels.

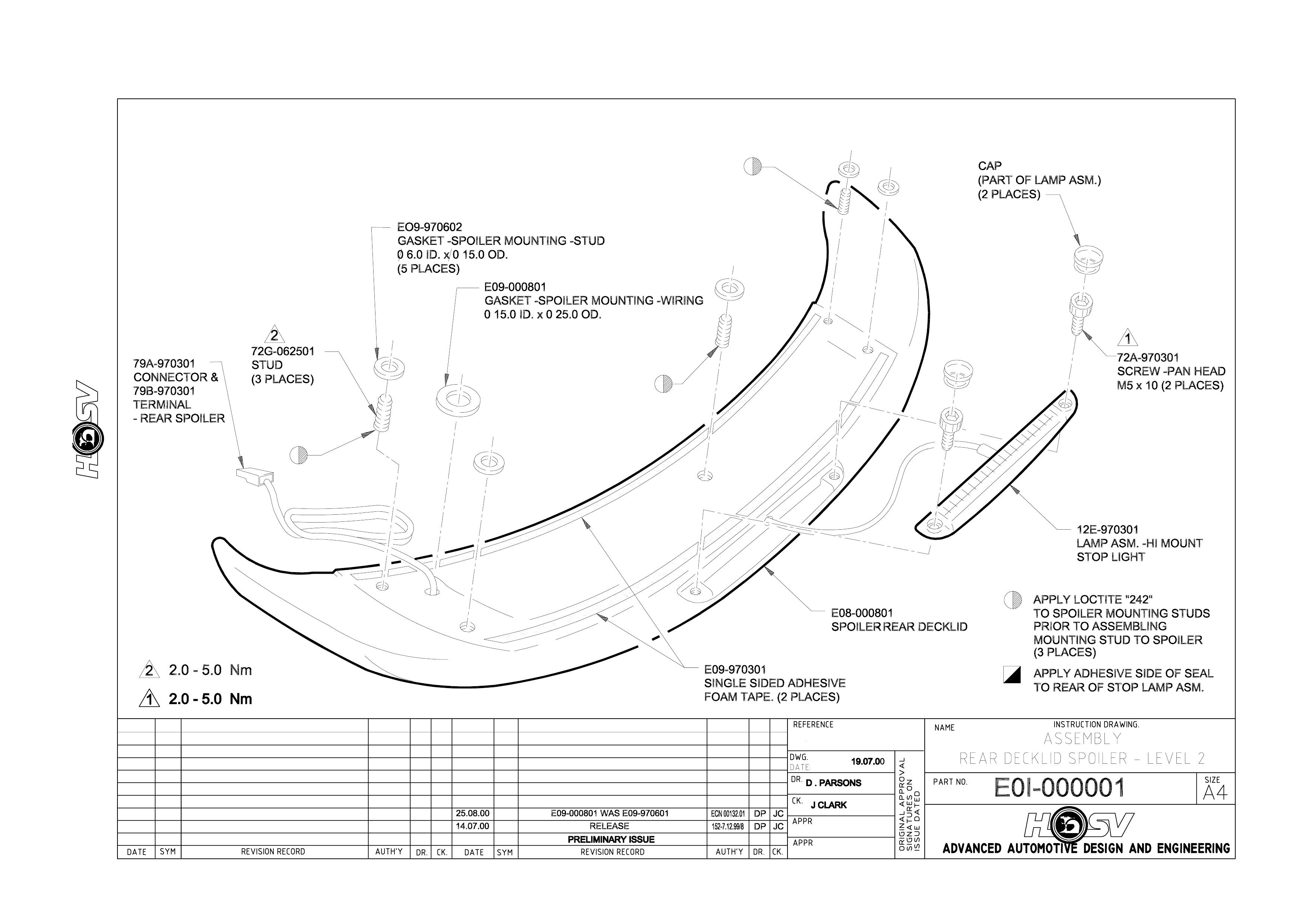

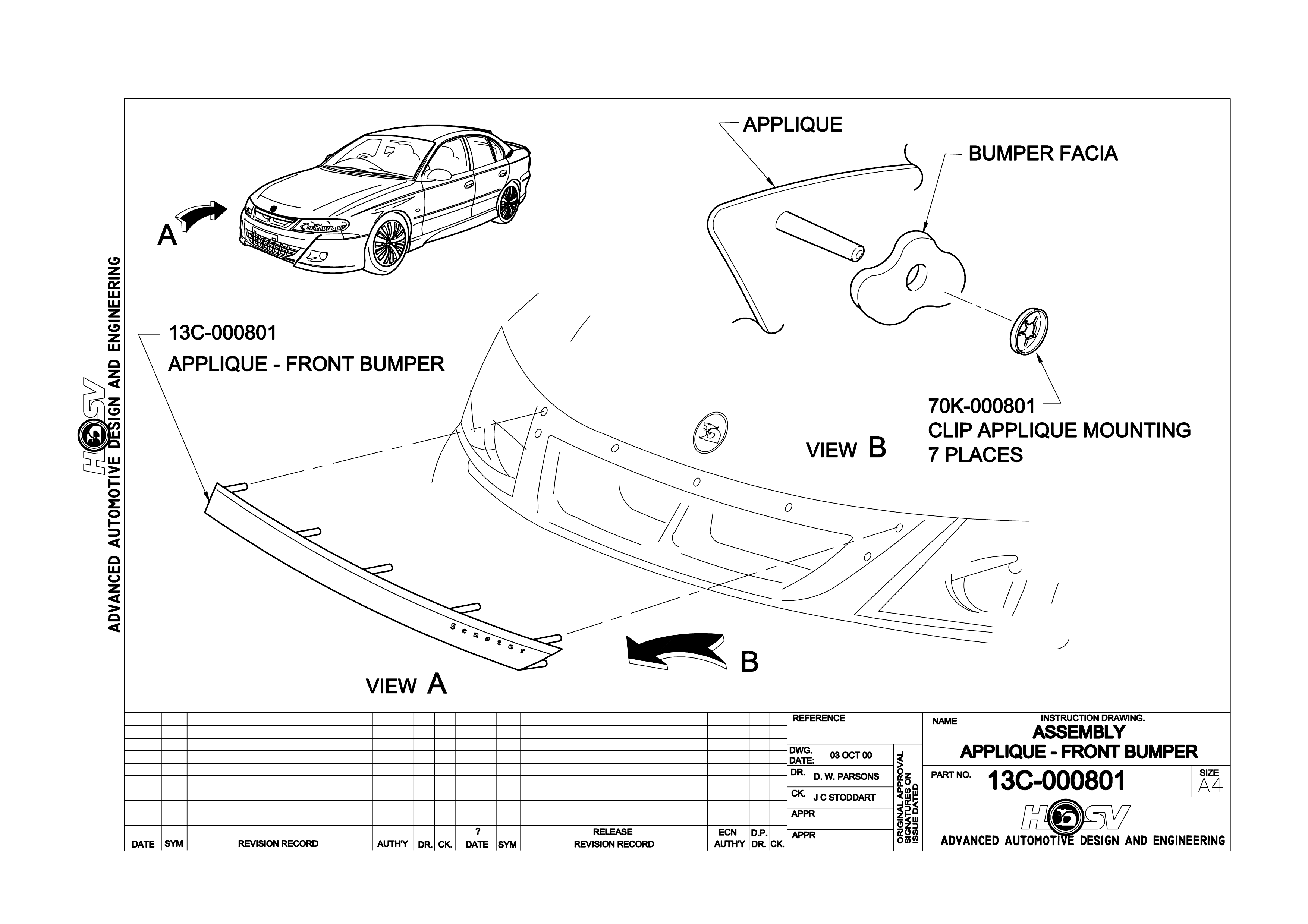

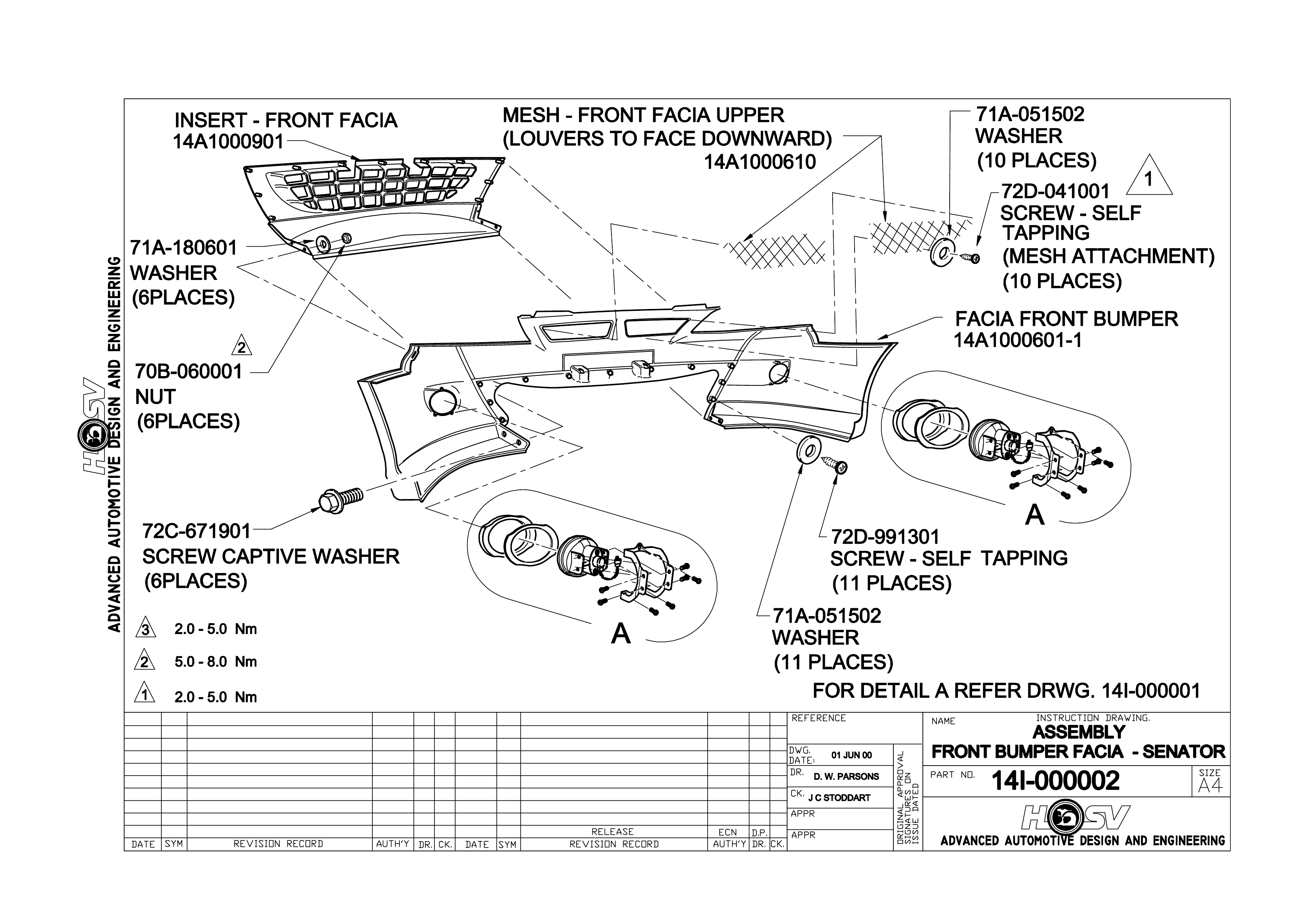

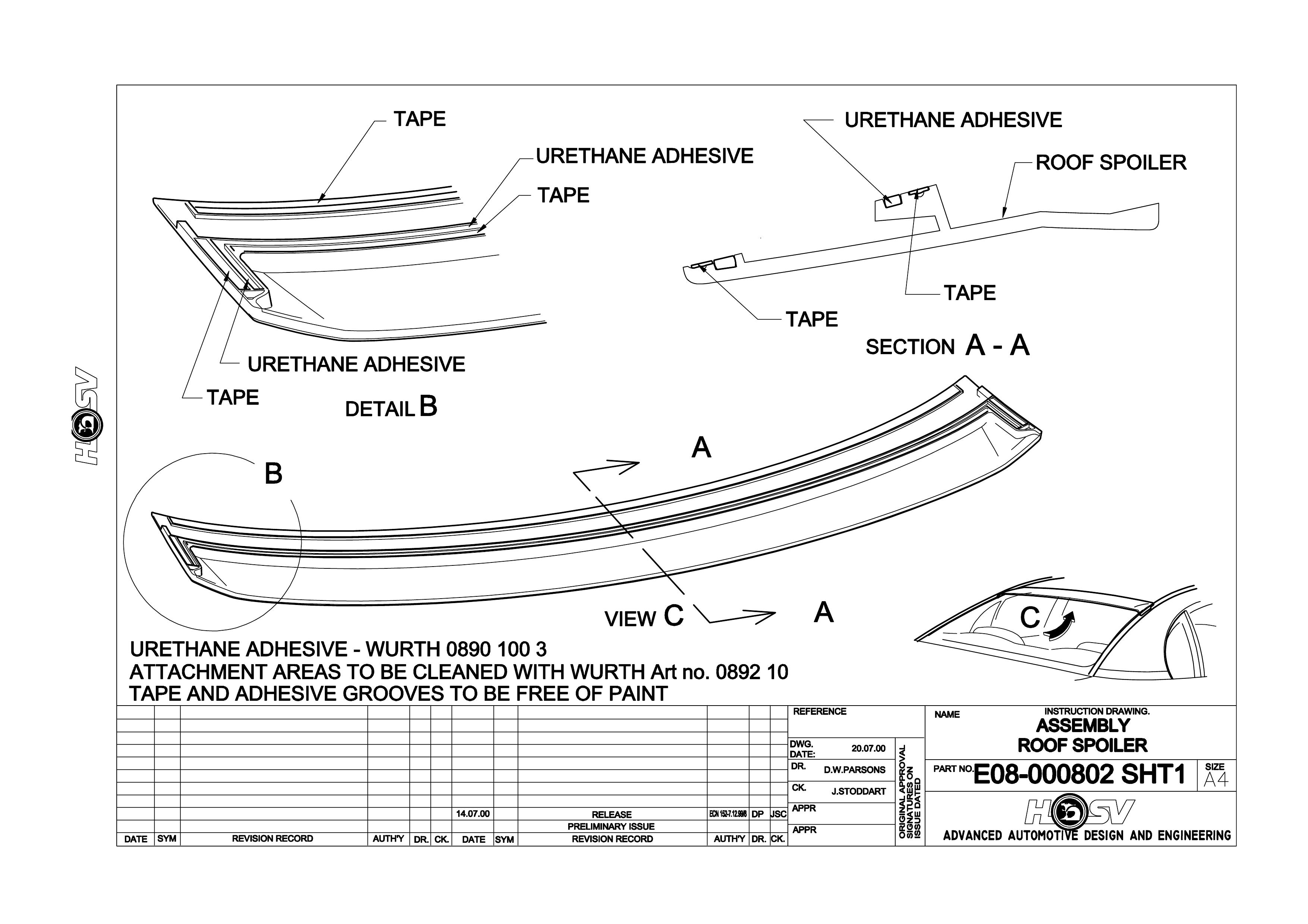

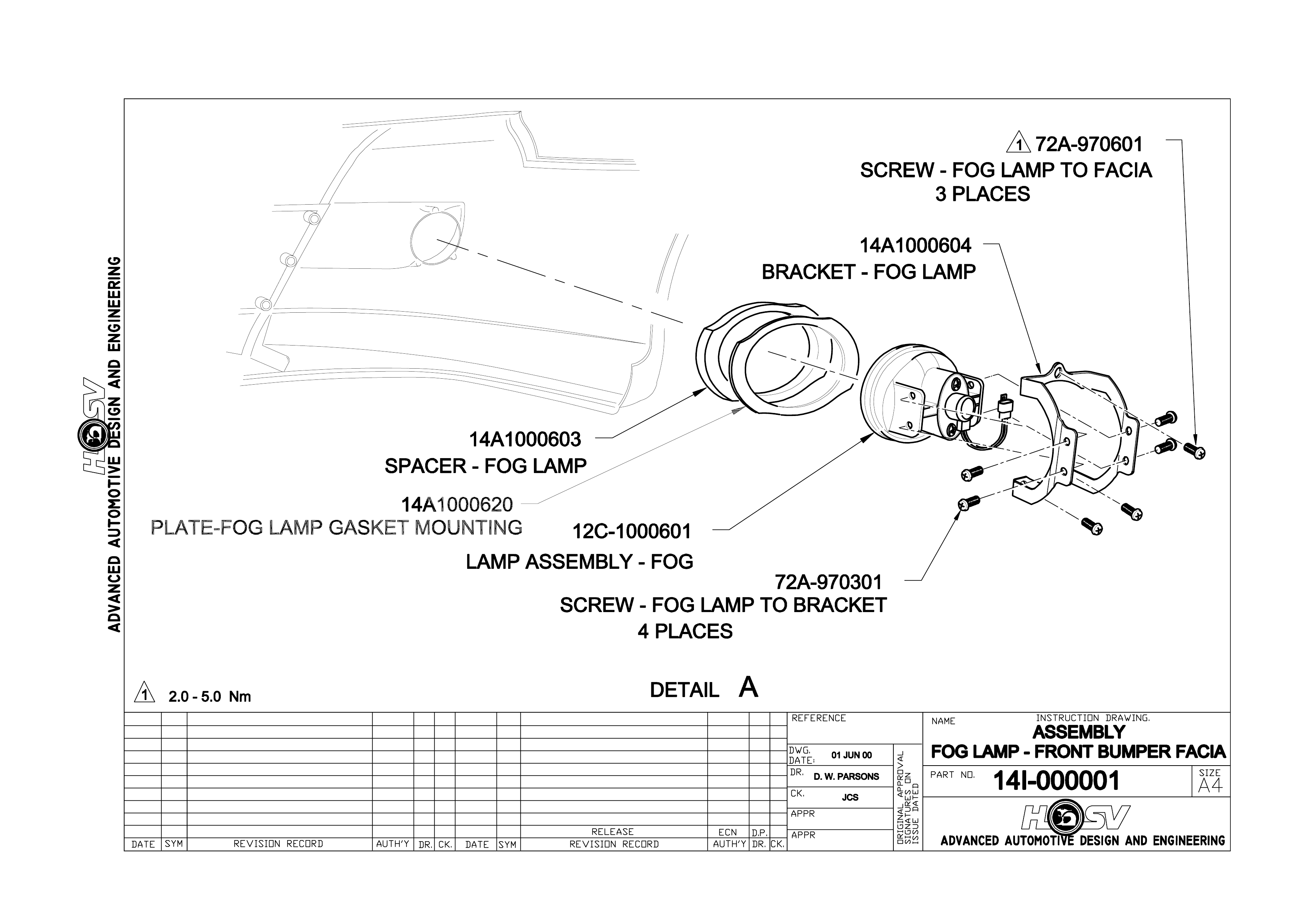

A series of instruc tion drawings des cribe the des ign ch anges and in dicate spec ific par t numbers , fitting instruc tions

and relevant notes for vehicle servicing.

NOTE:

If specific technical data on a HSV model is not contained in this supplement, obtain data for that model from the

relevant Holden VX & WH Series Service Information. References are made throughout this section to Holden

Service Information, to assist in providing information for specific service operations.

CAUTION:

W hen hoisting (or jac king) HSV models , ensure that the lifting h ead of the hoist lifts on the chass is before the arm

of the hoist contacts the side-skirt

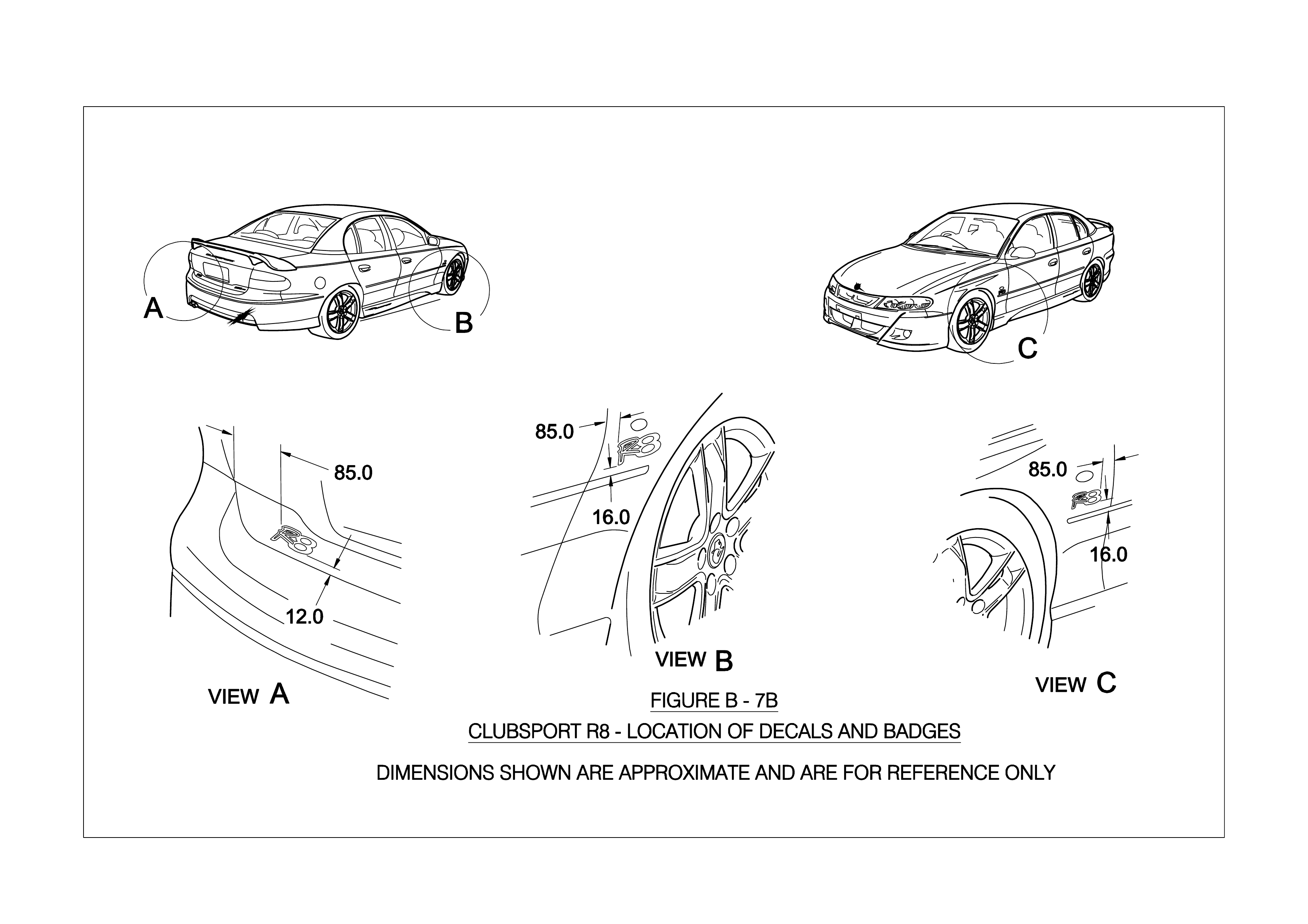

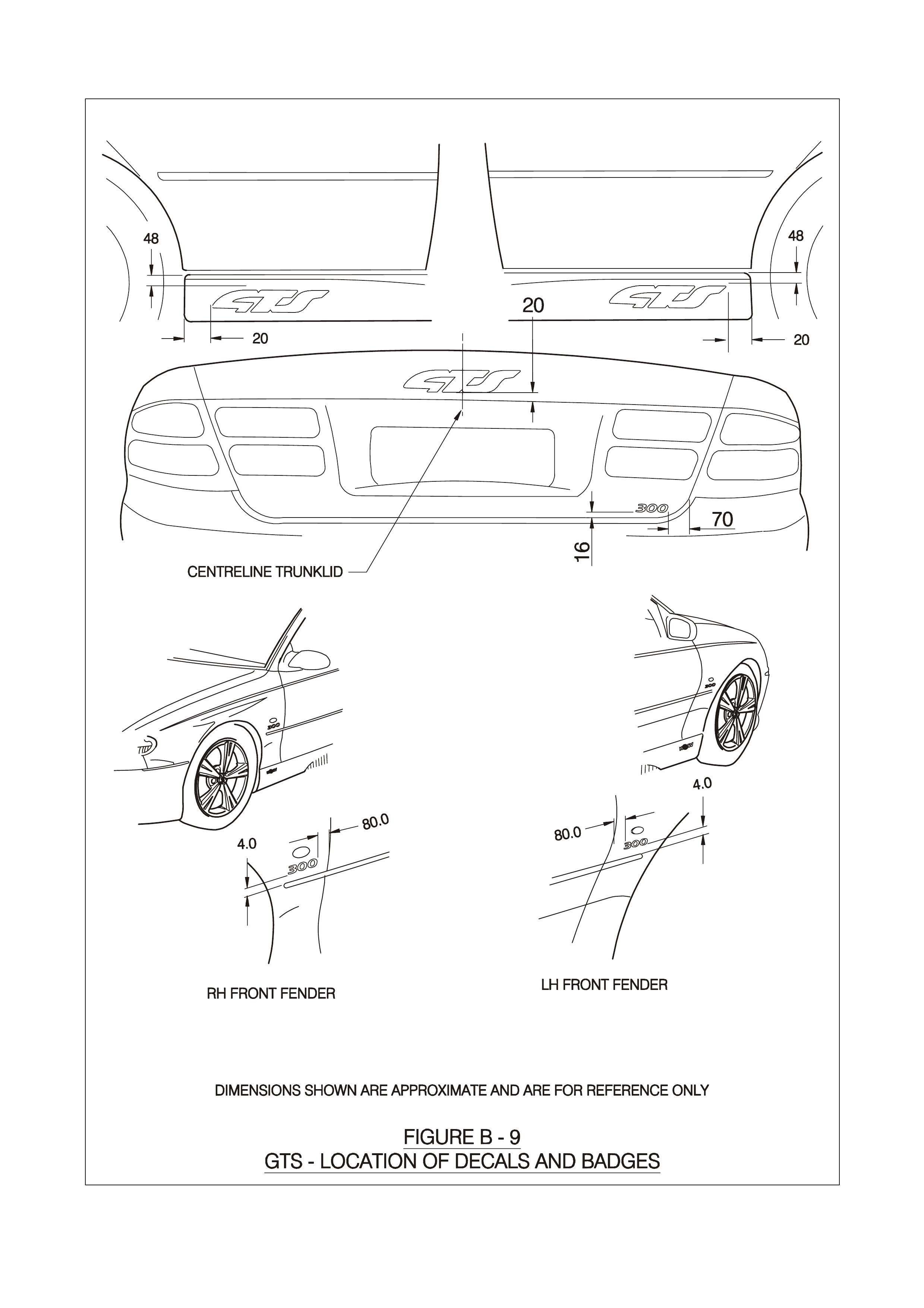

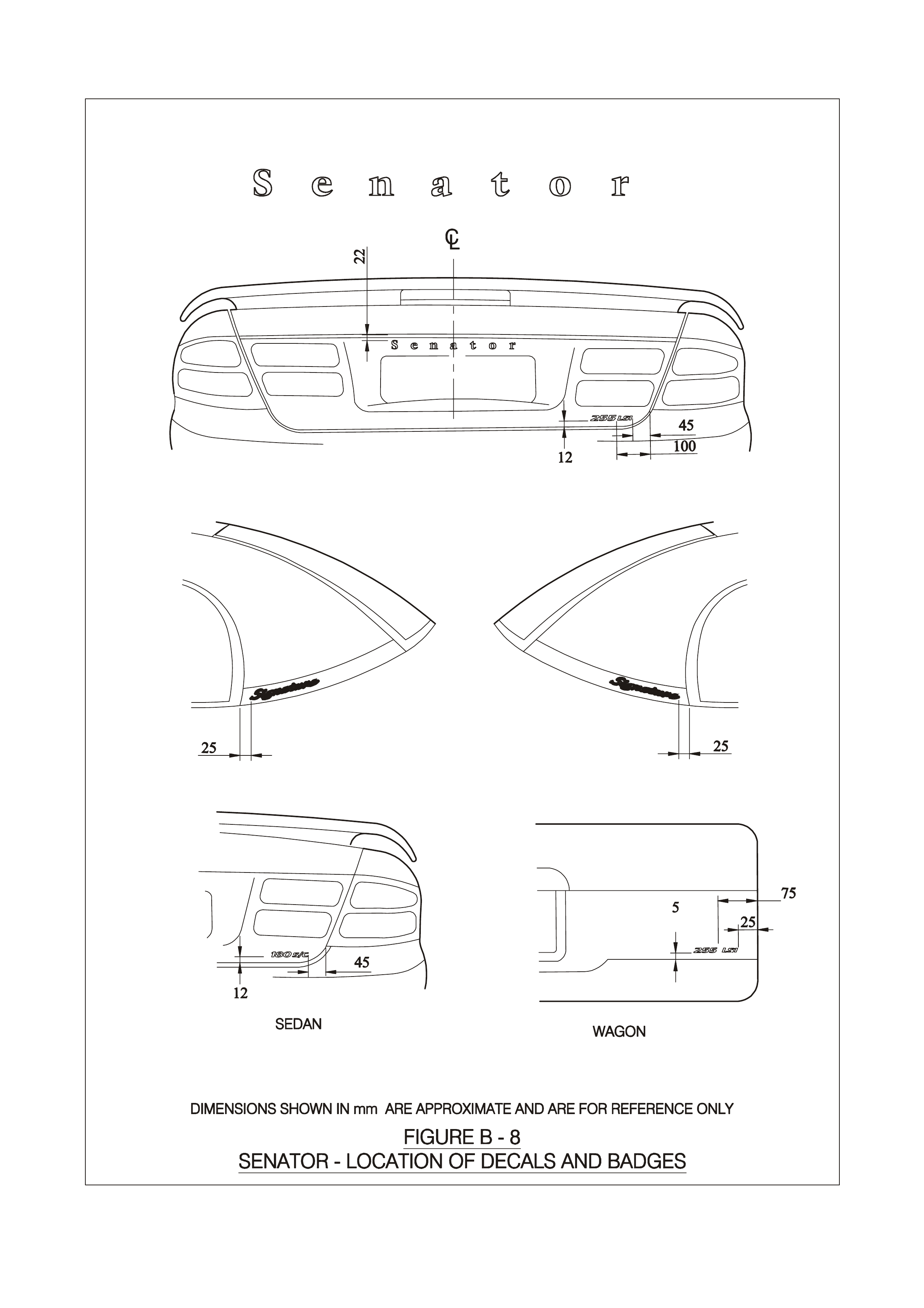

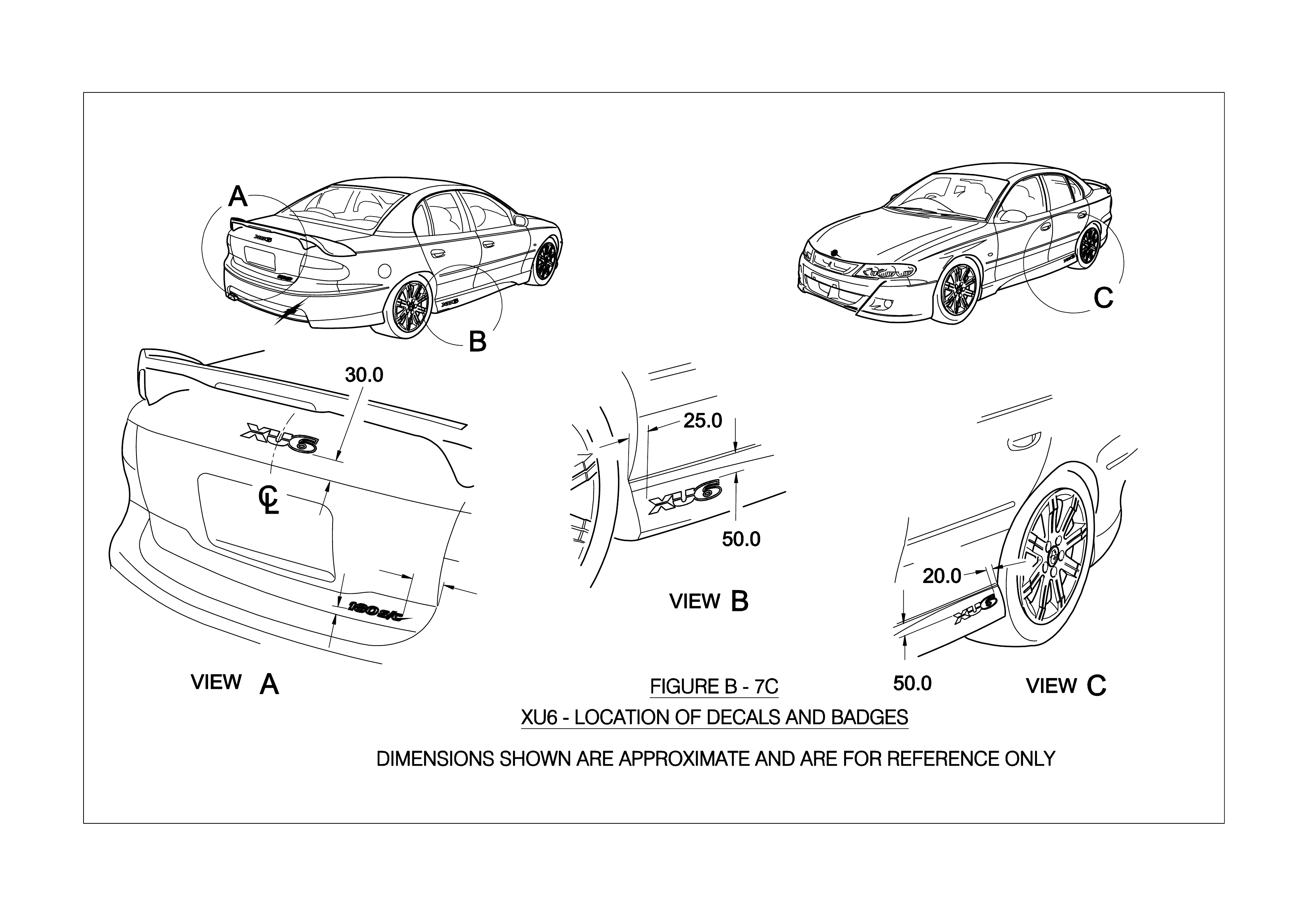

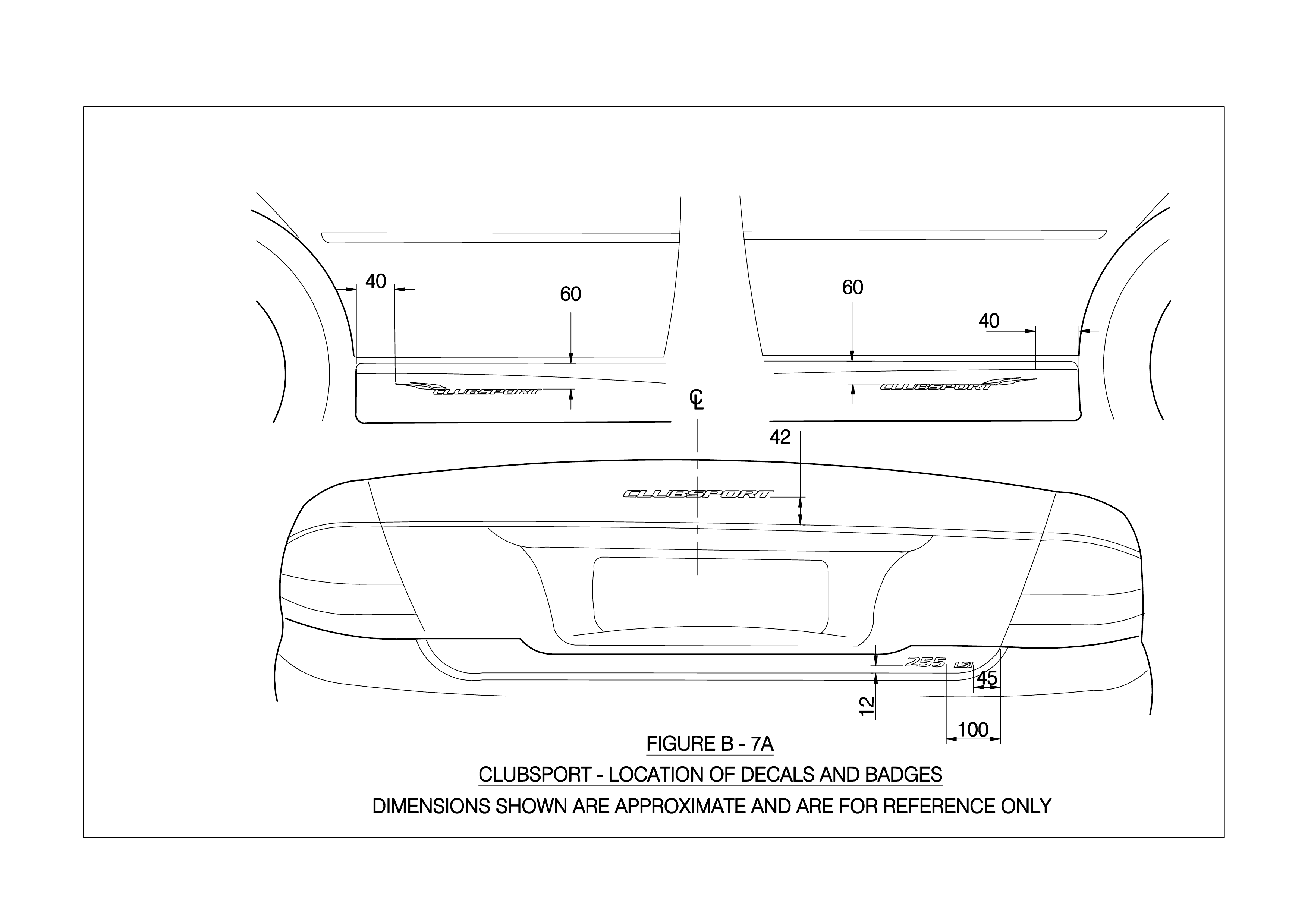

BODY ORNAMENTATION

HSV models are fitted with HSV specific decals, and badges to identify each model and power train option. The

exclusive HSV ornamentation is positioned in exact locations on each HSV model. The ornamentation for each

model is specified by part number in this section. Accurate dimensions are also provided to assist with the

replacement of these parts.

SEATS

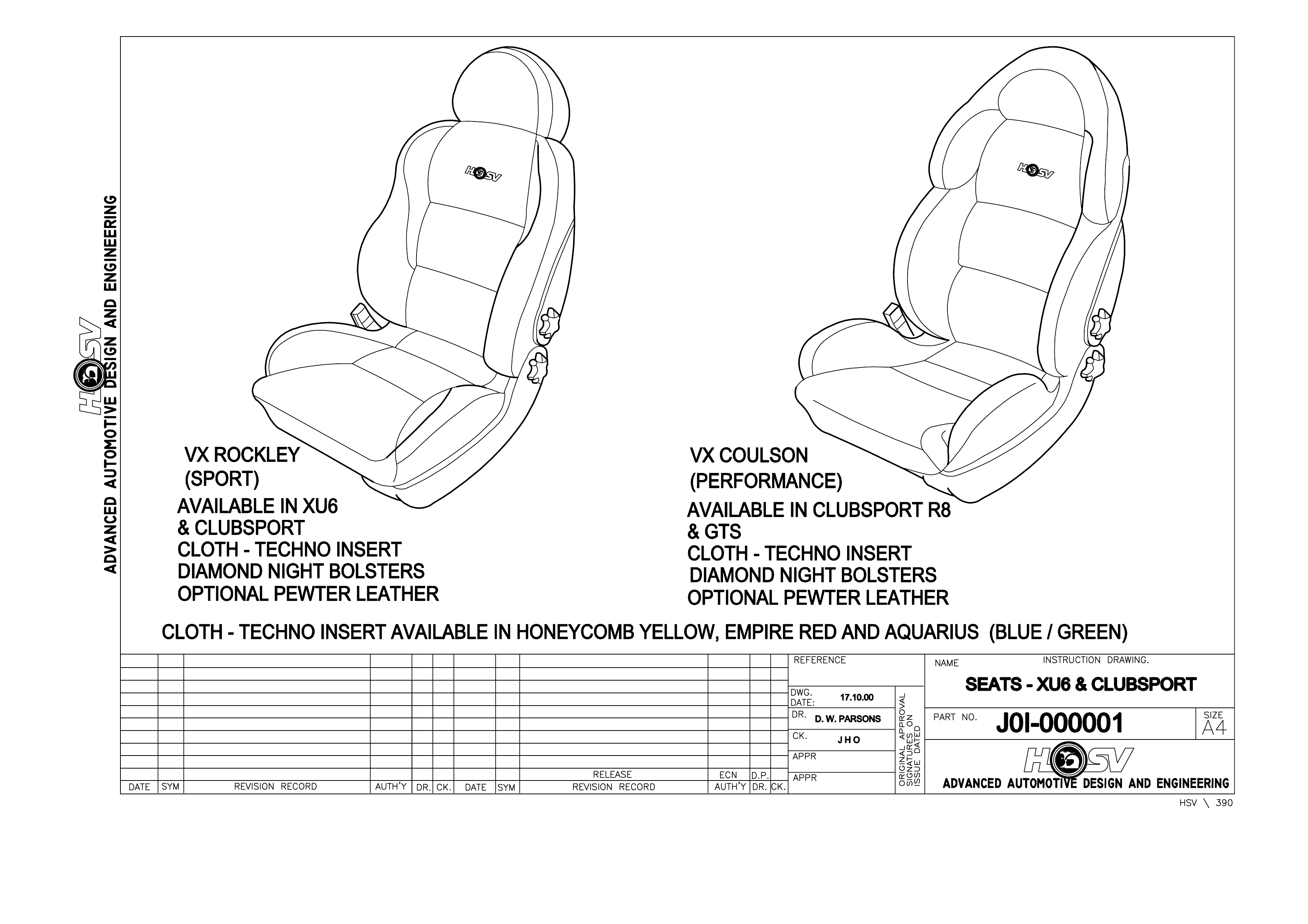

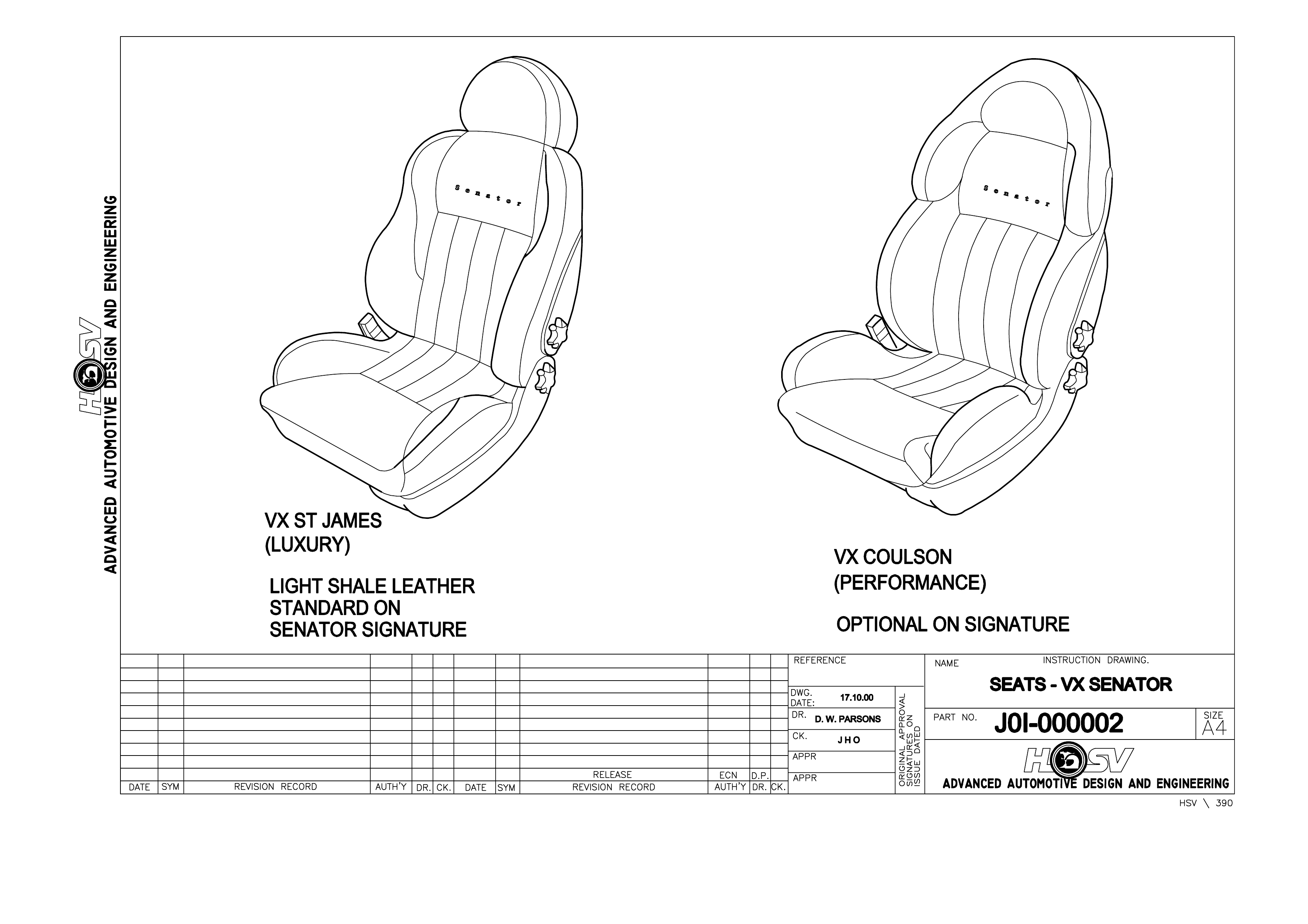

HSV VX & W H models are fitted with exclusive seat d esigns to complim ent the Sport, Perform ance or Luxury ride

pack ages of each ve hicle. The Rock ley (Sport), Cou lsen (Perform ance) and S t Jam es (Luxury) seat types (s hown

for identification purposes in Drawings JOI-000001 and JOI-000002) have specific seat pads covered in model-

specific trim material ranging from Jacquard and Velour cloth through to full leather. A full range of replacement

parts is available for each specific HSV seat item and these parts are listed in Tables B-1, B-2, B-3, B-4 and B-5.

For Grange seats refer to Section B of the HSV VT2 Workshop Information.

VX / WH SEAT KITS – FRONT AND REAR SEAT

ASM

FRONT

RH

SEAT

ASM

FRONT

LH

BACK

ASM

REAR

RH

BACK

ASM

REAR

LH

CUSHION

ASM

REAR

SEAT

FLAP

ASM

REAR

SEAT

BACK

BOLSTER

A

SM RSB

RH

BOLSTER

ASM RSB

LH COLOUR

DF GL AD AB AC

1 INT-000611 4100667 MALOO SPORT CLOTH 4100680 4100681 N/A N/A N/A N/A N/A N/A X X

2 INT-000601 4100668 XU6 / CLUBSPORT SIAB SPORT CLOTH 4100682 4100683 4100684 4100685 4100686 4100687 N/A N/A X X X

3 INT-000603 4100669 R8/GTS SIAB PERFORMANCE CLOTH 4100688 4100689 4100684 4100685 4100686 4100687 N/A N/A X X X

4 INT-000801DF 4100670 SENATOR SIAB LUXURY CLOTH 4100690 4100691 4100692 4100693 4100374 4100573 N/A N/A X

5 INT-000614DF 4100671 MALOO PERFORMANCE LEATHER 4100765 4100766 N/A N/A N/A N/A N/A N/A X

6 INT-000602DF 4100672 XU6 / CLUBSPORT SIAB SPORT LEATHER 4100694 4100695 4100696 4100697 4100698 4100699 N/A N/A X

7 INT-000604DF 4100673 R8/GTS SIAB PERFORMANCE LEATHER 4100700 4100701 4100696 4100697 4100698 4100699 N/A N/A X

8 INT-000809DF 4100674 SENATOR LUXURY LEATHER SIAB 4100702 4100703 4100704 4100705 4100564 4100565 N/A N/A X

9 INT-000808DF 4100675 SENATOR PERFORMANCE LEATHER SIAB 4100706 4100707 4100704 4100705 4100564 4100565 N/A N/A X

10 INT-000806GL 4100676 SENATOR SIGNATURE LUXURY LEATHER SIAB 4100708 4100709 4100710 4100711 4100578 4100565 N/A N/A X

11 INT-000808GL 4100677 SENATOR SIGNATURE PERFORMANCE LEATHER SIAB 4100712 4100713 4100710 4100711 4100578 4100565 N/A N/A X

12 INT-001803GL 4100678 SE NAT O R SIGNATURE ESTAT E LUXURY LEATHER SIAB 4100708 4100709 4100714 4100715 4100579 N/A 4001889 4001888 X

13 INT-001804GL 4100679 SE NAT O R SIGNATURE ESTAT E PERFORMANCE LEAT HER

SIAB 4100712 4100713 4100714 4100715 4100579 N/A 4001889 4001888 X

14 INT-001301GL 4100762 WH GRANGE LEATHER SIAB 4100763 4100764 4100404 4100405 4100403 4100406 N/A N/A X

Note: 1. From 2001, there will be a new R8/GTS part number to cover the “Sports Pack” option which will use Schmidt leather. This kit will use the two seater rear

seat cushion.

NOTE: J06 & K06 are HSV prefixes for front & rear components res pectively,

except for Grange.

J06 & K06 are HSV prefixes for front & rear components respectivel y f or

Grange.

Suffixes are one letter only, and are D (red), C (yellow), B (blue), F (DF) &

L (GL)

E.G. Lear part 4100721AD is HSV K06-4100721D, 4100731DF is HSV J06-4100731F, 4100410GL is HSV

K06-4100410L.

Table B-1

VX / WH TRIM ASSEMBLIES - FRONT AND REAR TRIM ASM

FSC TRI M ASM

FSB TRI M ASM

FS H/REST TRIM ASM

RSC TRIM ASM

RSB RH TRI M ASM

RSB LH TRIM ASM

RS

H/REST

TRIM ASM

RSB FLAP TRIM ASM

RSB

A/REST

TRIM ASM

BOLSTER

RSB RH

TRIM ASM

BOLSTER

RSB LH

1 4100667 MALOO SPORT CLOTH NON SIAB 4100751 4100753 4100718 N/A N/A N/A N/A N/A N/A N/A N/A

2 4100668 XU6 / CLUBSPORT SPORT CL OTH SIAB 4100751 4100753 4100718 4100754 4100755 4100756 N/A 4100723 4100724 N/A N/A

3 4100669 GTS/R8 PERFORMANCE CLOTH SIAB 4100757 4100758 4100727 4100754 4100755 4100756 N/A 4100723 4100724 N/A N/A

TRIM ASM

FSC TRI M ASM

FSB TRI M ASM

FS H/REST TRIM ASM

RSC TRIM ASM

RSB RH TRI M ASM

RSB LH

TRIM ASM

RS

H/REST

TRIM ASM

RSB FLAP

TRIM ASM

RSB

A/REST

TRIM ASM

BOLSTER

RSB RH

TRIM ASM

BOLSTER

RSB LH

4 4100670 SENATOR SIAB LUXURY CLOTH 4100376 4100759 4100418 4100380 4100769 4100770 4100419 4100457 4100458 N/A N/A

5 4100671 MALOO PERFORMANCE LEATHER 4100728 4100729 4100730 N/A N/A N/A N/A N/A N/A N/A N/A

6 4100672 XU6 / CLUBSPORT SIAB SPORT LEATHER 4100731 4100732 4100733 4100734 4100735 4100736 4100737 4100738 4100772 N/A N/A

7 4100673 R8/GTS SI AB PERFORMANCE LEATHER 4100728 4100729 4100730 4100734 4100735 4100736 4100737 4100738 4100772 N/A N/A

8 4100674 SENATOR LUXURY LEATHER SIAB 4100476 4100739 4100113 4100199 4100740 4100741 4100771 4100168 4100772

9 4100675 SENATOR PERFORMANCE LEATHER SIAB 4100092 4100752 4100112 4100199 4100740 4100741 4100771 4100168 4100772 N/A N/A

10 4100676 SENATOR SIGNATURE LUXURY LEATHER SIAB 4100482 4100742 4100113 4100550 4100743 4100744 4100737 4100168 4100772 N/A N/A

11 4100677 SENATOR SIGNATURE PERFORMANCE LEATHER

SIAB 4100485 4100745 4100112 4100550 4100743 4100744 4100737 4100168 4100772 N/A N/A

12 4100678 SENATOR SIGNATURE ESTATE LUXURY LEATHER

SIAB 4100482 4100742 4100113 4100551 4100746 4100747 4100737 N/A 4100241 4100192 4100193

13 4100679 SENATOR SIGNATURE ESTATE PERFORMANCE

LEATHER SIAB 4100485 4100745 4100112 4100551 4100746 4100747 4100737 N/A 4100241 4100192 4100193

TRIM ASM

FSC RH TRIM ASM

FSC LH TR I M ASM

FSB TRI M ASM

FS H/REST TRIM ASM

RSC TRIM ASM

RSB RH TRI M ASM

RSB LH

TRIM ASM

RS

H/REST

RH

TRIM ASM

RS

H/REST

LH

TRIM ASM

RSB FLAP

TRIM ASM

RSB

A/REST

LID

TRIM

ASM RSB

A/REST

BOTTOM

14 4100762 W H GRANGE LEATHER SIAB 4100586 4100407 4100408 4100409 4100410 4100412 4100411 4100416 4100416 4100413 4100414 4100415

NOTE: J06 & K06 are HSV prefixes for front & rear c om ponents respectively, except for

Grange.

J06 & K06 are HSV prefixes for front & rear components respectively for Grange.

Suffixes are one letter onl y, and are D (red), C (yell ow), B (blue), F (DF) & L (GL)

E.G. Lear part 4100721A D is HS V K 06-4100721D, 4100731DF is H SV J 06-4100731F, 4100410GL i s HSV

K06-4100410L.

Table B-2

VX / WH TRIM ASSEMBLIES - FRONT AND REAR BONDED

1/2 FSC BONDED

1/2 FSB TRI M ASM

FS H/REST BONDED

1/2 RSC BONDED

1/2 RSB

RH

BONDED

1/2 RSB

LH

TRIM ASM

RS

H/REST

TRIM

A

SM

RSB FLAP TRIM ASM

RSB

A/REST

TRIM ASM

BOLSTER

RSB RH

TRIM ASM

BOLSTER

RSB LH

1 4100667 MALOO SPORT CLOTH NON SIAB 4100716 4100717 4100718 N/A N/A N/A N/A N/A N/A N/A N/A

2 4100668 XU6 / CLUBSPORT SPO R T CL OT H SIAB 4100716 4100719 4100718 4100720 4100721 4100722 N/A 4100723 4100724 N/A N/A

3 4100669 GTS/R8 PERFORMANCE CLOTH SIAB 4100725 4100726 4100727 4100720 4100721 4100722 N/A 4100723 4100724 N/A N/A

TRIM ASM

FSC TRI M ASM

FSB TRIM ASM

FS H/REST TRIM ASM

RSC TRIM ASM

RSB RH TRI M ASM

RSB LH

TRIM ASM

RS

H/REST

TRIM ASM

RSB FLAP

TRIM ASM

RSB

A/REST

TRIM ASM

BOLSTER

RSB RH

TRIM ASM

BOLSTER

RSB LH

4 4100670 SENATOR SIAB LUXURY CLOTH 4100376 4100759 4100418 4100380 4100769 4100770 4100419 4100457 4100458 N/A N/A

5 4100671 MALOO PERFORMANCE LEATHER 4100728 4100729 4100730 N/A N/A N/A N/A N/A N/A N/A N/A

6 4100672 XU6 / CLUBSPORT SIAB SPORT LEATHER 4100731 4100732 4100733 4100734 4100735 4100736 4100737 4100738 4100772 N/A N/A

7 4100673 R8/GTS SI AB PERFOR MANCE LEATHER 4100728 4100729 4100730 4100734 4100735 4100736 4100737 4100738 4100772 N/A N/A

8 4100674 SENATOR LUXURY LEATHER SIAB 4100476 4100739 4100113 4100199 4100740 4100741 4100771 4100168 4100772

9 4100675 SENATOR PERFORMANCE LEATHER SIAB 4100092 4100752 4100112 4100199 4100740 4100741 4100771 4100168 4100772 N/A N/A

10 4100676 SENAT O R SIGNATURE LUXURY LEATHER SIAB 4100482 4100742 4100113 4100550 4100743 4100744 4100737 4100168 4100772 N/A N/A

11 4100677 SENATOR SIGNATURE PERFORMANCE LEATHER

SIAB 4100485 4100745 4100112 4100550 4100743 4100744 4100737 4100168 4100772 N/A N/A

12 4100678 SENATOR SIGNATURE ESTATE LUXURY LEATHER

SIAB 4100482 4100742 4100113 4100551 4100746 4100747 4100737 N/A 4100241 4100192 4100193

13 4100679 SENATOR SIGNATURE ESTATE PERFORMANCE

LEATHER SIAB 4100485 4100745 4100112 4100551 4100746 4100747 4100737 N/A 4100241 4100192 4100193

TRIM ASM

FSC RH TRIM ASM

FSC LH TRIM ASM

FSB TRIM ASM

FS H/REST TRI M ASM

RSC TRIM ASM

RSB RH TRI M ASM

RSB LH

TRIM ASM

RS

H/REST

RH

TRIM ASM

RS

H/REST

LH

TRIM ASM

RSB FLAP

TRIM ASM

RSB

A/REST

LID

TRIM

ASM RSB

A/REST

COMPAR

TMENT

14 4100762 WH GRANGE LEATHER SIAB 4100586 4100407 4100408 4100409 4100410 4100412 4100411 4100416 4100416 4100413 4100414 4100415

NOTE: J06 & K06 are HSV prefixes for front & rear components respect ively, except for

Grange.

J06 & K06 are HSV prefixes for front & rear c omponents respectively for Grange.

Suf fixes are one lett er onl y, and are D (red), C (yell ow), B (blue), F (DF) & L (GL)

E.G. Lear part 4100721A D is HS V K 06-4100721D, 4100731DF is H SV J 06-4100731F, 4100410GL i s HSV

K06-4100410L.

Table B-3

VX / WH FRAMES - FRONT AND REAR FRONT SEAT

CUSHION FRONT SEAT

BACK RH FRONT SEAT

BACK LH REAR SEAT

CUSHION

1 4100667 MALOO SPORT CLOTH 4100237 4002435 4002437

2 4100668 XU6 / CLUBSPORT SIAB SPORT CLOTH 4100237 4002774 4002775 4002223

3 4100669 R8/GTS SIAB PERFORMANCE CLOTH 4100237 4002774 4002775 4002223

4 4100670 SENATOR SIAB LUXURY CLOTH 4100237 4002774 4002775 4002223

5 4100671 MALOO PERFORMANCE LEATHER 4100237 4100748 4100749

6 4100672 XU6 / CLUBSPORT SIAB SPORT LEATHER 4100237 4002774 4002775 4002223

7 4100673 R8/GTS SIAB PERFORMANCE LEATHER 4100237 4002774 4002775 4002223

8 4100674 SENATOR LUXURY LEATHER SIAB 4100237 4002774 4002775 4002223

9 4100675 SEN ATOR PERFOR MANCE LEATH ER SI AB 4100237 4002774 4002775 4002223

10 4100676 SENATOR SIGNATURE LUXURY LEATHER SIAB 4100237 4002777 4002778 4002223

11 4100677 SENATOR SIGNATURE PERFORMANCE L EATHE R SIAB 4100237 4002777 4002778 4002223

12 4100678 SENATOR SI G NATURE ESTA TE LUXURY L EATHE R SIAB 4100237 4002777 4002778 4001111

13 4100679 SENATOR SI G NATURE ESTATE PERFORMANCE LEATHER SIAB 4100237 4002777 4002778 4001111

14 4100762 WH GRANGE LEATHER SIAB 4001139 4002779 4002778 4002223

Table B-4

VX / WH PADS - FRONT AND REAR FRONT

SEAT

CUSHION

FRONT

SEAT

BACK

FRONT

SEAT

HEADREST

REAR SEAT

CUSHION REAR SEAT

BACK RH REAR SEAT

BACK LH REAR SEAT

HEADREST REAR SEAT

FLAP REAR SEAT

A/REST

1 4100667 MALOO SPORT CLOTH 4100118 4100115 4100152 N/A N/A N/A N/A N/A N/A

2 4100668 XU6 / CLUBSPORT SIAB SPORT CLOTH 4100118 4100422 4100152 4100121 4100124 4100125 N/A 4001452 4002236

3 4100669 R8/GTS SIAB PERFORMANCE CLOTH 4100119 4100423 4100153 4100121 4100124 4100125 N/A 4001452 4002236

4 4100670 SENATOR SIAB LUXURY CLOTH 4100120 4100424 4100152 4100123 4100128 4100129 4002948 4001452 4002236

5 4100671 MALOO PERFORMANCE LEATHER 4100234 4100233 4100153 N/A N/A N/A N/A N/A N/A

6 4100672 XU6 / CLUBSPORT SIAB SPORT LEATHER 4100120 4100424 4100152 4100123 4100128 4100129 4002948 4001452 4002236

7 4100673 R8/GTS SIAB PERFORMANCE LEATHER 4100234 4100425 4100153 4100123 4100128 4100129 4002948 4001452 4002236

8 4100674 SENATOR LUXURY LEATHER SIAB 4100120 4100424 4100152 4100123 4100128 4100129 4002948 4001452 4002236

9 4100675 SENA TO R PER FORMANCE L EATHER SIAB 4100234 4100425 4100153 4100123 4100128 4100129 4002948 4001452 4002236

10 4100676 SENATOR SIG NATURE LUXURY LEATH ER SI AB 4100430 4100426 4100152 4100427 4100428 4100429 4002948 4001452 4002236

11 4100677 SENATOR SIGNATURE PERFORMANCE LEAT HER SIAB 4100453 4100452 4100153 4100427 4100428 4100429 4002948 4001452 4002236

12 4100678 SENATOR SIGNATURE ESTAT E L UXU RY LEAT HER SIAB 4100430 4100426 4100152 4100456 4100454 4100455 4002948 4001452 4002236

13 4100679 SENATOR SIGNATURE ESTATE PERFORMANCE LEATHER

SIAB 4100453 4100452 4100153 4100456 4100454 4100455 4002948 4001452 4002236

14 4100762 WH GRANGE LEATHER SIAB 4100517 4100516 4002908 4100520 4100518 4100519 4002172 4002939 N/A

Table B-5

CLUBSPORT 255 LS1 SEDAN

1. CLUBSPORT 255 LS1 SEDAN

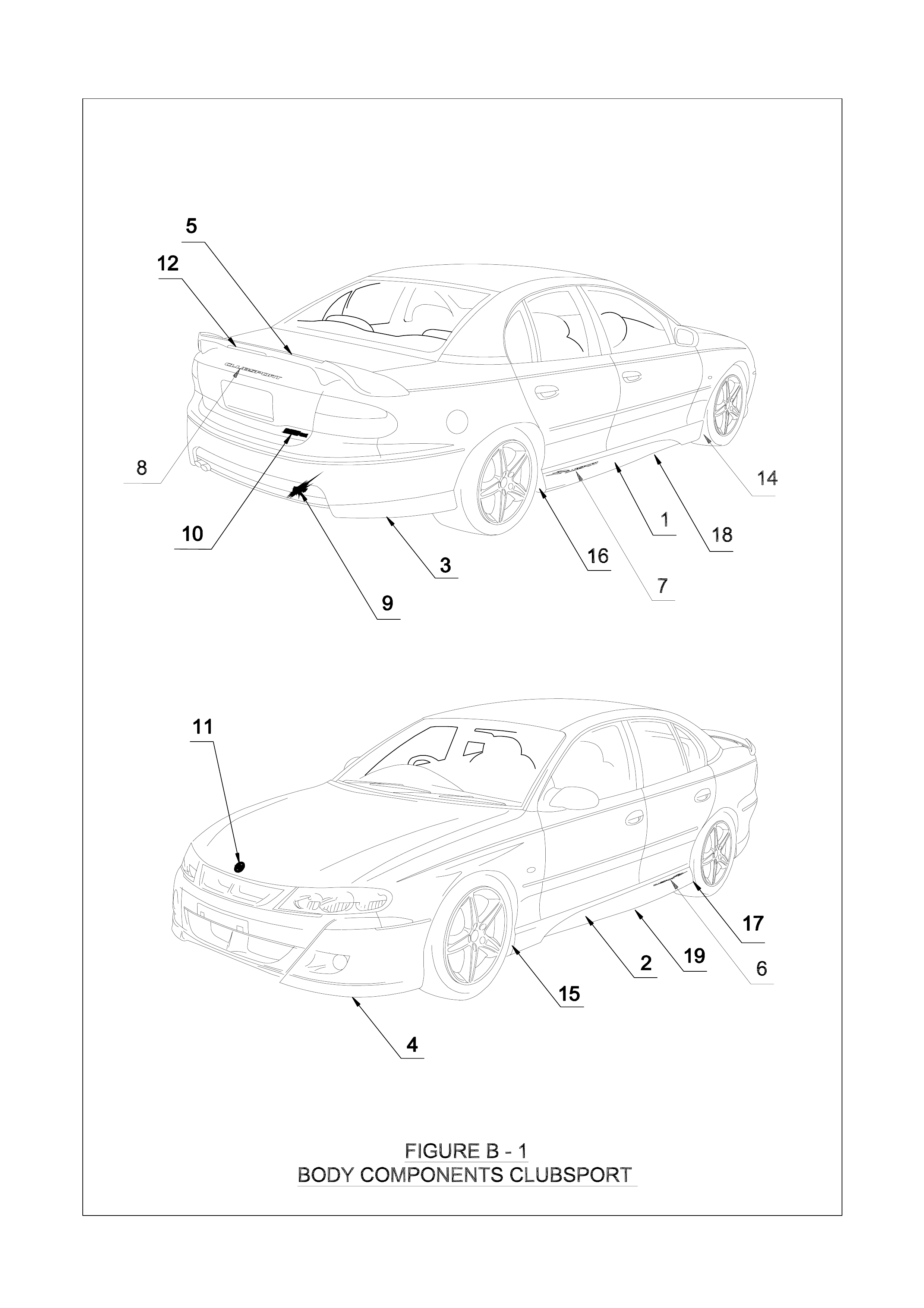

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-000802 1 SIDE SKIRT RH B-1 1

A08-000801 1 SIDE SKIRT LH B-1 2

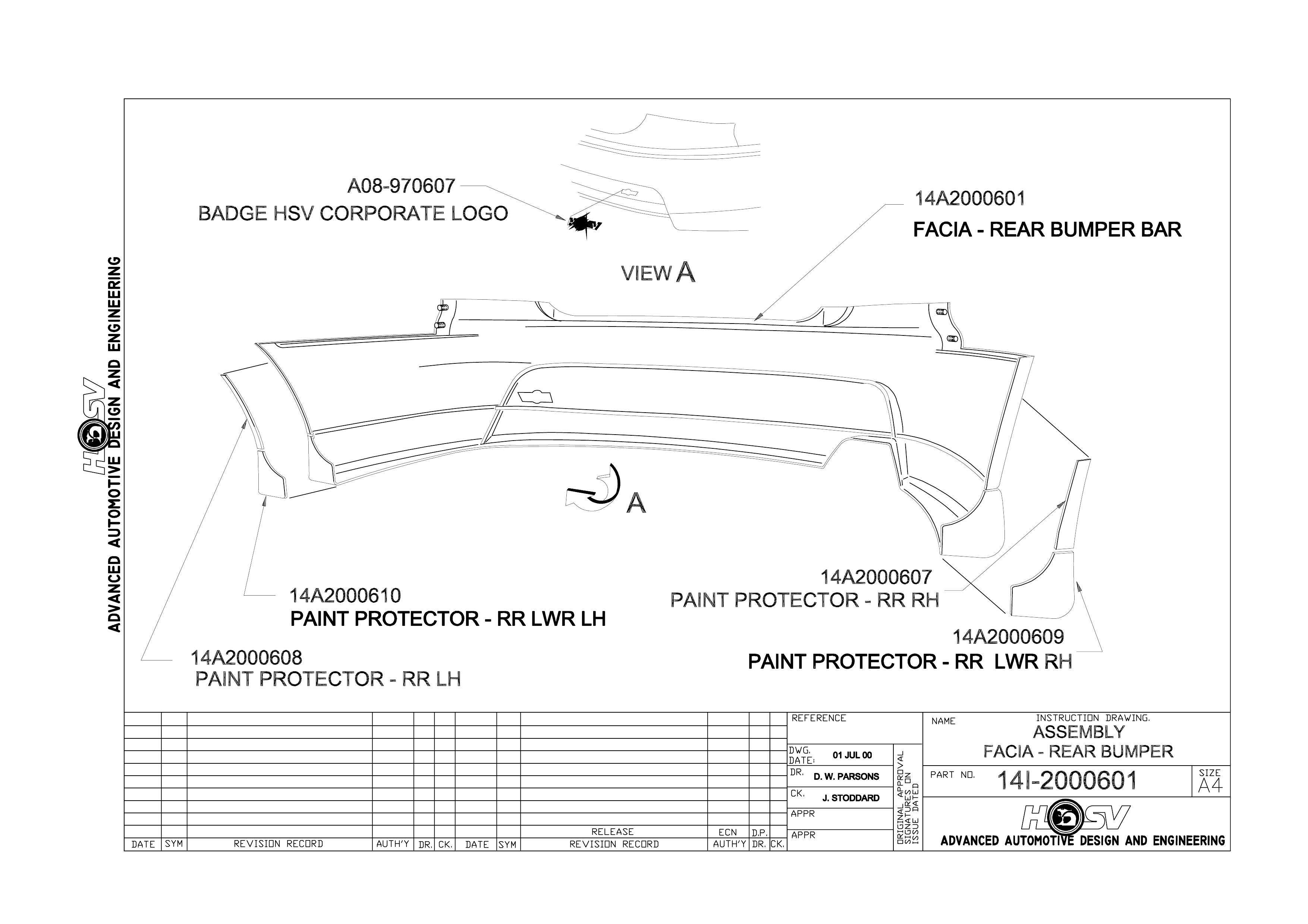

14A2000601 1 REAR FACIA – HSV VX B-1 3

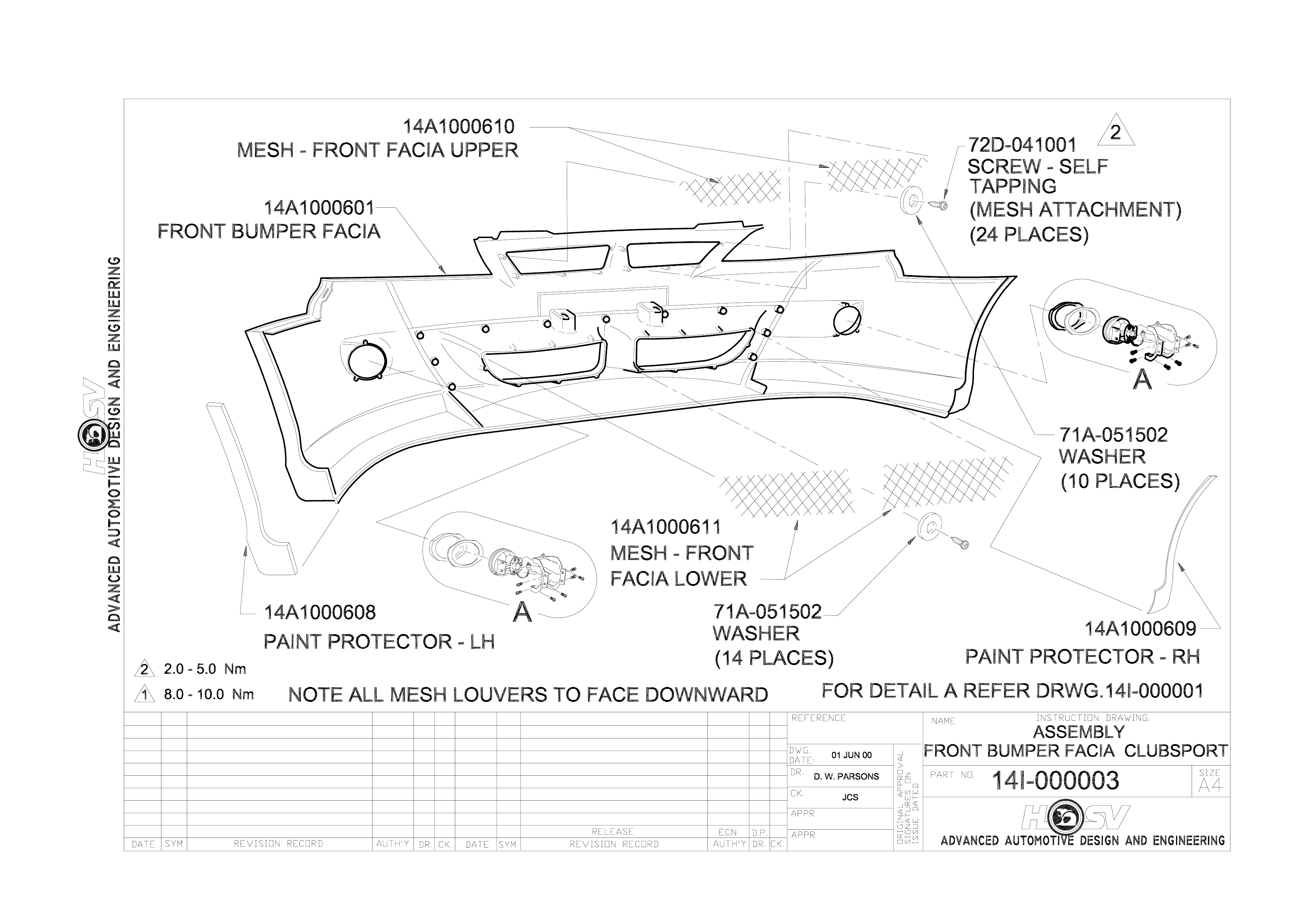

14A1000601 1 FRONT FACIA - LEVEL 1 – HSV VX B-1 4

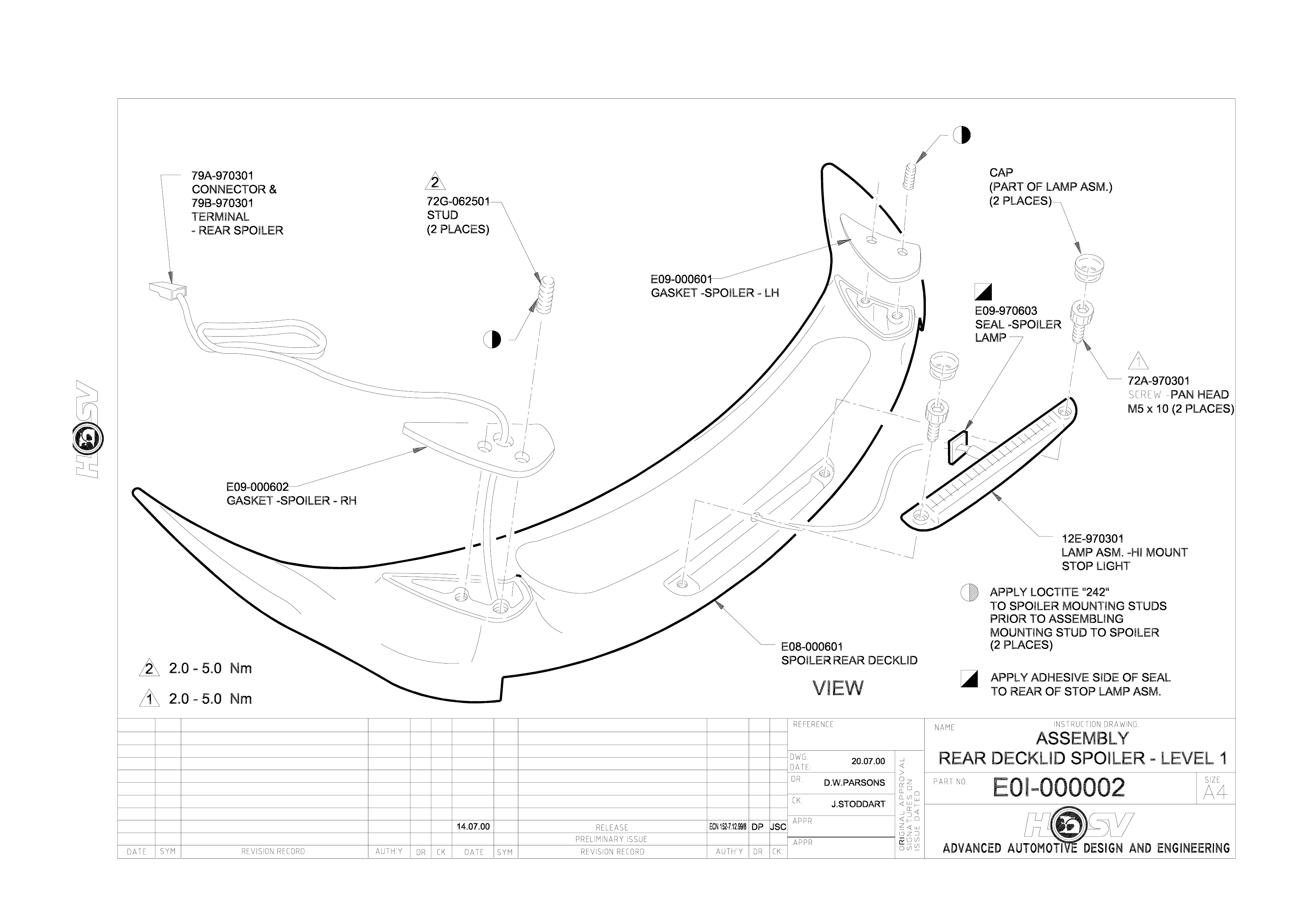

E08-000601 1 SPOILER - LEVEL 1 - HSV VX B-1 5

E08-000606 1 BADGE - CLUBSPORT LH B-1 6

E08-000607 1 BADGE - CLUBSPORT RH B-1 7

E08-000602 1 BADGE - CLUBSPORT REAR B-1 8

E08-970607 1 BADGE – CORPORATE B-1 9

E08-000608C2 1 BADGE – 255 LS1 (SILVER) B-1 10

B08-970301 1 BADGE – LION & HELMET (BONNET) B-1 11

I2-970301 1 LAMP ASM – HIGH MOUNT STOP LAMP B-1 12

A08-000603 1 PAINT PROTECTOR-SIDE SKIRT FRT RH B-1 13

A08-000604 1 PAINT PROTECTOR-SIDE SKIRT-FRT LH B-1 14

A08-000605 1 PAINT PROTECTOR-SIDE SKIRT-RR RH B-1 15

A08-000606 1 PAINT PROTECTOR-SIDE SKIRT-RR LH B-1 16

A08-000609 1 PAINT PROTECTOR SIDE SKIRT-SIDE RH B-1 17

A08-000610 1 PAINT PROTECTOR SIDE SKIRT-SIDE LH B-1 18

2. SERVICE OPERATIONS

When servicing the ClubSport 255 LS1 Sedan body components, refer to Figures B-1, B-7A, EO1-000002, 14I-

000001, 14I-000003 and 14I-200601 to obtain the necessary information on the correct location of each

component.

CLUBSPORT 255 LS1 ‘R8’ SEDAN

3. CLUBSPORT 255 LS1 ‘R8’ SEDAN

CONTENTS OF BODY STYLING PACKAGE

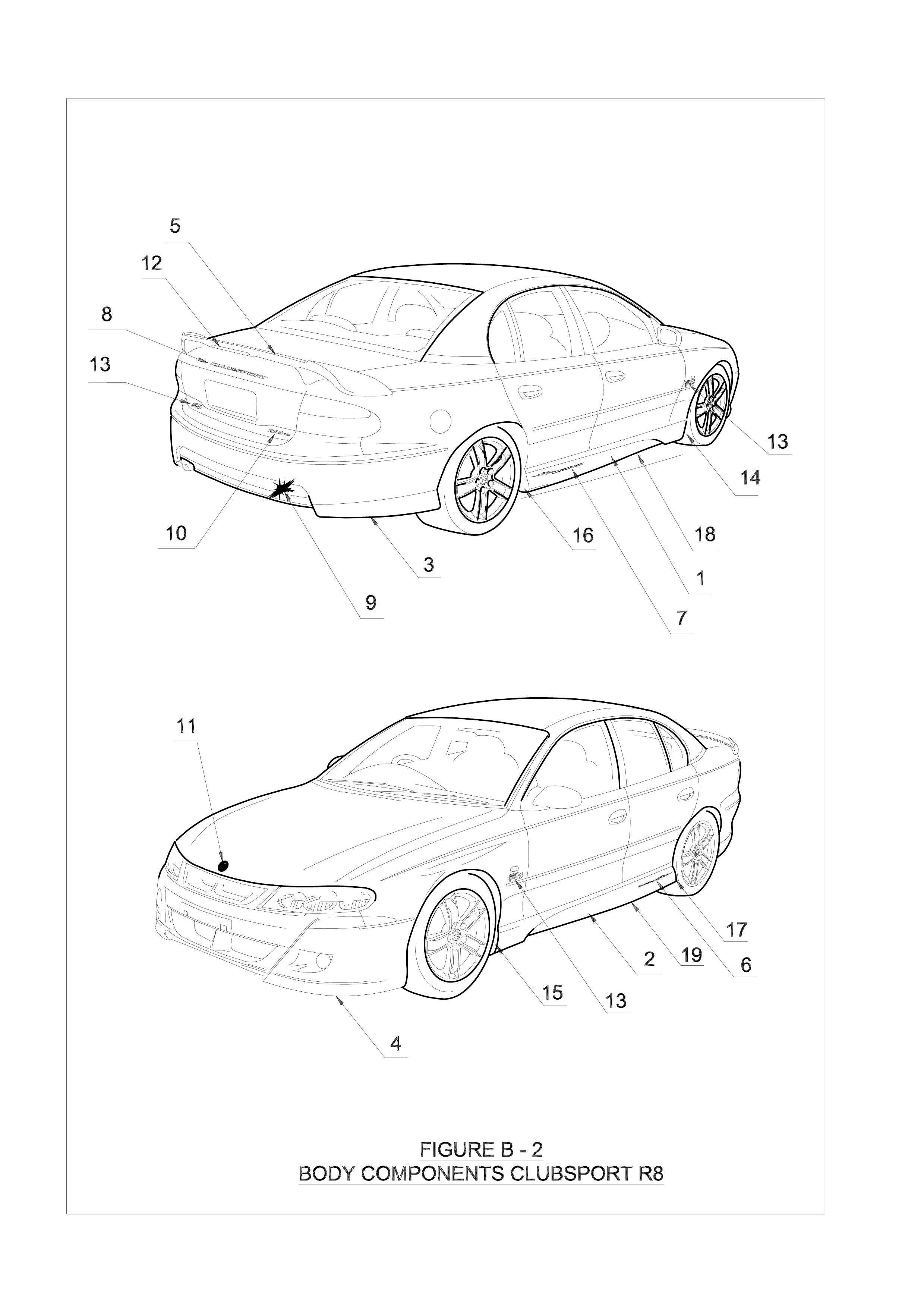

PART No QTY DESCRIPTIONS FIGURE REF

A08-000802 1 SIDE SKIRT RH B-2 1

A08-000801 1 SIDE SKIRT LH B-2 2

14A2000601 1 REAR FACIA – HSV VX B-2 3

14A1000601 1 FRONT FACIA - LEVEL 1 – HSV VX B-2 4

E08-000601 1 SPOILER - LEVEL 1 - HSV VX B-2 5

E08-000606 1 BADGE - CLUBSPORT LH B-2 6

E08-000607 1 BADGE - CLUBSPORT RH B-2 7

E08-000602 1 BADGE - CLUBSPORT REAR B-2 8

E08-970607 1 BADGE – CORPORATE B-2 9

E08-000608C2 1 BADGE – 255 LS1 (SILVER) B-2 10

B08-970301 1 BADGE – LION & HELMET (BONNET) B-2 11

I2-970301 1 LAMP ASM – HIGH MOUNT STOP LAMP B-2 12

E08-990605 3 BADGE – R8 B-2 13

A08-000603 1 PAINT PROTECTOR-SIDE SKIRT FRT RH B-2 14

A08-000604 1 PAINT PROTECTOR-SIDE SKIRT-FRT LH B-2 15

A08-000605 1 PAINT PROTECTOR-SIDE SKIRT-RR RH B-2 16

A08-000606 1 PAINT PROTECTOR-SIDE SKIRT-RR LH B-2 17

A08-000609 1 PAINT PROTECTOR SIDE SKIRT-SIDE RH B-2 18

A08-000610 1 PAINT PROTECTOR SIDE SKIRT-SIDE LH B-2 19

4. SERVICE OPERATIONS

When servicing the ClubSport 255 LS1 'R8' Sedan body components, refer to Figures B-2, B-7B, E0I-000002,

14I-000001, 14I000003 and 14I-200601 to obtain the necessary information on the correct location of each

component.

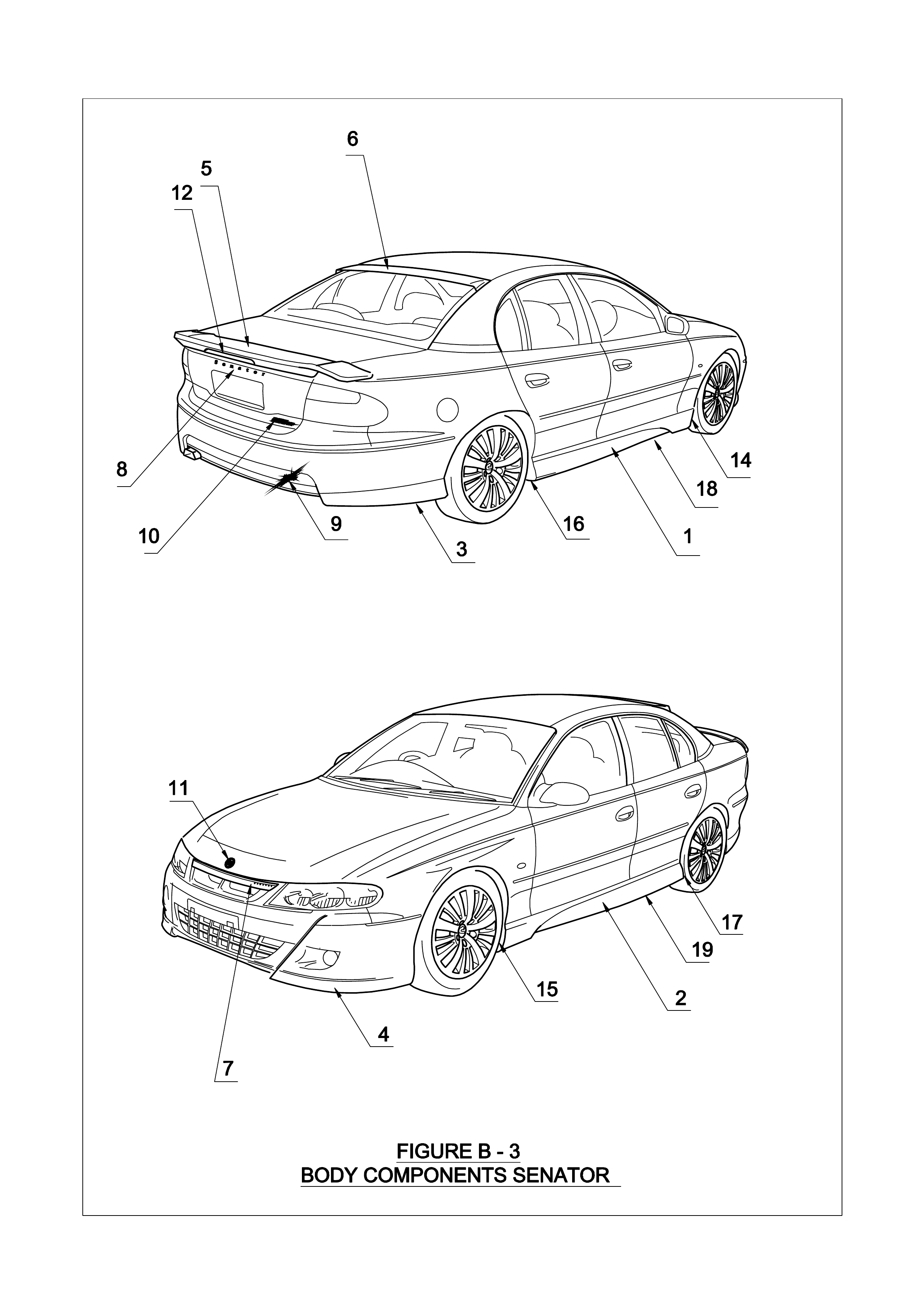

SENATOR 255 LS1 SEDAN

5. SENATOR 255 LS1 SEDAN

GROUP 1A- BODY COMPONENTS

PART No QTY DESCRIPTIONS FIGURE REF

A08-000802 1 SIDE SKIRT RH B-3 1

A08-000801 1 SIDE SKIRT LH B-3 2

14A2000601 1 REAR FACIA – HSV VX B-3 3

14A1000801 1 FRONT FACIA – LEVEL 2 HSV VX B-3 4

E08-000801 1 SPOILER – LEVEL 2 HSV VX B-3 5

E08-000802 1 SPOILER – ROOF – LEVEL 2 HSV VX B-3 6

13C-000801 1 APPLIQUE – LEVEL 2 B-3 7

E08-000803 1 BADGE – SENATOR B-3 8

E08-970607 1 BADGE – CORPORATE LOGO B-3 9

E08-000608B8 1 BADGE – 255 LS1 (CHROME) B-3 10

B08-970301 1 BADGE – LION & HELMET (BONNET) B-3 11

I2-970301 1 LAMP ASM – HIGH MOUNT STOP AMP B-3 12

A08-000603 1

PAINT PROTECTOR-SIDE SKIRT-FRT

RH B-3 13

A08-000604 1 PAINT PROTECTOR-SIDE SKIRT-FRT-LH B-3 14

A08-000605 1 PAINT PROTECTOR-SIDE SKIRT-RR RH B-3 15

A08-000606 1 PAINT PROTECTOR-SIDE SKIRT-RR LH B-3 16

A08-000609 1 PAINT PROTECTOR-SIDE SKIRT-SIDE RH B-3 17

A08-000610 1 PAINT PROTECTOR SIDE SKIRT-SIDE LH B-3 18

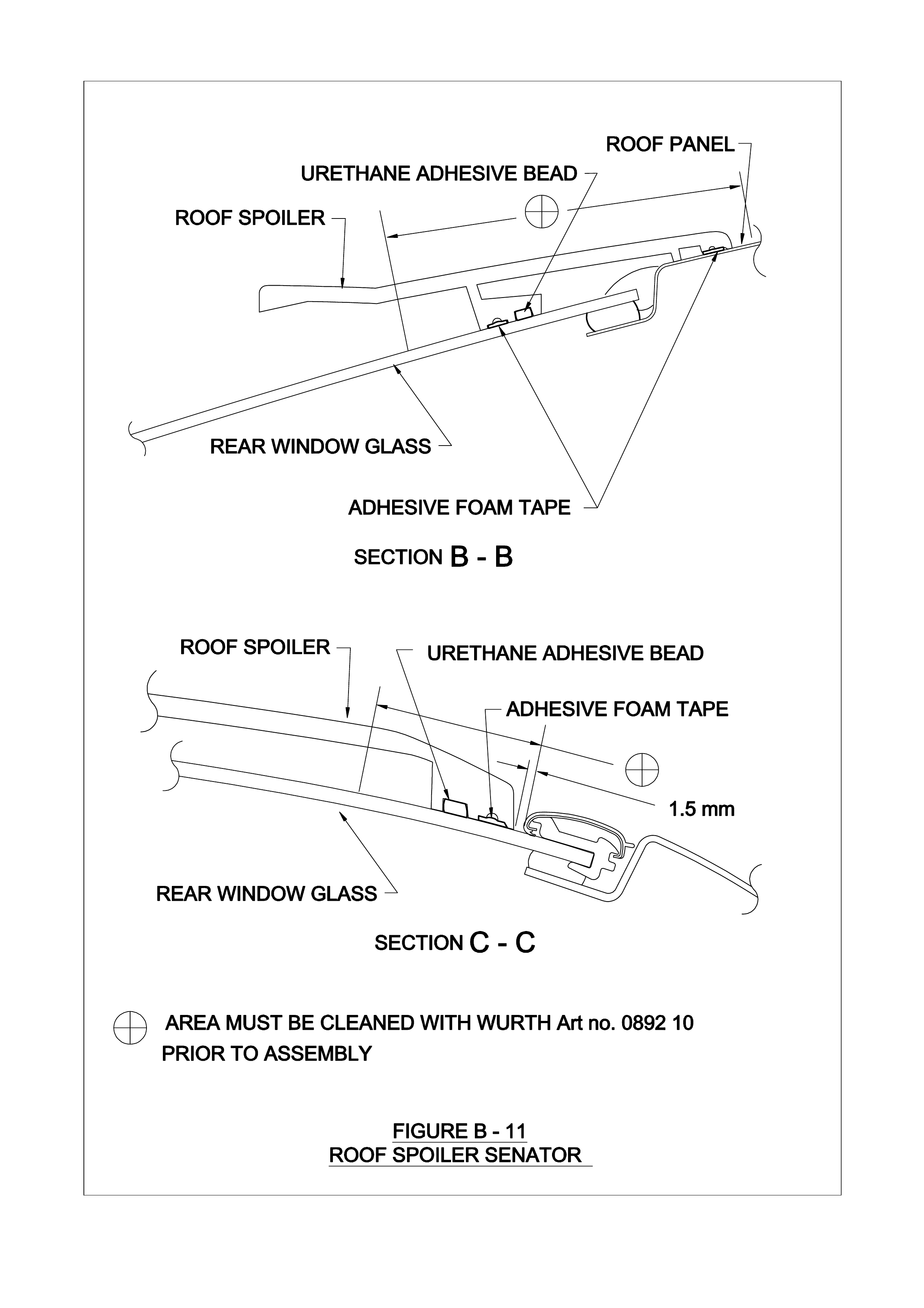

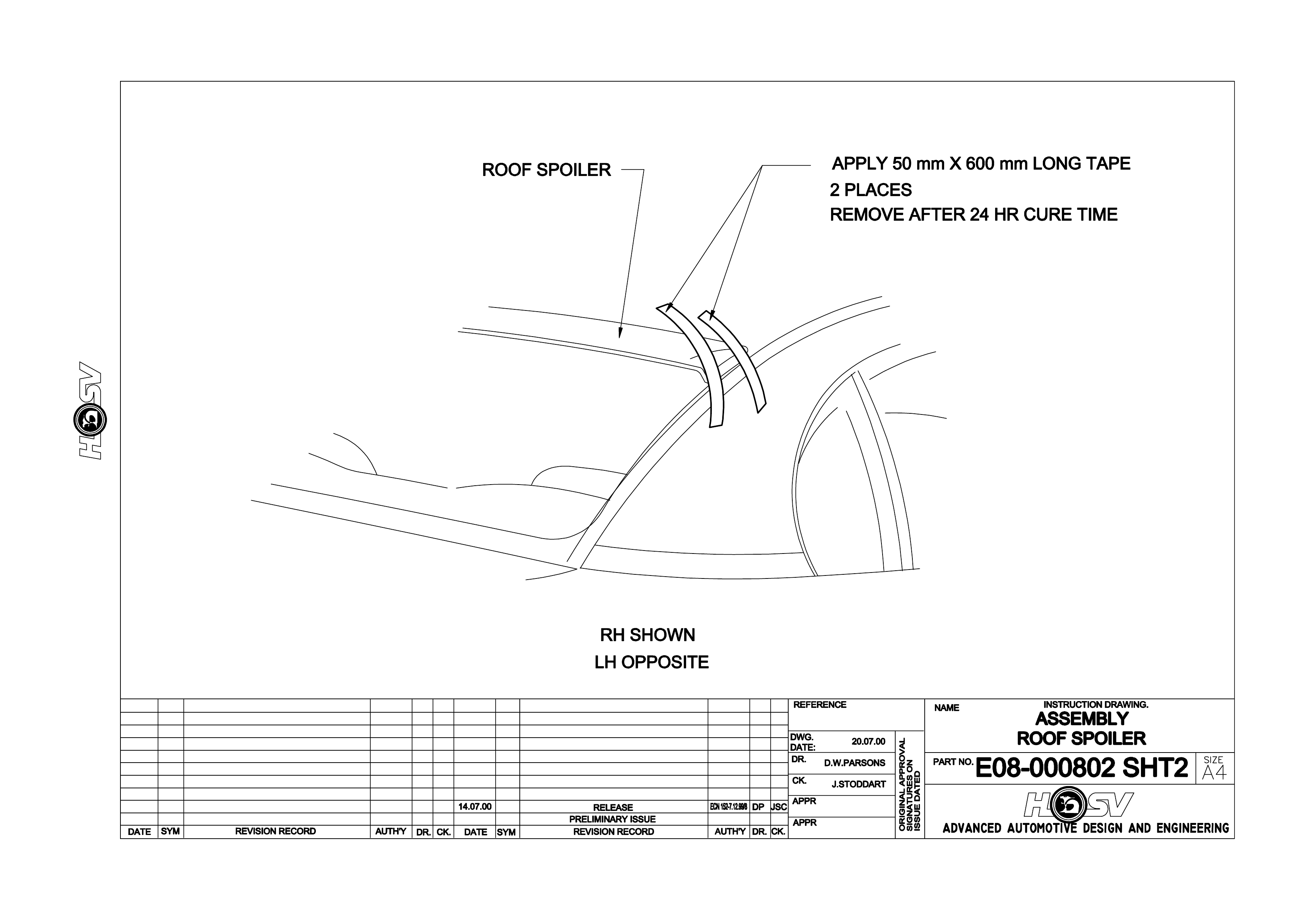

6. SERVICE OPERATIONS

W hen servicing the Senato r 255 LS1 Sedan bod y com ponents, ref er to Figures B-3, B-8, B-10, B-11, E0I-000001,

E08-000802 Sheet 1 and Sheet 2, 13C-000801, 14I-000001 and 14I-2000601 t o obtain the necess ary information

on the correct location of each component.

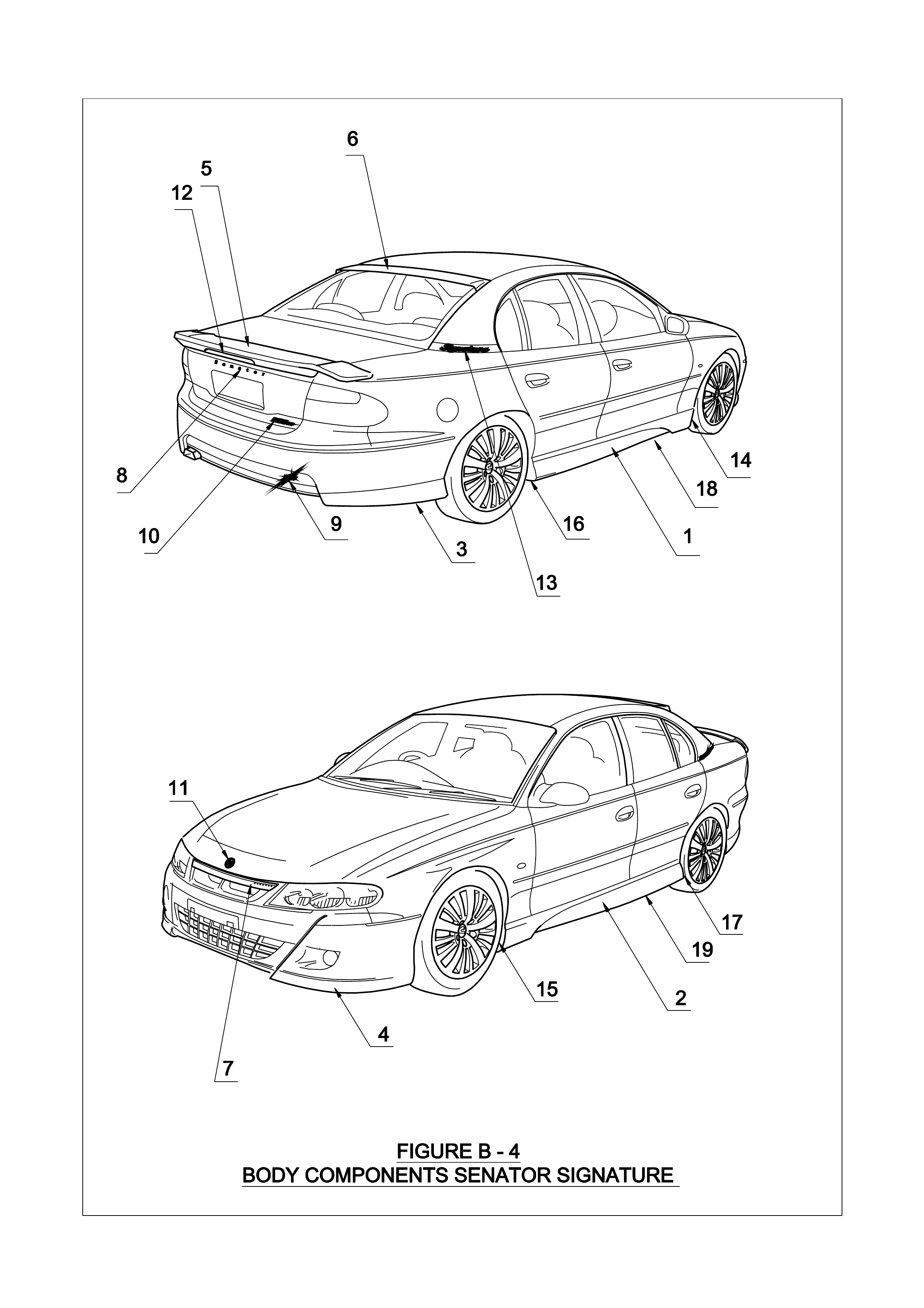

SENATOR SIGNATURE 255 LS1 SEDAN

7. SENATOR SIGNATURE 255 LS1 SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-000802 1 SIDE SKIRT RH B-4 1

A08-000801 1 SIDE SKIRT LH B-4 2

14A2000601 1 REAR FACIA – HSV VX B-4 3

14A1000806 1 FRONT FACIA – LEVEL 2 HSV VX B-4 4

E08-000801 1 SPOILER – LEVEL 2 HSV VX B-4 5

E08-000802 1 SPOILER ROOF – LEVEL 2 HSV VX B-4 6

13C-000801 1 APPLIQUE – LEVEL 2 B-4 7

E08-000803 1 BADGE – SENATOR B-4 8

E08-970607 1 BADGE – CORPORATE B-4 9

E08-000608B8 1 BADGE – 255 LS1 (CHROME) B-4 10

B08-970301 1 BADGE – LION & HELMET (BONNET) B-4 11

I2-970301 1 LAMP ASM – HIGH MOUNT STOP AMP B-4 12

E08-970807 2 BADGE - SIGNATURE B-4 13

A08-000603 1 PAINT PROTECTOR-SIDE SKIRT-FRT RH B-4 14

A08-000604 1 PAINT PROTECTOR-SIDE SKIRT-FRT LH B-4 15

A08-000605 1 PAINT PROTECTOR-SIDE SKIRT-RR RH B-4 16

A08-000606 1 PAINT PROTECTOR-SIDE SKIRT-RR LH B-4 17

A08-000609 1 PAINT PROTECTOR-SIDE SKIRT-SIDE RH B-4 18

A08-000610 1 PAINT PROTECTOR-SIDE SKIRT-SIDE LH B-4 19

8. SERVICE OPERATIONS

When servicing the Senator Signature 255 LS1 Sedan body components, refer to Figures B-4, B-8, B-10, B-11,

EOI-000001, EO8-000802 Sheet 1 and Sheet 2, 13C-000801, 12I-000001, 14I000001, 14I-000002 and 14I-

2000601 to obtain the necessary information on the correct location of each component.

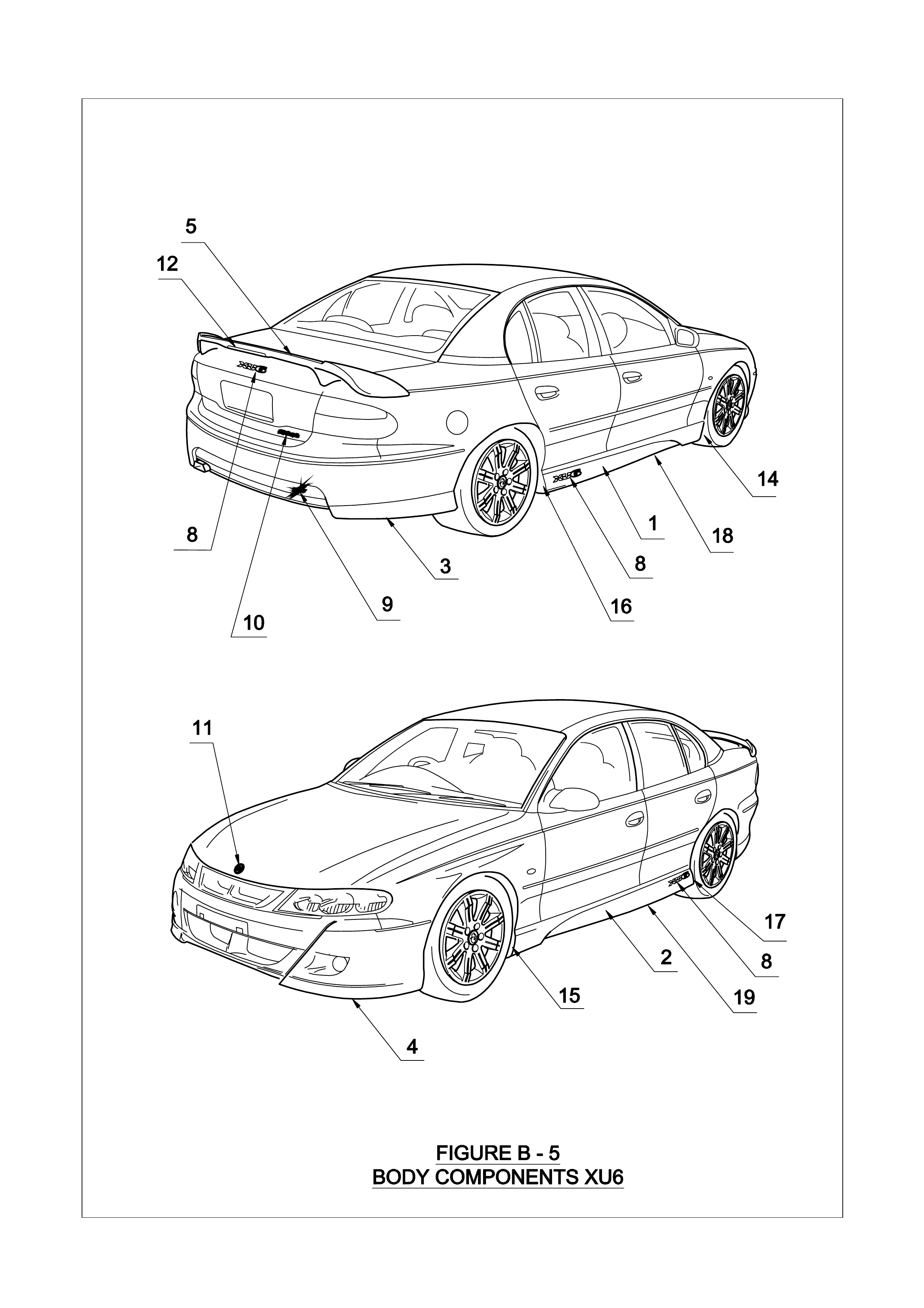

XU6 SEDAN

9. XU6 SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-000802 1 SIDE SKIRT RH B-5 1

A08-000801 1 SIDE SKIRT LH B-5 2

14A2000601 1 REAR FACIA HSV VX B-5 3

14A1000601 1 FRONT FACIA – LEVEL 1 HSV VX B-5 4

E08-000601 1 SPOILER – LEVEL 1 HSV VX B-5 5

E08-001703 1 BADGE – XU6 LH B-5 6

E08-001704 1 BADGE – XU6 RH B-5 7

E08-001701 1 BADGE – XU6 REAR B-5 8

E08-970607 1 BADGE – CORPORATE B-5 9

E08-990401C2 1 BADGE – 180 S/C (SILVER) B-5 10

B08-970301 1 BADGE – LION & HELMET (BONNET) B-5 11

I2-970301 1 LAMP ASM – HIGH MOUNT STOP AMP B-5 12

A08-000603 1 PAINT PROTECTOR-SIDE SKIRT-FRT RH B-5 13

A08-000604 1 PAINT PROTECTOR-SIDE SKIRT-FRT LH B-5 14

A08-000605 1 PAINT PROTECTOR-SIDE SKIRT-RR RH B-5 15

A08-000606 1 PAINT PROTECTOR-SIDE SKIRT RR LH B-5 16

A08-000609 1 PAINT PROTECTOR-SIDE SKIRT SIDE RH B-5 17

A08-000610 1 PAINT PROTECTOR-SIDE SKIRT SIDE LH B-5 18

10. SERVIC E OPERATIONS

When servicing the XU6 Sedan body components, refer to Figures B-5, B-7C, E01-000002, 14I-000001, 14I000003

and 14I000601 to obtain the necessary information on the correct location of each component.

GTS SEDAN

11. GTS SEDAN

CONTENTS OF BODY STYLING PACKAGE

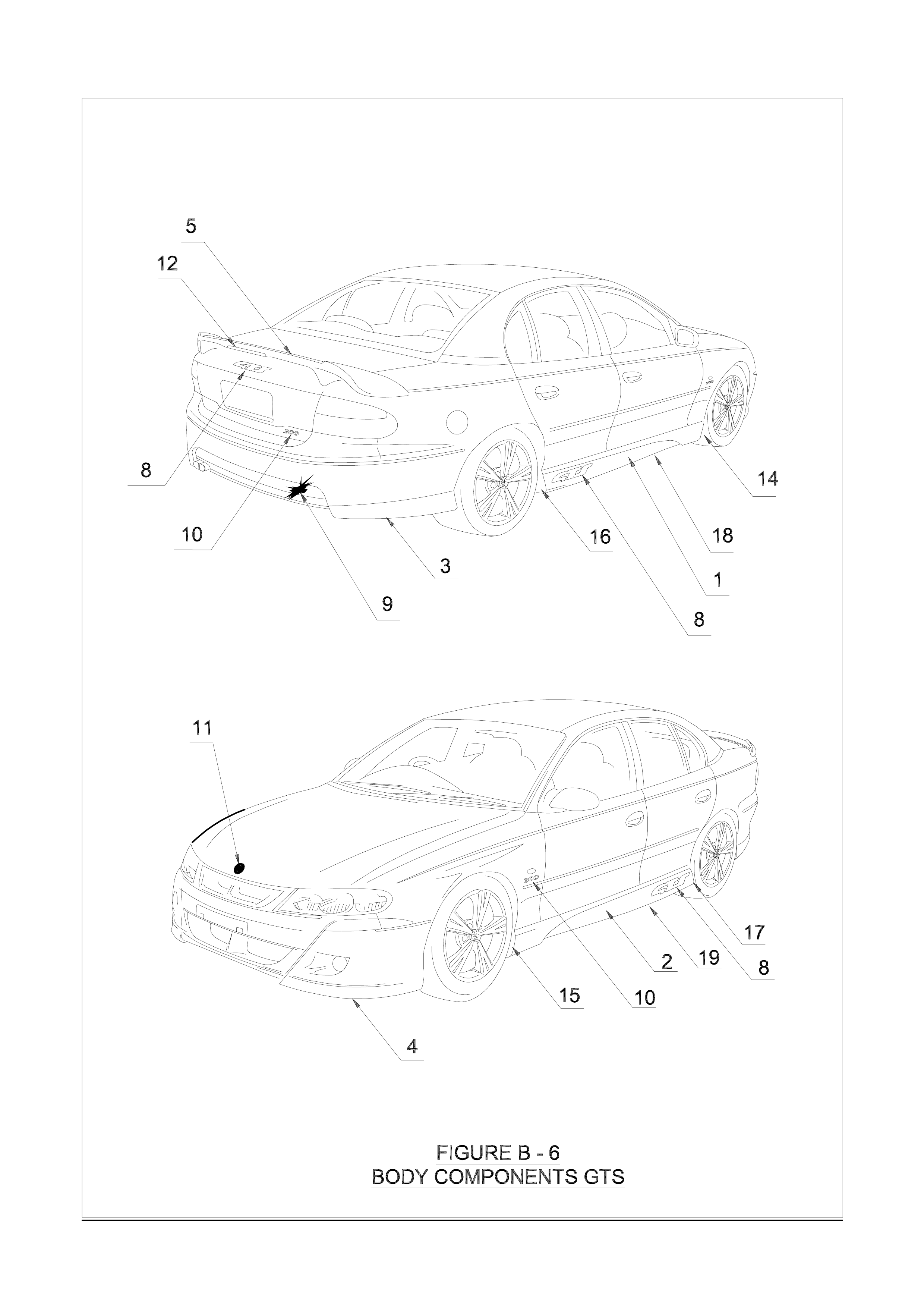

PART No QTY DESCRIPTIONS FIGURE REF

A08-000802 1 SIDE SKIRT RH B-6 1

A08-000801 1 SIDE SKIRT LH B-6 2

14A2000601 1 REAR FACIA HSV VX B-6 3

14A1000301 1 FRONT FACIA – LEVEL 1 HSV VX B-6 4

E08-000601 1 SPOILER – LEVEL 1 HSV VX B-6 5

E08-000703 1 BADGE – GTS LH (C8) B-6 6

E08-000704 1 BADGE – GTS RH (C8) B-6 7

E08-000701 1 BADGE – GTS REAR (C8) B-6 8

E08-970607 1 BADGE – CORPORATE B-6 9

E08-990702 3 BADGE – 300 B-6 10

B08-970301 1 BADGE – LION & HELMET (BONNET) B-6 11

I2-970301 1 LAMP ASM – HIGH MOUNT STOP AMP B-6 12

A08-000603 1 PAINT PROTECTOR-SIDE SKIRT-RR LH B-6 13

A08-000604 1 PAINT PROTECTOR-SIDE SKIRT-RR RH B-6 14

A08-000605 1 PAINT PROTECTOR-SIDE SKIRT-FRT LH B-6 15

A08-000606 1 PAINT PROTECTOR-SIDE SKIRT-FRT RH B-6 16

A08-000609 1 PAINT PROTECTOR-SIDE SKIRT-SIDE RH B-6 17

A08-000610 1 PAINT PROTECTOR-SIDE SKIRT-SIDE LH B-6 18

12. SERVIC E OPERATIONS

W hen servicing the G TS 300 sed an body com ponents , refer to Fig ures B-6, B-9, E0I-000002, 14I-000001, 14I-

000004 and 14I-200601 to obtain the necessary information on the correct location of each component.

GRANGE 180 S/C AND 255 LS1 SEDAN

13. GRANGE 180 S/C and 255 LS1 Sedan

For contents of the body styling package refer to Section B of the HSV VT Series II Workshop Information.

14. SERVICE OPERATIONS

W hen servicing t he W H Grange 180 S/C an d 255 LS 1 Sedan body com ponents r efer to Section B of the H SV VT

Series II Workshop Information.

CLUBSPORT

CLUBSPORT R8

XU6

SENATOR

GTS

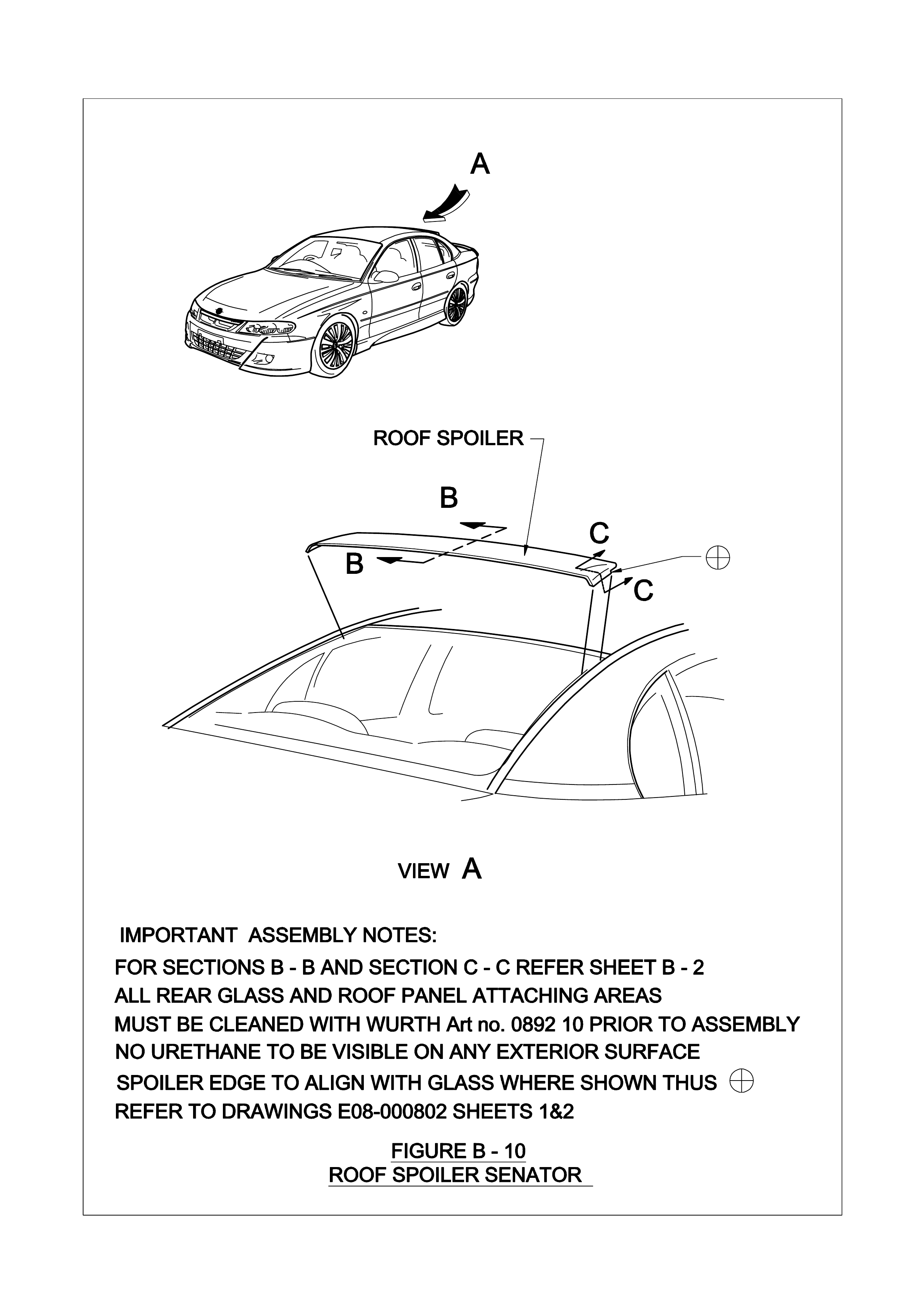

ROOF SPOILER - SENATOR

REAR DECK LID SPOILER – LEVEL 1

REAR DECK LID SPOILER – LEVEL 2

ROOF SPOILER

APPLIQUE – FRONT BUMPER

FOG LAMP – FRONT BUMPER FACIA

FRONT BUMPER FACIA - SENATOR

FRONT BUMPER FACIA - CLUBSPORT

FRONT BUMPER FACIA - GTS

FACIA – REAR BUMPER
