SECTION B - BODY

CAUTION:

HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt

pre-tensioners (fitted to all front seats), and a driver’s-side air bag or a driver’s-side air bag AND a

passenge r’s-sid e air bag and left and righ t hand side ai r bags. . Ref er to C AUT IONS, Se ction 12M , o f the

VT Series I Service Information or Section 12M, of the HSV VT Series II Service Information before

performing any service operation on or around SRS components, the steering mechanism or wiring.

Failure to follow the CAUTIONS could result in personal injury or unnecessary SRS syste m repairs.

PURPOSE

The purpos e of this sectio n is to pro vide inf ormation on the bod y and bod y com ponents fitted to H SV VT and HSV

VS & W H vehicles . T he info rm ation is d esig ned to su pplem ent the inf orm ation conta ined in the Hol den VT and VS

& WH Series Service Manuals, and details are given where differences occur between the HSV models and

standard Holden models. A series of instruction drawings describe the design changes and indicate specific part

numbers, fitting instructions and relevant notes for vehicle servicing.

NOTE:

If specific technical data on a HSV model is not contained in this supplement, obtain data for that model from the

relevant Holden VT, WH Sections of this Service Information CD or the VS Series Service Manual Supplement.

References are made throughout this section to Holden S ervice Man uals or Service Information CD’s, to assist in

providing information for specific service operations.

CAUTION:

W hen hoisting (or jack ing) HSV models, ens ure that t he lifting h ead of the hois t lifts on the chassis bef ore the arm

of the hoist contacts the side-skirt

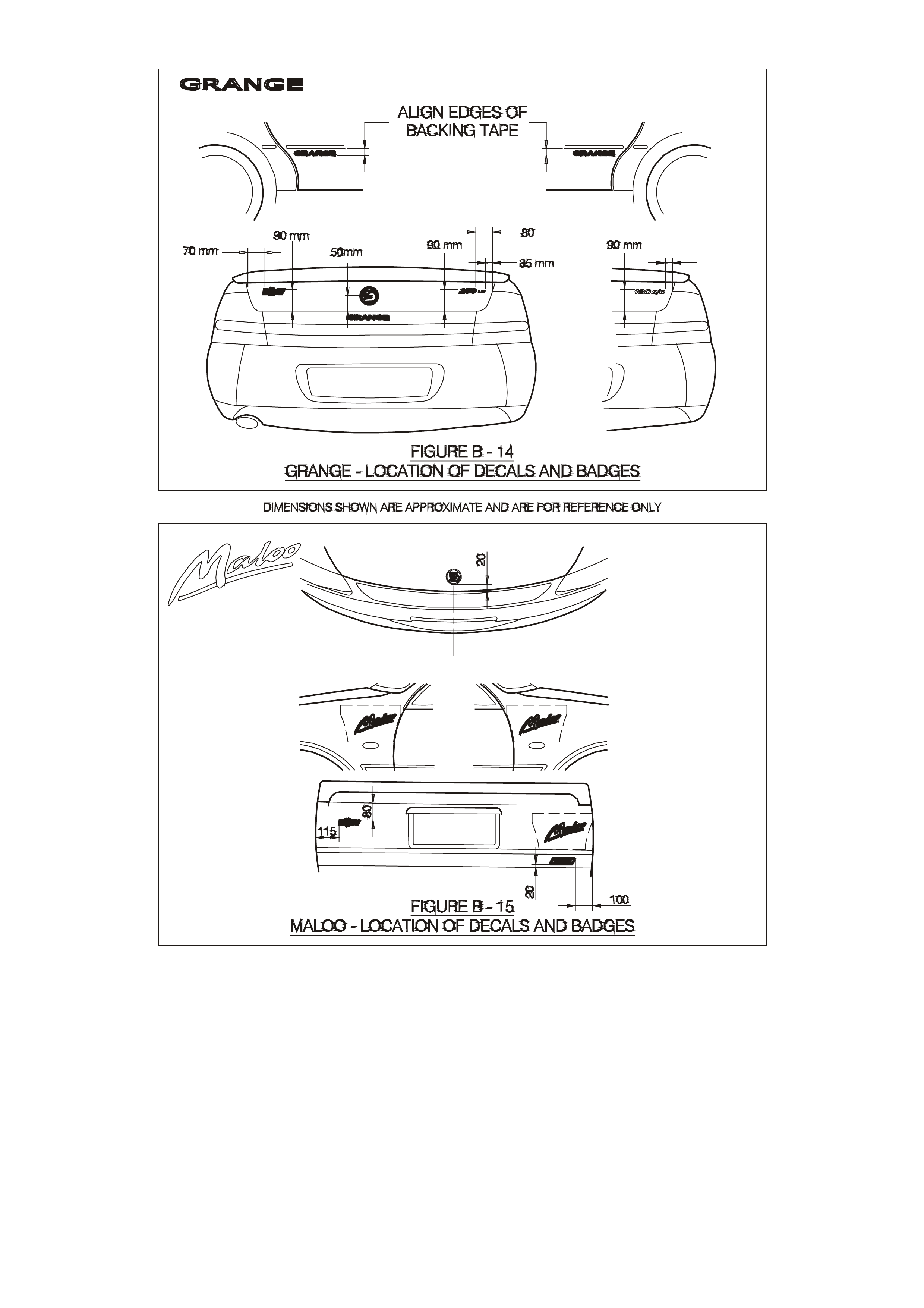

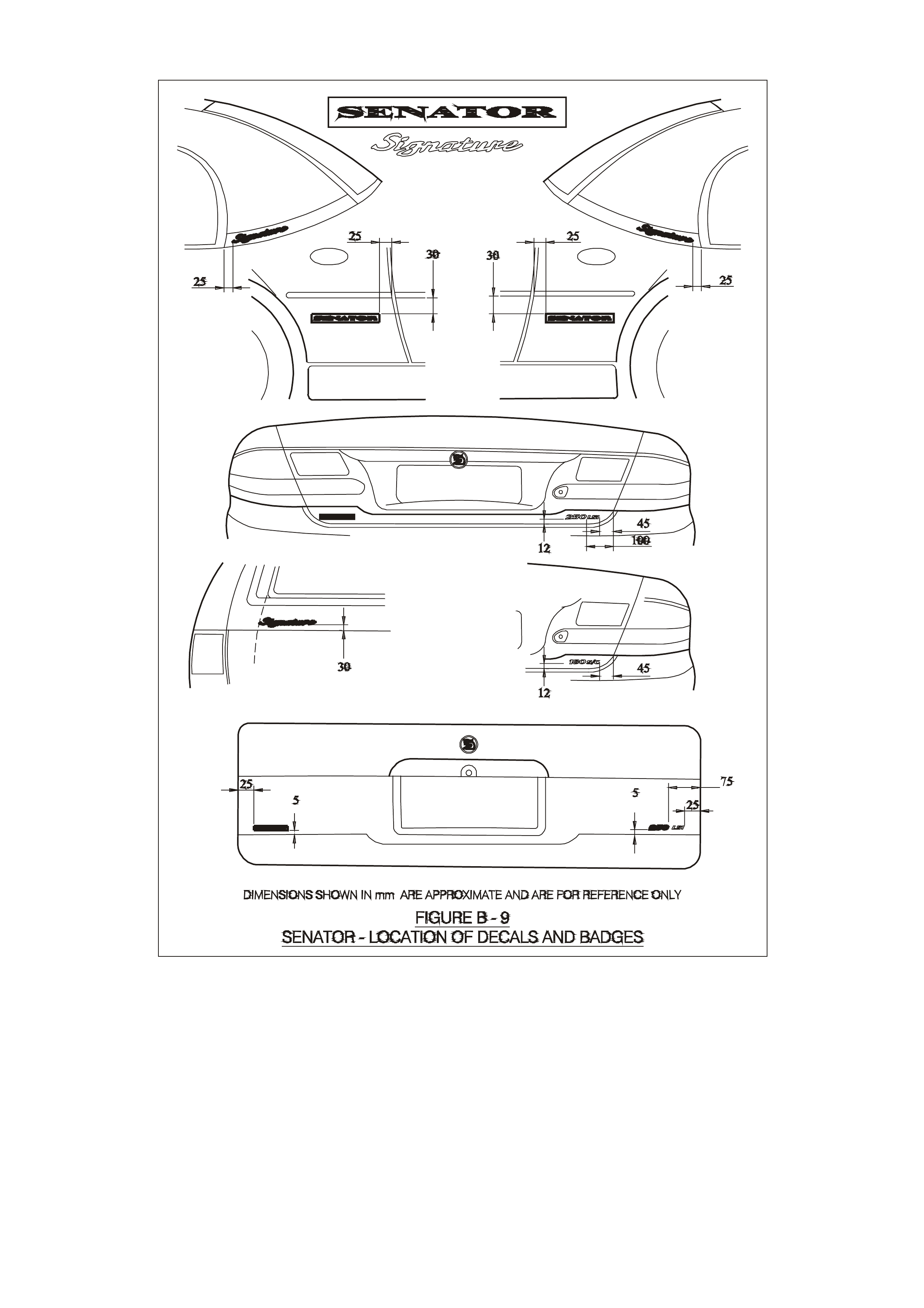

BODY ORNAMENTATION

HSV models are fitted with HSV specific decals, and badges to identify each model and power train option. The

exclusive HSV ornamentation is positioned in exact locations on each HSV model. The ornamentation for each

model is specified by part number in this section. Accurate dimensions are also provided to assist with the

replacement of these parts.

SEATS

HSV VT, VS & W H models are fitted with exclusive seat designs t o complim ent the Sport, Performance or Luxury

ride packages of each vehicle. The Rockley (Sport), Coulsen (Performance) and St James (Luxury) Barrington

(Grange) seat types (shown for identification purposes in Figure B-1) have specific seat pads covered in model-

specific trim material ranging from Jacquard and Velour cloth through to full leather. A full range of replacement

parts is available for each specific HSV seat item and these parts are listed in Tables B-1, B-2, B-3 and B-4 .

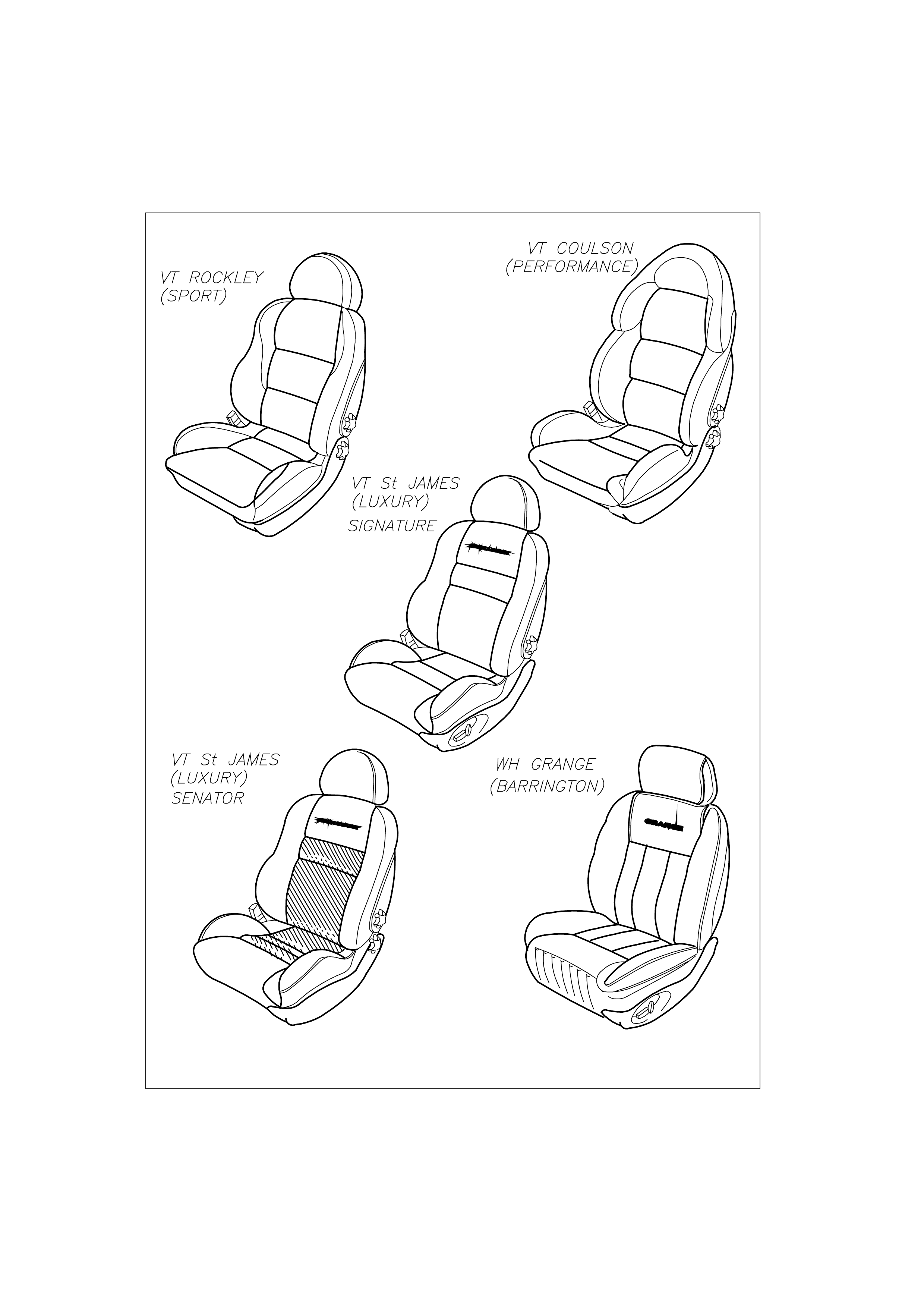

FIGURE B-1 – HSV - SEAT OPTIONS

HSV Assembly Matrix

as @ 21/02/2000

VTII / WH SEATS KITS - FRONT & REAR Seat ASM Seat ASM Cushion

ASM Back ASM Back ASM Flap ASM Bolster

ASM Bolster

ASM Colour Suffix

Front RH Front LH Rear Seat Rear RH Rear LH Rear Seat RSB RH RSB LH DF GL RD OR BU YW

1JOO-4100431 XU6/CLUBSPORT SPORT CLOTH NON SIAB 4100488 4100489 4100560 4100558 4100559 4100561 N/A N/A XXX

2JOO-411636 XU6/CLUBSPORT SPORT CLOTH SIAB 4100638 4100639 4100560 4100558 4100559 4100561 N/A N/A XXX

3JOO-4100432 XU6/CLUBSPORT PERFORMANCE CLOTH NON SIAB 4100490 4100491 4100560 4100558 4100559 4100561 N/A N/A XXX

4JOO-4100637 XU6/CLUBSPORT PERFORMANCE CLOTH SIAB 4100640 4100641 4100560 4100558 4100559 4100561 N/A N/A XXX

5JOO-4100433 XU6/CLUBSPORT PERFORMANCE LEATHER NON SIAB 4100492 4100493 4100564 4100562 4100563 4100565 N/A N/A X

6JOO-4100434 XU6/CLUBSPORT PERFORMANCE LEATHER SIAB 4100494 4100495 4100564 4100562 4100563 4100565 N/A N/A X

7JOO-4100435 SV99 PERFORMANCE LEATHER SIAB 4100496 4100497 4100564 4100566 4100567 4100565 N/A N/A X

8JOO-4100437 GTS PERFORMANCE LEATHER SIAB 4100500 4100501 4100657 4000568 4100569 4100565 N/A N/A X

9JOO-4100438 SENATOR LUXURY CLOTH SIAB 4100502 4100503 4100572 4100570 4100571 4100573 N/A N/A X

10 JOO-4100440 SENATOR LUXURY LEATHER SIAB 4100506 4100507 4100564 4100574 4100575 4100565 N/A N/A X

11 JOO-4100442 SENATOR PERFORMANCE LEATHER SIAB 4100510 4100411 4100564 4100574 4100575 4100565 N/A N/A X

12 JOO-4100443 SENATOR SIGNATURE LUXURY LEATHER SIAB 4100512 4100513 4100578 4100576 4100577 4100565 N/A N/A X

13 JOO-4100444 SENATOR SIGNATURE PERFORMANCE LEATHER SIAB 4100514 4100515 4100578 4100576 4100577 4100565 N/A N/A X

14 JOO-4100445 SENATOR SIGNATURE ESTATE LUXURY LEATHER SIAB 4100512 4100513 4100579 4100580 4100581 N/A 4001888 4001888 X

15 JOO-4100446 SENATOR SIGNATURE ESTATE PERFORMANCE LEATHER SIAB 4100514 4100515 4100579 4100580 N/A 4001889 4001888 4001888 X

16 JOO-4100400 WH GRANGE LEATHER SIAB 4100402 4100401 4100403 4100404 4100405 4100406 N/A N/A X

PREFIX SUFFIX

J06 Front Seat Numbers

K06 Rear Seat Numbers

J00 Front WH Grange

K00 Rear WH Grange

XU6/CLUBSPORT BODY TO TRIM MATCH

Phantom=Firebird Yellow 1999 Build

Sting

Heron White=C5 Blue

Bermuda Blue=C5 Blue

Tiger=Firebird Yellow

Phantom=Heartbeat Red 2000 Build

BU=C5 Blue

YW=Hot Mustard

DF=Dark Pewter

GL=Light Shale

RD=Heartbeat Red

OR=Firebird Yellow

VTII / WH TRIM

ASSEMBLIES -

FRONT AND

REAR

BONDED 1/2

FSC BONDED

1/2 FSB TRIM

ASM FS

H/REST

BONDED

1/2 RSC BONDED

1/2 RSB

BONDED

1/2 RSB

TRIM

ASM RS

H/REST

TRIM

ASM

RSB

FLAP

TRIM

ASM

RSB

A/REST

TRIM ASM

BOLSTER

RSB RH

TRIM ASM

BOLSTER

RSB LH

1J00-4100431 XU6 / CLUBSPORT

SPORT CLOTH

NON SIAB

4100642 4100643 4000642 4100646 4100644 4100645 4100165 4100188

2J00-4100636 XU6 / CLUBSPORT

SPORT CLOTH

SIAB

4100642 4100649 4100642 4100646 4100644 4100645 4100165 4100188

3J00-4100432 XU6 / CLUBSPORT

PERFORMANCE

CLOTH NON SIAB

4100647 4100648 4100645 4100646 4100644 4100645 4100165 4100188

4J00-4100637 XU6 / CLUBSPORT

PERFORMANCE

CLOTH SIAB

4100647 4100650 4100645 4100646 4100644 4100645 4100165 4100188

TRIM ASM

FSC TRIM ASM

FSB TRIM

ASM FS

H/REST

TRIM ASM

RSC TRIM ASM

RSB RH TRIM ASM

RSB LH TRIM

ASM RS

H/REST

TRIM

ASM

RSB

FLAP

TRIM

ASM

RSB

A/REST

TRIM ASM

BOLSTER

RSB RH

TRIM ASM

BOLSTER

RSB LH

5J00-4100433 XU6 / CLUBSPORT

PERFORMANCE

LEATHER NON

SIAB

4100092 4100467 4100112 4100199 4100530 4100531 4100194 4100168 4100190 N/A N/A

6J00-4100434 XU6 / CLUBSPORT

PERFORMANCE

LEATHER SIAB

4100092 4100467 4100112 4100199 4100530 4100531 4100194 4100168 4100190 N/A N/A

7J00-4100435 SV99

PERFORMANCE

LEATHER SIAB

4100092 4100472 4100112 4100199 4100536 4100537 4100194 4100168 4100190 N/A N/A

8J00-4100437 GTS

PERFORMANCE

LEATHER SIAB

4100659RH

4100660LH 4100470 4100112 4100658 4100538 4100539 4100194 4100168 4100190 N/A N/A

9J00-4100438 SENATOR LUXURY

CLOTH SIAB 4100473 4100474 4100475 4100542 4100540 4100541 4100545 4100543 4100544 N/A N/A

10 J00-4100440 SENATOR LUXURY

LEATHER SIAB 4100476 4100477 4100113 4100119 4100546 4100547 4100194 4100168 4100190 N/A N/A

11 J00-4100442 SENATOR

PERFORMANCE

LEATHER SIAB

4100092 4100480 4100112 4100119 4100546 4100547 4100194 4100168 4100190 N/A N/A

12 J00-4100443 SENATOR

SIGNATURE

LUXURY LEATHER

SIAB

4100482 4100483 4100113 4100550 4100548 4100549 4100194 4100168 4100190 N/A N/A

13 J00-4100444 SENATOR

SIGNATURE

PERFORMANCE

LEATHER SIAB

4100485 4100486 4100112 4100550 4100548 4100549 4100194 4100168 4100190 N/A N/A

14 J00-4100445 SENATOR

SIGNATURE

ESTATE LUXURY

LEATHER SIAB

4100482 4100483 4100113 4100551 4100552 4100553 4100113 N/A N/A 4100192 4100193

15 J00-4100446 SENATOR

SIGNATURE

ESTATE

PERFORMANCE

LEATHER SIAB

4100485 4100486 4100112 4100551 4100552 4100553 4100113 N/A N/A 4100192 4100193

TRIM ASM

FSC RH TRIM ASM

FSC LH TRIM

ASM FSB TRIM ASM

H/REST

TRIM ASM

RSC TRIM ASM

RSB RH TRIM

ASM

RSB LH

TRIM

ASM RS

H/REST

TRIM

ASM RS

H/REST

TRIM ASM

RSB FLAP TRIM ASM

RSB

A/REST LID

TRIM ASM

RSB

A/REST

BOTTOM

16 J00-4100400 WH GRANGE

LEATHER SIAB 4100407 4100586 4100408 4100409 4100410 4100412 4100411 4100416 4100417 4100413 4100414 4100415

VTII / WH FRAMES - FRONT AND REAR FRONT SEAT CUSHION FRONT SEAT BACK

RH FRONT SEAT BACK LH REAR SEAT CUSHION

1J00-4100431 XU6 / CLUBSPORT SPORT CLOTH NON SIAB 4100237 4002535 4002437 4001355

2J00-4100636 XU6 / CLUBSPORT SPORT CLOTH SIAB 4100237 4002774 4002775 4001355

3J00-4100432 XU6 / CLUBSPORT PERFORMANCE CLOTH NON SIAB 4100237 4002435 4002437 4001355

4J00-4100637 XU6 / CLUBSPORT PERFORMANCE CLOTH SIAB 4100237 4002774 4002775 4001355

5J00-4100433 XU6 / CLUBSPORT PERFORMANCE LEATHER NON SIAB 4100237 4002435 4002437 4001355

6J00-4100434 XU6 / CLUBSPORT PERFORMANCE LEATHER SIAB 4100237 4002774 4002775 4001355

7J00-4100435 SV99 PERFORMANCE LEATHER SIAB 4100237 4002774 4002775 4001355

8J00-4100437 GTS PERFORMANCE LEATHER SIAB 4100237 4002774 4002775 4001355

9J00-4100438 SENATOR LUXURY CLOTH SIAB 4100237 4002774 4002775 4001355

10 J00-4100440 SENATOR LUXURY LEATHER SIAB 4100237 4002777 4002778 4001355

11 J00-4100442 SENATOR PERFORMANCE LEATHER SIAB 4100237 4002777 4002778 4001355

12 J00-4100443 SENATOR SIGNATURE LUXURY LEATHER SIAB 4100237 4002777 4002778 4001355

13 J00-4100444 SENATOR SIGNATURE PERFORMANCE LEATHER SIAB 4100237 4002777 4002778 4001355

14 J00-4100445 SENATOR SIGNATURE ESTATE LUXURY LEATHER SIAB 4100237 4002777 40027778 4001111

15 J00-4100446 SENATOR SIGNATURE ESTATE PERFORMANCE LEATHER SIAB 4100237 4002777 40027778 4001111

16 J00-4100400 WH GRANGE LEATHER SIAB 4001139 4002779 4002778 4002223

VTII / WH PADS - FRONT AND REAR FRONT

SEAT

CUSHION

FRONT

SEAT

BACK

FRONT

SEAT

HEADREST

REAR

SEAT

CUSHION

REAR

SEAT

BACK RH

REAR

SEAT

BACK LH

REAR SEAT

HEADREST

REAR

SEAT

FLAP

REAR

SEAT

A/REST

1J00-4100431 XU6 / CLUBSPORT SPORT CLOTH NON SIAB 4100118 4100115 4100152 4100121 4100124 4100125 N/A 4001452 4001445

2J00-4100636 XU6 / CLUBSPORT SPORT CLOTH SIAB 4100118 4100422 4100152 4100121 4100124 4100125 N/A 4001452 4001445

3J00-4100432 XU6 / CLUBSPORT PERFORMANCE CLOTH NON SIAB 4100119 4100116 4100153 4100121 4100124 4100125 N/A 4001452 4001445

4J00-4100637 XU6 / CLUBSPORT PERFORMANCE CLOTH SIAB 4100119 4100423 4100153 4100121 4100124 4100125 N/A 4001452 4001445

5J00-4100433 XU6 / CLUBSPORT PERFORMANCE LEATHER NON SIAB 4100234 4100233 4100153 4100123 4100128 4100129 4001402 4001452 4001445

6J00-4100434 XU6 / CLUBSPORT PERFORMANCE LEATHER SIAB 4100234 4100425 4100153 4100123 4100128 4100129 4001402 4001452 4001445

7J00-4100435 SV99 PERFORMANCE LEATHER SIAB 4100234 4100425 4100153 4100123 4100128 4100129 4001402 4001452 4001445

8J00-4100437 GTS PERFORMANCE LEATHER SIAB 4100234 4100425 4100153 4100656 4100128 4100129 4001402 4001452 4001445

9J00-4100438 SENATOR LUXURY CLOTH SIAB 4100234 4100424 4100152 4100123 4100128 4100129 4001402 4001452 4001445

10J00-4100440 SENATOR LUXURY LEATHER SIAB 4100120 4100424 4100152 4100123 4100128 4100129 4001402 4001452 4001445

11J00-4100442 SENATOR PERFORMANCE LEATHER SIAB 4100234 4100425 4100153 4100123 4100128 4100129 4001402 4001452 4001445

12J00-4100443 SENATOR SIGNATURE LUXURY LEATHER SIAB 4100430 4100426 4100152 4100427 4100428 4100429 4001402 4001452 4001445

13J00-4100444 SENATOR SIGNATURE PERFORMANCE LEATHER SIAB 4100453 4100452 4100153 4100427 4100428 4100429 4001402 4001452 4001445

14J00-4100445 SENATOR SIGNATURE ESTATE LUXURY LEATHER SIAB 4100430 4100426 4100152 4100456 4100454 4100455 4002948 4001452 4001445

15J00-4100446 SENATOR SIGNATURE ESTATE PERFORMANCE LEATHER SIAB 4100453 4100452 4100153 4100456 4100454 4100455 4002948 4001452 4001445

16J00-4100400 WH GRANGE LEATHER SIAB 4100517 4100516 4002908 4100520 4100518 4100519 4002172 4002939 N/A

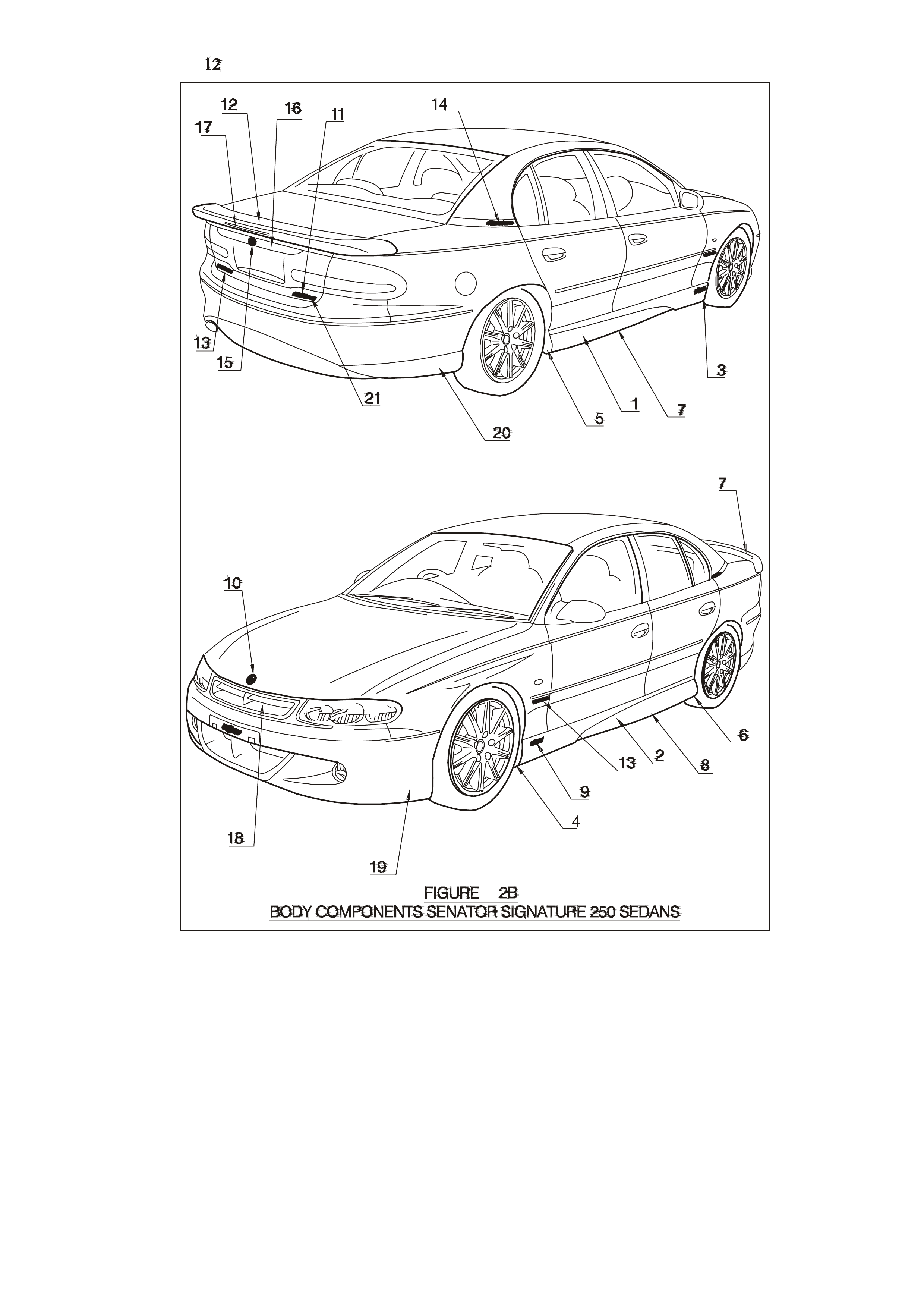

1. SENATOR SIGNATURE 250 LS1 SEDANS

GROUP 1A- BODY COMPONENTS

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT-ROCKER-RH* B-2 1

A08-970602 1 SKIRT-ROCKER-LH* B-2 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT-FRT RH B-2 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT-LH B-2 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH B-2 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH B-2 6

A08-970609 1 PAINT PROTECTOR-S/SKIRT RH B-2 7

A08-970610 1 PAINT PROTECTOR S/SKIRT LH B-2 8

A08-970607 2 BADGE HSV CORPORA TE LOGO B-2 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-2 10

E08-990602B8 1 BADGE-250 (CHROME) B-2 11

E08-970801 1 SPOILER-REAR DECKLID* B-2 12

E08-970804C3 3 BADGE-SENATOR-FRT FENDER/REAR B-2 13

E08-970807 2 BADGE-SIGNATURE SENATOR B-2 14

E08-970306 1 BADGE-DECOR, PANEL B-2 15

E08-970803 1 MOULDING ASM DEC/PANEL (CHROMED) B-2 16

12C-970601 1 FOG LAMP LH ∅

12C-970602 1 LAMP FOG RH ∅

14A-1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-2 17

13C-970801B8 1 GRILLE-RADIATOR (CHROMED) B-2 18

14A-1970601 1 FACIA-FRONT BUMPER BAR* B-2∅19

14A-1970607 1 MESH-BUMPER OPENING LWR ∅

14A-1970612 1 MESH-BUMPER OPENING UPPER ∅

14A-1970608 1 PAINT PROTECTOR-FRT RH ∅

14A-1970609 1 PAINT PROTECTOR-FRT LH ∅

14A-1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A-1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A-2970604 1 FACIA-REAR BUMPER BAR* B-2∅20

14A-2970607 1 PAINT PROTECTOR-RR RH θ

14A-2970608 1 PAINT PROTECTOR-RR LH θ

E08-990607B8 1 BADGE LS1 ENGINE ID (CHROME) 21

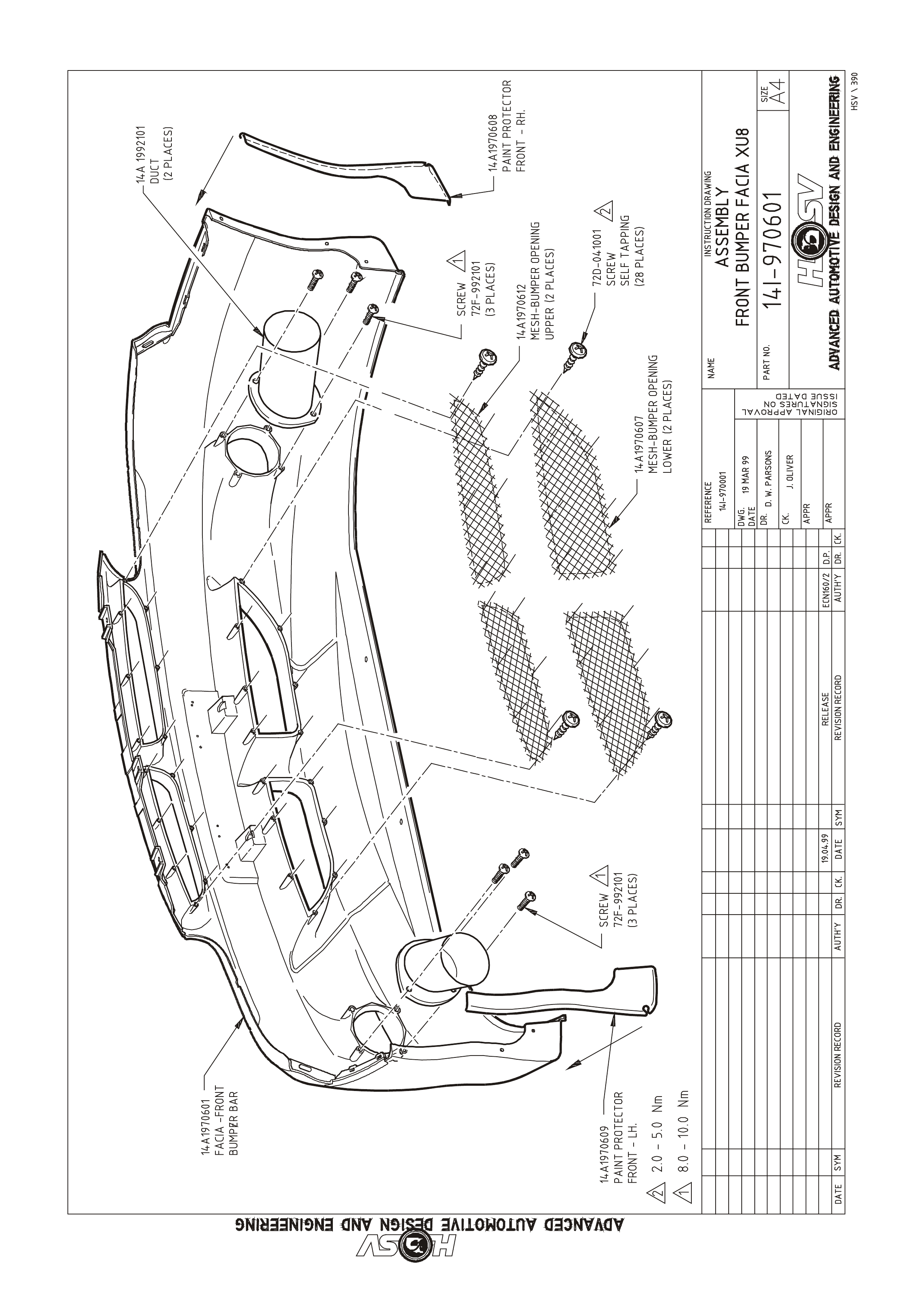

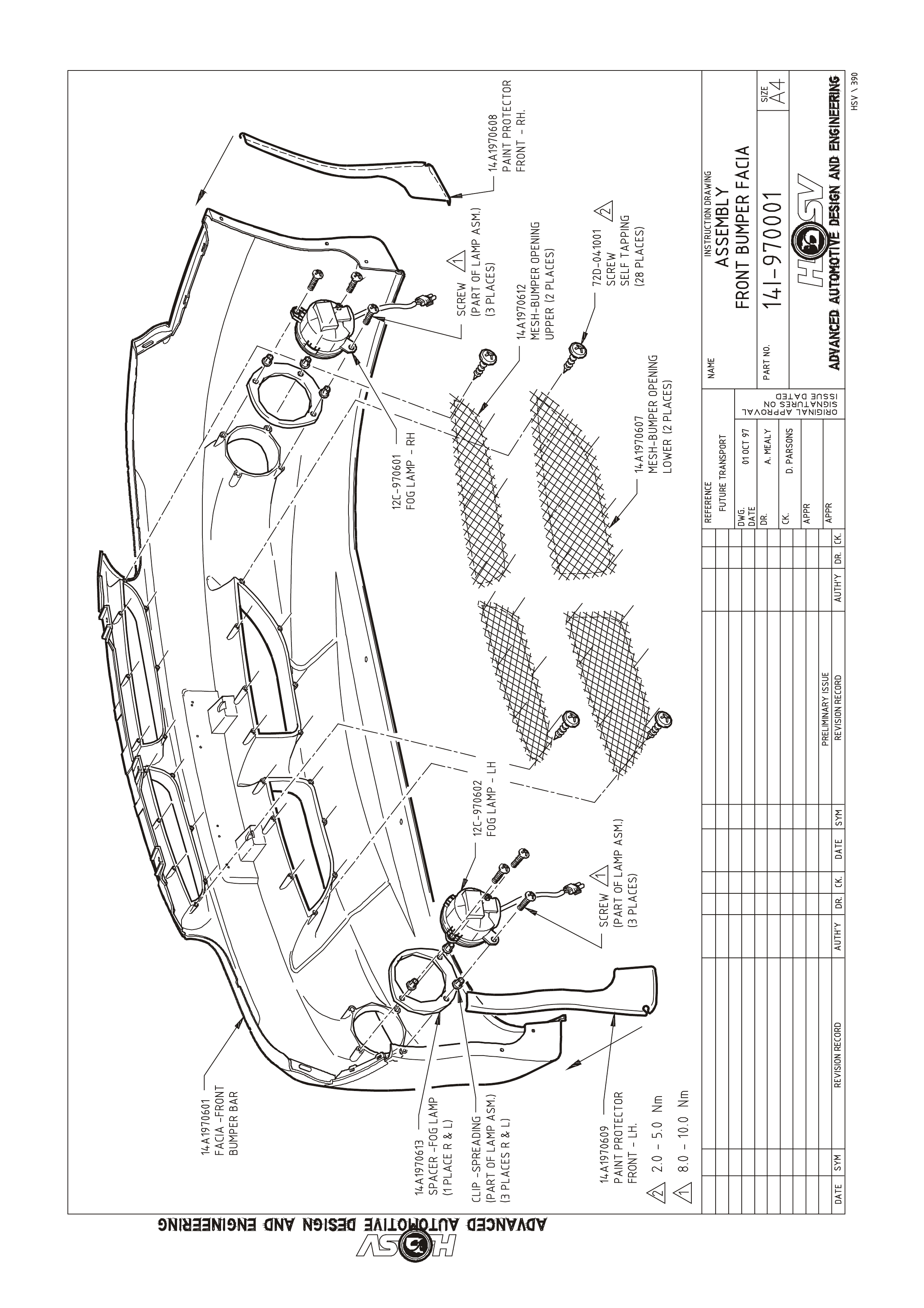

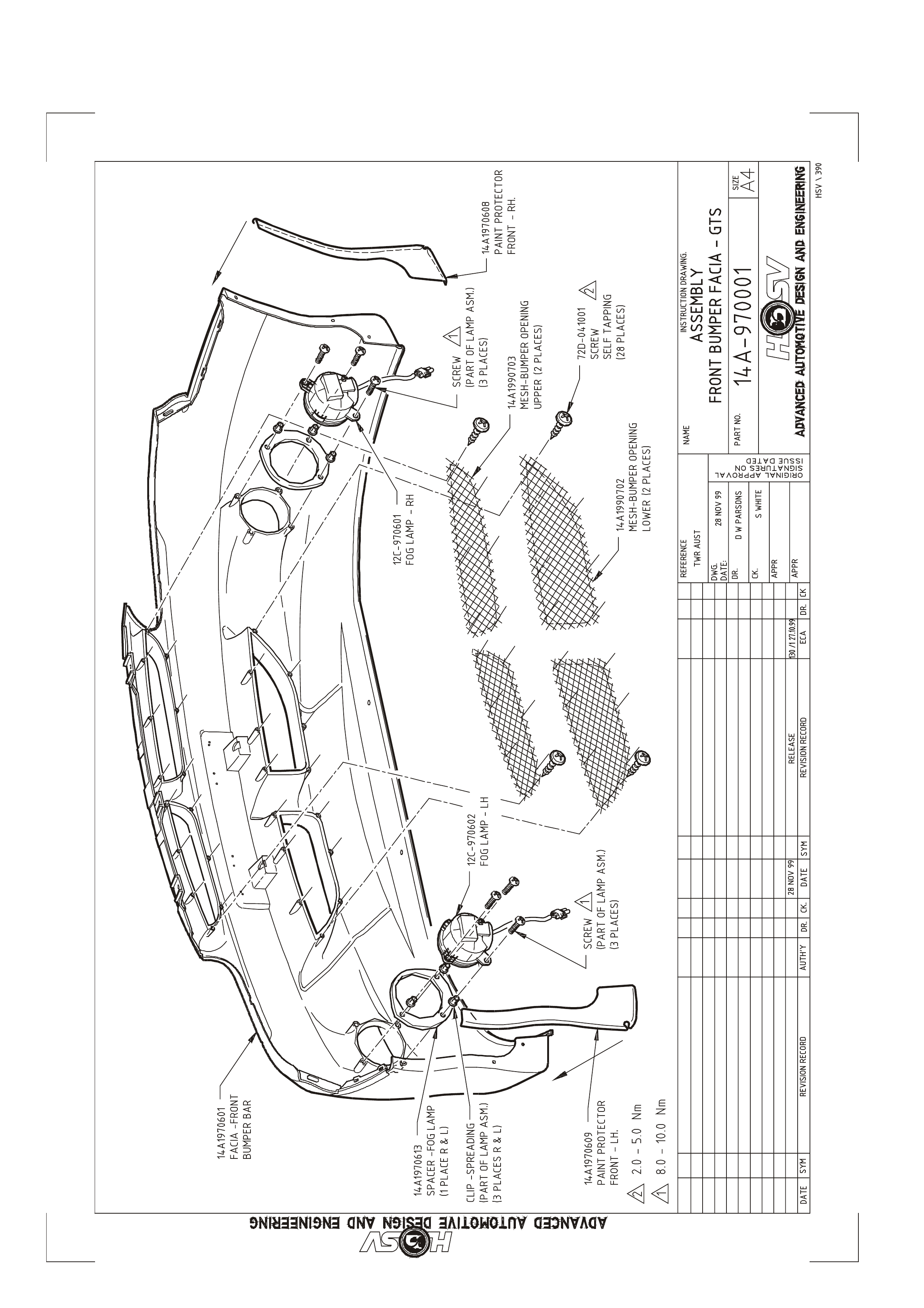

∅ Refer Drawing 14I-970001

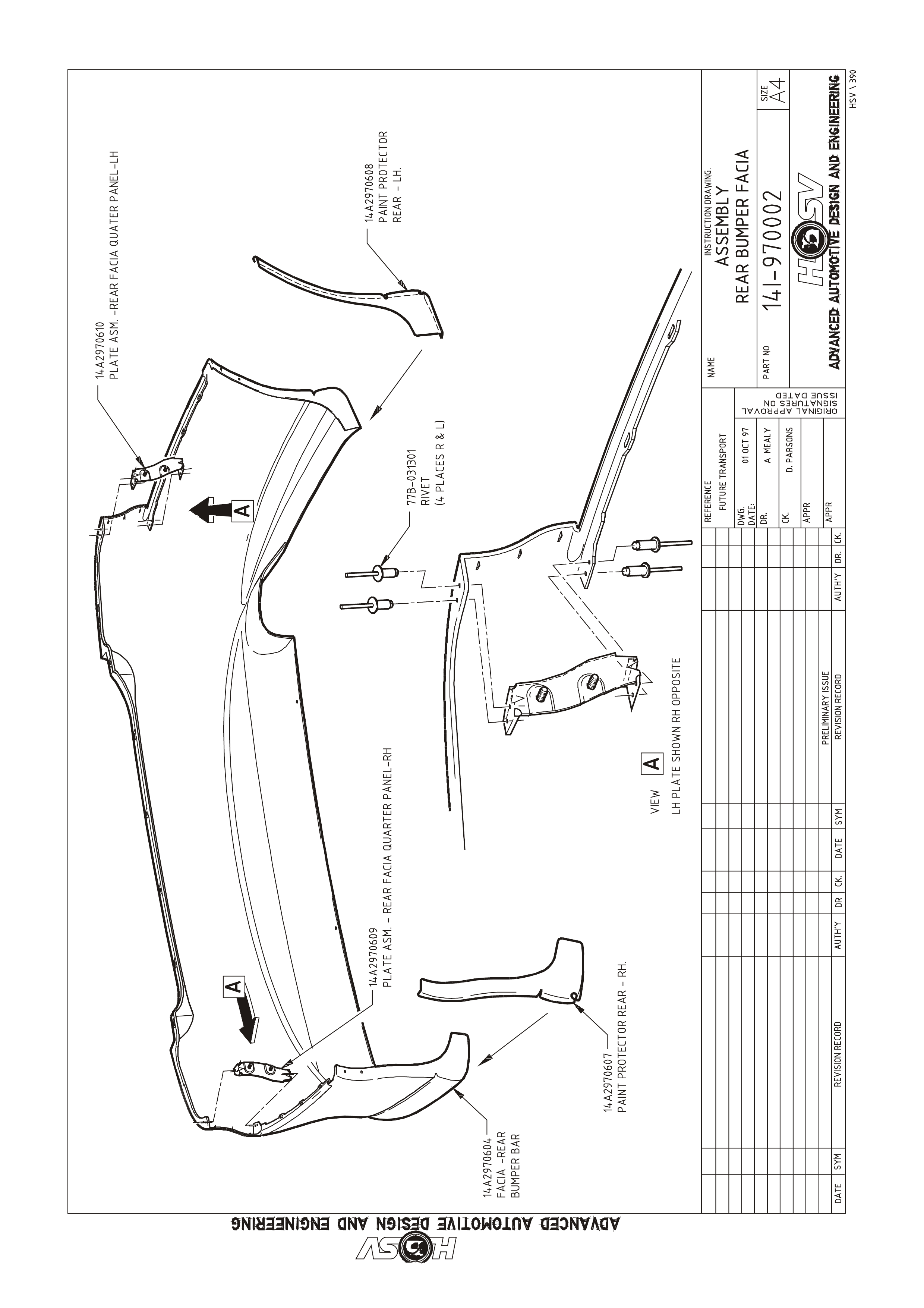

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the Senator Signature 250 LS1 Sedan body components, refer to Figures B-2B, B-9,14I-970001

and 14I-970002 to obtain the necessary information on the correct location of each component.

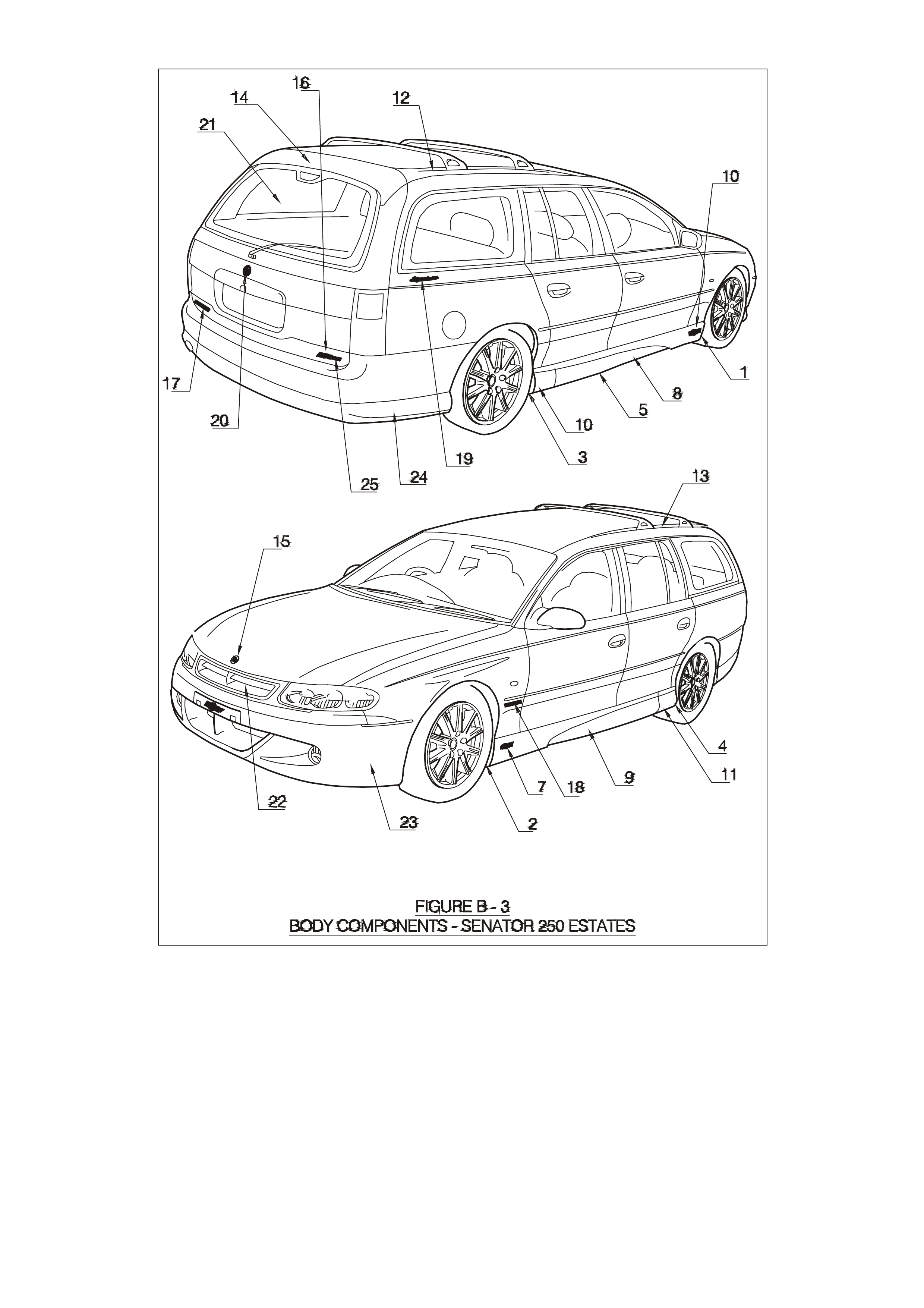

SENATOR SIGNATURE ESTATE 250 LS1

CONTENTS OF BO DY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970603 1 PAINT PROTECTOR-S/SKIRT- FRT RH B-3 1

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH B-3 2

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH B-3 3

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH B-3 4

A08-970609 1 PAINT PROTECTOR-S/SKIRT-RH B-3 5

A08-970610 1 PAINT PROTECTOR-S/SKIRT-LH B-3 6

A08-970609 1 PAINT PROTECTOR-S/SKIRT RH B-3 5

A08-970610 1 PAINT PROTECTOR-S/SKIRTLH B-3 6

A08-970607 2 BADGE-HSV CORPORATE LOGO B-3 7

A08-970601 1 SKIRT ROCKER-ESTATE FRT RH B-3 8

A08-970602 1 SKIRT ROCKER-ESTAE FRT LH B-3 9

A08-971003 1 SKIRT ROCKER-ESTATE RR RH B-3 10

A08-971004 1 SKIRT ROCKER-ESTATE RR LH B-3 11

C08-971001 1 MOULDING-ROOF SLIDING RH B-3 12

C08-971002 1 MOULDING-ROOF SLIDING LH B-3 13

C08-971003 1 DEFLECTOR TAILGATE B-3 14

B08-970301 1 BADGE-LION & HELMET (BONNET) B-3 15

E08-990602B8 1 BADGE-250 (CHROME) B-3 16

E08-970804C3 1 BADGE-SENATOR REAR B-3 17

E08-970804C3 2 BADGE-SENATOR-FRT FENDER B-3 18

E08-970807 2 BADGE-SIGNATURE B-3 19

H04-971001 1 GLASS ASM- TAILGATE SENATOR ESTATE B-3 21

12C-970601 1 LAMP FOG LH ∅

12C-970602 1 LAMP FOG RH ∅

14A-1970613 1 SPACER FOG LAMP ∅

14A-1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A-1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

13C-970801B8 1 GRILLE-RADIATOR (CHROMED) B-3 22

14A-1970601 1 FACIA-FRONT BUMPER BAR B-3 23

14A-1970607 1 MESH BUMPER OPENING-LOWER ∅

14A-1970612 1 MESH BUMPER OPENING-UPPER ∅

14A-1970608 1 PAINT PROTECTOR –FRT BUMPER RH ∅

14A-2970201 1 SKIRT-RR BUMPER LWR-ESTATE ∅24

14A-2970203 1 PAINT PROTECTOR RR SKIRT RH B-3θ

14A-2970204 1 PAINT PROTECTOR RR SKIRT LH B-3θ

E08-990607B8 1 BADGE-ENGINE ID LS1 (CHROME) B-3 25

∅ Refer Drawing 14I-970001

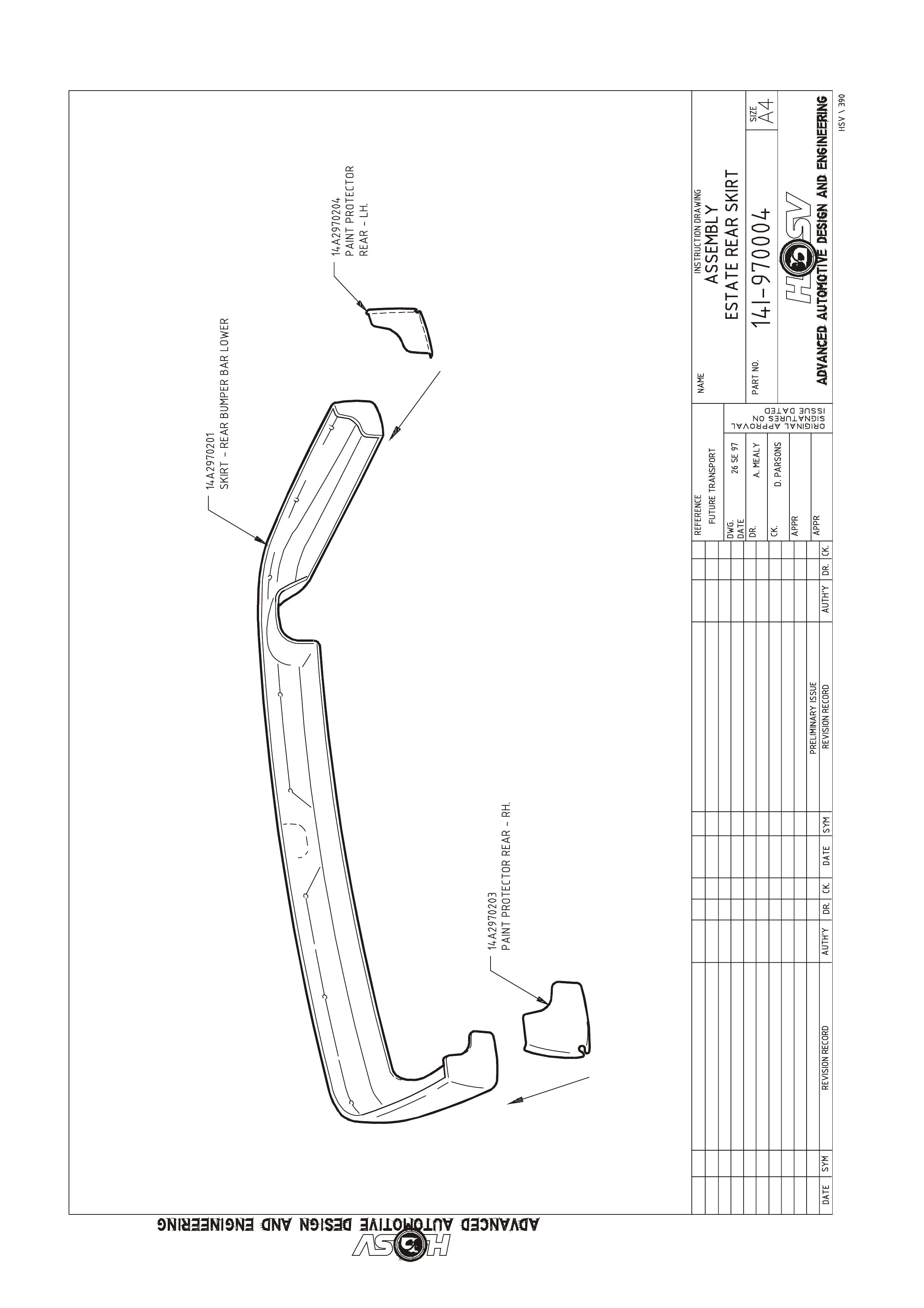

θ Refer Drawing 14I-970004

SERVICE OPERATIONS

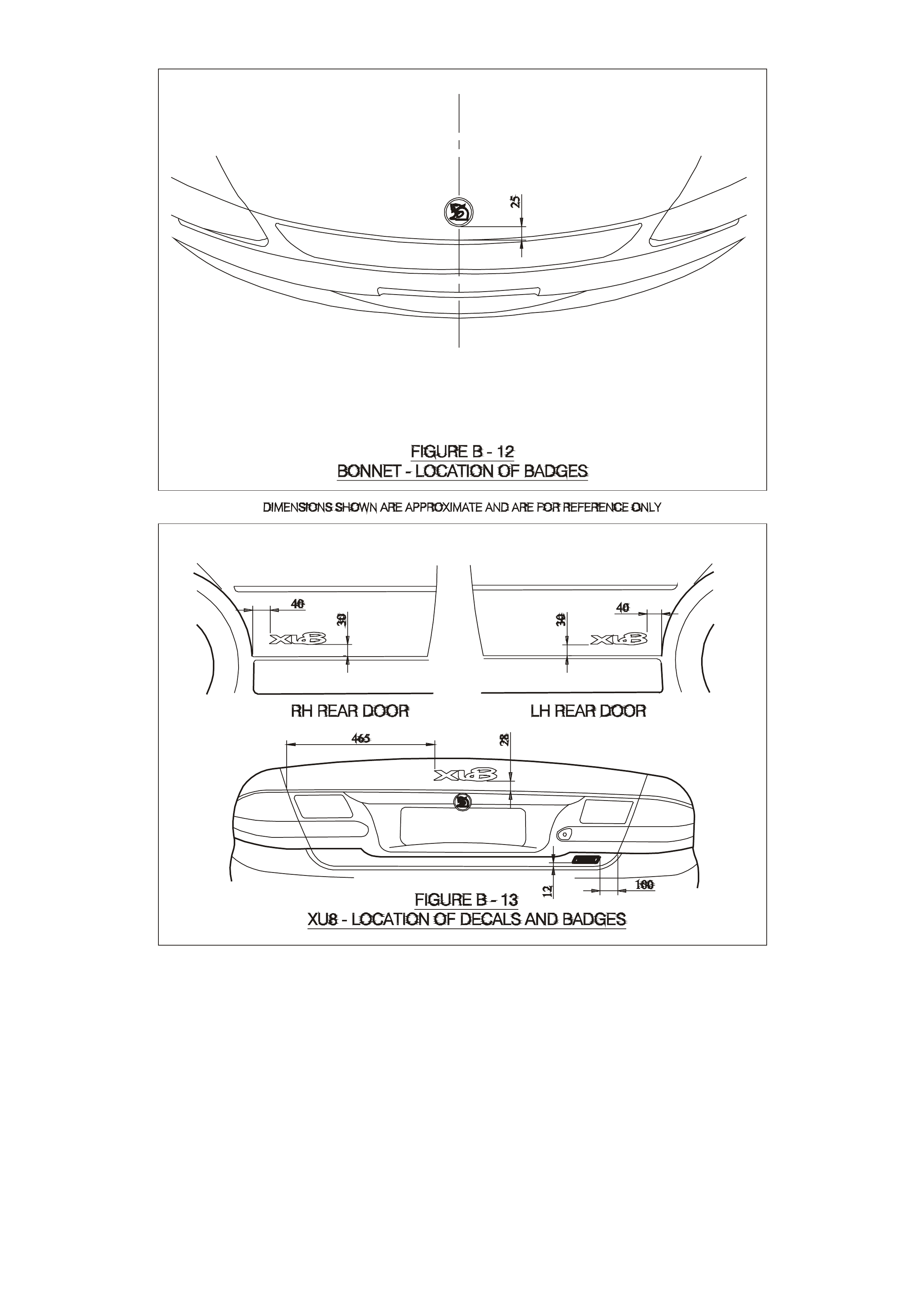

When servicing the Senator and Estate body components, refer to Figures B-3, B-9, 14I-970001, 14I-970004 and

B-12 to obtain the necessary information on the correct location of each component.

SENATOR 180 S/C AND 250 LS1 SEDANS

CONTENTS OF BO DY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT-ROCKER RH* B-2 1

A08-970602 1 SKIRT-ROCKER LH* B-2 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT-FRT RH B-2 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH B-2 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH B-2 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT RR LH B-2 6

A08-970609 1 PAINT PROTECTOR-S/SKIRT RH B-2 7

A08-970610 1 PAINT PROTECTOR-S/SKIRT LH B-2 8

A08-970607 2 BADGE-HSV CORPORATE LOGO B-2 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-2 10

E08-990401B8 1 BADGE-180 S/C (CHROME) B-2 11

E08-990602B8 1 BADGE-250 (CHROME) B-2 12

E08-970801 1 SPOILER-REAR DECKLID* B-2 13

E08-970804C3 3 BADGE-SENATOR-FRT FENDER/REAR B-2 14

E08-970306 1 BADGE-DÉCOR PANEL B-2 15

1 MOULDING ASM DEC/PANEL (BODY COLOUR) B-2 16

12C-970601 1 FOG LAMP LH ∅

12C-970602 1 LAMP FOG RH ∅

14A-1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM HI MOUNT STOPLIGT B-2 17

1 GRILLE RADIATOR BODY COLOUR B-2 18

14A-1970601 1 FACIA FRONT BUMPER BAR* B-2∅19

14A-1970607 1 MESH BUMPER OPENING LWR ∅20

14A-1970612 1 MESH BUMPER OPENING UPPER ∅

14A-1970608 1 PAINT PROTECTOR-FRT RH ∅

14A-1970609 1 PAINT PROTECTOR-FRT LH ∅

14A-1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A-1970615 1 BRACKET FRONT BUMPER ATTACMENT LH

14A-2970604 1 FACIA-REAR BUMPER BAR* B-2∅21

14A-2970607 1 PAINT PROTECTOR-RR RH θ

14A-2970608 1 PAINT PROTECTOR-RR LH θ

E08-990607B8 1 BADGE LS1 ENGINE ID (CHROME) 22

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the Senator 180 S/C and 250 LS1 Sedan body components, refer to Figures B-2A, B-9,14I-970001

and 14I-970002 to obtain the necessary information on the correct location of each component.

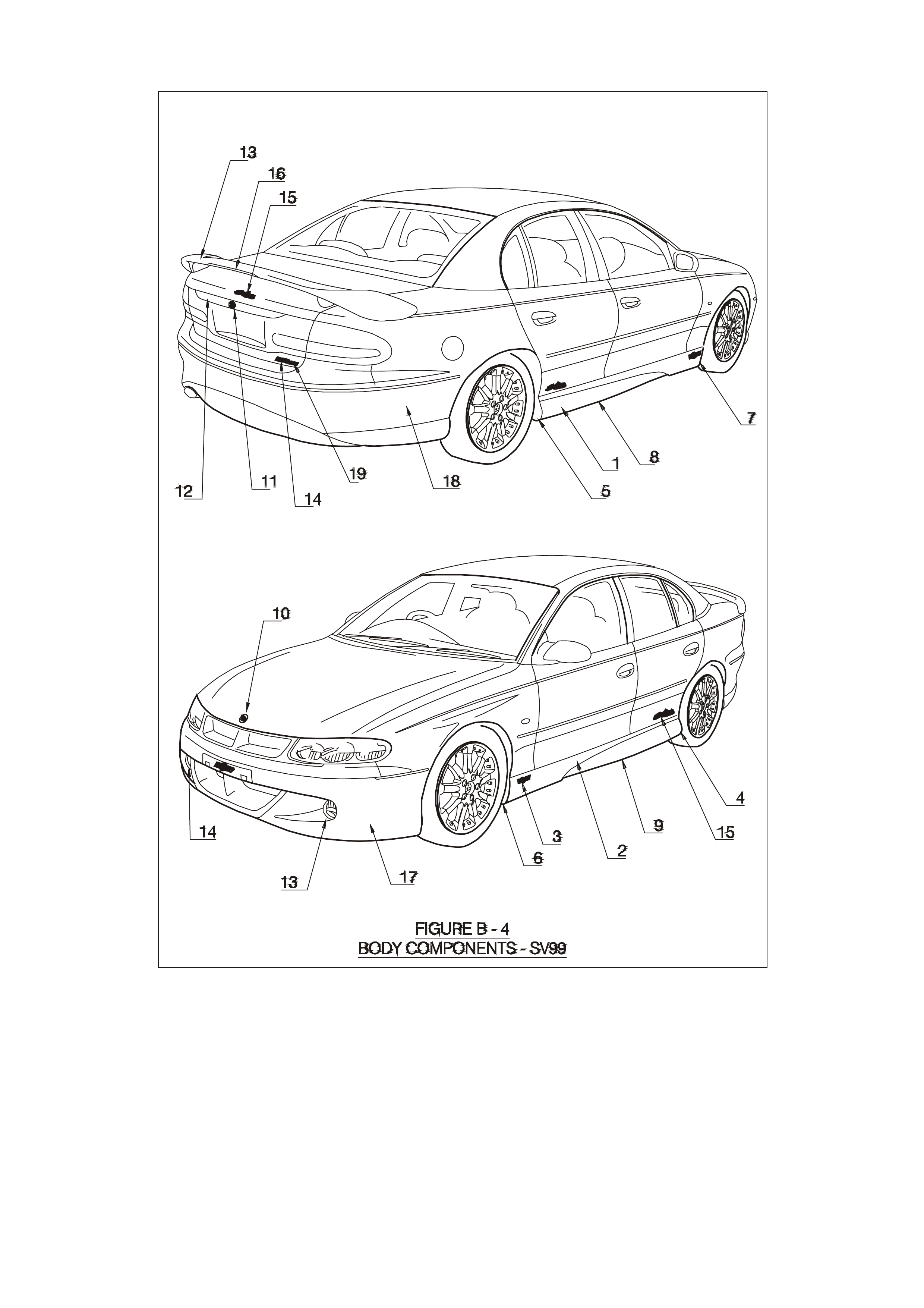

SV99 250 LS1 SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT - ROCKER-RH* B-4 1

A08-970602 1 SKIRT - ROCKER-LH* B-4 2

A08-970607 2 BADGE-HSV CORPORATE LOGO B-4 3

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH B-4 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH B-4 5

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH B-4 6

A08-970603 1 PAINT PROTECTOR-S/SKIRT-FRT RH B-4 7

A08-970609 1 PAINT PROTECTOR-S/SKIRT-RH B-4 8

A08-970610 1 PAINT PROTECTOR-S/SKIRT-LH B-4 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-4 10

E08-970306 1 BADGE-DECOR PANEL B-4 11

E08-970305B9 1 MOULDING ASM-DECOR PANEL B-4 12

E08-970601 1 SPOILER-REAR DECKLID* B-4 13

E08-990602C8 1 BADGE-250 (BLACK CHROME) B-4 14

E08-991901C8 3 BADGE-SV99 (BLACK CHROME) B-4 15

12C-970601 1 LAMP FOG- LH B-4∅

12C-970602 1 LAMP FOG- RH ∅

14A-1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-4 16

14A-1970601 1 FACIA-FRONT BUMPER BAR* B-4∅17

14A-2970604 1 FACIA-REAR BUMPER BAR* B-4θ18

14A-1970607 1 MESH-BUMPER OPENING L-WR ∅

14A-1970612 1 MESH-BUMPER OPENING UPPER ∅

14A-1970608 1 PAINT PROTECTOR-FRT RH ∅

14A-1970609 1 PAINT PROTECTOR-FRT LH ∅

14A-1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A-1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A-2970607 1 PAINT PROTECTOR-RR RH θ

14A-2970608 1 PAINT PROTECTOR-RR LH θ

E08-990607C8 1 BADGE-ENGINE ID LS1 (BLACK CHROME) 19

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

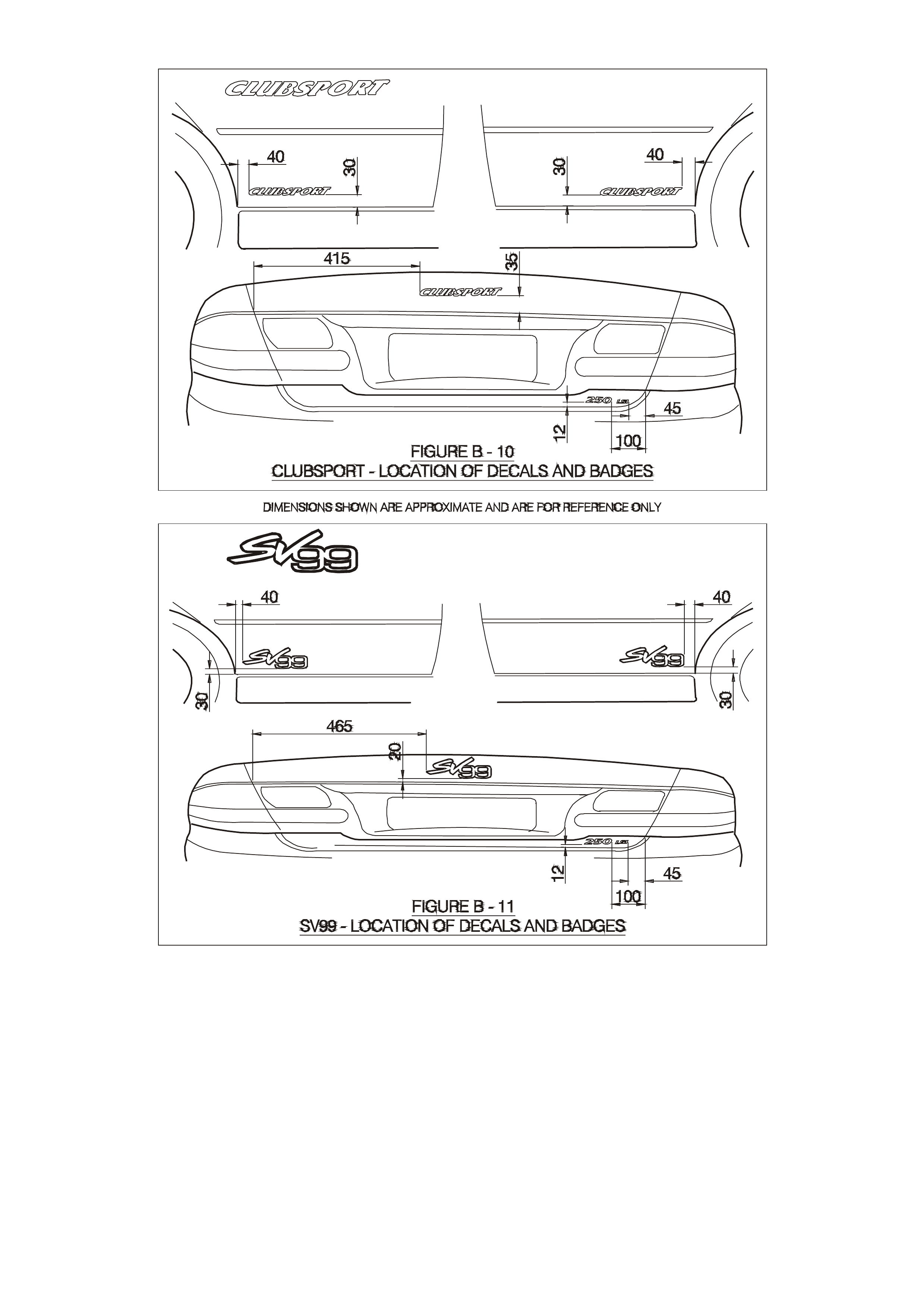

When servicing the SV99 body components, refer to Figures B-4, B-11, 14I-970001 and 14I-970002, B-12, to obtain

the necessary information on the correct location of each component.

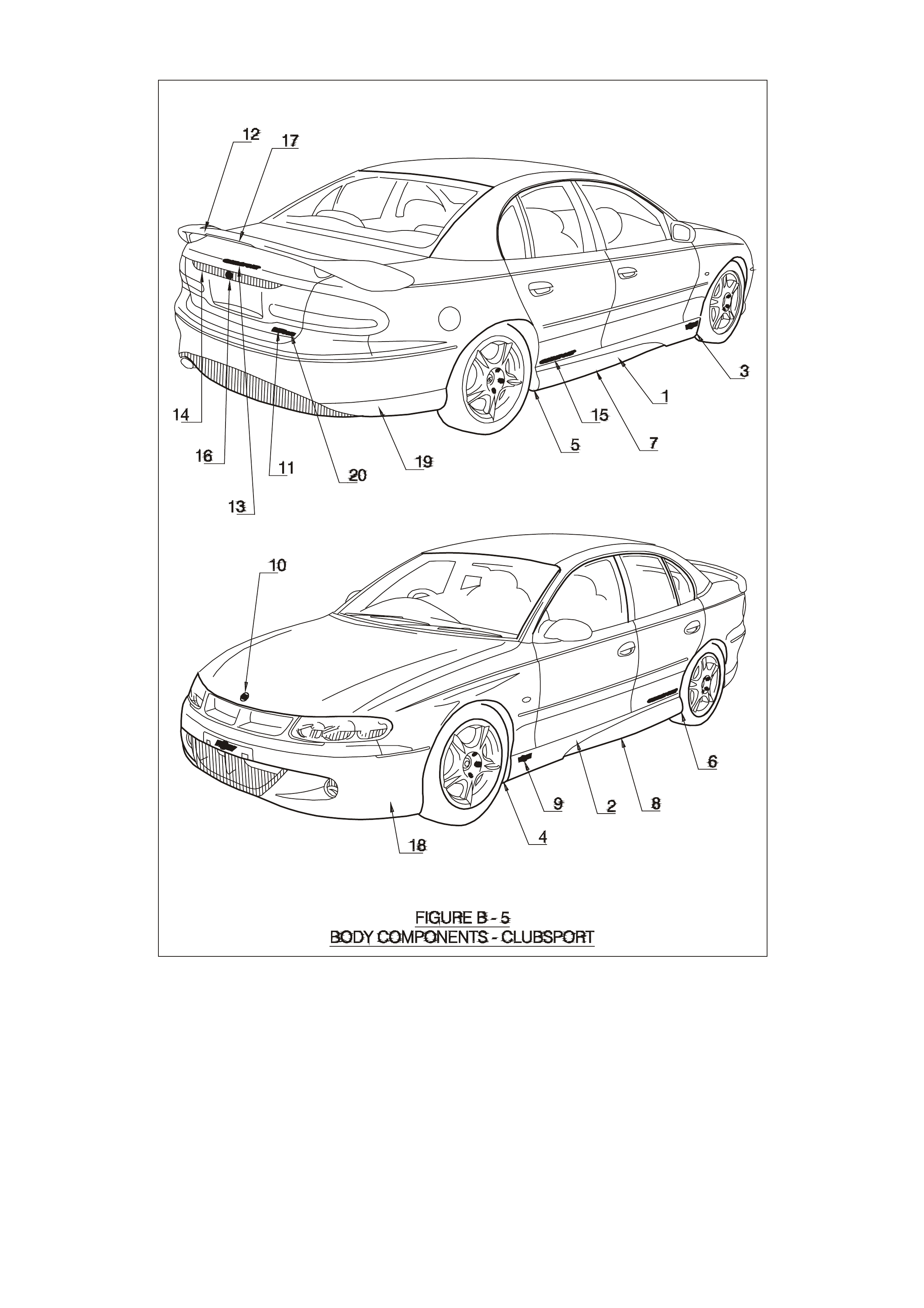

CLUBSPORT 250 LS1 SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT - ROCKER-RH* B-5 1

A08-970602 1 SKIRT - ROCKER-LH* B-5 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT FRT RH B-5 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH B-5 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH B-5 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH B-5 6

A08-970609 1 PAINT PROTECTOR S/SKIRT-SIDE-RH B-5 7

A08-970610 1 PAINT PROTECTOR S/SKIRT-SIDE-LH B-5 8

A08-970607 2 BADGE-HSV CORPORATE LOGO B-5 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-5 10

E08-990602C2 1 BADGE-250 (SILVER) B-5 11

E08-970601 1 SPOILER-REAR DECKLID* B-5 12

E08-990606 1 BADGE-CLUBSPORT-REAR B-5 13

E08-970305 1 DECOR PANEL MOULDING B-5 14

E08-990608 2 BADGE-CLUBSPORT B-5 15

E08-970306 1 BADGE-DECOR PANEL B-5 16

12C-970601 1 LAMP FOG LH ∅

12C-970602 1 LAMP FOG RH ∅

14A-1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM-HI MOUNT STOP LIGHT B-5 17

14A-1970601 1 FACIA-FRONT BUMPER BAR* B-5∅18

14A-2970604 1 FACIA-REAR BUMPER BAR B-5∅19

14A-1970612 1 MESH-BUMPER OPENING-UPPER ∅

14A-1970607 1 MESH BUMPER OPENING-LWR ∅

14A-1970608 1 PAINT PROTECTOR-FRT RH ∅

14A-1970609 1 PAINT PROTECTOR-FRT LH ∅

14A-1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A-1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A-2970607 1 PAINT PROTECTOR-RR RH θ

14A-2970608 1 PAINT PROTECTOR-RR LH θ

E08-990607C2 1 BADGE-ENGINED ID LS1 (SILVER) B-5 20

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the ClubSport 250 LS1 Sedan body components, refer to Figures B-5, B-10, B-12, 14A-970001 and

14I-970002 to obtain the necessary information on the correct location of each component

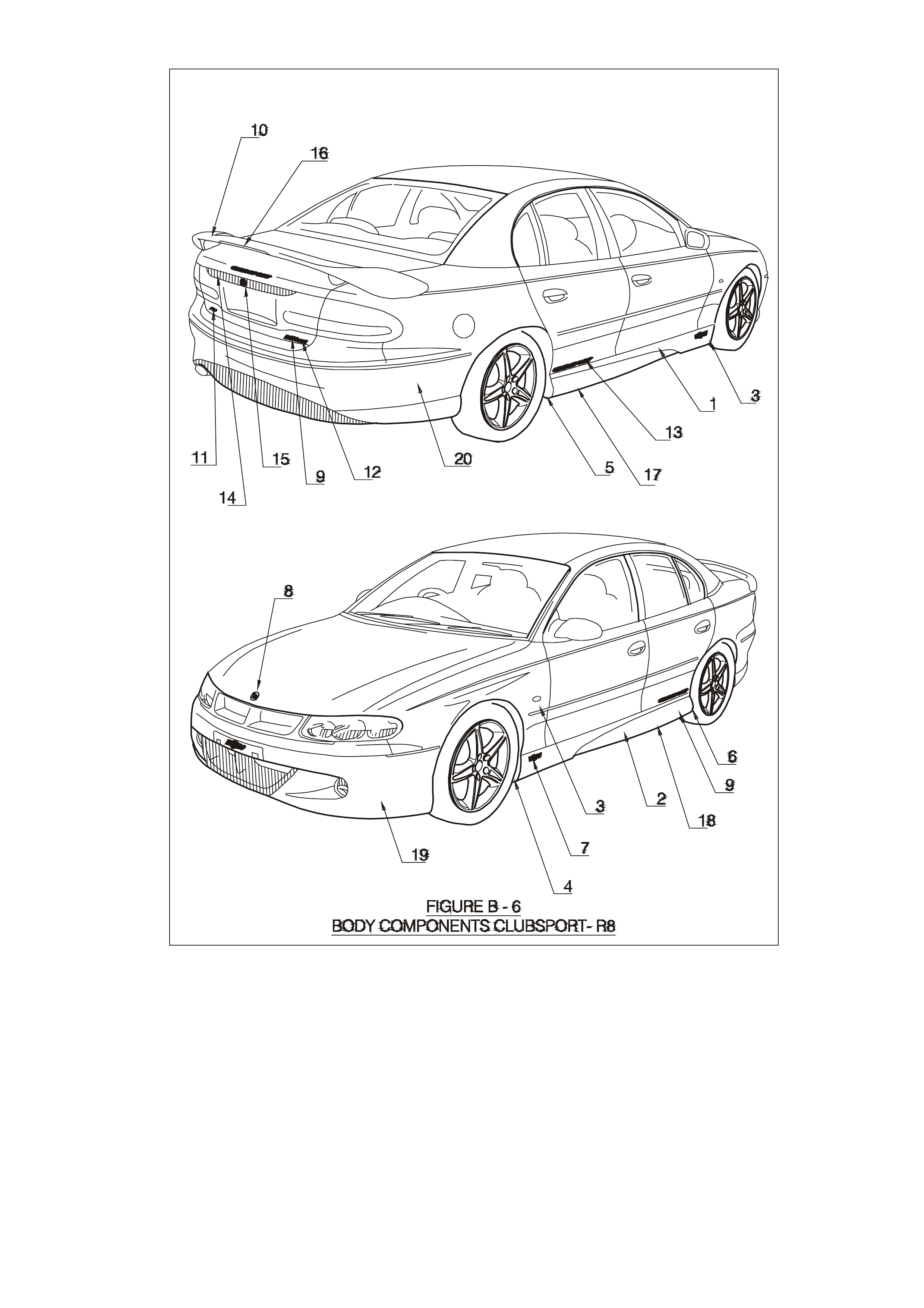

CLUBSPORT 250 LS1 ‘R8’ SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT - ROCKER- RH* B-5 1

A08-970602 1 SKIRT - ROCKER- LH* B-5 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT -FRT RH 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR RH 6

A08-970607 1 BADGE-HSV CORPORATE LOGO B-5 7

B08-970301 1 BADGE-LION & HELMET (BONNET) B-5 8

E08-990602C2 1 BADGE-250I (SILVER) B-5 9

E08-970601 1 SPOILER-REAR DECKLID* B-5 10

E08-990605 1 BADGE- ‘R8’ B-5 11

E08-990607C2 1 BADGE-ENGINE ID LS1(SILVER) B-5 12

E08-990606 1 BADGE-CLUBSPORT-VT2 B-5 13

E08-970305 1 DECOR PANEL MOULDING B-5 14

E08-970306 1 BADGE DECOR PANEL B-5 15

12C-970601 1 LAMP FOG LH ∅

12C-970602 1 LAMP FOG RH ∅

14A1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT ∅16

A08-970609 1 PAINT PROTECTOR S/SKIRT- SIDE-RH B-5 17

A08-970610 1 PAINT PROTECTOR S/SKIRT- SIDE-LH B-5 18

14A1970601 1 FACIA-FRONT BUMPER BAR* B-5∅

14A2970604 1 FACIA-REAR BU MPER BAR* B-5θ

14A1970612 1 MESH-BUMPER OPENING-UPPER ∅

14A1970607 1 MESH-BUMPER OPENING-LWR ∅

14A1970608 1 PAINT PROTECTOR-FRT RH ∅

14A1970609 1 PAINT PROTECTOR-FRT LH ∅

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970607 1 PAINT PROTECTOR-RR RH θ

14A2970608 1 PAINT PROTECTOR-RR LH θ

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the ClubSport 250 LS1 'R8' Sedan body components, refer to Figures B-5, B-10, B-12, 14I-970001

and 14-970002 obtain the necessary information on the correct location of each component

XU8 SEDAN (VT-1 ONLY)

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT-ROCKER-RH* B-5,1 1

A08-990602 1 SKIRT-ROCKER-LH* B-5,2 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT FRT RH 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH 6

A08-970609 1 PAINT PROTECTOR-S/SKIRT-SIDE-RH B-5 7

A08-970610 1 PAINT PROTECTOR-S/SKIRT-SIDE-LH B-5 8

A08-970607 2 BADGE-HSV CORPORATE LOGO B-5 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-5,4 10

E08-970304 1 BADGE (SILVER) 195I B-5,5 1 1

E08-970601 1 SPOILER-REAR DECKLID* B-5,6 12

E08-992101 2 BADGE-XU8 B-5,7 13

E08-970305B9 1 DECOR PANEL MOULDING 14

14A1992101 2 AIR DUCT FRONT BUMPER BAR 15

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-5 16

14A1970601 1 FACIA-FRONT BUMPER BAR* B-5,11∅17

14A2970604 1 FACIA-REAR BU MPER BAR* B-5,12θ18

14A1970607 2 MESH-BUMPER OPENING-LWR ∅

14A1970608 1 PAINT PROTECTOR-FRT RH ∅

14A1970609 1 PAINT PROTECTOR-FRT LH ∅

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970607 1 PAINT PROTECTOR-RR RH θ

14A2970608 1 PAINT PROTECTOR-RR LH θ

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

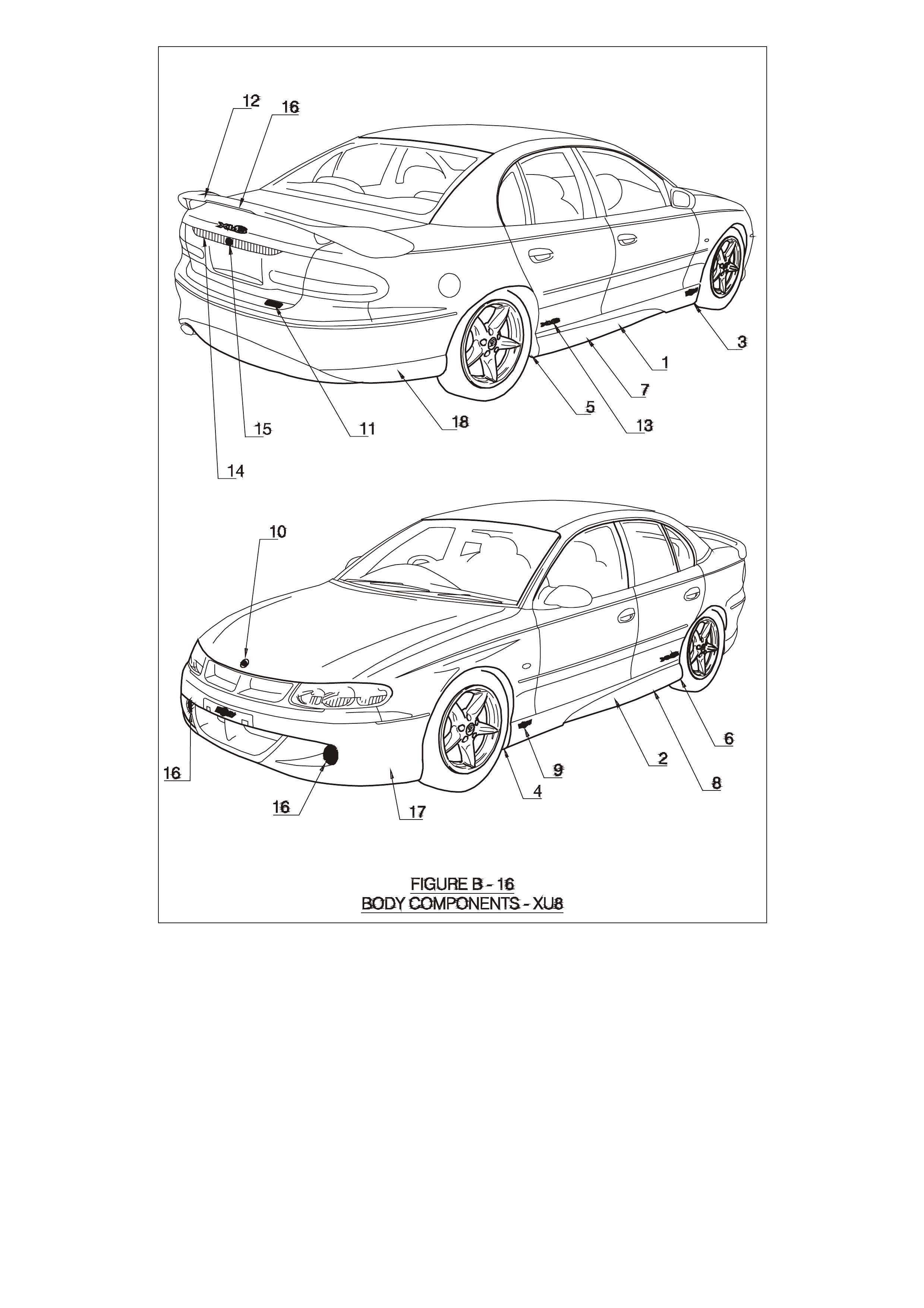

When servicing the XU8 Sedan body components, refer to Figures B-16, B-13 and B-12, 14I-970001 and

14I-970002 to obtain the necessary information on the correct location of each component.

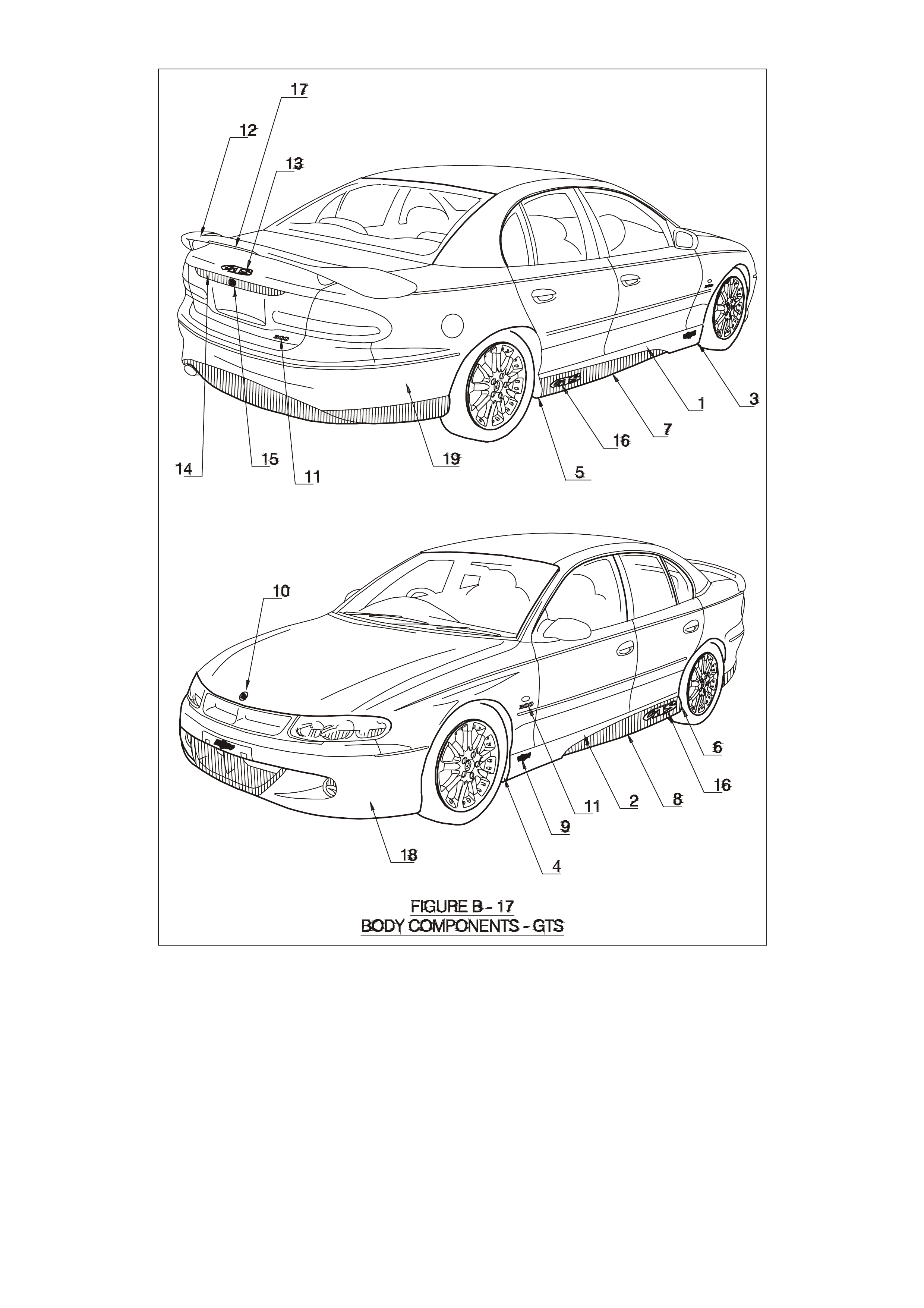

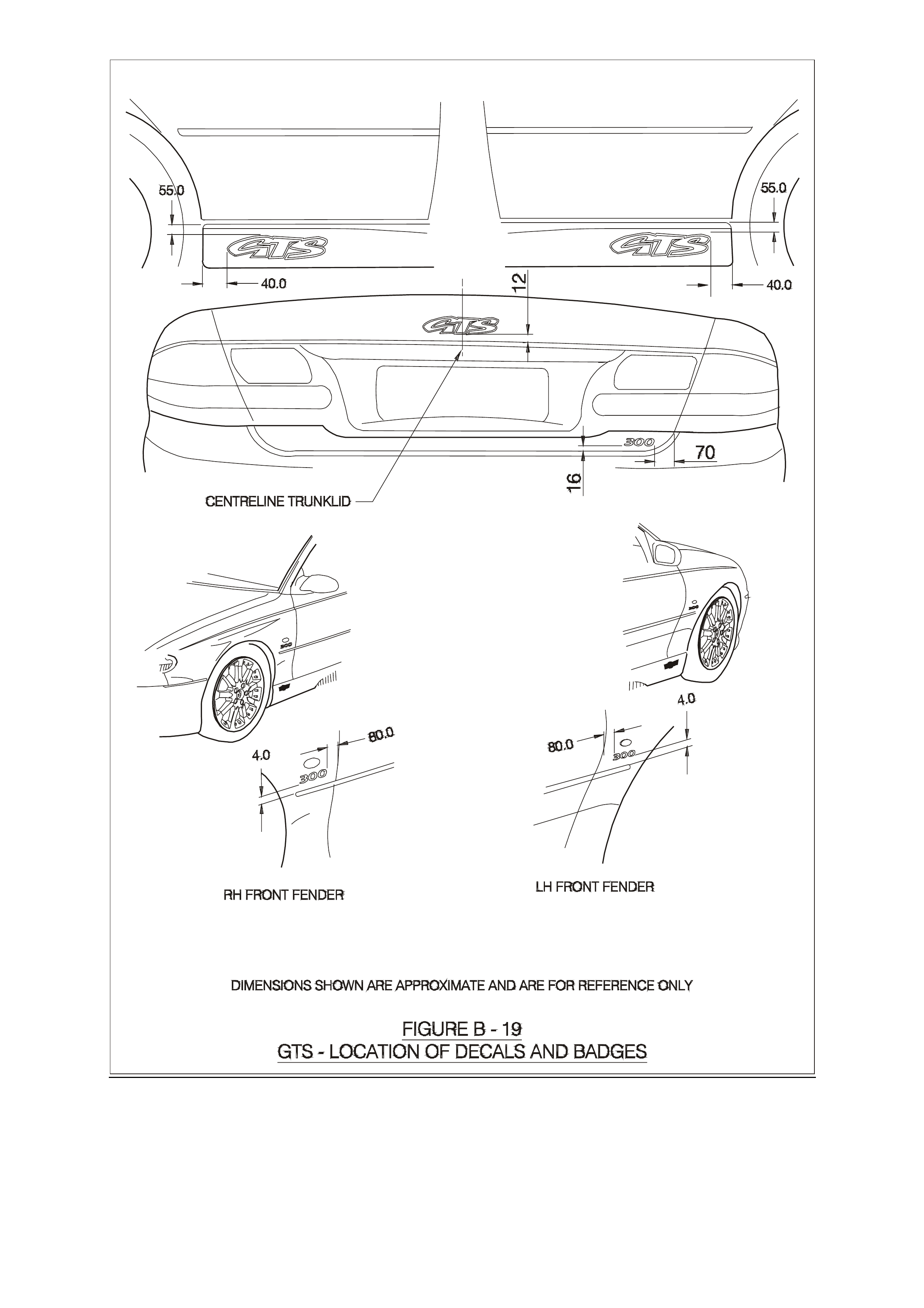

VT2 GTS SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT-ROCKER-RH* B-17 1

A08-970602 1 SKIRT-ROCKER-LH* B-17 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT FRT RH B-17 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH B-17 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH B-17 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH B-17 6

A08-970609 1 PAINT PROTECTOR-S/SKIRT-SIDE-RH B-17 7

A08-970610 1 PAINT PROTECTOR-S/SKIRT B-17 8

A08-970607C8 2 BADGE-HSV CORPORATE LOGO B-17 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-17 10

E08-990702C8 3 BADGE 300 - BLACK CHROME B-17 11

E08-970601 1 SPOILER-REAR DECKLID* B-17 12

E08-990703DC 3 BADGE GTS - DARK CHARCOAL B-17 13

E08-970305SH 1 DECOR PANEL APPLIQUE-SATIN PHANTOM B-17 14

E08-970305SA 1 DECOR PANEL APPLIQUE-SATIN STING RED B-17 14

E08-970306 1 BADGE DECOR PANEL B-17 15

12C-970601 1 LAMP FOG LH ∅

12C-970602 1 LAMP FOG RH ∅

14A-1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM-HI MOUNT STOP LIGHT B-17 16

14A1990701 1 FACIA-FRONT BUMPER BAR* B-17∅17

14A2990704 1 FACIA-REAR BU MPER BAR* B-17∅18

14A1990703 1 MESH-BUMPER OPENING UPPER ∅

14A1990702 1 MESH-BUMPER OPENING-LWR ∅

14A1970608 1 PAINT PROTECTOR-FRT RH ∅

14A1970609 1 PAINT PROTECTOR-FRT LH ∅

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970607 1 PAINT PROTECTOR-RR RH θ

14A2970608 1 PAINT PROTECTOR-RR LH θ

14A2970609 1 PLATE ASM-REAR FACIA ¼ PANEL RH θ

14A-2970610 1 PLATE ASM-REAR FACIA ¼ PANEL LH θ

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the VT2 GTS Sedan body components, refer to Figures B-17, B-10, B-12, 14I-970001 and

14I-970002 to obtain the necessary information on the correct location of each component.

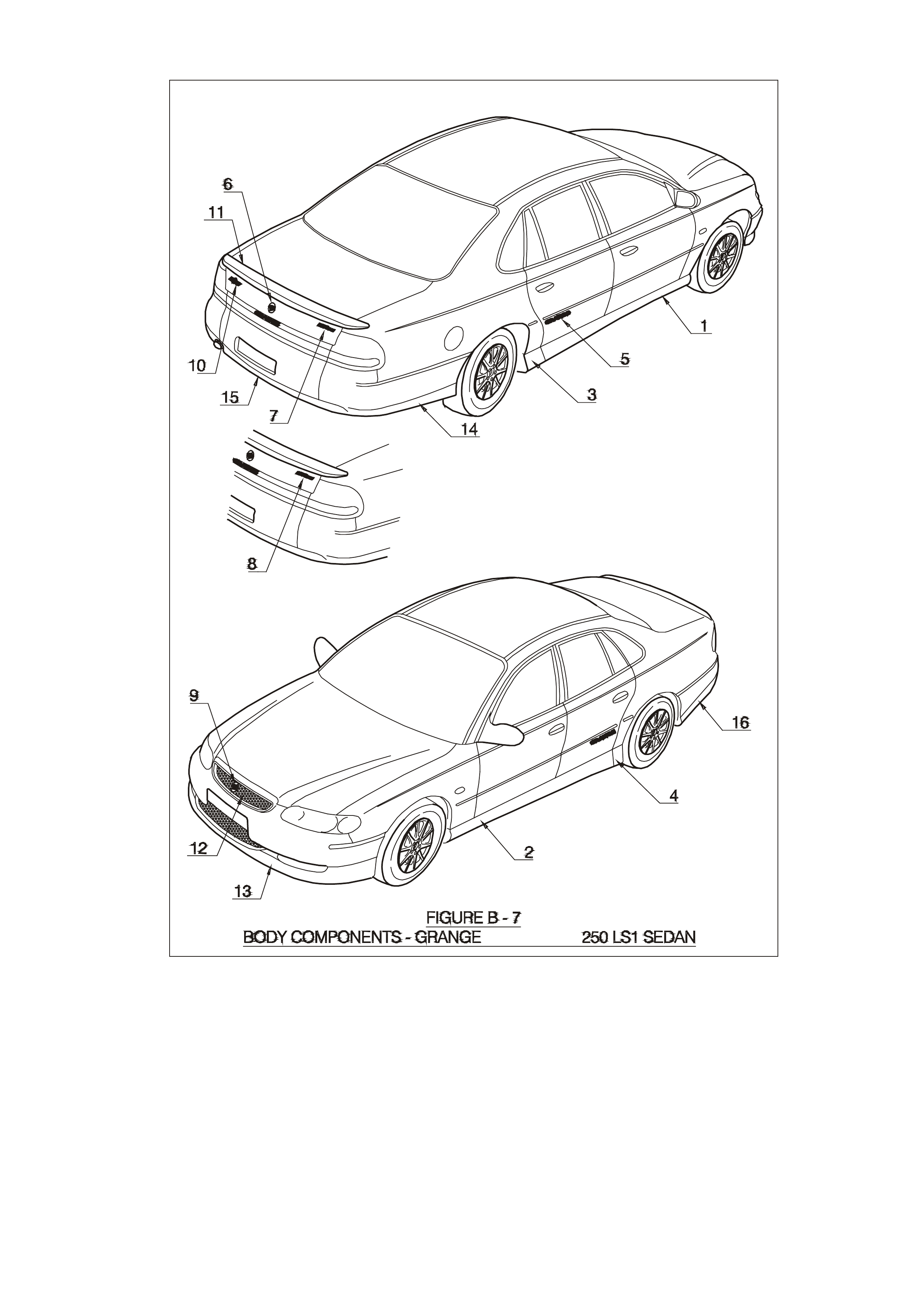

180 S/C AND

WH GRANGE 180S/C AND 250 LS1 SEDANS

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-991307 1 SKIRT-ROCKER-FRONT RH* B-7 1

A08-991308 1 SKIRT-ROCKER-FRONT LH* B-7 2

A08-991303 1 SKIRT-ROCKER-REAR RH* B-7 3

A08-991304 1 SKIRT-ROCKER-REAR LH* B-7 4

E08-991302 3 BADGE-GRANGE B-7 5

E08-991307 1 BADGE-RR DECOR PNL-GRANGE B-7 6

E08-99062B8 1 BADGE-250 LS1 CHROME B-7 7

E08-990401B8 1 BADGE – 180 S/C CHROME B-5 8

13C-991305 1 BADGE-LION &HELMET B-7 9

A08-970607 1 BADGE HSV CORPORATE LOGO B-7 10

E08-991306 1 SPOILER-REAR* B-7 11

13C-991301 1 GRILLE ASM-RADIATOR B-7 12

14A1991301 1 FACIA FRONT BUMPER BAR* B-7 13

14A2991305 1 FACIA REAR BUMPER RH* B-7 14

14A2991306 1 FACIA REAR BUMPER CENTRE* B-7 15

14A2991307 1 FACIA REAR BUMPER LH* B-7 16

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the W H Grange 180 S/C and 250 LS1 Sedan bod y components, refer to Figures B-7 and B-14 to

obtain the necessary information on the correct location of each component.

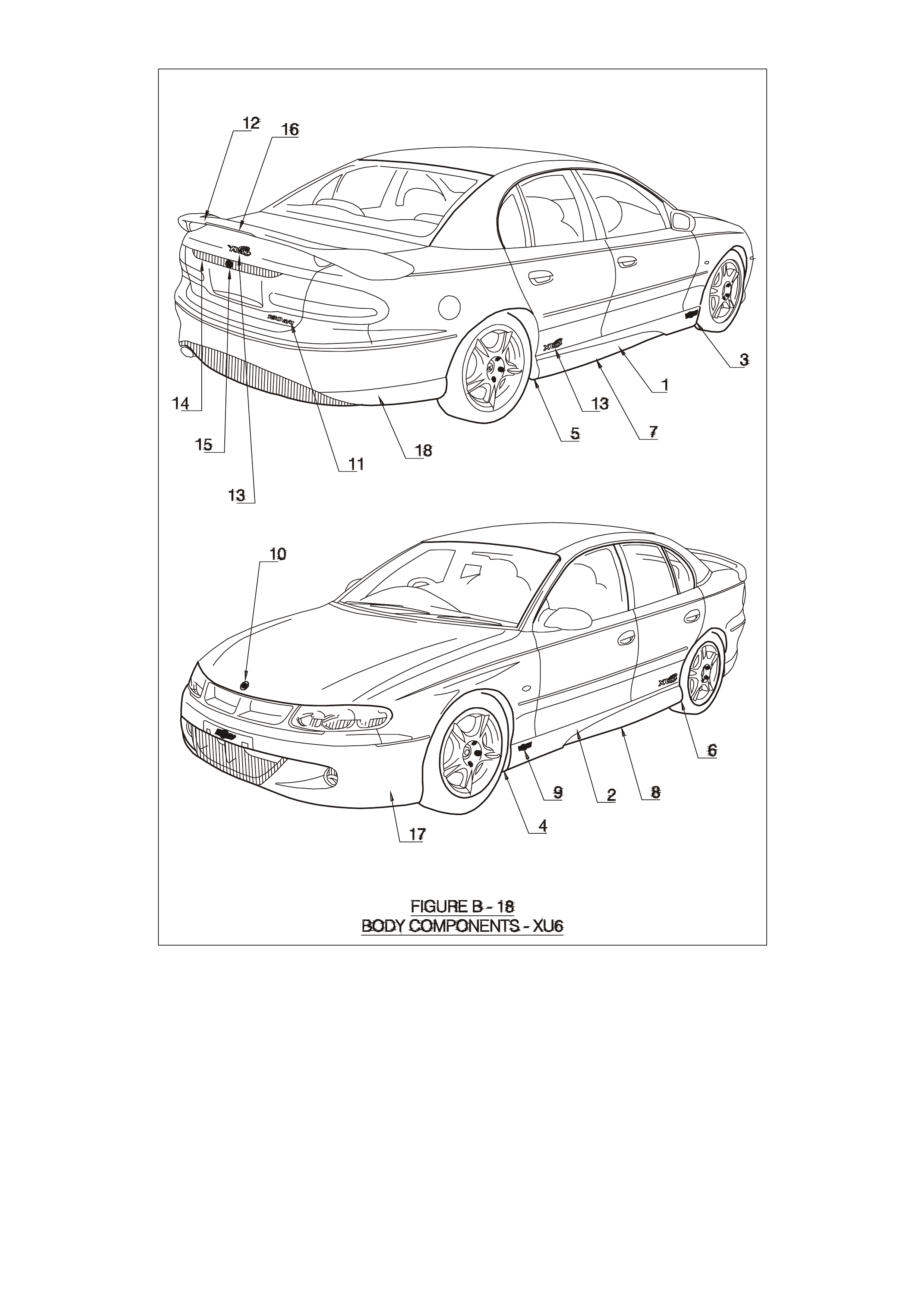

XU6 180 S/C SEDAN

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-970601 1 SKIRT - ROCKER- RH* B-18 1

A08-970602 1 SKIRT - ROCKER- LH* B-18 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT -FRT RH B-18 3

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH B-18 4

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR B-18 5

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR B-18 6

A08-970609 1 PAINT PROTECTOR-S/SKIRT-SIDE-RH B-18 7

A08-970610 1 PAINT PROTECTOR-S/SKIRT-SIDE-LH B-18 8

A08-970607 2 BADGE HSV CORPORATE LOGO B-18 9

B08-970301 1 BADGE-LION & HELMET (BONNET) B-18 10

EO8-990401C2 1 BADGE-180 S/C (SILVER) B-18 11

E08-970601 1 SPOILER-REAR DECKLID* B-18 12

E08-991701 3 BADGE-XU6 (LENSED) B-18 13

E08-970305 1 DECOR PANEL MOULDING B-18 14

E08-970306 1 BADGE-DECOR PANEL SINGLE RING B-18 15

12C-970601 1 LAMP FOG LH ∅

12C-970602 1 LAMP FOG RH ∅

14A1970613 2 SPACER FOG LAMP ∅

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-18 16

14A1970601 1 FACIA-FRONT BUMPER BAR* B-18,∅17

14A2970604 1 FACIA-REAR BU MPER BAR* B-18,θ18

14A1970612 1 MESH-BUMPER OPENING-UPPER ∅

14A1970607 1 MESH-BUMPER OPENING-LWR ∅

14A1970608 1 PAINT PROTECTOR-FRT RH ∅

14A1970609 1 PAINT PROTECTOR-FRT LH ∅

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970607 1 PAINT PROTECTOR-RR RH θ

14A2970608 1 PAINT PROTECTOR-RR LH θ

* Unpainted parts for service

∅ Refer Drawing 14I-970001

θ Refer Drawing 14I-970002

SERVICE OPERATIONS

When servicing the XU6 180 S/C Sedan body components, refer to Figures B-18, B-10, B-12, 14A-970001 and

14I-970001 and 14I-970002 to obtain the necessary information on the correct location of each component.

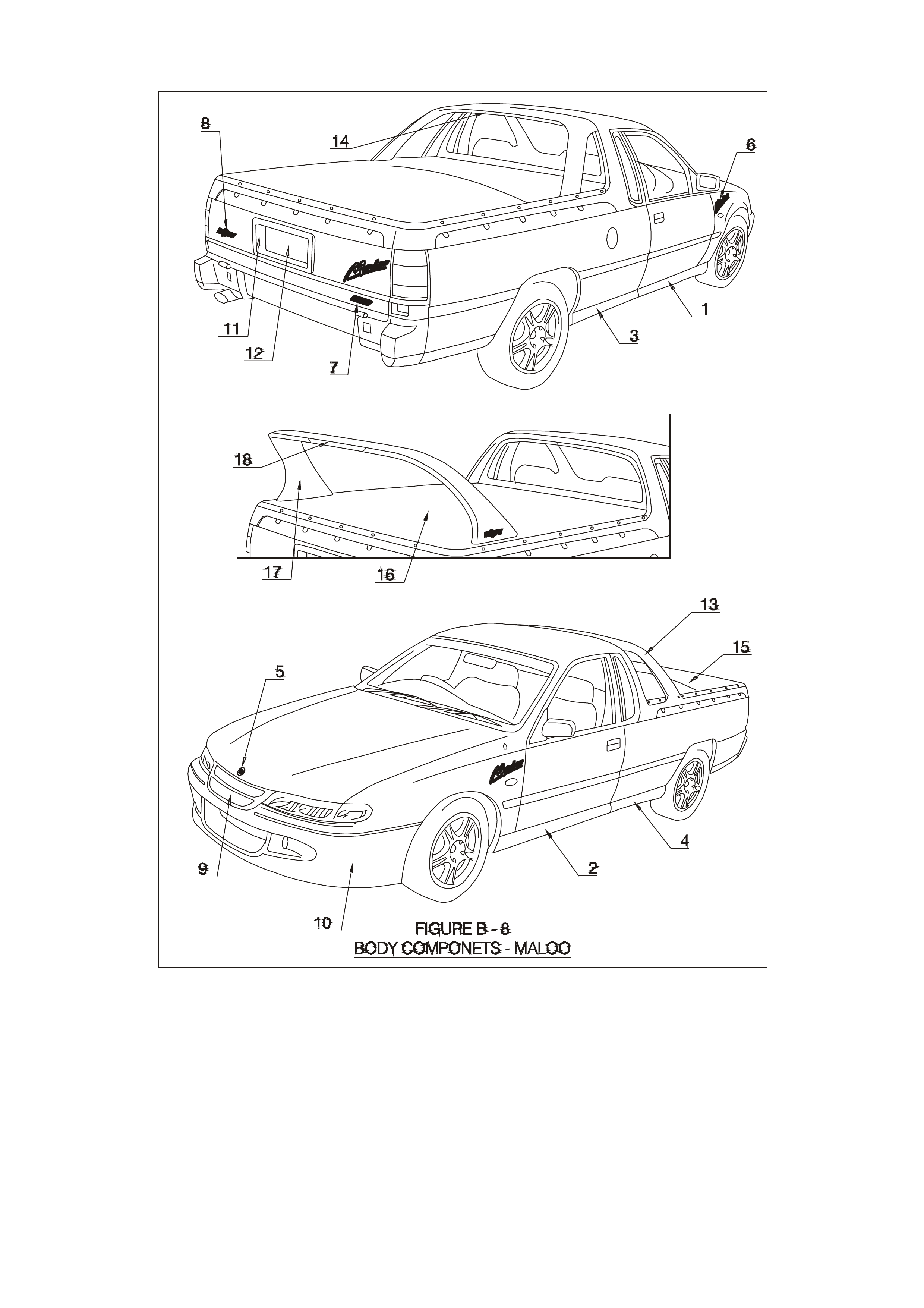

MALOO 195I UTILITY

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE REF

A08-671901 1 SKIRT-ROCKER-RH FRONT * B-8, 1

A08-671902 1 SKIRT-ROCKER-LH FRONT * B-8, 2

A08-970501 1 SKIRT-ROCKER-RH REAR * B-8, 3

A08-970502 1 SKIRT-ROCKER-LH REAR* B-8, 4

B08-671903 1 BADGE ASM-BONNET B-8, 5

E08-970501 3 BADGE-MALOO B-8, 6

E08-970304 1 BADGE-195i B-8, 7

A08-970607 1 BADGE-HSV CORPORATE LOGO B-8, 8

13C-950601 1 GRILLE-RADIATOR * B-8, 9

14A1691901 1 B/BAR FACIA FRONT* B-8, 10

14A1691902 1 MESH-BUMPER RADIATOR

14A1691903 2 MESH-BUMPER BRAKE DUCT

14A1691905 1 PROTECTOR-PAINT RH

14A1691906 1 PROTECTOR-PAINT LH

22H-208003 1 SURROUND LICENSE PL ATE B-8, 11

H08-738005 1 HOLDER-LICENCE PLATE B-8, 12

H08-970502 1 LINER KIT- CARGO-HSV

H08-970513 1 STRIP-FINISHING-UTE SIDE FRT

H08-970514 1 STRIP-FINISHING-UTE SIDE REAR

H08-970515 STRIP-FINISHING-UTE ENDGATE

UTILITY OPTIONS

STANDARD FIT----SAILPLANE/SOFT TONNEAU

22C-468001 1 SAILPLANE MOULDING-UTE B-8, 13

12E-950801 1 LAMP ASM-HI MOUNT STOP CLEAR LENSE B-8, 14

12H3738001 1 HARNESS HI MOUNT STOP LAMP

22E-468001 1 TONNEAU SUIT SAILPLANE B-8, 15

OPTIONAL FIT----RIGID TONNEAU

H08-970501 1 TONNEAU-RIGID - MALOO B-8, 16

B08-671902 1 BADGE- HSV

H08-970503 4.5m PAINT PROTECTOR - TAPE - 50mm

H08-970516 1 PAINT PROTECTOR - UTE RH RR

H08-970517 1 PAINT PROTECTOR - UTE LH RR

E03-970502 1 STRUT ASM - GAS - RIGID TONNEAU (300 N)

E03-970503 2 BALL STRUT- RIGID TONNEAU

H03-970501 1 LOCK ASM - RIGID TONNEAU

12F- 970501 1 KEY SET - RIGID TONNEAU

H03-970502 1 HINGE - MALE - RIGID TONNEAU

H03-970503 1 HINGE - FEMALE - RIGID TONNEAU

12H-970502 1 LAMP- SURFACE (135X70) R/TONNEAU

H03-970504 1 STRIKER - LOCK - RIGID TONNEAU

UTE REAR WING

H08-970510 1 SPOILER - UTILITY REAR WING B-8, 17

12E-950801 1 LAMP ASM - HI MT STOP CLEAR B-8, 18

A08-970607 2 BADGE- HSV CORPORATE LOGO B-8, 19

H08-970512 2 PLATE REINFORCEMENT

E03-970501 2 STRUT ASM-GAS -UTE- WING (35O N)

* Unpainted parts for service.

SERVICE OPERATIONS

When servicing the Maloo body components, refer to Figures B-8 and B-15 to obtain the necessary information on

the correct location of each component.
