Wheels, Tyres And Steering Wheel Page H- 1

Page H-1

Section H

Wheels, Tyres And Steering Wheel

ATTENTION

HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-

tensioners (fitted to all front seat s), a driver’s-side air bag, a passeng er’s-side air bag and left and right h and

side airbags. Refer to CAUTIONS, Section 12M, in the Holden series Adventra AWD Service Manual before

performing any service operation on or around SRS components, the steering mechanism or wiring. Failure

to follow the CAUTIONS could result in personal injury or unnecess ary SRS system repairs.

1 Purpose ..............................................................................................................................................H-2

2 Wheels And Tyres ..............................................................................................................................H-3

2.1 General Description ...........................................................................................................................................H-3

3 Service Operations.............................................................................................................................H-4

3.1 Wheels and tyre balancing.................................................................................................................................H-4

3.2 Tyre Placard And Pressures..............................................................................................................................H-5

4 HSV Steering Wheel...........................................................................................................................H-7

Wheels, Tyres And Steering Wheel Page H- 2

Page H-2

1 Purpose

The purpose of this section is to provide information on the wheels, tyres and steering wheels fitted to the HSV

Avalanche AWD model. The information is designed to supplement that given in the Holden Adventra AWD series

Service Manual and detai ls ar e given where differences oc c ur between the HSV models and stan dard Hold en models. A

series of instruction drawings describe the design changes and indicate specific part numbers, fitting instructions and

relevant notes for vehicle serv icing.

NOTE:

If specific technical data on a HSV model is not

contained in this supplement, obtain data for that

model from the relevant Holden Adventra AWD

series Manual Supplement. References are

made throughout this section to Holden Service

Manuals, to assist in providing information for

specific service operations.

When hoisting (or jacking) HSV models,

ensure that the lifting h ead of the hoist lifts on

the chassis before the arm of the hoist

contacts the side-skirt

Wheels, Tyres And Steering Wheel Page H- 3

Page H-3

2 Wheels And Tyres

2.1 General Description

HSV Avalanche AWD models are fitted with alloy wheels developed specifically for HSV application. Each wheel is

manufactured from a single-piece alloy casting.

NOTE:

Specific wheel nuts are used to attach alloy

wheels to the vehicle. These nuts are fitted with

a plastic dress cap which must be removed prior

to undoing the wheel nuts.

HSV Avalanche AWD wheels do not have a

steel insert and therefore require wheel nuts

with a flang ed seat as per the VT, VT2 and VX

wheel nuts, 10B-970304. Do not use VS

wheels nuts on HSV Avalanche AWD wheels.

Wheels, Tyres And Steering Wheel Page H- 4

Page H-4

3 Service Operations

Alloy wheels fitted to all HSV vehicles are to be serviced in accordance with the procedures detailed in the relevant

Holden Service Manual, refer to Section 10 – Wheels And Tyres. In addition, particular care should be taken with the

surface finish of alloy wheels. The manufacturer recommends that alloy surfaces be treated the same as high-gloss

painted services to prevent corrosion and genera l deteriorat ion.

3.1 Wheel and Tyre Balancing

In order to balance the HSV Design wheels and t yre assemblies, refer to the relevant Hol den series Service Information,

refer to Section 10 – Wheels And T yres of the Holden Adventra Service Information.

Wheels, Tyres And Steering Wheel Page H- 5

Page H-5

3.2 Tyre Placard And Pressures

The HSV Tyre Placard is posit ioned on the opening of the right hand door. The Tyre Placard details important

information on the tyre pressures recomme nded for the HSV Avalanche AWD Series Models. If carrying load, or

travelling at high speed, the t yre pressur es n eed to be increased as detailed on the placard. This is very important for

tyre wear and also to ensure that the tyres have sufficient load carrying capac ity.

Wheels, Tyres And Steering Wheel Page H- 6

Page H-6

DATE

ISSUE DATED

AUTH'Y

CK.

SYM

AUTH'Y

RELEASE

REVISION RECORD

DATE

SYM

SIGNATURES ON

ORIGINAL APPROVAL

DR.

14.07.00

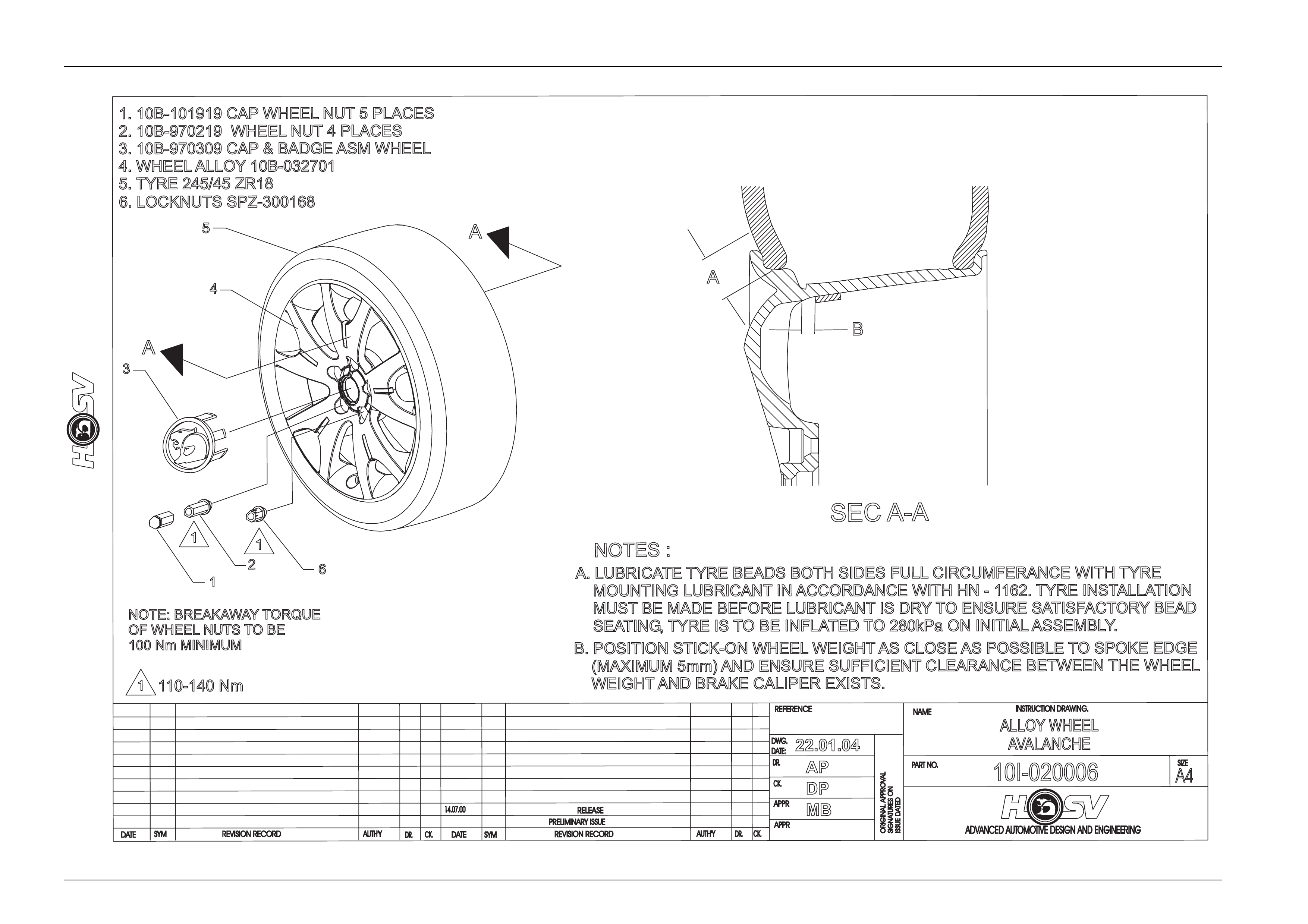

ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING

10I-020006

INSTRUCTION DRAWING.

SIZE

ALLOY WHEEL

AVALANCHE

REVISION RECORD

PRELIMINARY ISSUE

CK.

NAME

PART NO.

CK.

REFERENCE

DWG.

DR.

DATE:

APPR

DR.

22.01.04

A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE

MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION

MUST BE MADE BEFORE LUBRICANT IS DRYTO ENSURE SATISFACTORYBEAD

SEATING,TYRE IS TO BE INFLATED TO 280kPa ON INITIAL ASSEMBLY

B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TO SPOKE EDGE

(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL

WEIGHT AND BRAKE CALIPER EXISTS.

SECA

-A

NOTES:

NOTE: BREAKAWAYTORQUE

OF WHEEL NUTS TOBE

100 Nm MINIMUM

110-140 Nm

1. 10B-101919 CAP WHEEL NUT 5 PLACES

2. 10B-970219 WHEEL NUT 4 PLACES

3. 10B-970309 CAP & BADGE ASM WHEEL

4. WHEEL ALLOY 10B-032701

5. TYRE 245/45 ZR18

6. LOCKNUTS SPZ-300168

Wheels, Tyres And Steering Wheel Page H- 7

Page H-7

4. Steering Wheel

HSV Avalanche AWD vehicles are equipped

with AIR BAGS. An AIR BAG is a

Supplemental Restraint System (SRS). Refer

to CAUTIONS, Section 12M, in Holden

Adventra AWD series Service Manual

Supplement before performing any service

operation on or around SRS components, the

steering mechanism or wiring. Failure to

follow the CAUTIONS could result in air bag

deployment, resulting in possible personal

injury or unnecessary SRS system repairs.

The steering wheel assembly fitted to HSV Avalanche AWD models incorporates a HSV-design central horn pad

complete with HSV logo (see Dra wing 09I-030004). The central hor n pad also incorp orates the driv er’s-side air bag. All

other components, fixtures and fasteners are identical to sta ndard Holden parts and there fore, an y service op erations on

the assembly should be carried out in accordance with the relevant Holden Service Manual Supplem ent, refer to

Section 9A – Steering of the Adventra AWD Series Service Information.

Wheels, Tyres And Steering Wheel Page H- 8

Page H-8

DATE

ISSUEDA

TED

AUTH'Y

CK.

SYM

AUTH'Y

REVISION RECORD

DATE

SYM

SIGNATURES ON

ORIGINAL APPROVAL

DR.

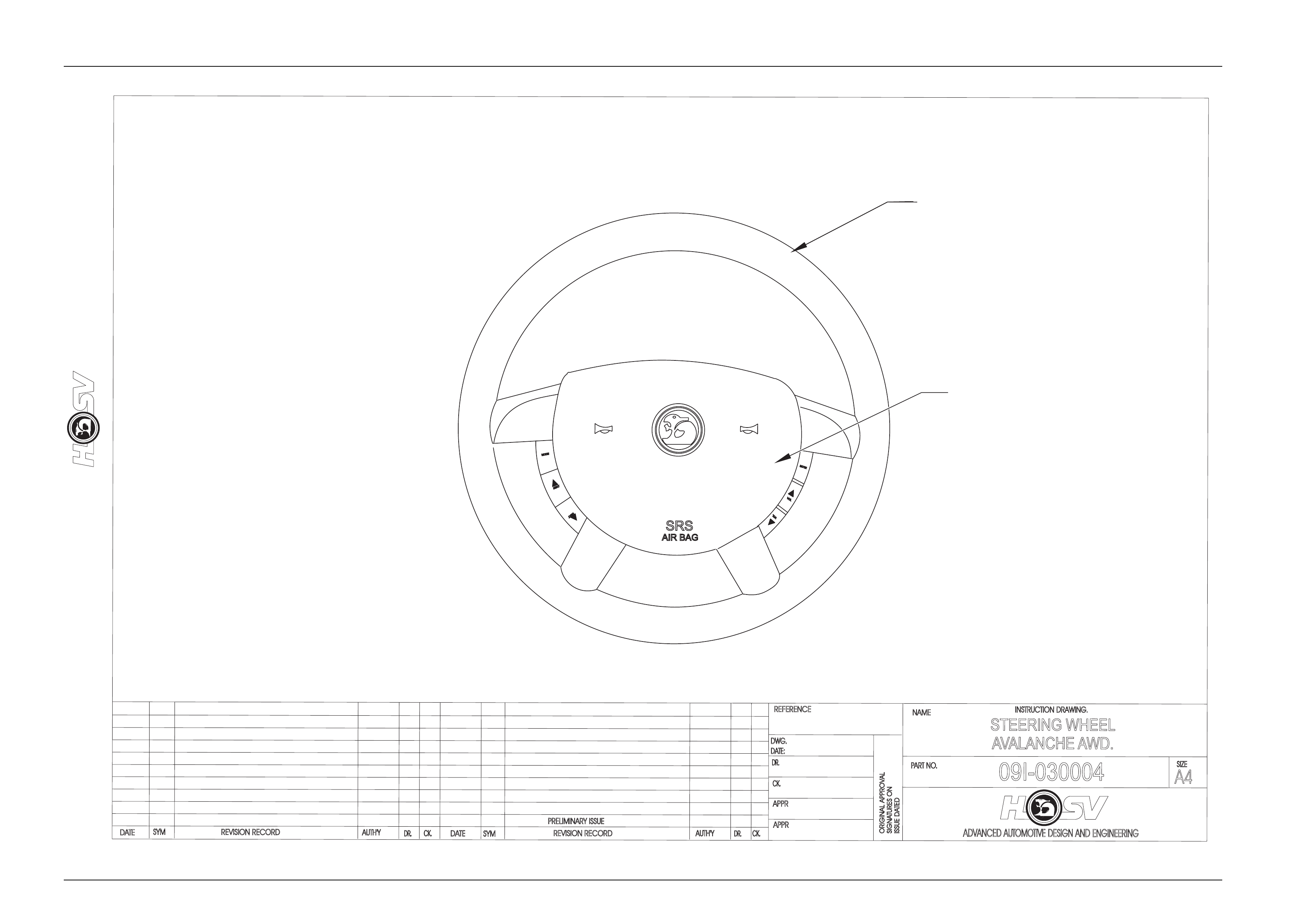

ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING

09I-030004

INSTRUCTION DRAWING.

SIZE

STEERING WHEEL

AVALANCHE AWD.

REVISION RECORD

PRELIMINARY ISSUE

CK.

NAME

PART NO.

CK.

REFERENCE

DWG.

DR.

DATE:

APPR

DR.

26.02.04

SRS

AIR BAG

VOL

MUTE

MODE

STEERING WHEEL

92163207

AIR BAG

92117622
