1 General Information
The fuel system as fitted to HSV GTO and GTS Coupe Series II Models carries over from Holden V2 Series II Models.
For information relating to the fuel system as fitted to HSV GTO and GTS Coupe Series II Models not covered in this
section, refer to Section 8A1 Fuel Tank in the Holden V2 Series II Models Service Information, in conjunction with
Section 8A Fuel Tank in the Holden VT Series 1 and VT Series II Service Information.
The exhaust system as fitted to the HSV GTO and GTS Coupe Series II Models is a unique design. The exhaust system

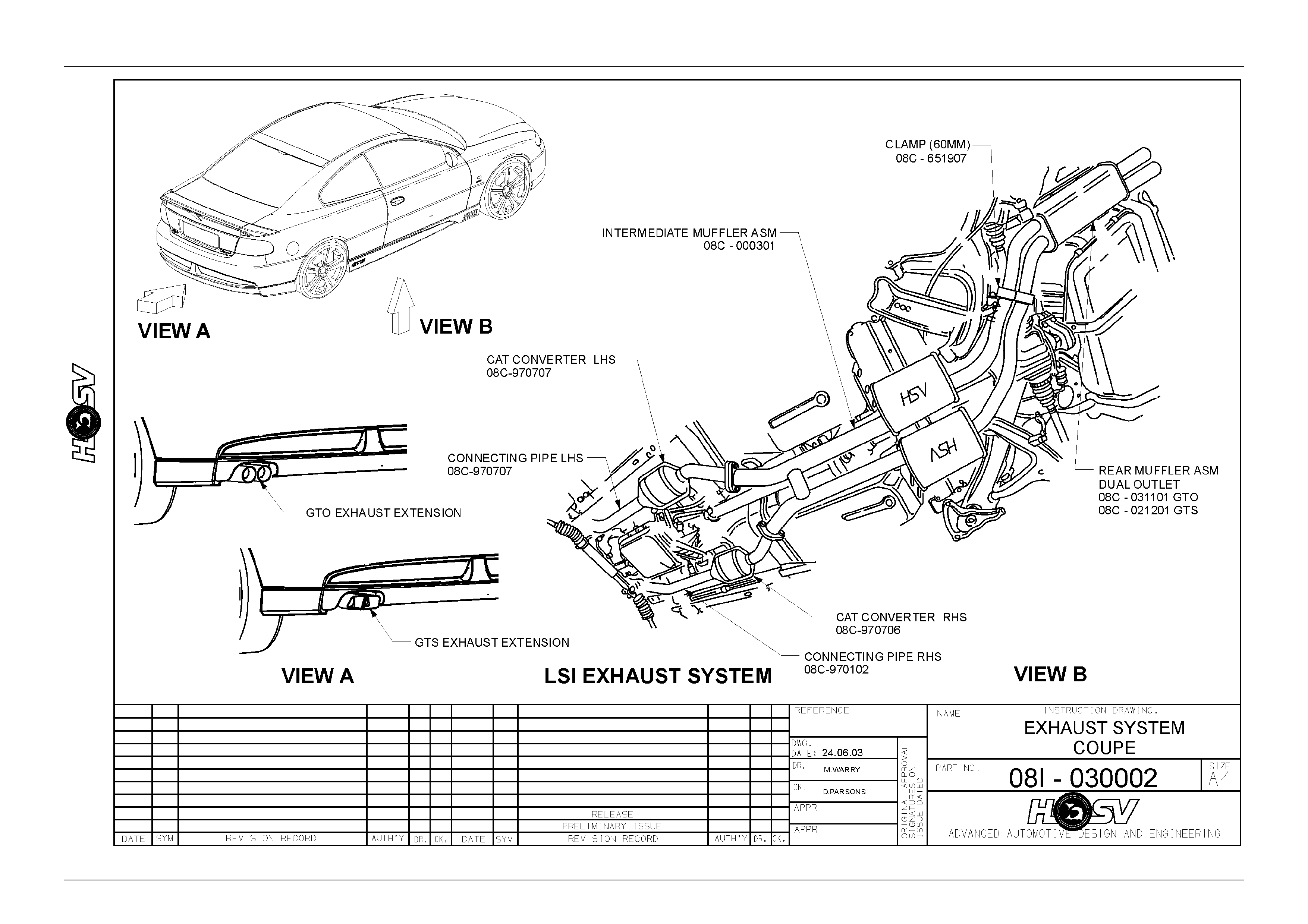

is the same as that fitted to the HSV VY sedan models, refer to Drawing 08I-030002. The GTO model has a twin outlet
exhaust extension. The GTS model has a unique double “D” design extension.
Fuel and Exhaust Page F–3
Page F–3
2 Service Operations
All service operations for the fuel tank fitted to the HSV GTO and GTS Coupe Series II Models carry over from the
Holden V2 Series II Models.
For information relating to service operations on the fuel tank fitted to the HSV GTO and GTS Coupe Series II Models,
refer to Section 8A1 Fuel Tank in the Holden V2 Series II Models Service Information.
For all service operations for the exhaust system fitted to the HSV GTO and GTS Coupe Series II Models, refer to
Drawing 08I-030002 and the HSV VT Clubsport Service Information.
