Section G
Fuel And Exhaust Systems
ATTENTION
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-
tensioners (fitted to all front seats), a driver’s-side air bag, a passenger’s-side air bag and right and left hand side
air bags. Refer to CAUTIONS, Section 12M, of the Holden V2 Series Coupe Service Information before performing
any service operation on or around SRS components, the steering mechanism or wiring. Failure to follow the
CAUTIONS could result in personal injury or unnecessary SRS system repairs.
1
Purpose ...................................................................................................................................................2
2
General Information ...............................................................................................................................3
3
Service Operations.................................................................................................................................4
3.1
Exhaust System Coupe ......................................................................................................................................... 5
Fuel And Exhaust Page G - 2
Page G - 2
1 Purpose
The purpose of this supplement is to provide information on the fuel and exhaust systems fitted to the HSV GTS, GTO and
LE Coupe Series 3 models. This information is designed to supplement that given in the Holden V2 Coupe Series Service
Information, and details are given where differences occur between the HSV models, and standard Holden models. A series
of instruction drawings detail the design changes and indicate specific part numbers, fitting instructions and relevant notes for
vehicle servicing.
NOTE:
If specific technical data on a HSV model is not
contained in this supplement, obtain data for that
model from the relevant Holden V2 Coupe Service
Information Supplement. References are made
throughout this section to Holden Service Information,
to assist in providing information for specific service
operations.
When hoisting (or jacking) HSV models, ensure
that the lifting head of the hoist lifts on the
chassis before the arm of the hoist contacts the
side-skirt
Fuel And Exhaust Page G - 3
Page G - 3
2 General Information
The fuel system fitted to HSV Coupe Series 3 models carry over from Holden V2 Series 2 models.
For information relating to the fuel system as fitted to HSV Coupe Series 3 models not covered in this section refer to Section
8A1 Fuel Tank in the Holden V2 Series 3 models Service Information, in conjunction with Section 8A Fuel Tank in the Holden
VY Series Service Information.
The exhaust system as fitted to the HSV Coupe Series 3 models is a unique design.
The exhaust system is similar as fitted to the HSV VY 2 sedan models except for the rear muffler, which is unique to Coupe,
refer to drawing shown on Page 5 .
All Coupe models have a twin outlet exhaust extension. GTO and LE have twin circular outlets. GTS has twin “Double D”
outlets.
Fuel And Exhaust Page G - 4
Page G - 4
3 Service Operations
All service operations for the fuel system fitted to HSV Coupe Series 3 models carry over from Holden V2 Series 2
models.
For information relating to service operations on the fuel tank fitted to HSV Coupe Series 3 models refer to
Section 8A1 Fuel Tank in the Holden V2 Series 2 models Service Information.
For all service operations for the exhaust system fitted to the HSV Coupe Series 3 models refer to the following drawing
and the HSV VY II Clubsport Service Information.
Fuel And Exhaust Page G - 5
Page G - 5

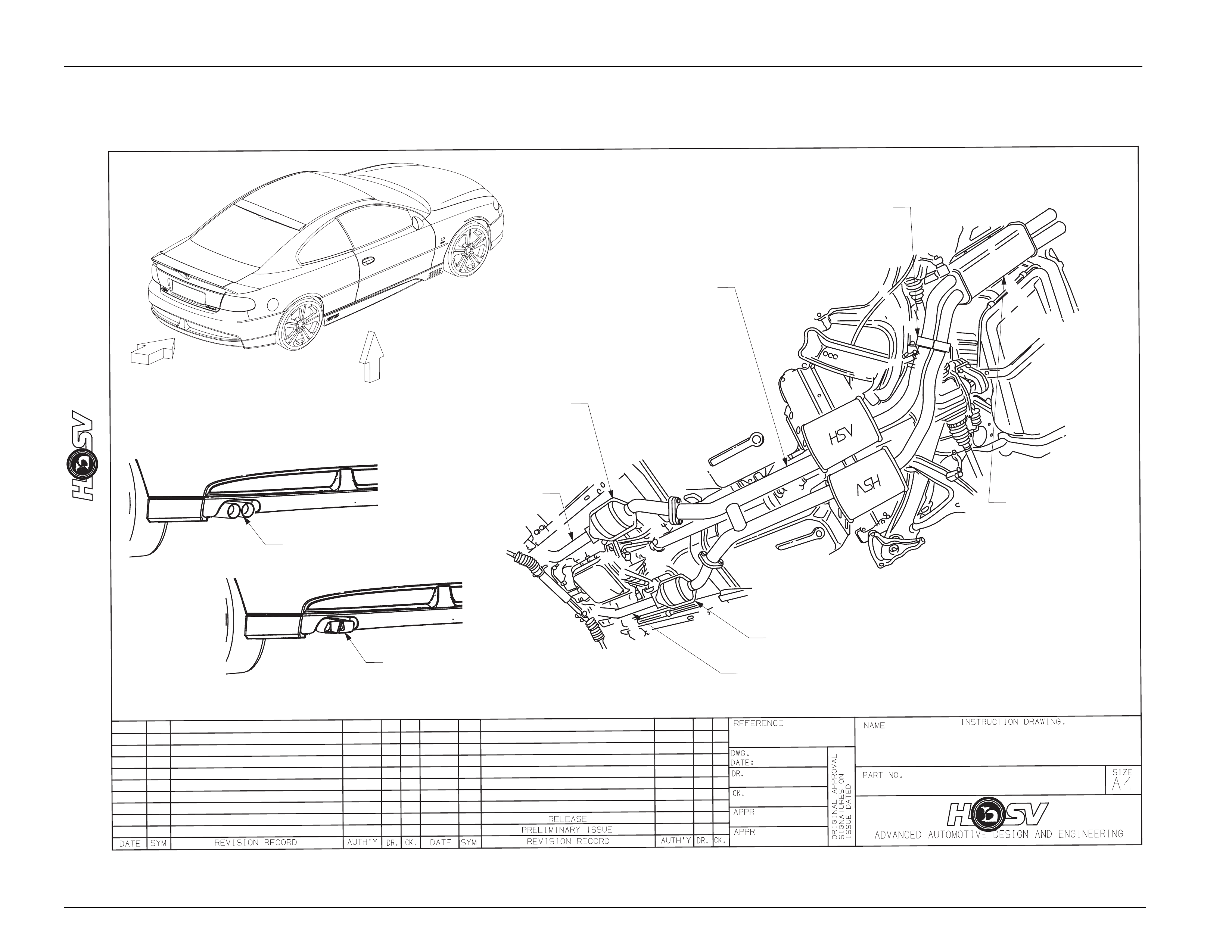

3.1 Exhaust System Coupe
GTO EXHAUST EXTENSION
GTS EXHAUST EXTENSION
HEADER LHS
08C-030609
CAT CONVERTER LHS
08C-030603
INTERMEDIATE MUFFLER ASM
08C - 000301
CLAMP (60MM)
08C - 651907
HEADER RHS
08C-030610
CAT CONVERTER RHS
08C-030604
REAR MUFFLER ASM
DUAL OUTLET
08C - 031101 GTO
08C - 021201 GTS
08I - 030002
EXHAUST SYSTEM
COUPE
LSI EXHAUST SYSTEMVIEW A
VIEW A VIEW B
VIEW B
D.PARSONS
L.HONL
J.OLIVER
06.06.03
