1 Purpose
The purpose of this section is to provide information on the Brake System fitted to HSV Coupe 4 model. Details are
given where differences occu r between the HSV models and sta ndard Holden models. A series of ins truction drawings
describe the design changes and indicate specific part numbers, fitting instructions and relevant notes for vehicle
servicing.
NOTE:
If specific technical data on a HSV model is not
contained in this supplement, obtain data for that
model from Section 5A – Standard Brakes of the
V2 Coupe series Service Information.
References are made throughout this section to
Holden Service Information to assist in providing
information for specific service operations.
When hoisting (or jacking) HSV models,
ensure that the lifting h ead o f th e hoist lifts on
the chassis before the arm of the hoist
contacts the side-skirt
1.1 General
Brake systems fitted to HSV Coupe 4 models employ the vacuum boosted, four-wheel-disc concept o perating through a
tandem master cylinder. T his tandem arra ng e ment prov ides separ ate brak i ng s ystems to the front and rear wheels which
in turn, provides adequate br aking (to the front or rear wheels) if a fault occurs in eith er system. HSV Coupe 4 models
are also equipped with the BOSCH Anti-loc k Braking System (ABS) as standard. Inspection, repl acement and testing of
the ABS must be carried out in accordance with the procedures detailed in the relevant Holden Service Manual. The
Coupe 4 brake s ystem contains 336 x 32mm ‘AP Rac ing’ ventilated and groov ed front discs, HSV embossed t win piston
‘Corvette’ front callipers in HRT red, 315 x 18mm ventilated and grooved rear discs.
Whenever any component of the ABS is
disturbed during service operations, it is vital
that the complete ABS is checked using the
procedure detailed in the relevant Holden
Service Manual
The Performance brake system has been developed by HSV and is a higher performance braking system than the
GMHA standard braking system. A description of this brake system is contained in succeeding paragr aphs.
Brakes Page D-3
Page D-3
2 HSV Coupe 4 AWD Performance
Brake System

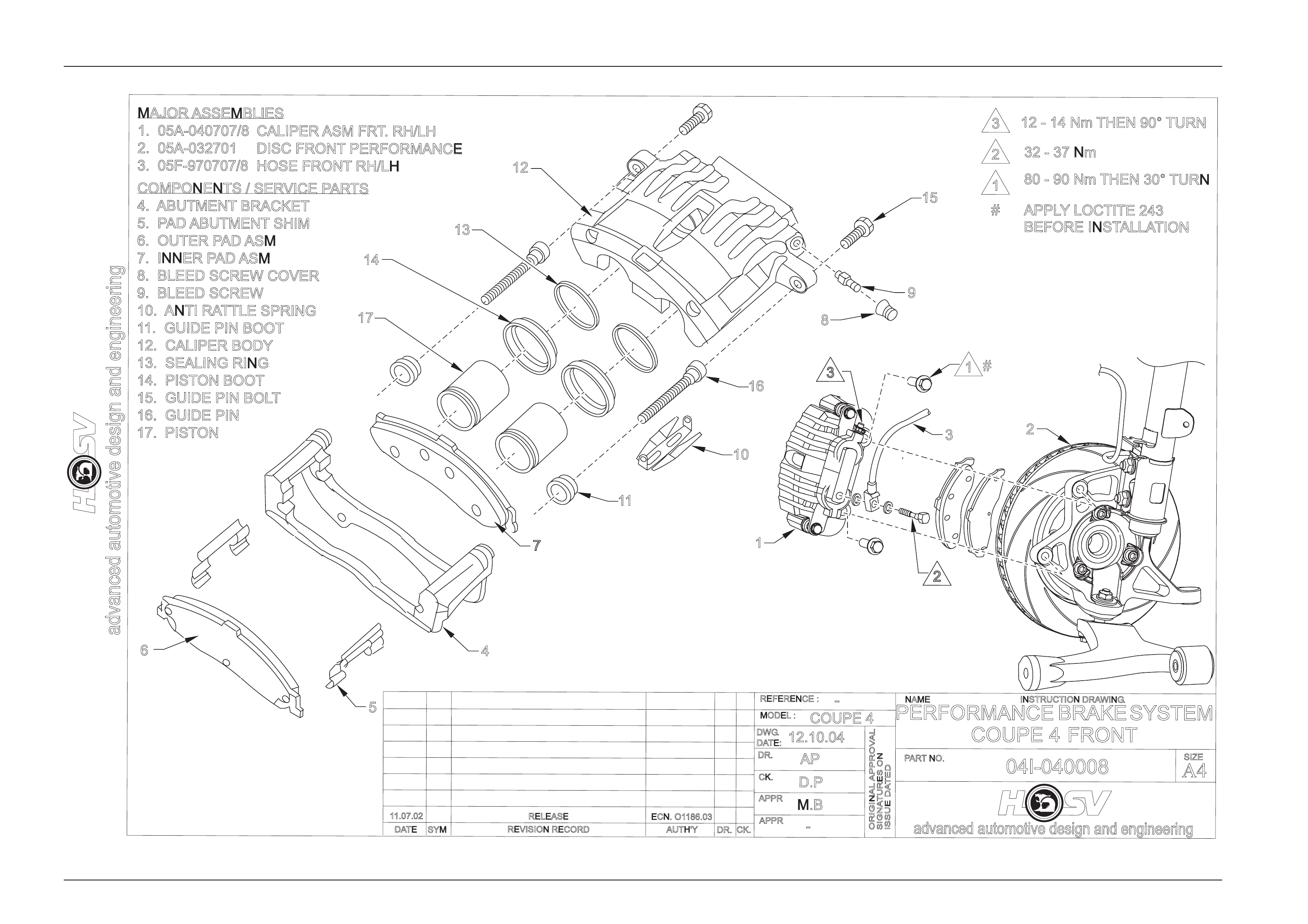

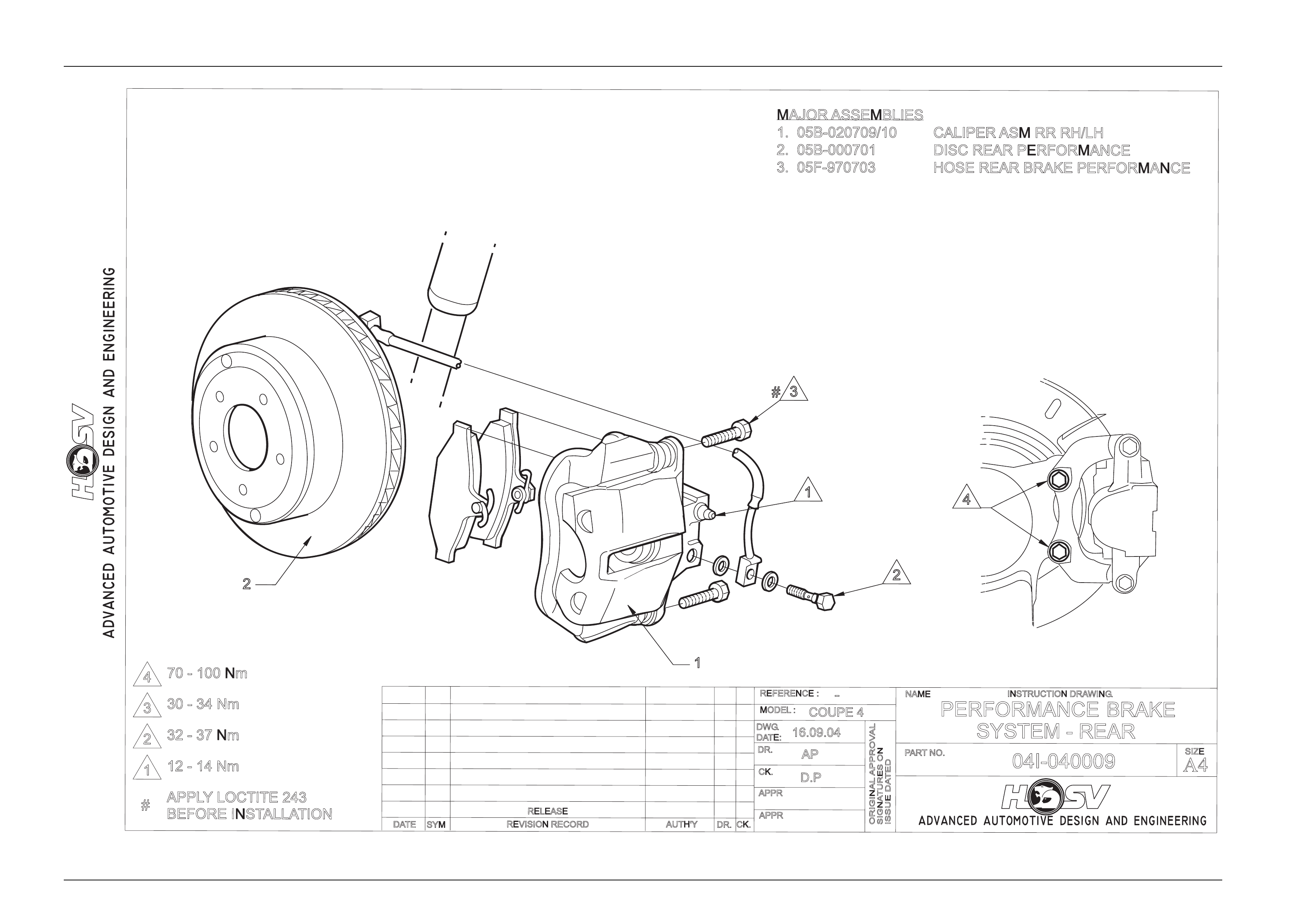

The new Coupe 4 Performance system - illustrated in Drawings 04I-040 008 and 04I-0400 09 - is a fur ther developm ent
of brake systems developed for earlier HSV models. The major components of the new Performance System are as
follows:
• Front ventilated and grooved disc of 336mm x 32mm.
• Front Caliper Assemblies are twin piston floating of 40.5mm diameter.
• Bracket Caliper Mounting Brackets.
• Front Brake Hose (PN 05F-970707/6).
• Rear ventilated and grooved d isc of 315mm x 18mm.
• Rear Caliper are single piston floating of 45mm diameter.
• Rear brake hose, (05F-970703).
• Pad material is JBI-NF42 HFF Fr ont and BM962 Rear.
Brakes Page D-4
Page D-4
advanced automotive design and engineering
RELEASE
REVISION RECORD
SYM
DATE
INSTRUCTION DRAWING.
advanced automotive design and engineering
SIGNATURES ON
ISSUE DATED
ORIGINAL APPROVAL
AUTH'YCK.
DR.
-
APPR
COUPE 4
AP
D.P
12.10.04
APPR
CK.
DR.
MODEL :
DWG.
DATE:
REFERENCE :
PARTNO.
04I-040008
-
NAME
PERFORMANCE BRAKESYSTEM
FRONT
COUPE 4
A4
SIZE
11.07.02 ECN. O1186.03
M.B
MAJOR ASSEMBLIES
1. 05A-040707/8
2. 05A-032701
3. 05F-970707/8
CALIPER ASM FRT. RH/LH
DISC FRONT PERFORMANCE
HOSE FRONT RH/LH
COMPONENTS / SERVICE PARTS
4. ABUTMENT BRACKET
5. PAD ABUTMENT SHIM
6. OUTER PAD ASM
7. INNER PAD ASM
8. BLEED SCREW COVER
9. BLEED SCREW
10. ANTI RATTLE SPRING
11. GUIDE PIN BOOT
12. CALIPER BODY
13. SEALING RING
14. PISTON BOOT
15. GUIDE PIN BOLT
16. GUIDE PIN
17. PISTON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
3
2
1#
3
2
1
32-37Nm
80-90NmTHEN 30° TURN
12-14NmTHEN 90° TURN
APPLYLOCTITE 243
#
BEFORE INSTALLATION
Brakes Page D-5
Page D-5
RELEASE
REVISION RECORD
SYM
DATE
INSTRUCTION DRAWING.
SIGNATURES ON
ISSUE DATED
ORIGINAL APPROVAL
AUTH'YCK.
DR.
APPR
COUPE 4
AP
D.P
16.09.04
APPR
CK.
DR.
MODEL :
DWG
.
DATE:
REFERENCE :
PARTNO.
04I-040009
-
NAME
PERFORMANCE BRAKE
SYSTEM - REAR
A4
SIZE
3
2
1
30-34Nm
32-37Nm
12-14Nm
APPLYLOCTITE 243
#
1
2
3
#
1
2
BEFORE INSTALLATION
MAJOR ASSEMBLIES
1. 05B-020709/10
2. 05B-000701
3. 05F-970703
CALIPER ASM RR RH/LH
DISC REAR PERFORMANCE
HOSE REAR BRAKE PERFORMANCE
470 - 100 Nm
4
Brakes Page D-6
Page D-6
3 Service Operations
Although HSV brake systems have different fittings and components, the general service principles are the same as
those which apply to Holden standard brake systems. The important differences between Holden brake systems and
HSV systems are the component parts and the specified wear limits for those parts. Drawings of specific HSV brake
systems and component part numbers are included in this section and wear limits have also been specified where
required.
3.1 Pad Replacement
Refer to appropriate dra wings in this section or in Holden S ervice Manual. Ensure that the following important n otes are
observed and repl ace brake pads in accorda nce with the procedures in the Holden Cou pe V2 series Service Manual.
IMPORTANT NOTES ON BRAKE PAD REPLACEMENT
• Do not remove mounting brackets unless damaged or for disc servicing.
• Pads should be replaced if there is less than 3mm of lining material r emaining or if pads are damaged.
• Pads must be replaced as a full set of 4. Ensure pad material is correct specification. Do not mix pad material
front to rear. Use genuine HSV replacement parts to ensure correct pad materia l is used.
• Before fitting new pads check that all pads are fitted with insulating material.
• When replacing pads in Co upe 4 Performance brakes, ensure that shims and spring are fully clipped into position
so that they are clear of the rotor. Carefully lo wer the body over the pads and bracket ensuring the pads are
engaged with spring so that they are free to slide. Ensure Piston Boot is not caught bet ween the Piston and the
inner pad. Fit new guide bolt through the lower ho le and tighten to a torque of 30-34Nm.
Brakes Page D-7
Page D-7
3.2 Caliper Overhaul
Refer to appropriate drawings in this section or in Holden Service Manual. Ensure that the following important notes are
observed and overhaul calipers as detailed in Section 5A -Standard Brakes of the Coupe V2 series Service Information.
NOTES ON CALIPER OVERHAUL
• Do not remove the mounting brackets unless damaged or for disc servicin g.
• Remove the pistons by directing light air pressure into the brake h ose port, and progressively increase until piston
is forced out of bore .
Caution is necessary to avoid physical
injury—Piston may be ejected with
considerable force due to air pressure. Use
packing to prevent piston damaging body of
caliper.
Brakes Page D-8
Page D-8
3.3 Brake Discs
Refer to appropriate dra wings in this section or in Holden Service Manual. Ensure that important notes are observed and
overhaul discs as detailed in Section 5A-Standar d Brakes.
Do not remove mounting bracket from the
brake caliper unless the bracket requires
service. It is critical for safety that the bolts
holding the mounting bracket to the caliper if
removed, are correctly reinstalled.
Brake Disc Wear Limits. The minimum thickness for discs fitted to standard Holden brakes is cast in the hub of the d isc
and is specified in Section 5A – Standard Brakes in the Holden Service Manual. The minimum thickness for brake dis cs
fitted to HSV brake systems is stamped into the edge of the disc. For information, the new and minimum thicknesses of
discs used in HSV brake systems are tabulated be low.
Disc
Location
New
Thickness Minimum
Thickness
Coupe 4
Front 32.0mm 30.0mm
Rear 18.0mm 16.0mm
Brakes Page D-9
Page D-9
3.4 Service Parts
It is essential that genuine replacement parts be fitted to HSV brake assemblies. This is particularly important when
replacing brake pads because of the various types of lining material used. Complete brake assemblies, front and rear
discs, calipers and attachment parts have also been identified as replacement parts and these items are available from
HSV: these parts are listed in the following paragraphs or ref erenced in enclosed drawings.
Coupe 4 Performance Brake Replacement Parts
Refer to Drawings 04I-040008 and 04I-040009 for major component part numbers. Service kits for the Coupe 4
Performance brake system ar e listed below:
Front Calipers
05A-970730 FRONT HYDRAULIC REPAIR KIT COMPRISING
2 OFF SEALING RING
2 OFF PISTON BOOT
1 OFF BLEED SCREW PROTECTOR COVER
2 OFF GUIDE PIN BOOT
05A-040708 FRONT CALIPER HOUSING ASSEMBLY RH COMPRISING
1 OFF CALIPER BODY RH
1 OFF ABUTMENT BODY
2 OFF PAD ABUTMENT SHIM
2 OFF SEALING RING
2 OFF PISTON BOOT
2 OFF PISTON
1 OFF BLEED SCREW PROTECTOR COVER
1 OFF BLEED SCREW
1 OFF ANTI RATTLE SPRING
2 OFF GUIDE PIN BOOT
2 OFF GUIDE PIN
2 OFF GUIDE PIN BOLT
Brakes Page D-10
Page D-10
05A-040707 FRONT CALIPER HOUSING ASSEMBLY LH COMPRISING
1 OF CALIPER BODY LH
1 OFF ABUTMENT BODY
2 OFF PAD ABUTMENT SHIM
2 OFF SEALING RING
2 OFF PISTON BOOT
2 OFF PISTON
1 OFF BLEED SCREW PROTECTOR COVER
1 OFF BLEED SCREW
1 OFF ANTI RATTLE SPRING
2 OFF GUIDE PIN BOOT
2 OFF GUIDE PIN
2 OFF GUIDE PIN BOLT
05A-970733 PISTON BRAKE
05A-970734 BLEED SCREW
05A-970735 PAD ABUTM ENT SHIM
05A-970736 ANTI RATTLE SPRING
05A-970737 GUIDE PIN
05A-970738 GUIDE PIN BOLT
05A-040704 BRAKE PAD KIT JBI NF42HFF COMPRISING
2 OFF OUTER PAD ASSEMBLY JBI NF42 HFF
2 OFF INNER PAD ASSEMBLY JBI NF42 HFF
4 OFF GUIDE PIN BOLT
Brakes Page D-11
Page D-11
Rear Calipers
Servicing procedures and servicing kits for the Coupe 4 Performance Rear Caliper are exactly the same as for the
standard Coupe V2 Holden Rear Calip er. Therefore, when servicin g the Cou pe 4 r ear calip er, refer to the proc edur es in
the Section 5A Standard Brakes.
HSV Performance Rear Calipers use unique brake pads, with a thinner pad to suit HSV’s wider ventilated disc.
05B-020710 REAR CALIPER HOUSING ASSEMBLY RH COMPRISING
1 OFF CALIPER BODY
1 OFF SEALING RING
1 OFF CALIPER PISTON
1 OFF DUSTBOOT
1 OFF BLEED SCREW
1 OFF BLEED SCREW DUST CAP
05B-020709 REAR CALIPER HOUSING ASSEMBLY LH COMPRISING
1 OFF CALIPER BODY
1 OFF SEALING RING
1 OFF CALIPER PISTON
1 OFF DUSTBOOT
1 OFF BLEED SCREW
1 OFF BLEED SCREW DUST CAP
05B-970704 Rear Brake Pad Kit (BM962) COMPRISING
OFF BRAKE PAD (BM962)
4 OFF RETAINING BOLTS
