Body Page B-1
Page B-1
Section B
Body
ATTENTION:
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-
tensioners (fitted to all front seat s), a driver’s-side air bag, a passeng er’s-side air bag and left and right h and
side air bags. Refer to CAUTIONS, Section 12M Occupant Protection System in the MY 2005 VZ Series
Service Information before performing any service operation on or around SRS components, the steering
mechanism or wiring. Failure to follow the CAUTIONS could result in personal injury or unnecessary SRS
system repairs.
1 Purpose...................................................................................................................................................2
2 Body Ornamentation..............................................................................................................................3
3 Seats And Interior Trim..........................................................................................................................4
Murph Edition Door Trim Inserts.......................................................................................................................... 4
4 Service Operations.................................................................................................................................5
Body Page B-2
Page B-2
1 Purpose
The purpose of this section is to provide information on the body and body components fitted to HSV VZ Murph E dition
vehicles. The information is designed to supplement the information contained in the Holden VZ and HSV VZ series
Service Manuals, and details are given where differences occur between the HSV Murph Edition models and standard
Holden models. A series of instruction dr awings describe the design changes an d indicate specific part numbers, fitting
instructions and relevant notes for vehicle se rvicing.
NOTE
If specific technical data on a HSV model is not
contained in this supplement, obtain data for that
model from the relevant Holden VZ series
Service Manual Supplement. References are
made throughout this section to Holden Service
Manuals, to assist in providing information for
specific service operations.
When hoisting (or jacking) HSV models,
ensure that the lifting h ead of the hoist lifts on
the chassis before the arm of the hoist
contacts the side-skirt
Body Page B-3
Page B-3
2 Body Ornamentation
HSV models are fitted with HSV specific deca ls and badges to ide ntify eac h model an d power trai n optio n. The excl usive
HSV ornamentation is pos itioned in exact locations on each HSV mo del. The ornament ation for each model is sp ecified
by part number in this section.
Body Page B-4
Page B-4
3 Seats And Interior Trim
The HSV VZ Murph Edition seats are the same as HSV VZ Clubsport R8 seats, therefore for all repair and service
information refer to HSV VZ Service Information
HSV VZ Murph Edition models are fitted with exclusiv e door trim designs. A full range of replacement parts is available
for each specific HSV trim item and these parts are listed in Tables below.
Murph Edition Door Trim Inserts
PART NUMBER DESCRIPTION QUANTITY
F06-050603NK INSERT-D/TRIM-FRT-LH-Murph
1
F06-050604NK INSERT-D/TRIM-FRT-RH- Murph 1
G06-050603NK INSERT-D/TRIM-RR-LH- Murph 1
G06-050604NK INSERT-D/TRIM-RR-RH- Murph 1
Body Page B-5
Page B-5
4 Service Operations
NOTE
This supplement applies only to HSV VZ Murph
Edition, with only the changes for Murph Edition
being shown. For all other information relating to
the Murph Edition bod y components refer to HSV
VZ Clubsport R8 Service Information or Holden
VZ Service Information.
When servicing the VZ Murph Edition body components, refer to drawings in this section obtain the necessary

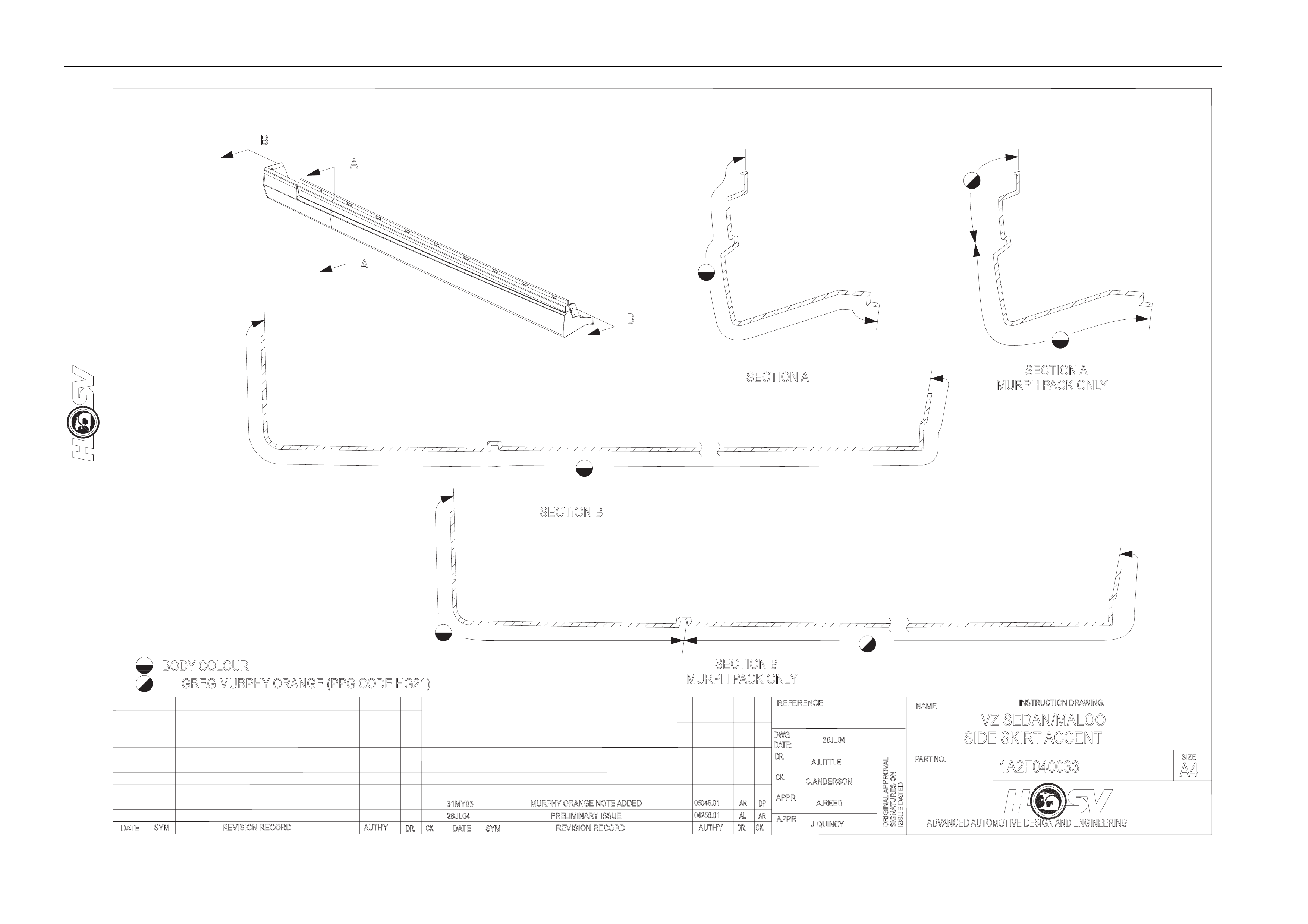

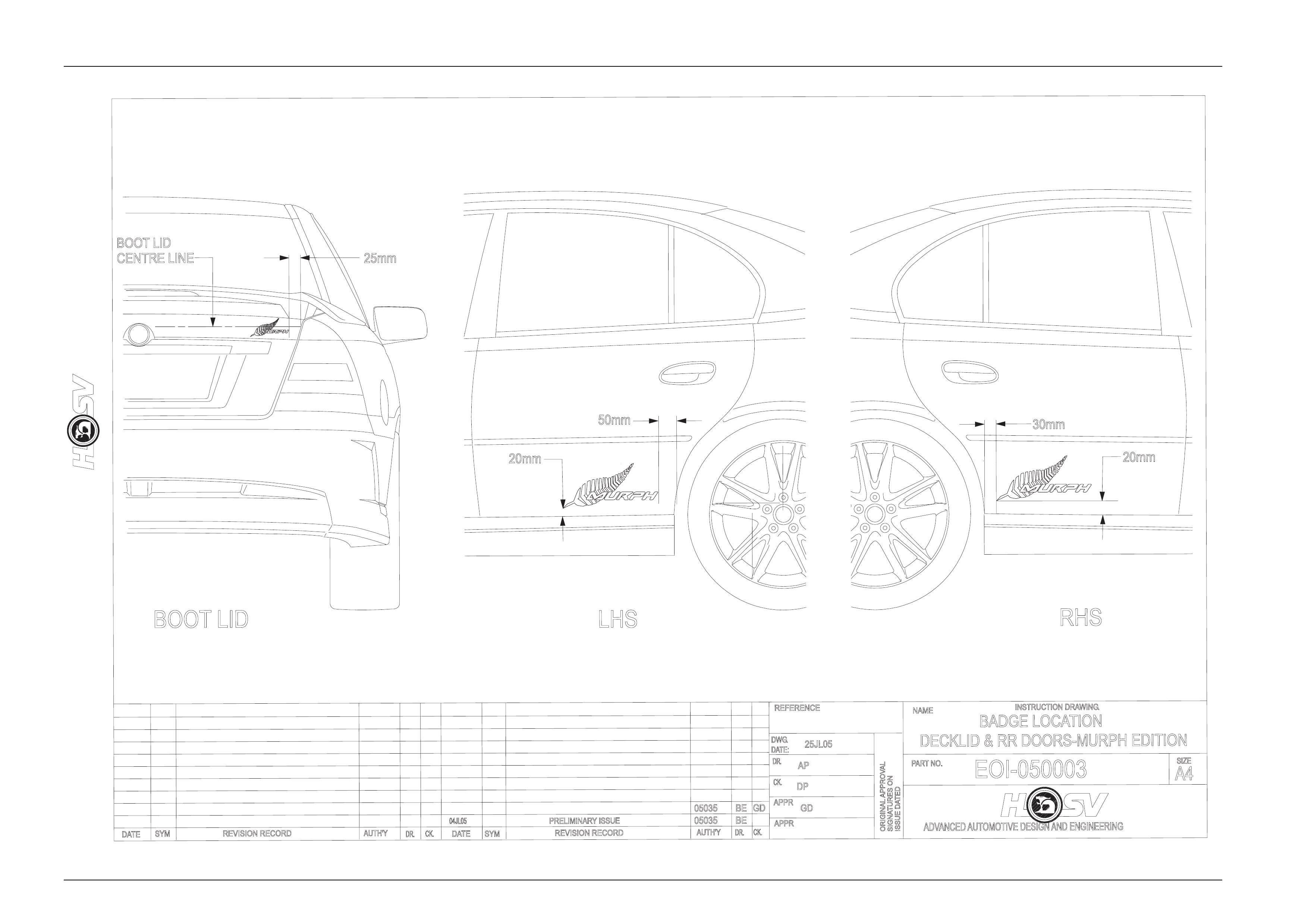

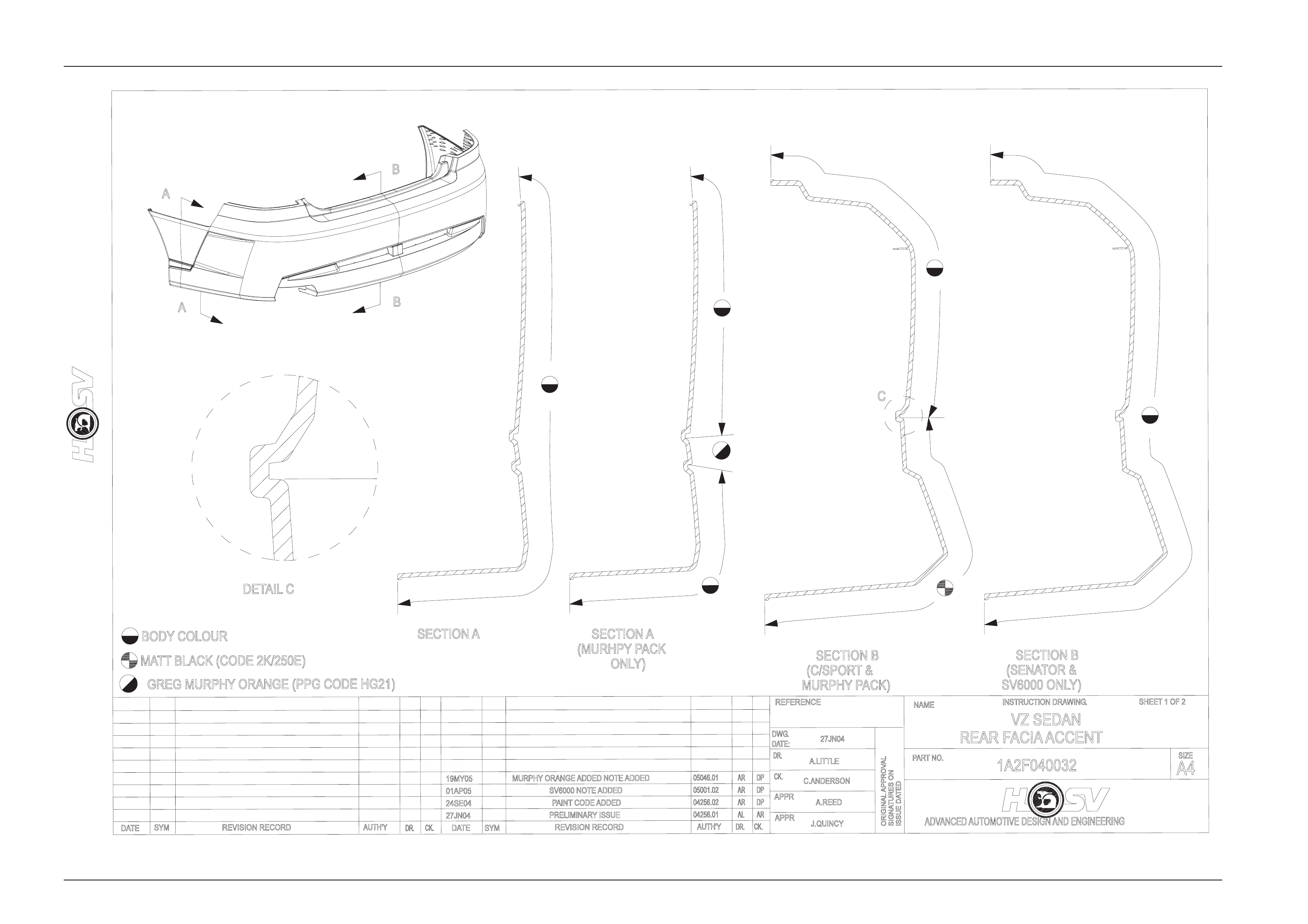

information on the correct location of each c omponent. For badge informat ion and locations refer to drawings at the end
of this section.
Body Page B-6
Page B-6
Body Page B-7
Page B-7
Body Page B-8
Page B-8
