Wheels, Tyres And Steering Wheel Page H-1
Page H-1
Section H
Wheels, Tyres And Steering Wheel
ATTENTION:
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-
tensioners (fitted to all front seat s), a driver’s-side air bag, a passeng er’s-side air bag and left and right h and
side air bags. Refer to CAUTIONS, Section 12M Occupant Protection System in the MY 2005 VZ Series
Service Information before performing any service operation on or around SRS components, the steering
mechanism or wiring. Failure to follow the CAUTIONS could result in personal injury or unnecessary SRS
system repairs.
1 Purpose...................................................................................................................................................2
Techline
Wheels, Tyres And Steering Wheel Page H-2
Page H-2
1 Purpose
The purpose of this section is to provid e information on the whe els, tyres and steering wheel fitted to the HSV VZ Murph
Edition models. The HSV VZ Murph Ed ition model is fitted with alloy wheels developed specificall y for HSV application.
The wheels fitted to the HSV Murph Edition are the VZ GTS 19’ wheel finished in Billet Silver. For all service information
relating to VZ Murph Edition wheels and tyres refer to HSV VZ Service Information and drawing 10I-050003 in this
section.
The steering wheel assembly fitted to all HSV VZ models incorporates a HSV-design central horn pad complete with
HSV logo. The ce ntral hor n pad also inc orporates th e driv er’s-side air bag. All other components, fi xtures a nd fasteners
are identical to standard Holden parts and therefore, any service operations on the assembly should be carried out in
accordance with the relevant Holden Service Manual Supplement, refer to Section 9A – Steering of the VZ Series
Service Information.
Wheels, Tyres And Steering Wheel Page H-3
Page H-3
DATE
ISSUE DATED
AUTH'Y
CK.
SYM
AUTH'Y
REVISION RECORD
DATE
SYM
SIGNATURES ON
ORIGINAL APPROVAL
DR.

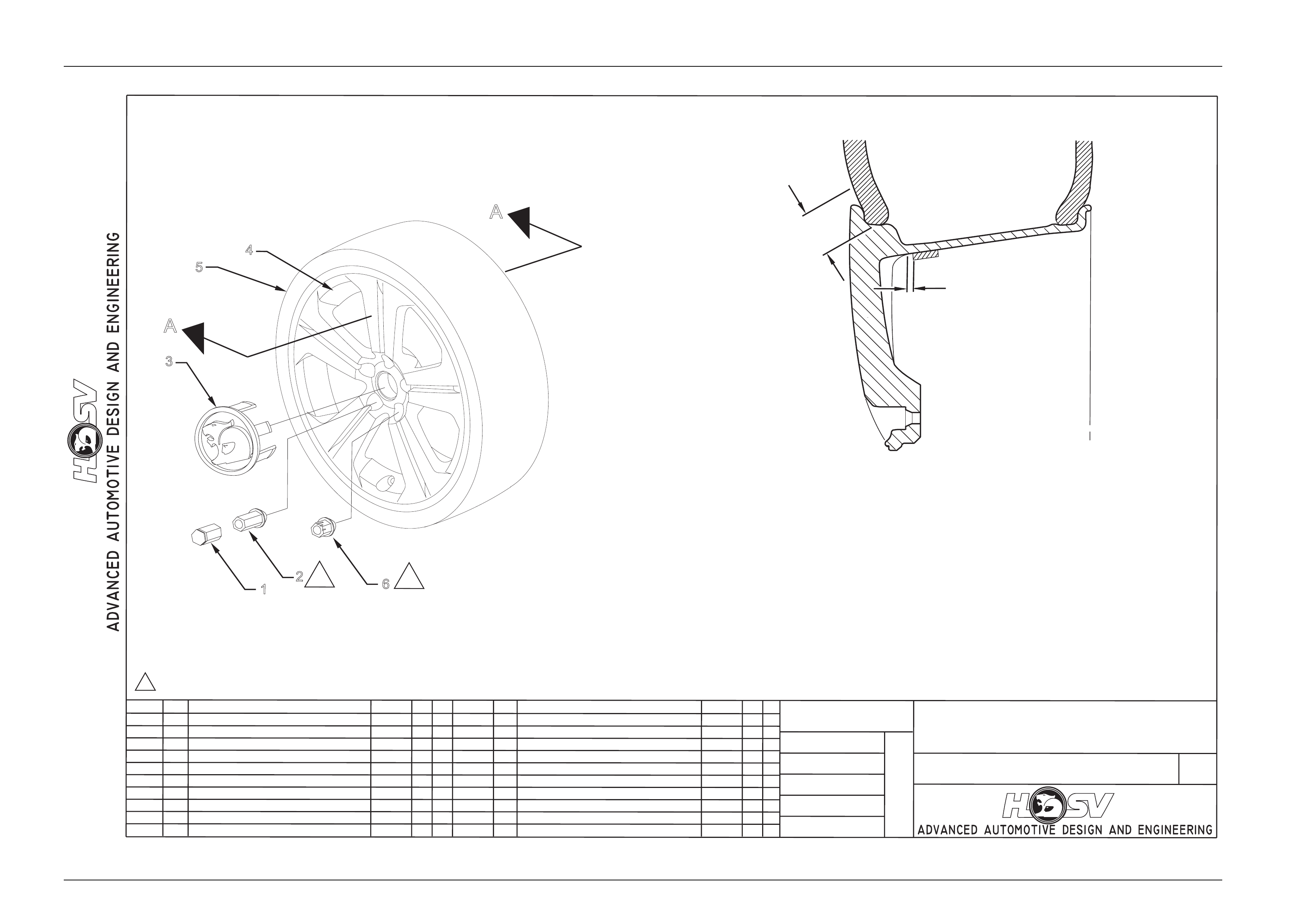

10I-050002
INSTRUCTION DRAWING.
A4
SIZE
ALLOY WHEEL
VZ MURPH EDITION
REVISION RECORD
PRELIMINARY ISSUE
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.
26/07/05
AP
DP
PS
NOTE: BREAKAWAYTORQUE
OF WHEEL NUTS TOBE
100 Nm MINIMUM
100-125 Nm
1. 10B-101919 CAP WHEEL NUT 5 PLACES
2. 10B-970219 FRONT & REAR WHEEL NUT
3. 10B-050602 CAP & BADGE ASM WHEEL
4. 10B-020701-M WHEEL ALLOY
5. FRONT AND REAR TYRE 245/35 R19 93Y (PRE AUG 2005) OR 235/35 R19 93Y (POST AUG 2005)
6. LOCKNUTS SPZ-300168
A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE
MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION
MUST BE MADE BEFORE LUBRICANT IS DRYTOENSURE SATISFACTORYBEAD
SEATING,TYRE IS TOBE INFLATED TO280kPa ON INITIAL ASSEMBLY
.
B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TOSPOKE EDGE
(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL
WEIGHT AND BRAKE CALIPER EXISTS.
SEC A-A
NOTES :
1
A
B
16
3
4
5
A
A
2
11
