Wheels, Tyres And Steering Wheel Page H-1
Page H-1
Section H
Wheels, Tyres And Steering Wheel
ATTENTION
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-
tensioners (fitted to all front seats), a dri ver’s-side air bag , a passenger’s-sid e air bag and left and right hand
side air bags. Refer to CAUTIONS, Section 12M Occupant Protection System in the MY 2005 VZ Coupe Series
Service Information before performing any service operation on or around SRS components, the steering
mechanism or wiring. Failure to follow the CAUTIONS could result in personal injury or unnecessary SRS
system repairs.
1 Purpose...................................................................................................................................................2
2 Steering Wheel........................................................................................................................................3
3 Wheels And Tyres ..................................................................................................................................5
3.1 General Description............................................................................................................................................... 5
Service Operations................................................................................................................................................ 5
VZ Coupe Wheel Option Chart........................................................................................................................... 5
Techline
Wheels, Tyres And Steering Wheel Page H-2
Page H-2
1 Purpose
The purpose of this section is to provide information on the wheels, tyres and steering wheels fitted to the HSV VZ GTO
Coupe models. The informati on is designed to suppleme nt that given in the Holden VZ Coup e Service Manual and
details are given where differences occur between the HSV models and standard Holden models. A series of instruction
drawings describe the design changes and indicate specific part numbers, fitting instructions and relevant notes for
vehicle servicing.
NOTE
If specific technical data on a HSV model is not
contained in this supplement, obtain data for that
model from the relevant Holden VZ Coupe
Service Manual Supplement. References are
made throughout this section to Holden Service
Manuals, to assist in providing information for
specific service operations.
When hoisting (or jacking) HSV models,
ensure that the lifting h ead o f th e hoist lifts on
the chassis before the arm of the hoist
contacts the side-skirt
Wheels, Tyres And Steering Wheel Page H-3
Page H-3
2 Steering Wheel
ATTENTION
HSV VZ GTO Coupe models are fitted with Air Bags. An Air Bag is a supplemental Restraint System (SRS).
Refer to CAUTIONS, section 12M of the Holden VZ Coupe Series Service Information before performing any
service operation on or around the SRS components, the steering mechanism or wiring. Failure to follow the
CAUTIONS could result in air bag deployment, resulting in possible personal injury or unnecessary SRS
system repairs.

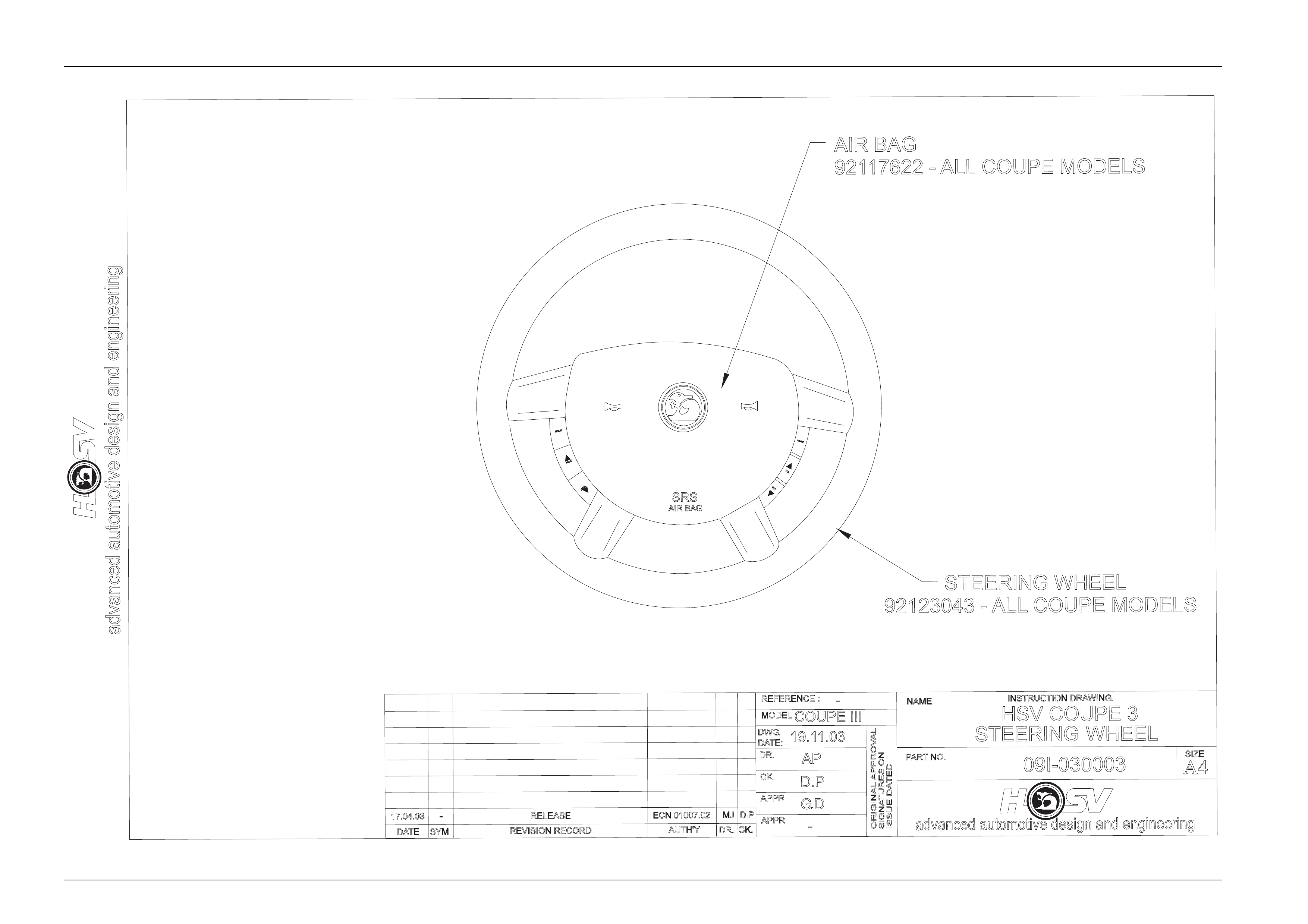

The steering wheel assembly fitted to all HSV VZ GTO Coupe models incorporates an HSV design centr al horn pad
complete with HSV logo, refer to drawing 09I-030003.
The central horn pad also incorporates the driver’s side air bag.
All other components, fixtures and fasteners are identical to standard Holden parts and, therefore, any service operations
on the assembly should be carr ied out in accordance with the relevant Holden Service Information Su pplement, refer to
Section 9A Steering, in the Holden VZ Service Information.
Wheels, Tyres And Steering Wheel Page H-4
Page H-4
advanced automotive design and engineering
DATE
PARTNO.
NAME
REVISION RECORD
SYM
ORIGINAL APPROVAL
ISSUE DATED
SIGNATURES ON
DR.
AUTH'YCK.
APPR
APPR
-
MODEL :
REFERENCE :
DWG.
CK.
DATE:
DR.
19.11.03
D.P
AP
COUPE III
-
HSV COUPE 3
STEERING WHEEL
09I-030003
advanced automotive design and engineering
INSTRUCTION DRAWING.
A4
SIZE
RELEASE
AIR BAG
92117622 - ALL COUPE MODELS
STEERING WHEEL
92123043 - ALL COUPE MODELS
SRS
AIR BAG
G.D
17.04.03 -ECN 01007.02 MJ D.P
VOL
VOL
MUTE
NEXT
NEXT
MODE
Wheels, Tyres And Steering Wheel Page H-5
Page H-5
3 Wheels And Tyres
3.1 General Description
HSV VZ GTO Coupe models are fitted with alloy wheels developed specifically for each HSV appl ication.
Several types and sizes of wheels are manufactured to suit the various a pplications and each wheel is manufactured
from a single piece alloy casting.
NOTE
Specific wheel nuts are used to attach ‘T’ design
wheels to the vehicle. T hese nuts are fitted with a
plastic dress cap which must be removed prior to
undoing the wheel nuts.
HSV VZ GTO Coupe wheels do not have steel
insert, and, therefore, require wheel nuts with
a flanged seat as per the VT, VT2 and VX
wheel nuts, part No. 10B-970304. Do not use
VS wheel nuts on HSV Cou pe wheels.
Service Operations
Alloy wheels fitted to all HSV vehicles are to be serviced in accord ance with the procedures detaile d in to
Section 10 Wheels and Tyres in the Holden VZ Service Information. In addition , particular care should be taken with the
surface finish of alloy wheels. The manufacturer recommends that alloy surfaces be treate d the same as high – gloss
painted surfaces to prevent corrosion an d general deterior ation.
VZ Coupe Wheel Option Chart
WHEEL PART NUMBER
MODEL 10B-040602 10B-020804
VZ GTO COUPE S O
Legend
‘S’ = Standard
‘O’ = Optional
Wheels, Tyres And Steering Wheel Page H-6
Page H-6
DATE
ISSUE DATED
AUTH'Y
CK.
SYM
AUTH'Y
REVISION RECORD
DATE
SYM
SIGNATURES ON
ORIGINAL APPROVAL
DR.

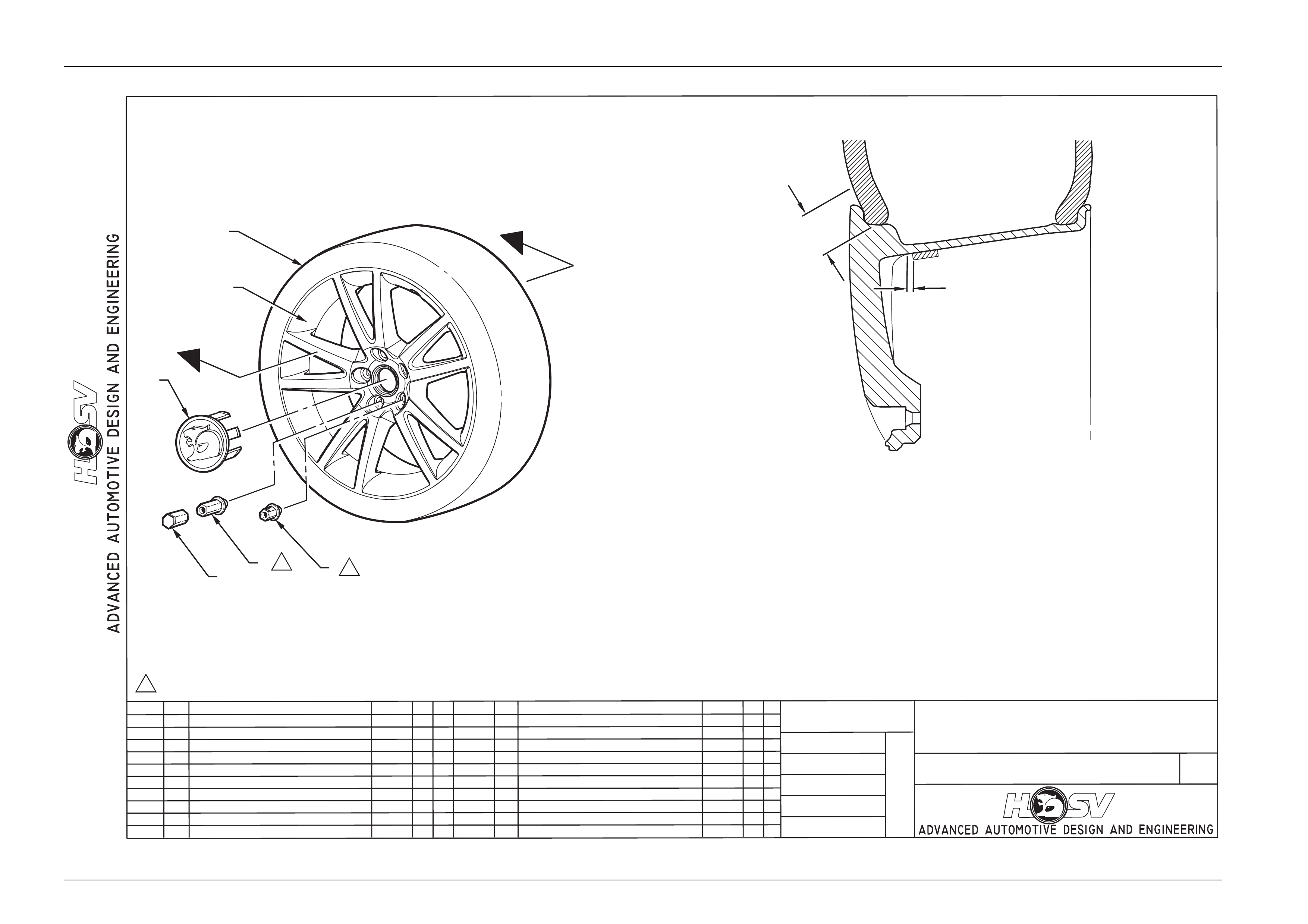

10I-020010
INSTRUCTION DRAWING.
A4
SIZE
ALLOY WHEEL
VZ CLUBSPORTR8, MALOO R8, COUPE
REVISION RECORD
PRELIMINARY ISSUE
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.
20/10/04
AP
DP
NOTE: BREAKAWAYTORQUE
OF WHEEL NUTS TOBE
100 Nm MINIMUM
100-125 Nm
1. 10B-101919 CAP WHEEL NUT 5 PLACES
2. 10B-970219 FRONT & REAR WHEEL NUT
3. 10B-030301 CAP & BADGE ASM WHEEL
4. 10B-040602-C WHEEL ALLOY
5. FRONT AND REAR TYRE 245/35 R19 93Y (PRE AUG 2005) OR 235/35 R19 93Y (POST AUG 2005)
6. LOCKNUTS SPZ-300168
A
A
16
3
4
5
2
A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE
MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION
MUST BE MADE BEFORE LUBRICANT IS DRYTO ENSURE SATISFACTORYBEAD
SEATING,TYRE IS TO BE INFLATED TO 280kPa ON INITIAL ASSEMBLY
.
B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TO SPOKE EDGE
(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL
WEIGHT AND BRAKE CALIPER EXISTS.
SEC A-A
NOTES :
1
1
1
A
B
Wheels, Tyres And Steering Wheel Page H-7
Page H-7
100 - 125 Nm
NOTE: BREAKAWAYTORQUE
OF WHEEL NUTS TOBE
100 Nm MINIMUM
SEC A-A
RELEASE
1M.B
VY
T.K
D.P
20.05.02

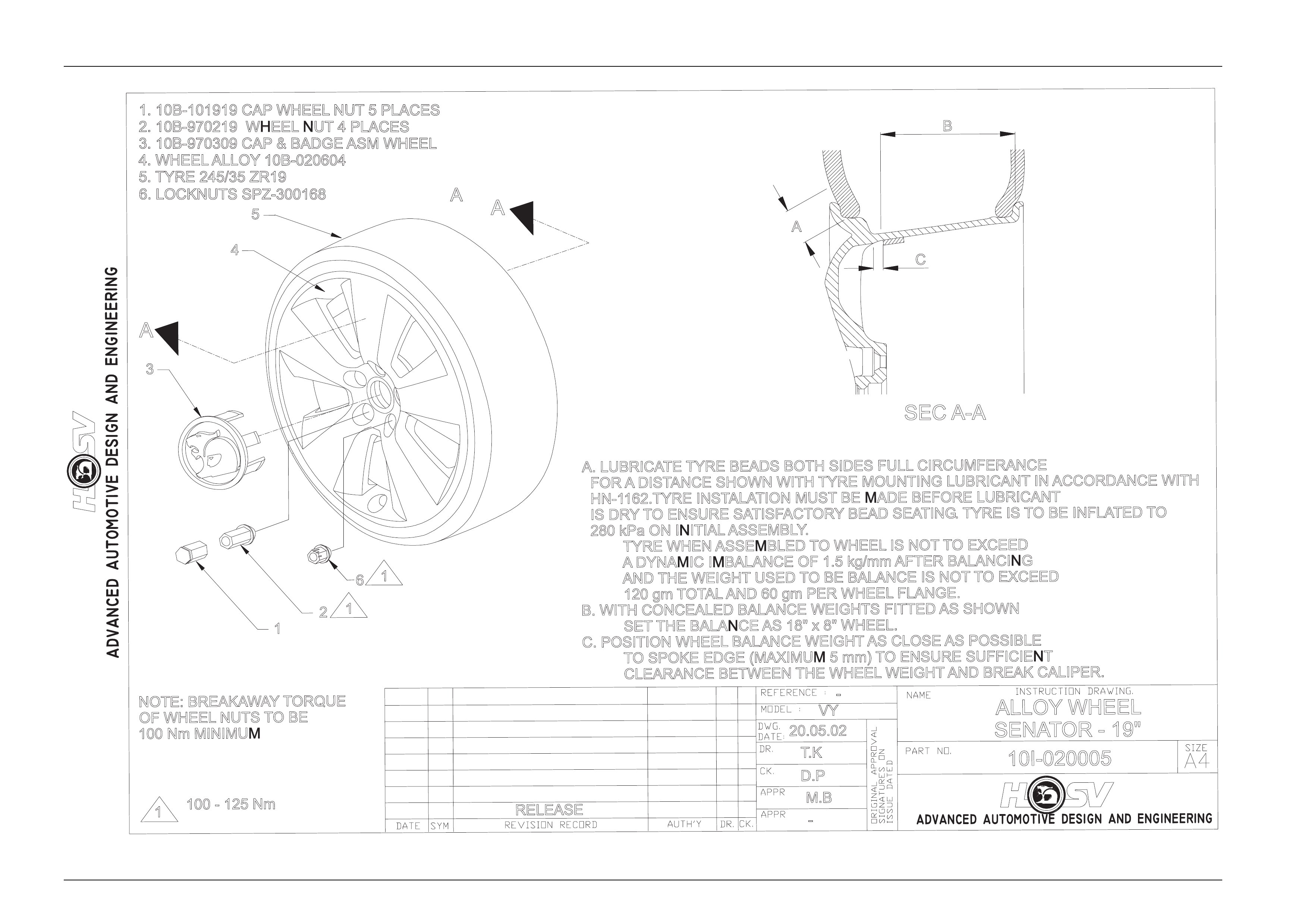

10I-020005
-
ALLOY WHEEL
SENATOR - 19"
-
A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE
FOR ADISTANCE SHOWN WITH TYRE MOUNTING LUBRICANT IN ACCORDANCE WITH
HN-1162.TYRE INSTALATION MUST BE MADE BEFORE LUBRICANT
IS DRYTO ENSURE SATISFACTORYBEAD SEATING.TYRE IS TO BE INFLATED TO
280 kPa ON INITIAL ASSEMBLY
.
TYRE WHEN ASSEMBLED TO WHEEL IS NOT TO EXCEED
ADYNAMIC IMBALANCE OF 1.5 kg/mm AFTER BALANCING
AND THE WEIGHT USED TO BE BALANCE IS NOT TO EXCEED
120 gm TOTAL AND 60 gm PER WHEEL FLANGE.
B. WITH CONCEALED BALANCE WEIGHTS FITTED AS SHOWN
SET THE BALANCE AS 18" x 8" WHEEL.
C. POSITION WHEEL BALANCE WEIGHT AS CLOSE AS POSSIBLE
TO SPOKE EDGE (MAXIMUM 5 mm) TO ENSURE SUFFICIENT
CLEARANCE BETWEEN THE WHEEL WEIGHT AND BREAK CALIPER.
2
6
1
1
3
4
5
A
A
B
A
C
1
1. 10B-101919 CAP WHEEL NUT 5 PLACES
2. 10B-970219 WHEEL NUT 4 PLACES
3. 10B-970309 CAP & BADGE ASM WHEEL
4. WHEEL ALLOY 10B-020604
5. TYRE 245/35 ZR19
6. LOCKNUTS SPZ-300168
A
Wheels, Tyres And Steering Wheel Page H-8
Page H-8
DATE
ISSUEDA
TED
AUTH'Y
CK.
SYM
AUTH'Y
REVISION RECORD
DATE
SYM
SIGNATURES ON
ORIGINAL APPROVAL
DR.
ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING

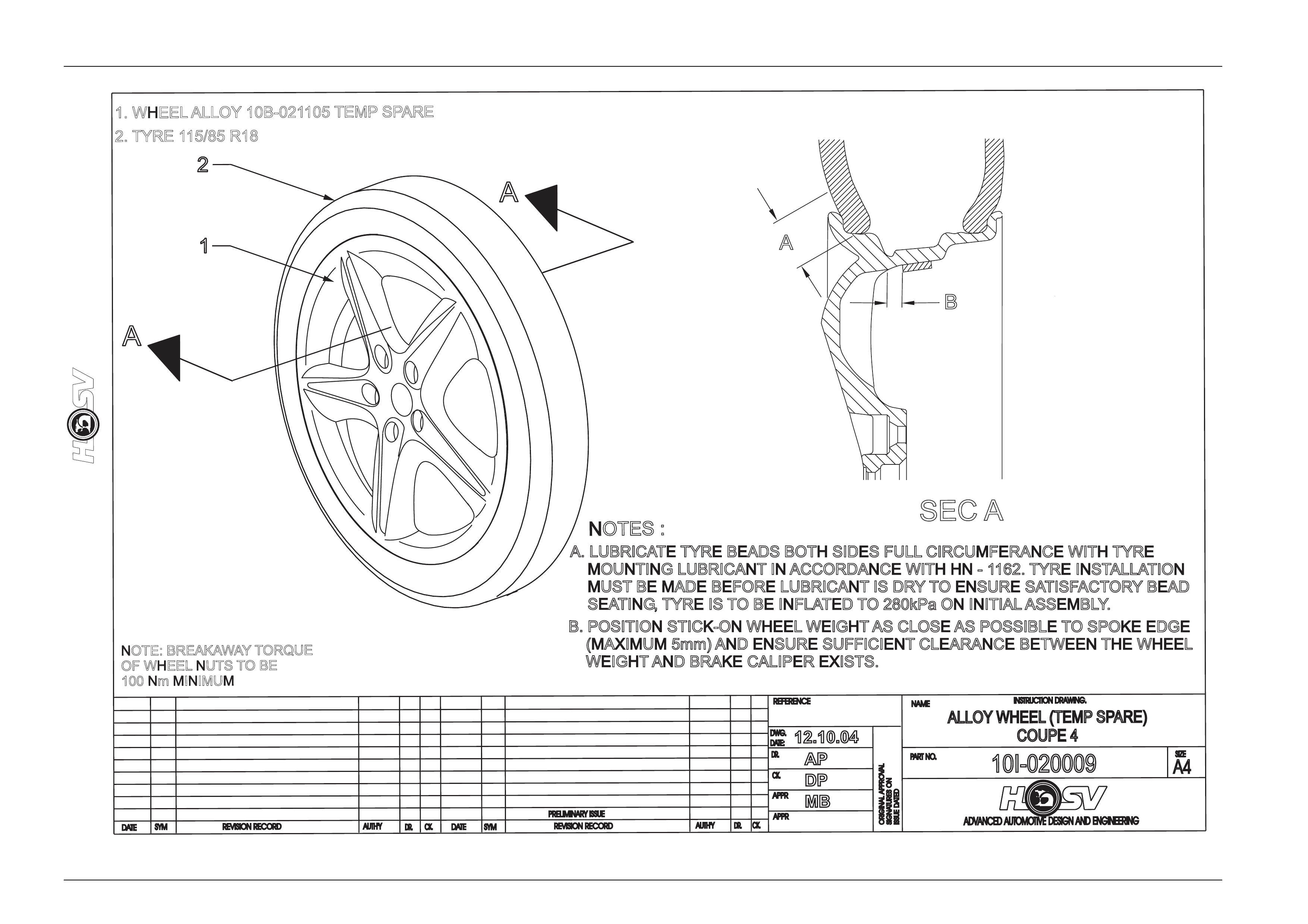

10I-020009
INSTRUCTION DRAWING.
A4
SIZE
ALLOY WHEEL (TEMP SPARE)
COUPE 4
REVISION RECORD
PRELIMINARY ISSUE
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.
12.10.04
AP
DP
MB
NOTE: BREAKAWAYTORQUE
OF WHEEL NUTS TOBE
100 Nm MINIMUM
1. WHEEL ALLOY 10B-021105 TEMP SPARE
2. TYRE 115/85 R18
A
A
2
1
A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE
MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION
MUST BE MADE BEFORE LUBRICANT IS DRYTO ENSURE SATISFACTORYBEAD
SEATING,TYRE IS TO BE INFLATED TO 280kPa ON INITIAL ASSEMBLY
.
B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TO SPOKE EDGE
(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL
WEIGHT AND BRAKE CALIPER EXISTS.
SECA
NOTES:
A
B
