1 Purpose
The purpose of this supplement is to provide information on the fuel and exhaust systems fitted to the HSV VZ models.
This information is designed to supplement that given in the Holden VZ Service Information, and details are given where
differences occur between the HSV models, and standard Holden models. A series of instruction drawings detail the
design changes and indicate specific part numbers, fitting instructions and relevant notes for vehicle servicing.
NOTE
If specific technical data on a HSV model is not
contained in this supplement, obtain data for that
model from the relevant HSV or Holden VZ series
Service Manual Supplements.
When hoisting (or jacking) HSV models,
ensure that the liftin g head of the hoist lifts on
the chassis before the arm of the hoist
contacts the side-skirt
Fuel And Exhaust Systems Page G-3
Page G-3
2 HSV Exhaust Systems General
Information
The development of unique HSV Exhaust Systems has been necessitated by, and conducted in parallel with, the
development of engines and transmissions. A range of exhaust systems has been developed to satisfy the demands for
specific applications. Each development has been designed to operate with a specific engine and has been proven by
extensive testing.
For VZ the exhaust has been developed with different levels of refinement in mind. The LS2 engine exhaust system has
been developed to produce a sports oriented note, that still meets legal requirements. The design of the sports rear
muffler is a straight through, low backpressure design.
Although HSV and Holden exhaust systems are different, the general principles are the same. Service notes specified in
relevant Holden Service Manual Supplements provide useful information. Information on the relationship of HSV
components, torque settings and clearances between exhaust components and the body of the vehicle is presented in
this section.
Fuel And Exhaust Systems Page G-4
Page G-4
3 Clubsport, R8 And Senator
Exhaust Systems
3.1 General Description
The VZ exhaust system has new larger diameter catalytic converter pipe with the converter being of a close coupled type
design to meet euro3 emissions standards.
The intermediate muffler is 63mm diameter pipe with straight through mufflers to achieve the lowest possible back
pressure.
Fuel And Exhaust Systems Page G-6
Page G-6
4 HSV Fuel Systems General
Information
All components of the fuel systems in HSV VZ models are standard Holden components. It follows that reference to the
appropriate Holden Service Manual Supplement is necessary when performing any servicing operation on these
components, except the sedan and utility fuel pumps, which have an up rated higher flow fuel pump.
Refer to Section 8A1 – Fuel Tank of the VZ Series Service Information.
Fuel And Exhaust Systems Page G-7
Page G-7
DATE SYM REVISION RECORD
RELEASE
DATE:
DR.
AUTH'YCK.
DWG.

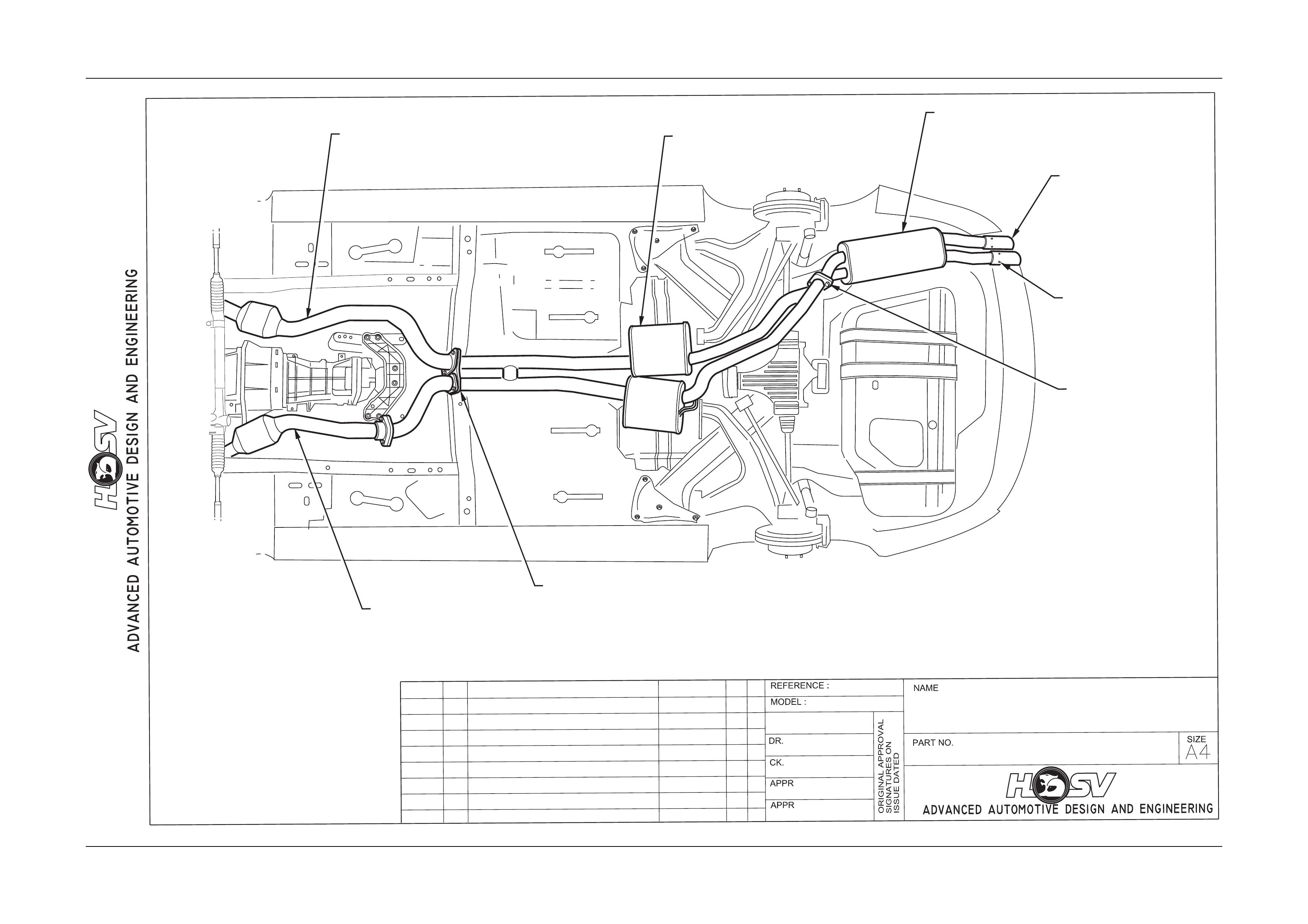

08I-030019
INSTRUCTION DRAWING.
EXHAUST SYSTEM
SEDAN - VZ
BG
19.11.04
VZ
-
92161757
CATCONVERTER-RH 08C-040601
INTERMEDIATE-SW
B
(92176000)
08C-040602
REAR MUFFLER - (SWB)
(92175998)
08C-040604
TIP-FINISHER (ALLOY)
(2 PLACES)
11517996
NUT - M8 EXHAUST
(2 PLACES)
92138804
BOLT-M8CA
T
(1 PLACE)
08C-040603
GASKET - EXHAUST
(1 PLACE)
77B-020002
RIVET - 4.8mm S/STEEL
(6 PLACES)
11517996
NUT - M8 EXHAUST (2 PLACES)
92138804
BOLT-M8CA
T(2 PLACES)
92161758
GASKET EXHAUST (1 PLACE)
92161756
CATCONVERTER-LH
AP
NOTE: ALL 1151996 AND 92138804
TORQUE SETTINGSARE 25 Nm
Fuel And Exhaust Systems Page G-8
Page G-8
DATE SYM REVISION RECORD
RELEASE
DATE:
DR.
AUTH'Y CK.
DWG.

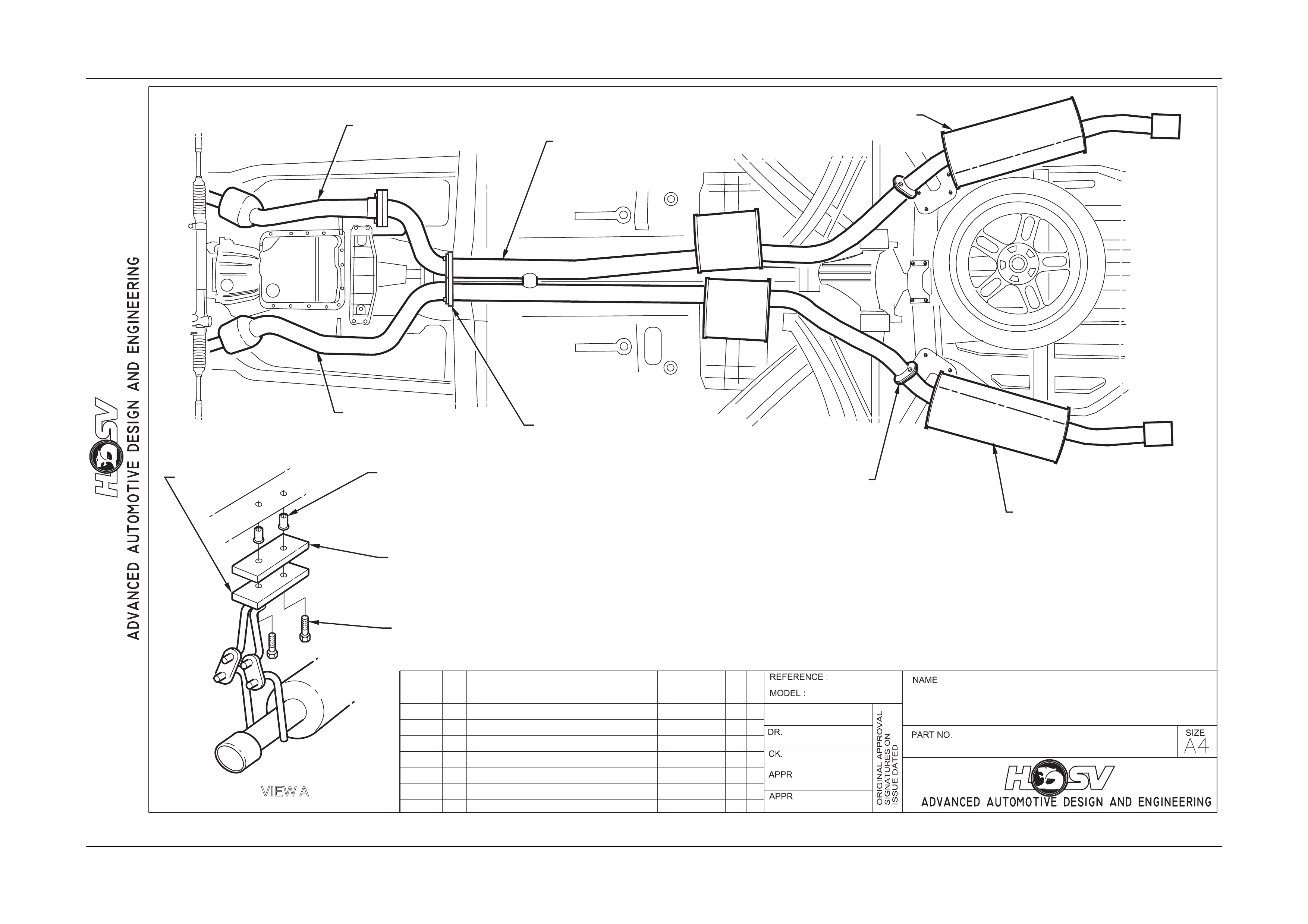

08I-030020
INSTRUCTION DRAWING.
EXHAUST SYSTEM
MALOO - VZ
BG
19.11.04
VZ
-
VIEW A
EXHAUST HANGER - RH
08C-020506
BOLT
73A-030002
(2 PLACES)
SPACER
08C-020507
NUTSERT
706081601
(2 PLACES)
08C-040502
REAR MUFFLER RH
92138804
BOLT - M8 CAT.
(4 PLACES)
08C-133503
GASKET - EXHAUST
(2 PLACES)
08C-040501
REAR MUFFLER LH
08C-040503
MUFFLER INTERMEDIATE
92161757
CAT CONVERTER - RH
11517996
NUT - M8 EXHAUST (2 PLACES)
92138804
BOLT - M8 CAT (2 PLACES)
92161758
GASKET EXHAUST (1 PLACE)
92161756
CAT CONVERTER - LH
JD
