Wheels, Tyres and Steering Wheel Page H-1

Page H-1

Section H

Wheels, Tyres and Steering Wheel

ATTENTION

HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-

tensioners (fitted to all front seats), a dri ver’s-side air bag , a passenger’s-sid e air bag and left and right hand

side airbags. Refer to CAUTIONS, Section 12M of the Holden WL Service Information before performing any

service operation on or around SRS components, the steering mechanism or wiring. Failure to follow the

CAUTIONS could result in personal injury or unnecessary SRS system repairs.

1 Purpose...................................................................................................................................................2

2 Wheels And Tyres ..................................................................................................................................3

2.1 General Description............................................................................................................................................... 3

2.2 Service Operations................................................................................................................................................ 4

Wheel and Tyre Balancing .................................................................................................................................... 4

HSV Wheel and Tyre Combinations..................................................................................................................... 4

2.3 HSV Temporary Spare Tyre................................................................................................................................... 8

3 Steering Wheel........................................................................................................................................9

Wheels, Tyres and Steering Wheel Page H-2

Page H-2

1 Purpose

The purpose of this section is to provide information on the wheels, tyres and steering wheels fitted to the HSV WL

model. The information is designed to s upplement that given in the Hold en WL Service Information and details are given

where differences occur between the HSV models and standard Holden models. A series of instruction drawings

describe the design changes and indicate specific part numbers, fitting instructions and relevant notes for vehicle

servicing.

NOTE

If specific technical data on a HSV model is not

contained in this supplement, obtain data for that

model from the relevant Holden WL Service

Information. References are made throughout

this section to Holden Service Information, to

assist in providing information for specific service

operations.

When hoisting (or jacking) HSV models,

ensure that the lifting h ead o f th e hoist lifts on

the chassis before the arm of the hoist

contacts the side-skirt

WL Grange wheels are fitted with tyre

pressure monitors (TPM), please refer to the

relevant Section 10 Wheels and Tyres,

2 General Information – Tyre Pressure

Monitoring System in the Holden MY2005 WL

Service Information before disassembly.

Wheels, Tyres and Steering Wheel Page H-3

Page H-3

2 Wheels And Tyres

2.1 General Description

The HSV WL model is fitted with allo y wheels developed specifically for HSV application.

NOTE

Nuts are fitted with a plastic dress cap, which

must be removed prior to undoing the wheel nuts.

HSV WL wheels do no t have a steel insert and

therefore require wheel nuts with a flanged

seat as per the VT, VT2 and WK wheel nuts,

10B-970304. Do not use VS wheels nuts on

HSV WL wheels.

Wheels, Tyres and Steering Wheel Page H-4

Page H-4

2.2 Service Operations

Alloy wheels fitt ed to HSV vehicles are t o be serviced in a ccordance with the proced ures detailed in th e relevant Holden

Service Information. In addition, particular c are should be taken with the surface finish of alloy wheels. The manufacturer

recommends that alloy surfaces be treated the same as high-gloss painted services to prevent corrosion and general

deterioration.

Wheel and Tyre Balancing

In order to balance the HSV Design wheels a nd tyre assemblies, refer to the r elevant Holden Series Service Inform ation

Supplement.

HSV Wheel and Tyre Combinations

The following HSV wheel and tyre combinations are fitted to WL Grange:

STANDARD 19” x 8.0” (48P) using 245/35 R19 Pirelli Pzero Rosso

OPTIONAL 19” x 8.0” (48P) using 245/35 R19 Pirelli Pzero Rosso

SPARE 18"x 8.0" (48p) using 215/45 R18 Bridgestone S03

Wheels, Tyres and Steering Wheel Page H-5

Page H-5

DATE

ISSUE DATED

AUTH'Y

CK.

SYM

AUTH'Y

REVISION RECORD

DATE

SYM

SIGNATURES ON

ORIGINAL APPROVAL

DR.

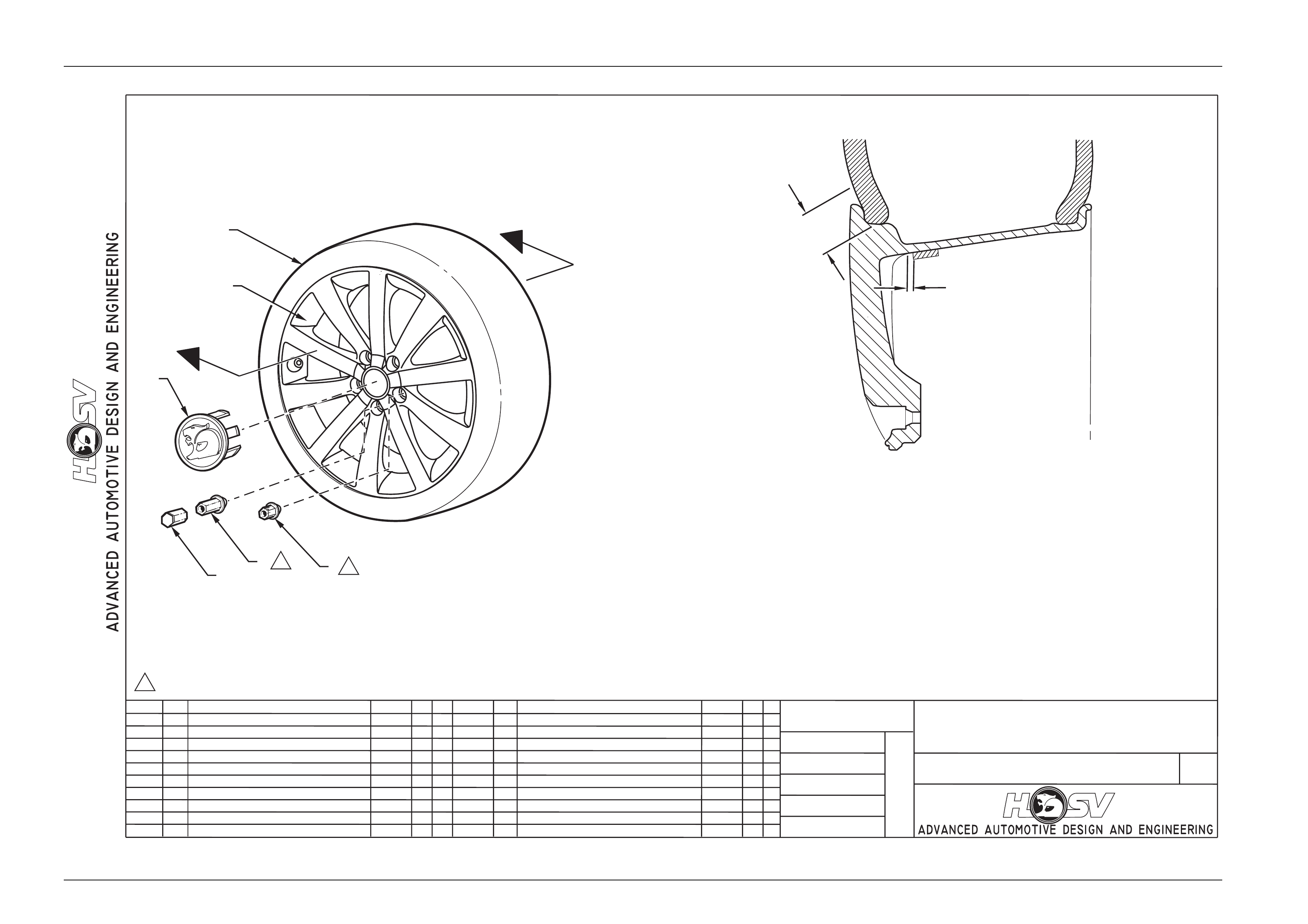

10I-020011

INSTRUCTION DRAWING.

SIZE

ALLOY WHEEL

WL GRANGE / VZ SENATOR

REVISION RECORD

PRELIMINARY ISSUE

CK.

NAME

PART NO.

CK.

REFERENCE

DWG.

DR.

DATE:

APPR

DR.

18/11/04

NOTE: BREAKAWAYTORQUE

OF WHEEL NUTS TOBE

100 Nm MINIMUM

100-125 Nm

1. 10B-101919 CAP WHEEL NUT 5 PLACES

2. 10B-970219 FRONT & REAR WHEEL NUT

3. 10B-030301 CAP & BADGE ASM WHEEL

4. 10B-040801-C WHEEL ALLOY

5. FRONT AND REAR TYRE 245/35 R19 93Y

6. LOCKNUTS SPZ-300168

A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE

MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION

MUST BE MADE BEFORE LUBRICANT IS DRYTO ENSURE SATISFACTORYBEAD

SEATING,TYRE IS TO BE INFLATED TO 280kPa ON INITIAL ASSEMBLY

B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TO SPOKE EDGE

(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL

WEIGHT AND BRAKE CALIPER EXISTS.

SEC A-A

NOTES :

Wheels, Tyres and Steering Wheel Page H-6

Page H-6

100 - 125 Nm

NOTE: BREAKAWAYTORQUE

OF WHEEL NUTS TOBE

100 Nm MINIMUM

SEC A-A

RELEASE

1M.B

T.K

D.P

20.05.02

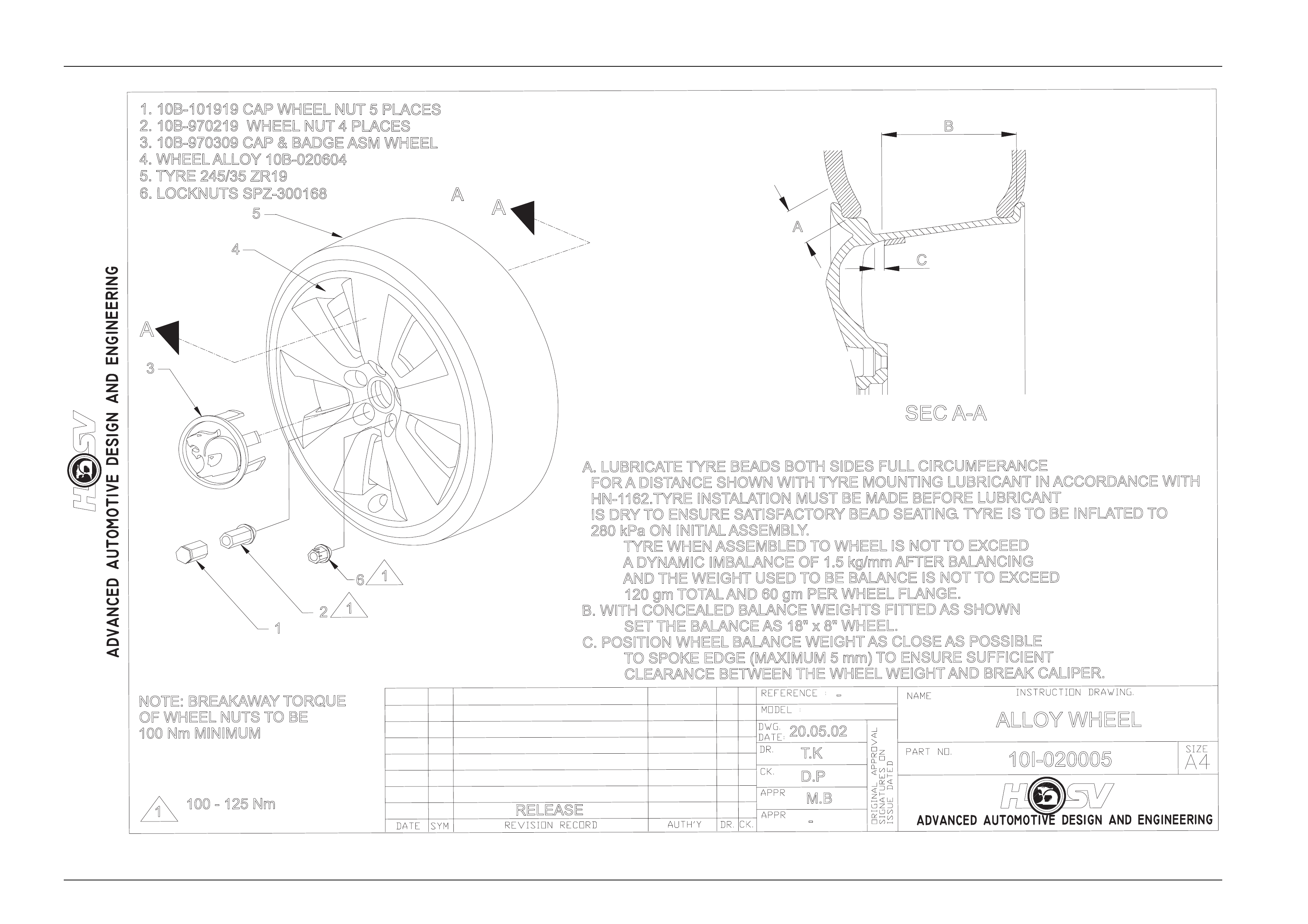

10I-020005

ALLOY WHEEL

A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE

FOR ADISTANCE SHOWN WITH TYRE MOUNTING LUBRICANT IN ACCORDANCE WITH

HN-1162.TYRE INSTALATION MUST BE MADE BEFORE LUBRICANT

IS DRYTO ENSURE SATISFACTORYBEAD SEATING.TYRE IS TO BE INFLATED TO

280 kPa ON INITIAL ASSEMBLY

TYRE WHEN ASSEMBLED TO WHEEL IS NOT TO EXCEED

ADYNAMIC IMBALANCE OF 1.5 kg/mm AFTER BALANCING

AND THE WEIGHT USED TO BE BALANCE IS NOT TO EXCEED

120 gm TOTAL AND 60 gm PER WHEEL FLANGE.

B. WITH CONCEALED BALANCE WEIGHTS FITTED AS SHOWN

SET THE BALANCE AS 18" x 8" WHEEL.

C. POSITION WHEEL BALANCE WEIGHT AS CLOSE AS POSSIBLE

TO SPOKE EDGE (MAXIMUM 5 mm) TO ENSURE SUFFICIENT

CLEARANCE BETWEEN THE WHEEL WEIGHT AND BREAK CALIPER.

1. 10B-101919 CAP WHEEL NUT 5 PLACES

2. 10B-970219 WHEEL NUT 4 PLACES

3. 10B-970309 CAP & BADGE ASM WHEEL

4. WHEEL ALLOY 10B-020604

5. TYRE 245/35 ZR19

6. LOCKNUTS SPZ-300168

Wheels, Tyres and Steering Wheel Page H-7

Page H-7

DATE

ISSUEDATED

AUTH'Y

CK.

SYM

AUTH'Y

REVISION RECORD

DATE

SYM

SIGNATURESO

ORIGINAL APPROVAL

DR.

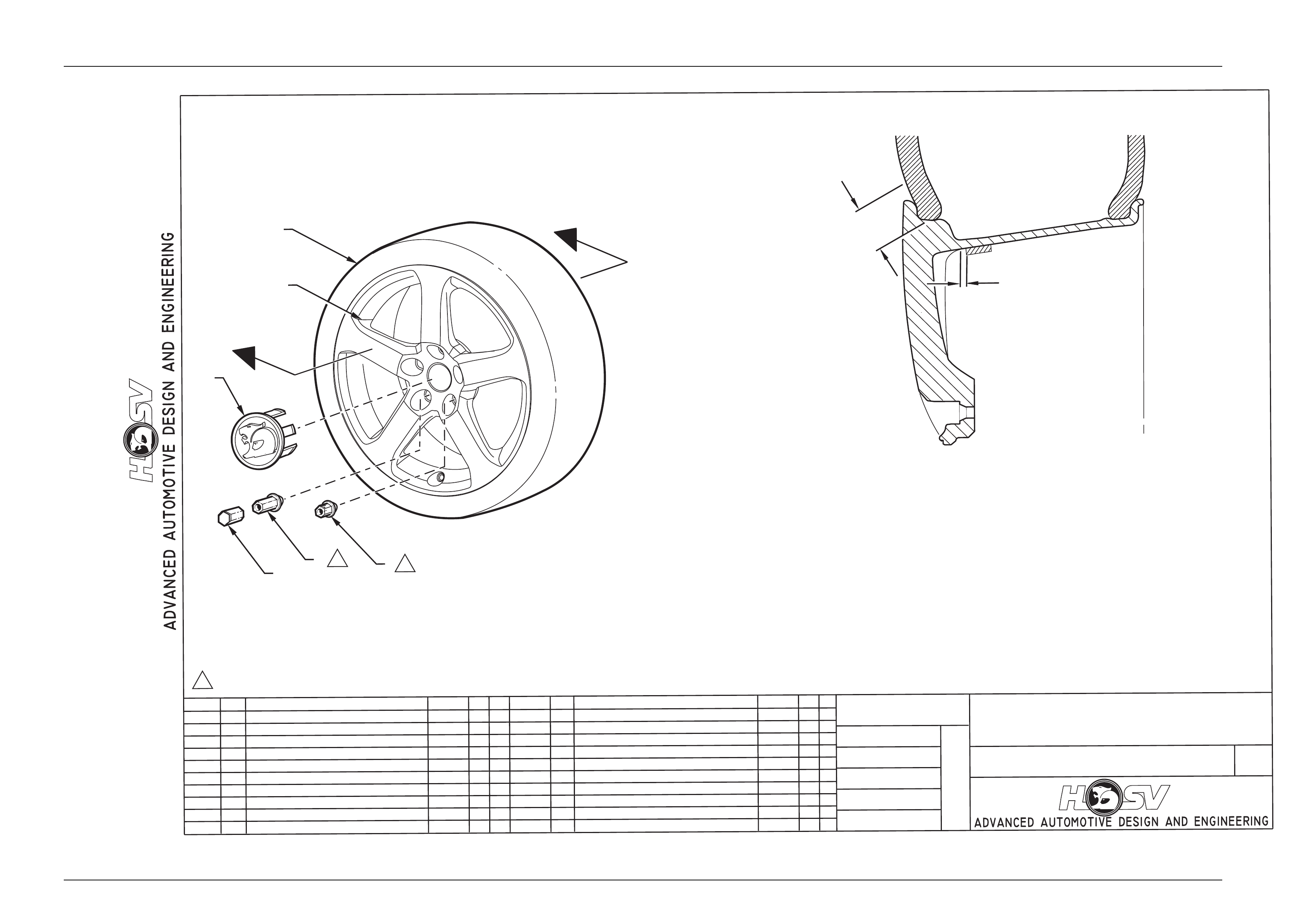

10I-020013

INSTRUCTION DRAWING.

SIZE

ALLOY WHEEL(SPARE)

VZ SEDANS, MALOO & WL GRANGE

REVISION RECORD

PRELIMINARY ISSUE

CK.

NAME

PART NO.

CK.

REFERENCE

DWG.

DR.

DATE:

APPR

DR.

25/11/04

NOTE: BREAKAWAYTORQUE

OFW

HEEL NUTS TOBE

100 Nm MINIMUM

100-125 Nm

1. 10B-101919 CAP WHEEL NUT 5 PLACES

2. 10B-970219 FRONT & REAR WHEEL NUT

3. 10B-030301 CAP & BADGEASM WHEEL

4. 10B-020601-D WHEEL ALLOY

5. FRONT AND REAR TYRE 215/45 R18 93W

6. LOCKNUTS SPZ-300168

A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE

MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION

MUST BE MADE BEFORE LUBRICANT IS DRYTO ENSURE SATISFACTORYBEAD

SEATING,TYRE IS TO BE INFLATED TO 280kPa ON INITIAL ASSEMBLY

B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TO SPOKE EDGE

(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL

WEIGHT AND BRAKE CALIPER EXISTS.

SECA-A

NOTES:

Wheels, Tyres and Steering Wheel Page H-8

Page H-8

2.3 HSV Temporary Spare Tyre

All HSV WL Grange Models are fitted with a tempor ary spare wheel/tyre. T his temporary use spare is for emergency use

only, do not exceed 80km/h when it is fitted. Refer to the owner’s manual for further detail s .

All HSV Models fitted with the 19” wheel & tyre option are fitted with a temporary spare wheel & tyre.

Wheels, Tyres and Steering Wheel Page H-9

Page H-9

3 Steering Wheel

HSV WL Grange vehicles are equipped with

AIR BAGS. An AIR BAG is a Supplemental

Restraint System (SRS). Refer to CAUTIONS,

Section 12M, in Volume 12 of the Holden WL

series Service Manual Supplement before

performing any service operation on or

around SRS components, the steering

mechanism or wiring. Failure to follow the

CAUTIONS could result in air bag

deployment, resulting in possible personal

injury or unnecessary SRS system repairs.

The steering wheel assembly fitted to all HSV WL Grange models incorpo r ates a HSV-design central horn pad complete

with HSV logo (see Drawing 09I-030007). The central horn pad also incorporates the driver’s-side air bag. All other

components, fixtures and fasteners are identical to standard Holden parts and therefore, any service operations on the

assembly should be carried out in accord ance with the relevant Holden Service Manual Supplement,

refer to Section 9 Steering of the WL Series Service Inform ation.

Wheels, Tyres and Steering Wheel Page H-10

Page H-10

DATE

ISSUE DATED

AUTH'Y

CK.

SYM

AUTH'Y

REVISION RECORD

DATE

SYM

SIGNATURES ON

ORIGINAL APPROVAL

DR.

ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING

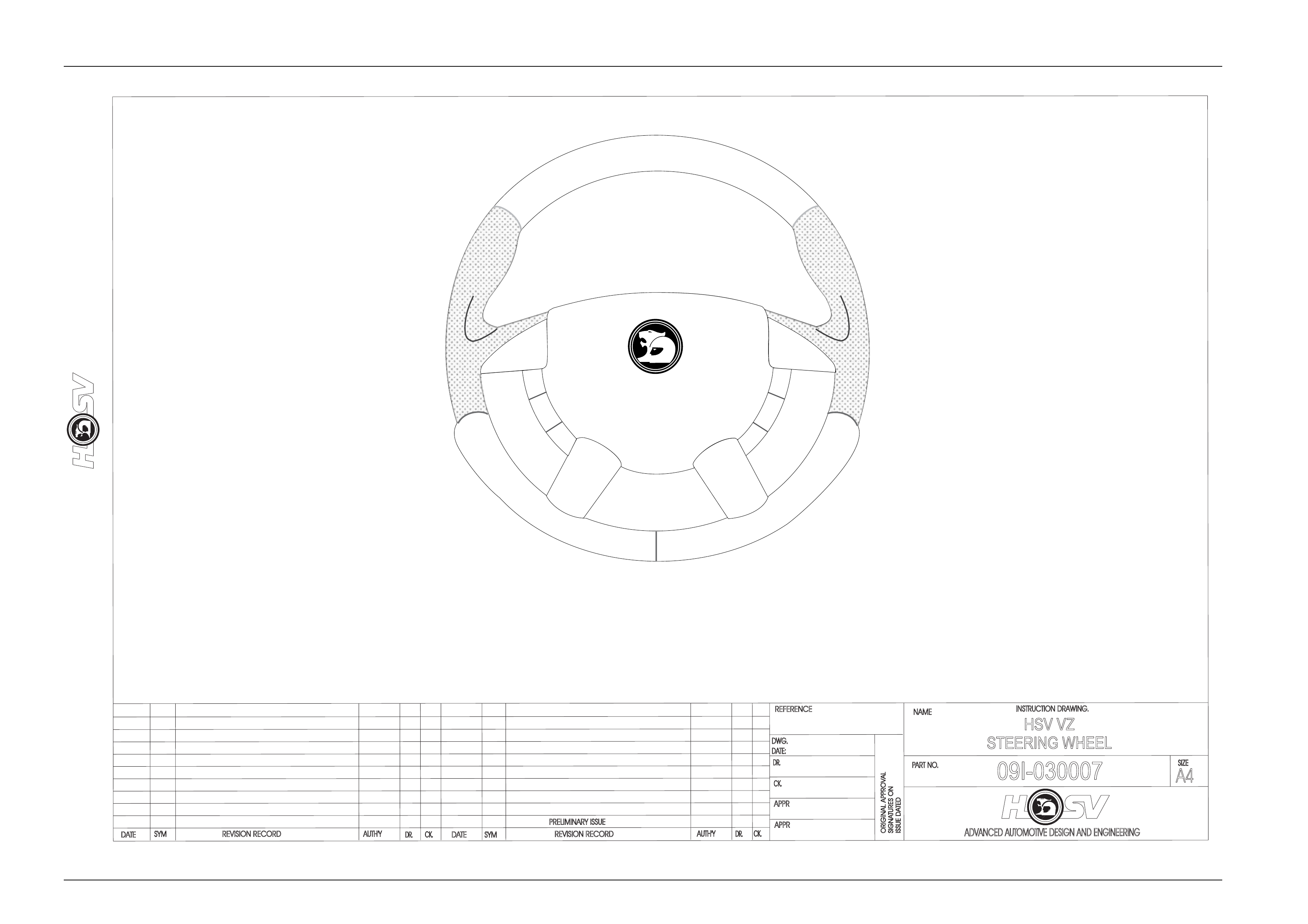

09I-030007

INSTRUCTION DRAWING.

SIZE

HSV VZ

STEERING WHEEL

REVISION RECORD

PRELIMINARY ISSUE

CK.

NAME

PART NO.

CK.

REFERENCE

DWG.

DR.

DATE:

APPR

DR.

22/03/05

VZ/WLSTEERING WHEEL PART NUMBERS

CLUBSPORTAND MALOO - 92166653

CLUBSPORTR8 AND MALOO R8 - 92166653

SENATOR - 92166654

GRANGE / ANTHIRCITE - 92166654

GRANGE / REED - 09B-041301RD

VZ/WLAIR BAG ASM. PART NUMBERS

ALL MODELS ANTHRICITE 92117622

GRANGE REED 92164228
