HOLDEN SPECIAL VEHICLES
SERVICE MANUAL SUPPLEMENT
SECTION B
BODY
CAUTION:
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of
seat belt pre-tensioners (fitted to all front seats), a driver’s-side air bag, a passenger’s-side air
bag and left and right hand side air bags. Refer to CAUTIONS, Section 12M Occupant
Protection System in the MY 2005 VZ Series Service Information before performing any
service operation on or around SRS components, the steering mechanism or wiring. Failure
to follow the CAUTIONS could result in personal injury or unnecessary SRS system repairs.
2
SERVICE MANUAL SUPPLEMENT
PURPOSE
The purpose of this section is to provide information on the body and body components fitted to HSV
VZ SV6000 vehicles. The information is designed to supplement the information contained in the
Holden VZ and HSV VZ series Service Manuals, and details are given where differences occur
between the HSV SV6000 models and standard Holden models. A series of instruction drawings
describe the design changes and indicate specific part numbers, fitting instructions and relevant notes
for vehicle servicing.
NOTE:
If specific technical data on a HSV model is not contained in this supplement, obtain data for that
model from the relevant Holden VZ series Service Manual Supplement. References are made
throughout this section to Holden Service Manuals, to assist in providing information for specific
service operations.
.
CAUTION:
When hoisting (or jacking) HSV models, ensure that the liftin g head of the hoist lifts
on the chassis before the arm of the hoist contacts the side-skirt
3
BODY ORNAMENTATION
HSV models are fitted with HSV specific decals and badges to identify each model and power train
option. The exclusive HSV ornamentation is positioned in exact locations on each HSV model. The
ornamentation for each model is specified by part number in this section.
SEATS and INTERIOR TRIM
HSV VZ SV6000 models are fitted with exclusive seat and trim designs. A full range of replacement
parts is available for each specific HSV seat item and these parts are listed in Tables below.
SEAT COVERS SV6000
PART NUMBER DESCRIPTION QUANTITY
J06-4102121Y COVER-FSC-PERF/LTHR-SV6000
2
J06-4102122Y COVER-FSB-RH-PERF/LTHR-SV6000
1
J06-4102123Y COVER-FSB-LH-PERF/LTHR-SV6000
1
J06-4101176Y COVER-FRT-SEAT H/REST-PERF/LTHR-
SV6000
2
K06-4102116Y COVER-RSC-PERF/LTHR-SV6000
1
K06-4102124Y COVER-RSB-RH-PERF/LTHR-SV6000
1
K06-4102125Y COVER-RSB-LH-PERF/LTHR-SV6000
1
K06-4102115Y COVER-RSB-FLAP-PERF/LTHR-SV6000
1
K06-4102120Y COVER-RSB-H/REST-PERF/LTHR-SV6000
2
K06-4006435NK COVER-RSB-ARMREST-PERF/LTHR-
SV6000
1
Note: For information on SV6000 seat pads and frames refer to HSV VZ Clubsport R8 Service
Information
SV6000 Door Trim Inserts
PART NUMBER DESCRIPTION QUANTITY
HSV-F06-050601NK INSERT-D/TRIM-FRT-LH-SV6000 1
HSV-F06-050602NK INSERT-D/TRIM-FRT-RH-SV6000 1
HSV-G06-050601NK INSERT-D/TRIM-RR-LH-SV6000 1
HSV-G06-050602NK INSERT-D/TRIM-RR-RH-SV6000 1
4
29/04/05
DATE SYM REVISION RECORD
RELEASE
DATE:
DR.
AUTH'Y CK.
DWG.
INSTRUCTION DRAWING.
NT
GD
AP
VZ SV6000
-
-
DRF03026.01
SV6000

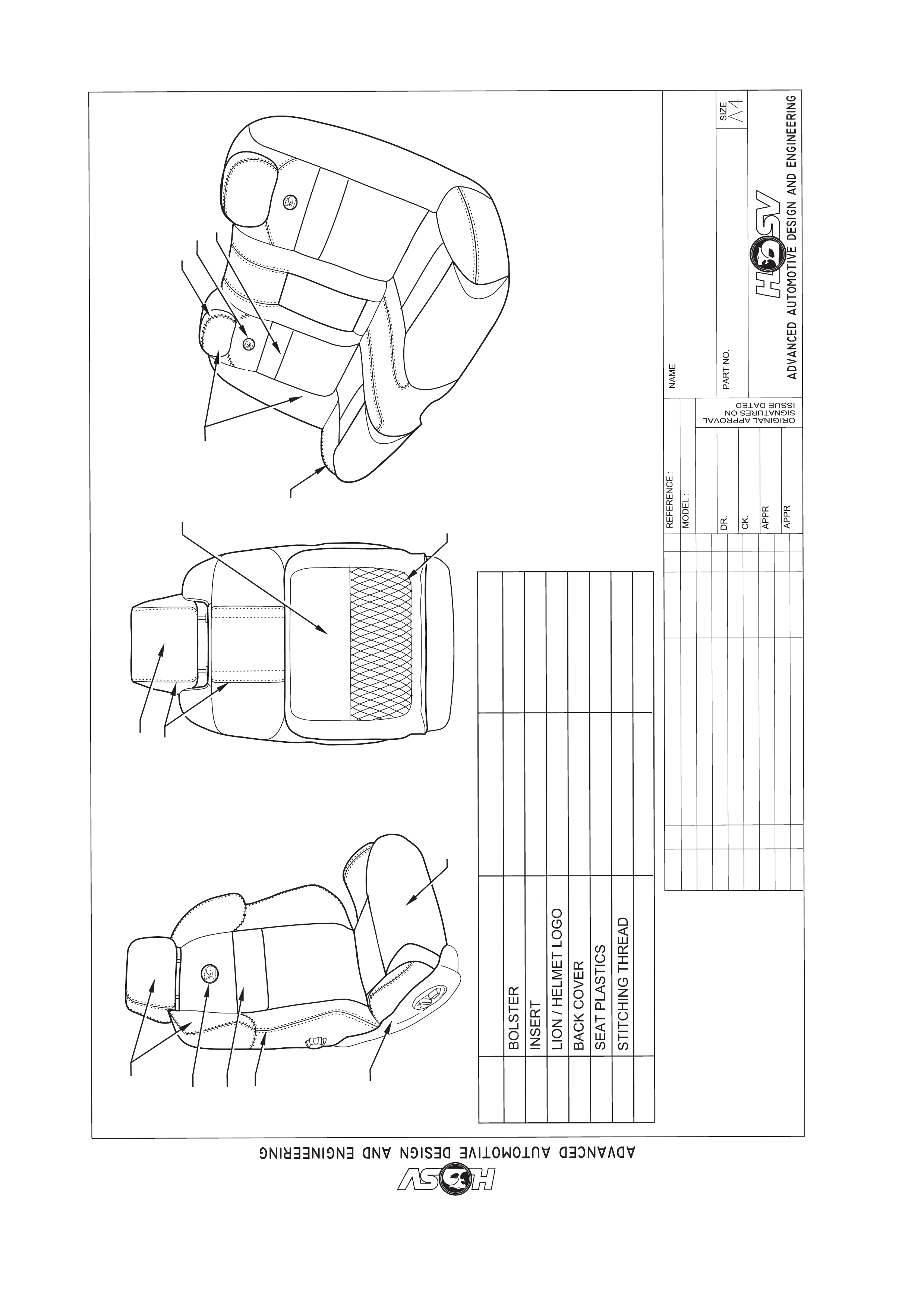

PERFORMANCE LEATHER SEAT
J0I-050000
LEATHER
EMBROIDERY
VINYL
COMP PLASTICS
M20
ITEM PART NAME MATERIAL COLOUR
1
2
3
4
5
6
BLACK ANTHRACITE
ANTHRACITE
ANTHRACITE
YELLOW
BLACK ANTHRACITE
1
3
2
6
5
2
1
6
4
13
6
6
2
PERFORATED LEATHER
SILVER GREY
MAP POCKET
7
NETTING ANTHRACITE
7
5
VZ SV6000 SEDAN
CONTENTS OF BODY STYLING PACKAGE
PART No QTY DESCRIPTIONS REF
A08-020701 1 SIDE SKIRT – ASSEMBLY – RH 1
A08-020702 1 SIDE SKIRT – ASSEMBLY – LH 2
14A2020601 1 REAR FACIA – HSV VZ 3
14A1040602 1 FRONT FACIA - LEVEL 1 – HSV VZ 4
B08-040607 1 HEADER – HOOD 5
E08-040601 1 SPOILER - LEVEL 1 - HSV VZ 6
12E-970301 1 LAMP ASM – HIGH MOUNT STOP LAMP 7
E08-050601 1 DECAL SET SV6000 LEFT (YELLOW) 8
E08-050602 1 DECAL SET SV6000 RIGHT (YELLOW) 9
E08-050603 1 DECAL SV6000 REAR (YELLOW) 10
E08-040603 1 BADGE – ENG ID – 297 11
B08-040601B8 2 BADGE – LION & HELMET (CHROME) 12
E08-020602 1 APPLIQUE – REAR 13
14A1040607 1 FOG LAMP SURROUND - LH 14
14A1040608 1 FOG LAMP SURROUND - RH 15
12C-020601 1 FOG LAMP 16
14A1040610 1 MESH-BUMPER BAR OPENING UPPER 17
14A1040611 1 MESH-BUMPER BAR OPENING LOWER 18
B08-050601 1 SIDE VENT LH 19
B08-050602 1 SIDE VENT RH 20
6
2. SERVICE OPERATIONS
NOTE: This supplement applies only to HSV SV6000, with only the changes for SV6000 being
shown. For all other information relating to the SV6000 body components refer to HSV VZ R8
Service Information or Holden VZ Service Information.
When servicing the VZ SV6000 body components, refer to drawings in this section obtain the
necessary information on the correct location of each component.
For badge information and locations refer to drawings at the end of this section.
7
12.10.04
DP
BG

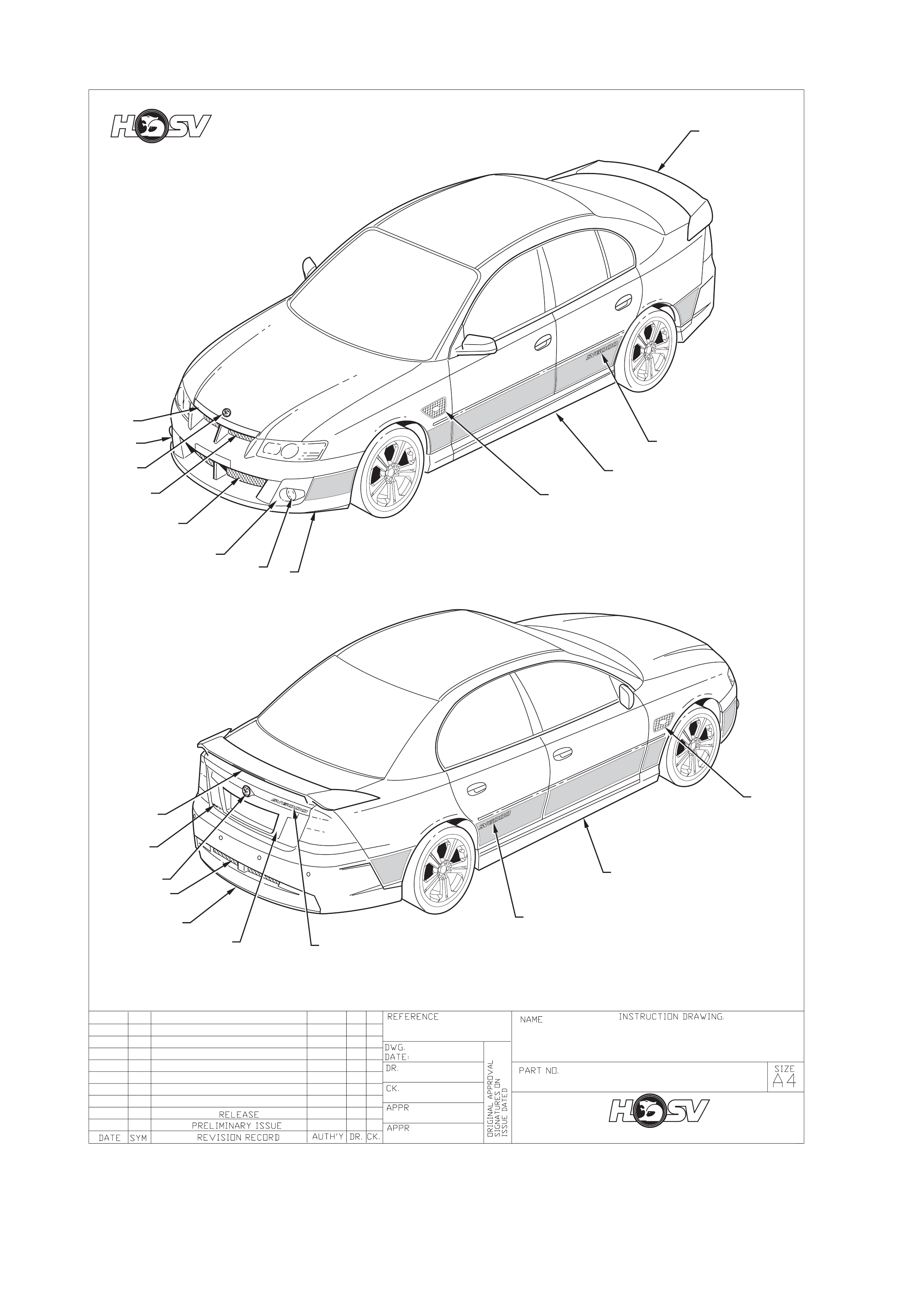

BODY EXTERIOR ORNAMENTATON
ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING
SV 6000
VZ
6
8
2
5
12
18
19
15
17
4
7
14
12
3
13
11
9
1
10
16
20
1A2F-050000
8

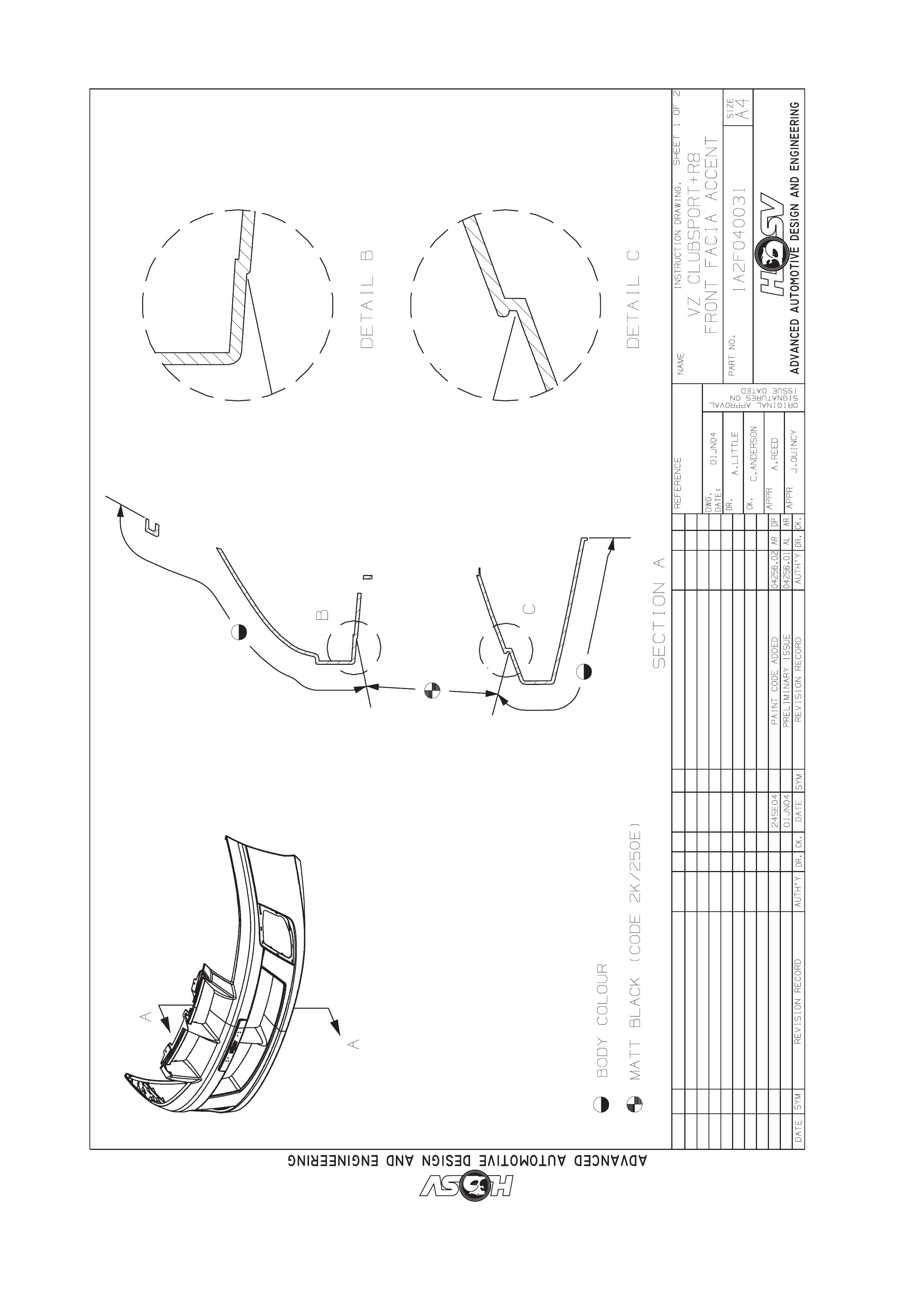

9

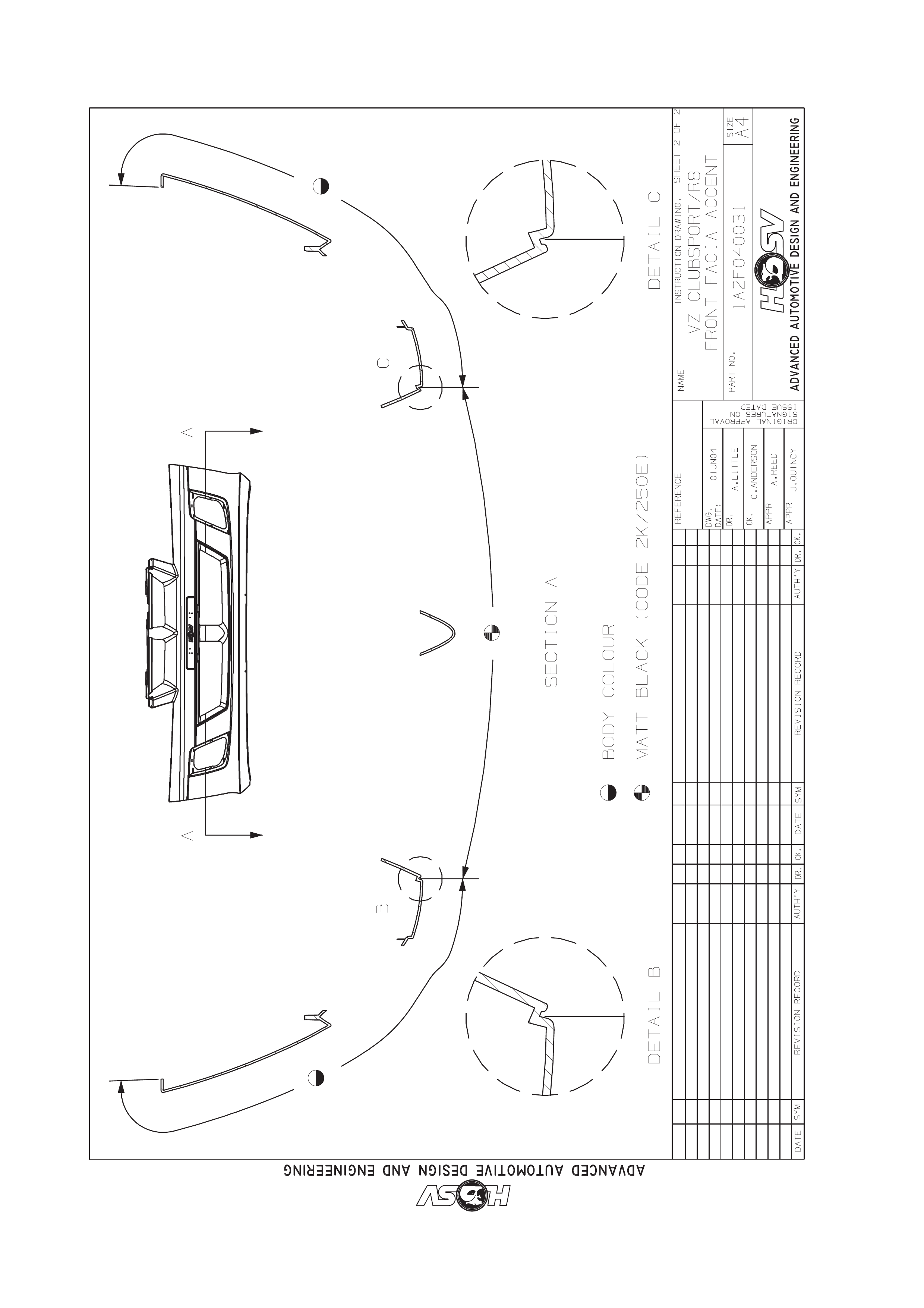

10

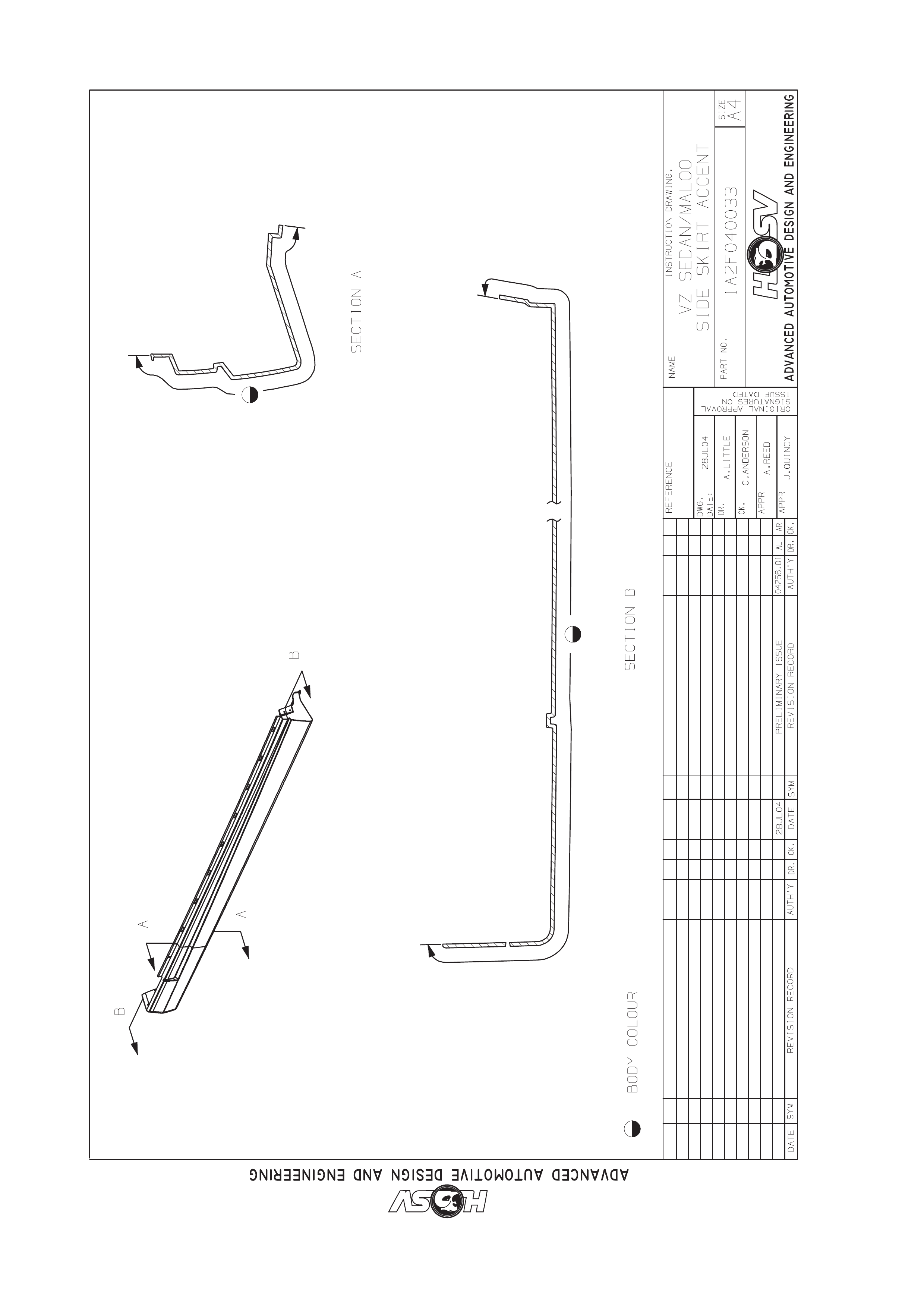

11
DATE
ISSUE DATED
AUTH'Y
CK.
SYM
AUTH'Y
REVISION RECORD
DATE
SYM
SIGNATURES ON
ORIGINAL APPROVAL
DR.
ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING
INSTRUCTION DRAWING.
A4
SIZE
REVISION RECORD
PRELIMINARY ISSUE
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.

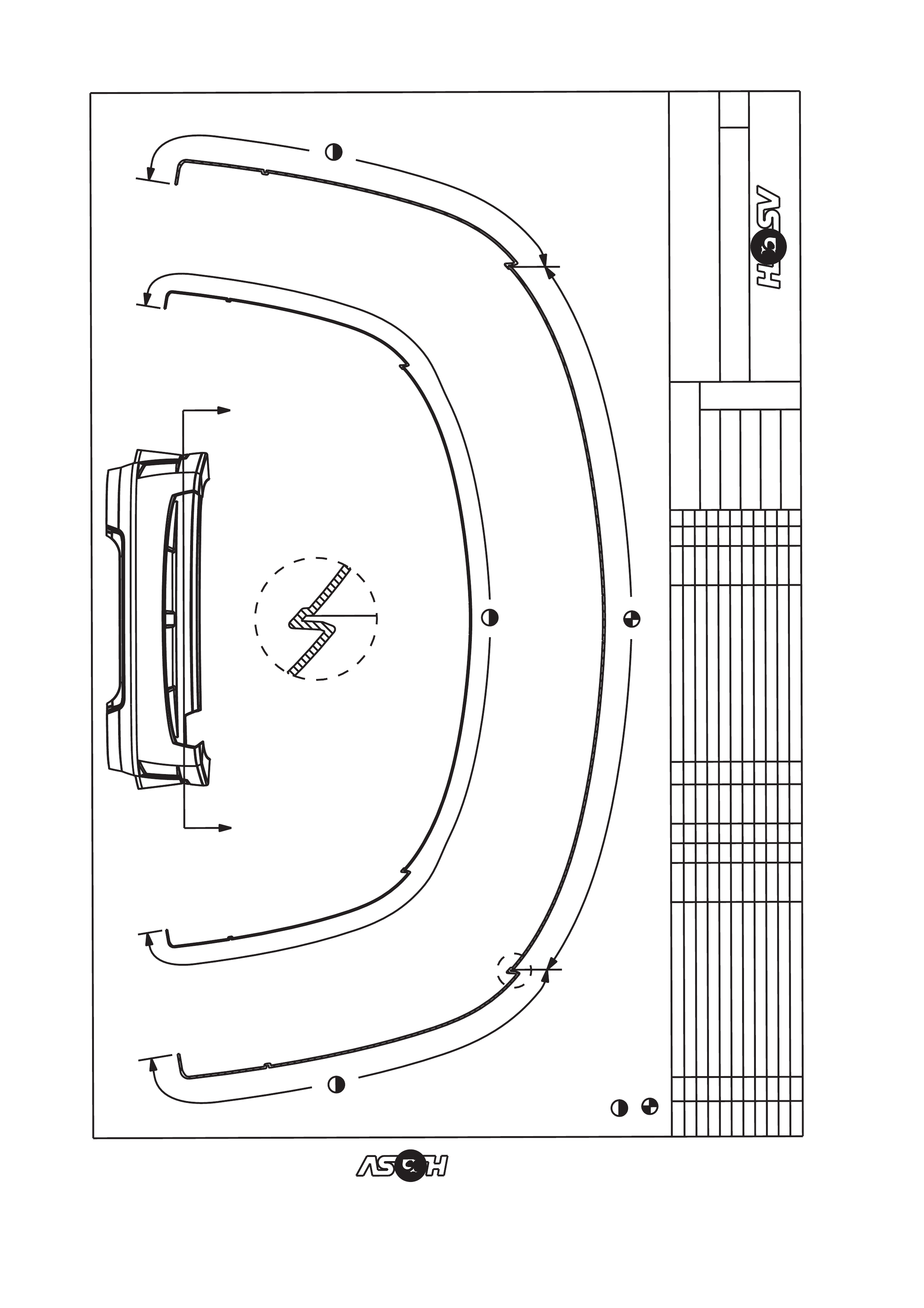

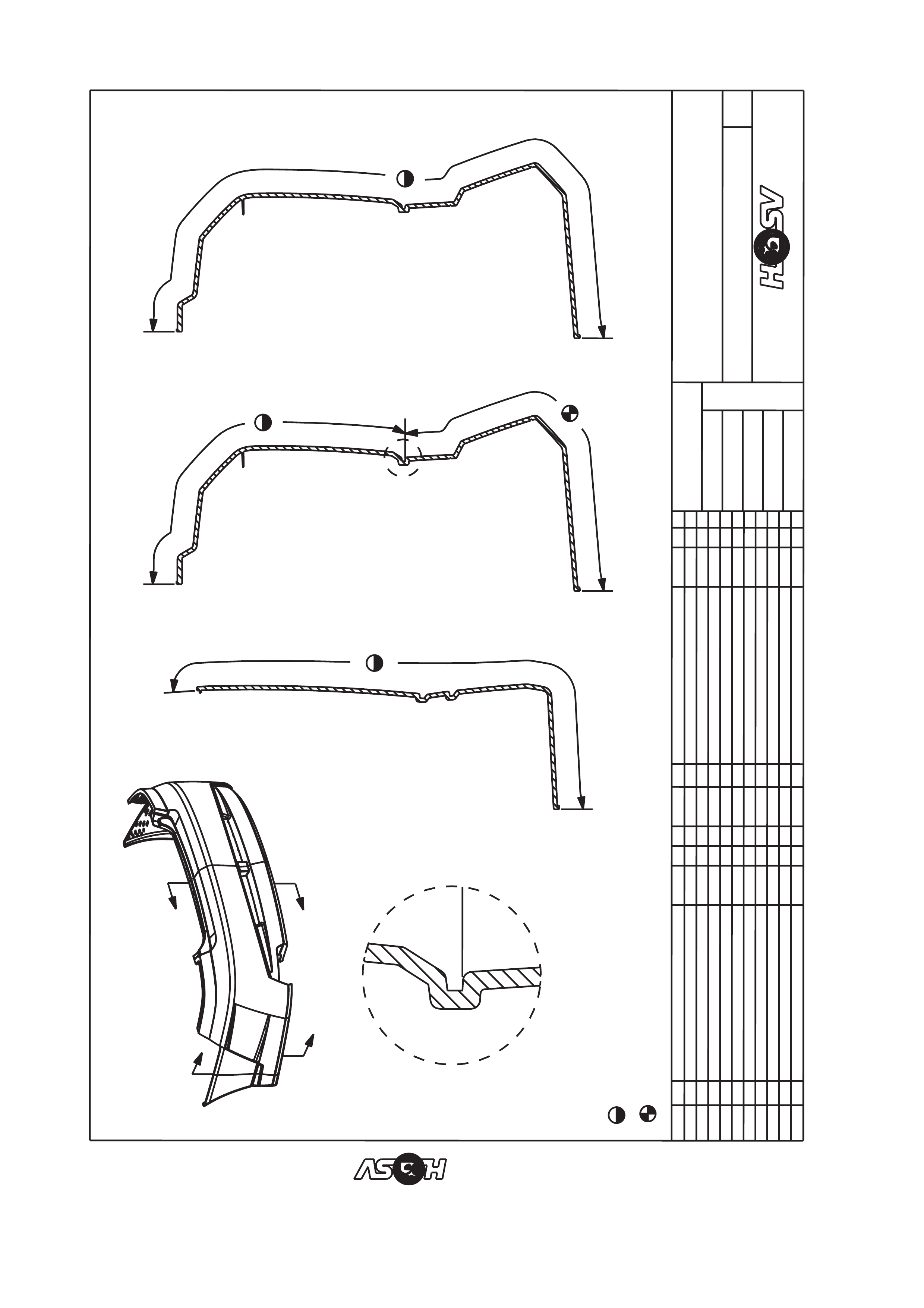

VZ SEDAN
REAR FACIA ACCENT
1A2F040032
27JN04
AL
27JN04
A.LITTLE
A
A
B
B
SECTION B
SECTION A
BODY COLOUR
DETAIL C
C
SECTION B
(SENATOR &
SV6000 ONLY)
SHEET 1 OF 2
A.REED
AR
MATT BLACK (CODE 2K/250E)
04256.01
C.ANDERSON
J.QUINCY
24SE04
PAINT CODE ADDED
04256.02
AR DP
01AP05
SV6000 NOTE ADDED
05001.02
AR DP
12
ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING
INSTRUCTION DRAWING.
A4
SIZE
REVISION RECORD
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.
AUTH'Y
REVISION RECORD
AUTH'Y
SYM
DATE
DR. CK.
DATE
SYM
ORIGINAL APPROVAL
SIGNATURES ON
ISSUE DATED
VZ SEDAN
REAR FACIA ACCENT
1A2F040032
27JL04
A.LITTLE
SHEET 2 OF 2
A.REED
AA
SECTION A
DETAIL B
B
MATT BLACK (CODE 2K/250E)
BODY COLOUR
SECTION A
(SENATOR &
SV6000 ONLY)
J.QUINCY
C.ANDERSON
13
DATE
ISSUE DATED
AUTH'Y
CK.
SYM
AUTH'Y
RELEASE
REVISION RECORD
DATE
SYM
SIGNATURES ON
ORIGINAL APPROVAL
DR.
04JL05
ADVANCED AUTOMOTIVE DESIGN AND ENGINEERING
EOI-050002

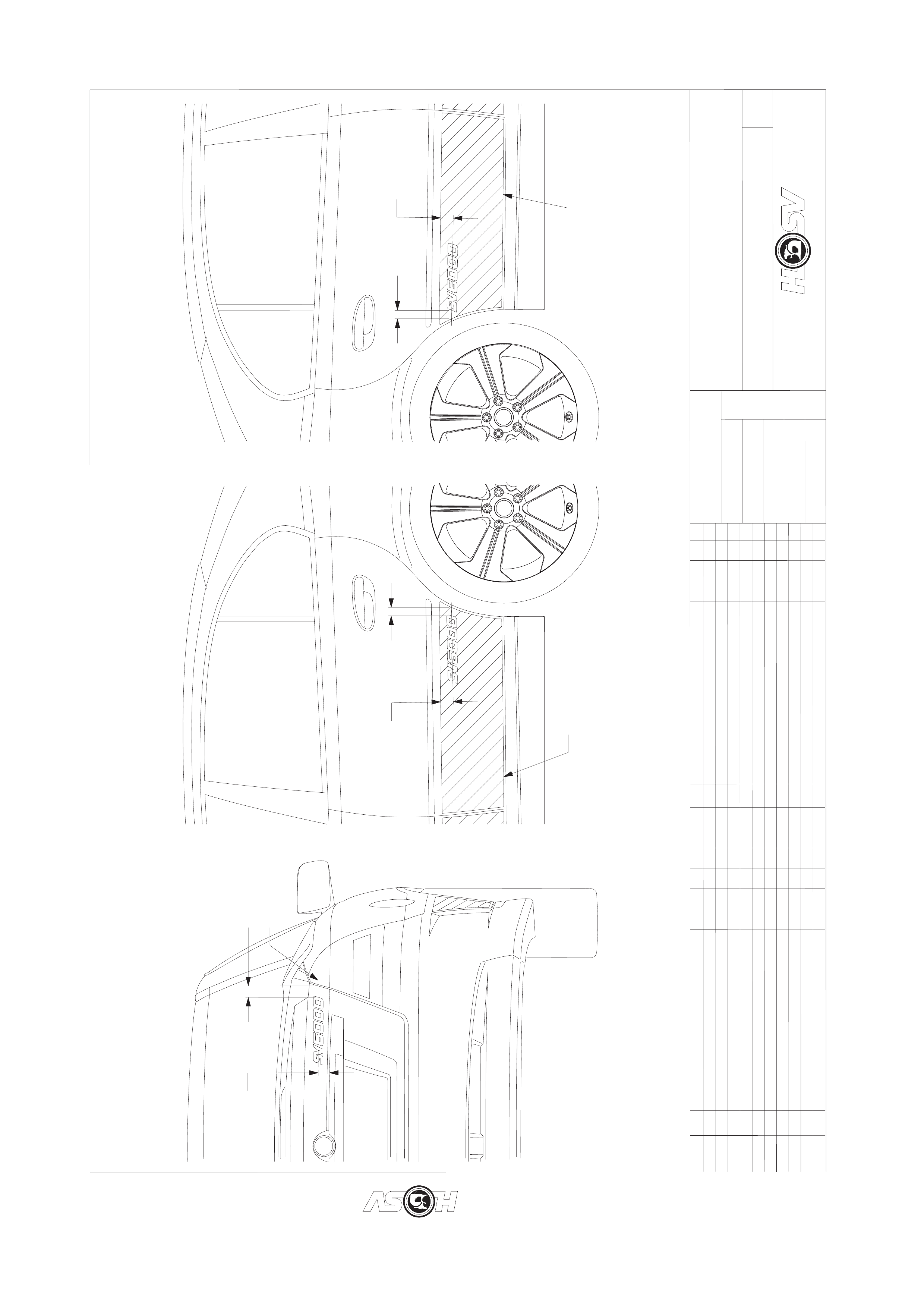

DECKLID &RR DOORS-SV6000
INSTRUCTION DRAWING.
A4
SIZE
BADGE LOCATION
REVISION RECORD
PRELIMINARY ISSUE
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.
04JL05
05035 BE
RHS
LHS
40
40
30
45 45
30
REFLECTIVE PANEL REFLECTIVE PANEL
HORIZONTAL
G. DUSTING
B. EVANS
G. DUSTING
07JL05
05035 BE GD
