HOLDEN SPECIAL VEHICLES
SERVICE MANUAL SUPPLEMENT
SECTION H
WHEELS, TYRES AND STEERING WHEEL
CAUTION:
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS
consists of seat belt pre-tensioners (fitted to all front seats), a driver’s-side air bag, a
passenger’s-side air bag and left and right hand side air bags. Refer to CAUTIONS,
Section 12M Occupant Protection System in the MY 2005 VZ Series Service
Information before performing any service operation on or around SRS components,
the steering mechanism or wiring. Failure to follow the CAUTIONS could result in
personal injury or unnecessary SRS system repairs.
Techline
SERVICE MANUAL SUPPLEMENT
PURPOSE
The purpose of this section is to provide information on the wheels, tyres and steering
wheel fitted to the HSV VZ SV6000 models. The information is designed to
supplement that given in the Holden VZ series Service Manual and details are given
where differences occur between the HSV models and standard Holden models. A
series of instruction drawings describe the design changes and indicate specific part
numbers, fitting instructions and relevant notes for vehicle servicing.
NOTE:
If specific technical data on a HSV model is not contained in this supplement, obtain
data for that model from the relevant Holden VZ series Manual Supplement.
References are made throughout this section to Holden Service Manuals, to assist in
providing information for specific service operations.
CAUTION:
When hoisting (or jacking) HSV models, ensure that the lifting head of the hoist lifts
on the chassis before the arm of the hoist contacts the side-skirt
1. WHEELS AND TYRES
1.1. GENERAL DESCRIPTION
The HSV VZ SV6000 model is fitted with alloy wheels developed specifically for
HSV application. The wheels fitted to the HSV VZ SV6000 are the VZ GTS 19’wheel
finished in Yellow Spirit.
NOTE:
Specific wheel nuts are used to attach alloy wheels to the vehicle. These nuts are fitted
with a plastic dress cap which must be removed prior to undoing the wheel nuts.
CAUTION:
HSV VZ wheels do not have a steel insert and therefore require wheel nuts with a
flanged seat as per the VT, VT2 and VX wheel nuts, 10B-970304. Do not use VS
wheels nuts on HSV VZ wheels.
SERVICE OPERATIONS
Alloy wheels fitted to all HSV vehicles are to be serviced in accordance with the
procedures detailed in the relevant Holden Service Manual, refer to Section 10 –
WHEELS AND TYRES. In addition, particular care should be taken with the surface
finish of alloy wheels. The manufacturer recommends that alloy surfaces be treated
the same as high-gloss painted services to prevent corrosion and general deterioration.
DATE
ISSUE DATED
AUTH'Y
CK.
SYM
AUTH'Y
REVISION RECORD
DATE
SYM
SIGNATURES ON
ORIGINAL APPROVAL
DR.

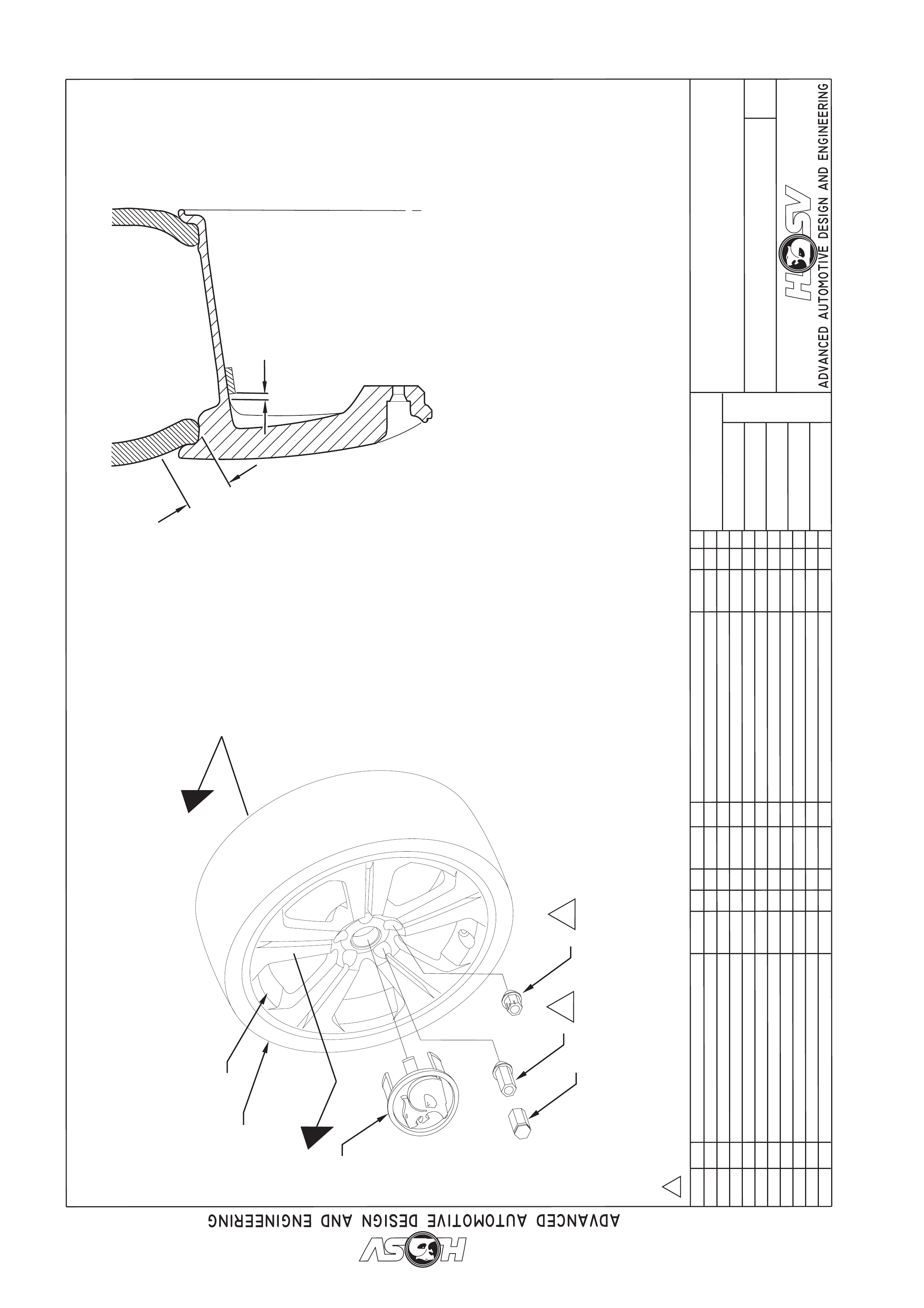

10I-050001
INSTRUCTION DRAWING.
A4
SIZE
ALLOY WHEEL
VZ SV6000
REVISION RECORD
PRELIMINARY ISSUE
CK.
NAME
PART NO.
CK.
REFERENCE
DWG.
DR.
DATE:
APPR
APPR
DR.
02/05/05
AP
DP
PS
NOTE: BREAKAWAY TORQUE
OF WHEEL NUTS TO BE
100 Nm MINIMUM
100-125 Nm
1. 10B-101919 CAP WHEEL NUT 5 PLACES
2. 10B-970219 FRONT & REAR WHEEL NUT
3. 10B-050602 CAP & BADGE ASM WHEEL
4. 10B-020701-N WHEEL ALLOY
5. FRONT AND REAR TYRE 245/35 R19 93Y (PRE AUG 2005) OR 235/35 R19 93Y (POST AUG 2005)
6. LOCKNUTS SPZ-300168
A. LUBRICATE TYRE BEADS BOTH SIDES FULL CIRCUMFERANCE WITH TYRE
MOUNTING LUBRICANT IN ACCORDANCE WITH HN - 1162. TYRE INSTALLATION
MUST BE MADE BEFORE LUBRICANT IS DRY TO ENSURE SATISFACTORY BEAD
SEATING, TYRE IS TO BE INFLATED TO 280kPa ON INITIAL ASSEMBLY.
B. POSITION STICK-ON WHEEL WEIGHT AS CLOSE AS POSSIBLE TO SPOKE EDGE
(MAXIMUM 5mm) AND ENSURE SUFFICIENT CLEARANCE BETWEEN THE WHEEL
WEIGHT AND BRAKE CALIPER EXISTS.
SEC A-A
NOTES :
1
A
B
16
3
4
5
A
A
2
11
2. STEERING WHEEL
CAUTION:
HSV VZ vehicles are equipped with AIR BAGS. An AIR BAG is a Supplemental Restraint System (SRS).
Refer to CAUTIONS, Section 12M, in Volume 12 of the Holden VZ series Service Manual Supplement before
performing any service operation on or around SRS components, the steering mechanism or wiring. Failure to
follow the CAUTIONS could result in air bag deployment, resulting in possible personal injury or unnecessary
SRS system repairs.
The steering wheel assembly fitted to all HSV VZ models incorporates a HSV-design central horn pad
complete with HSV logo. The central horn pad also incorporates the driver’s-side air bag. All other
components, fixtures and fasteners are identical to standard Holden parts and therefore, any service operations
on the assembly should be carried out in accordance with the relevant Holden Service Manual Supplement,
refer to Section 9A – STEERING of the VZ Series Service Information.
