General Information Page A-1
Page A-1
Section A
General Information
ATTENTION
HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS consists of seat belt pre-
tensioners (fitted to all front seat s), a driver’s-side air bag, a passeng er’s-side air bag and left and right h and
side air bags. Refer to CAUTIONS, Section 12M, in Volume 12 of the Holden VYII series Service Manual before
performing any service operation on or around SRS components, the steering mechanism or wiring. Failure
to follow the CAUTIONS could result in personal injury or unnecess ary SRS system repairs.
1. General Information………………………………………………..............................................................2
1.1 Build Plate……………………………………………………………………….............................................................. 2
Techline
General Information Page A-2
Page A-2
1 General Information
The HSV VYII series is a new design featuring new HSV major assemblies such as body styling, seats, suspension,
engine and exhaust s ystem, new HSV body compone nts, and new HSV interna l fittings and convenience items. These
HSV components, assemblies and fittings are not described in service-type manuals produced for standard Holden
models.
The purpose of this Supplement is to provide information on the unique HSV components fitted to HSV VYII vehicles.
The information in this doc ument is designed to sup plement the information contai ned in the Holden VYII series Serv ice
Manuals, and details are g iven where differences occur between the HSV models and standard Holden models. A series
of instruction drawings describe the design changes and indicate specific part numbers, fitting instructions and relevant
notes for vehicle servicing.
This supplement is divided into Sections and each Section addresses a specific subject - for example, Section D
discusses Brake Systems. In addition, supplementary Service Bulletins will be issued (as the need arises) to describe
service operations on new systems and/or new vehicles not previously described in this supplement. These
supplementary Service Bulleti ns will be issued in numerical sequenc e.
Terms used in this document accord with the contents of International Standard ISO 1087 (1990). In addition, other
terms are used to indicate that precautions must be taken during the servicing procedures that follow. The terms used
are Caution and Note, and these terms have the following meanings:
A CAUTION (as shown) will precede any text
which if not correctly followed may cause
personal injury, damage to equipment or
corruption of digital data.
NOTE:
A NOTE (as shown) will precede any servicing
procedure, technique, or inf ormation which need s
special attention and needs to be highlighted.
1.1 HSV Build Plate
HSV vehicles can be identified by the HSV Vehicle Build Plate, which is mounted in the engine compartment. An
example of an HSV Build Plate is shown on Drawing 1A2F030027. New for the VY is a black over gold finish instea d of
the clear anodizing of previous models.
General Information Page A-3
Page A-3
RELEASE
BUILD PLATE - CLUBSPORTR8
VY
-
-
2
22.10.03
AP
AP
1A2F030027
NUMERICAL VEHICLE BUILD NUMBER
NUMERICAL MODEL DESIGNA TION
DATE OF VEHICLE BUILD
PART (WORK ORDER) NUMBER ALLOCA TED
TO VEHICLE A T BUILD
PAINT COLOUR IDENTIFICA TION
NUMBER
GD
General Information Page A-4
Page A-4

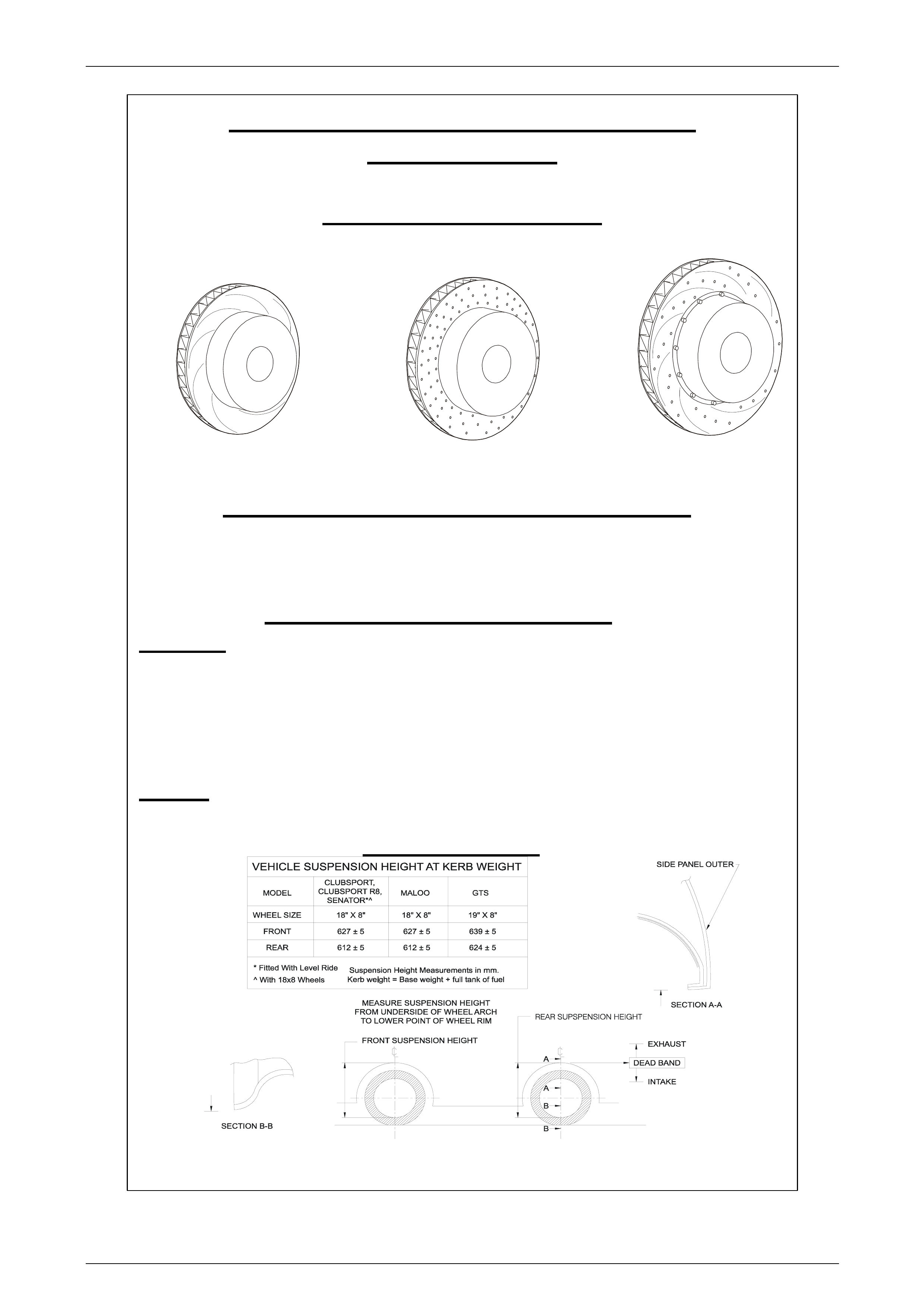

FREQUENTLY ASKED QUESTIONS
VYII MODELS
BRAKE ROTO R TYPES:
HSV PREMIUM
HSV PERFORMANCE HSV ULTIMATE
(AP RACING)
BRAKE ROTOR MINIMUM THICKNESS
(PREMIUM & PERFORMANCE) (HSV ULTIMATE)
FRONT: 30.0mm FRONT: 30.0mm
REAR: 16.0mm REAR: 24.0mm
WHEEL ALIGNMENT SPECS:
FRONT
TOE-IN DEGREES TOTAL: 0°10’± 0°10’
DEGREES PER WHEEL: 0°05’± 0°05’
CAMBER: -0°30’± 0°20’
CASTER: 7°45’± 1°15’
REAR
TOE IN: 0°±1mm (0°±0°10min)
RIDE HEIGHT:
