SECTION B – BODY

CAUTION:

HSV vehicles are equipped with a Supplemental Restraint System (SRS). An SRS

consists of seat belt pre-tensioners (fitted to all front seats), and a driver’s-side air

bag or a driver’s-side air bag AND a passenger’s-side air bag. Refer to CAUTIONS,

Section 12M, before performing any service operation on or around SRS

components, the steering mechanism or wiring. Failure to follow the CAUTIONS

could result in personal injury or unnecessary SRS system repairs.

PURPOSE

The purpose of this sect ion is to pr ovide inform ation on the body and body com ponents fitted to HSV VT and HSV

VS vehicles . The inf ormation is designed to s upplement the info rmation contained in the Holden VT and VS series

Service Manuals, and details are given where differences occur between the HSV models and standard Holden

models. A series of instruction drawings describe the design changes and indicate specific part numbers, fitting

instructions and relevant notes for vehicle servicing.

NOTE:

If specific technical data on a HSV model is not contained in this supplement, obtain data for that model from the

relevant Holden VT or VS series Service Manual Supplement. References are made throughout this section to

Holden Service Manuals, to assist in providing information for specific service operations.

CAUTION:

W hen hois ting (or j acking) HSV models , ensure that the lifting head of the hoist lifts on the chas sis before the arm

of the hoist contacts the side-skirt

BODY ORNAMENTATION

HSV models are fitted with HSV specific decals, and badges to identify each model and power train option.. The

exclusive HSV ornamentation is positioned in exact locations on each HSV model. The ornamentation for each

model is specified by part number in this section. Accurate dimensions are also provided to assist with the

replacement of these parts.

SEATS

HSV VT models are fitted with exclusive seat designs to compliment the Sport, Performance or Luxury ride

packages of each vehicle. The Rockley (Sport), Coulsen (Perform ance) and St James (Luxury) seat types (shown

for identification purposes in Figure B-1) have specific seat pads covered in model-specific trim material ranging

from Jacquard and Velour cloth through to full leather. A full range of replacement parts is available for each

specific HSV seat item.

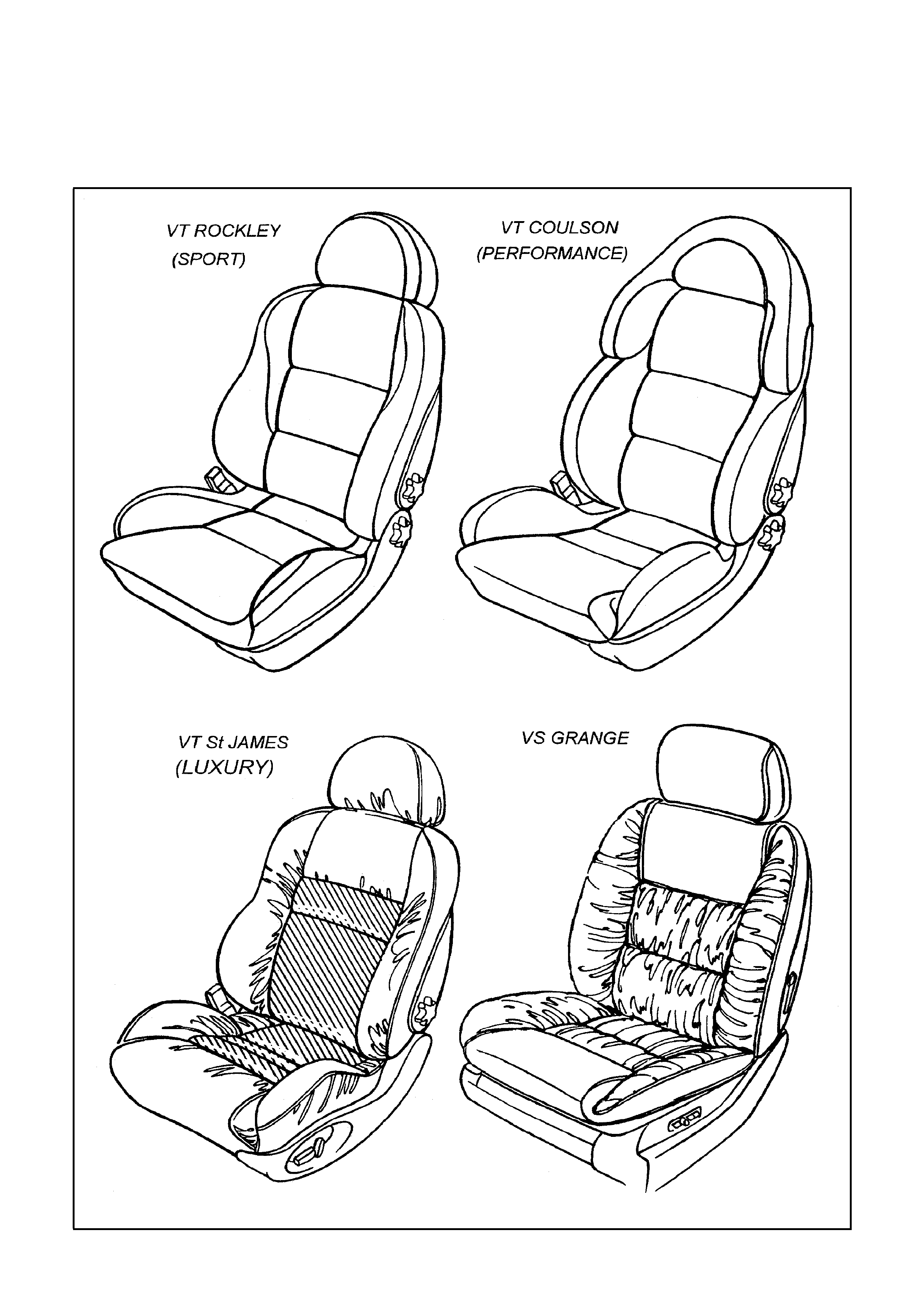

Figure B-1 - HSV Seat Options

BODY COMPONENTS SENATOR 195I AND 220I SEDANS

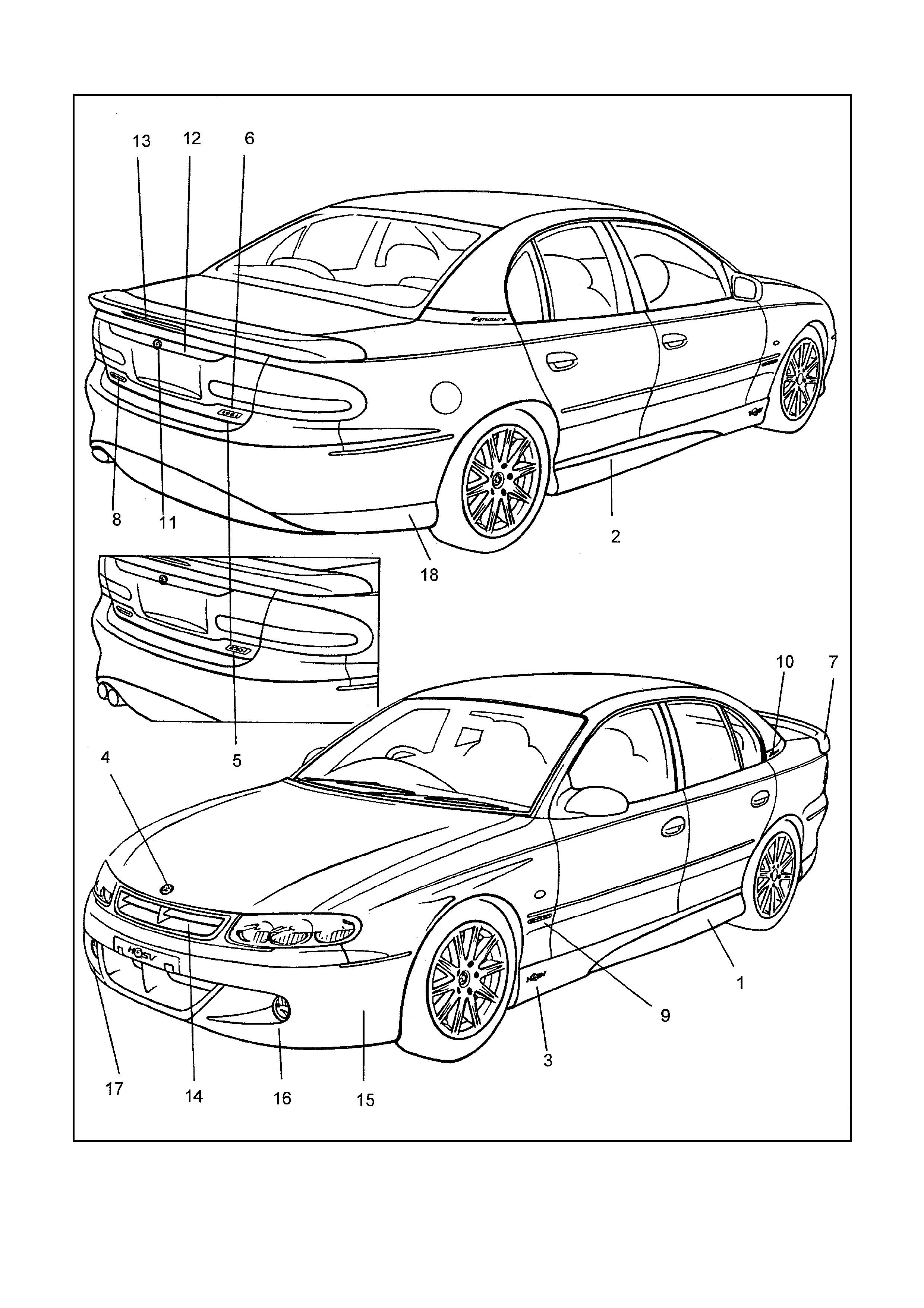

Figure B-2 - Body Components Senator 195i and 220i Sedans

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-970601 1 SKIRT - ROCKER - RH* B-2, 2

A08-970602 1 SKIRT - ROCKER - LH* B-2, 1

A08-970603 1 PAINT PROTECTOR-S/SKIRT-FRT RH

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH

A08-970607 2 BADGE HSV CORPORATE LOGO B-2, 3

B08-970301 1 BADGE-LION & HELMET (BONNET) B-2, 4

E08-970304 1 BADGE-195i B-2, 5

E08-970702 1 BADGE-220i B-2, 6

E08-970801 1 SPOILER-REAR DECKLID* B-2, 7

E08-970802 1 BADGE-SENATOR-REAR B-2, 8

E08-970804 2 BADGE-SENATOR-FRT FENDER B-2, 9

E08-970807 2 BADGE-SIGNATURE SENATOR B-2, 10

E08-970806 1 BADGE-DECOR, PANEL SINGLE RING B-2, 1

E08-970803 1 MOULDING ASM DEC/PANEL (CHROMED) B-2, 12

E08-970305 1 MOULDING ASM DEC/PANEL (PAINTED) B-2, 12

H04-970801 1 GLASS ASM - RR SENATOR SIGNATURE SEDAN

12C-970601 1 LAMP FOG LH B-2, 16

12C-970602 1 LAMP FOG RH B-2, 1

14A1970613 2 SPACER FOG LAMP

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-2, 13

13C-970801B8 1 GRILLE-RADIATOR (CHROMED) B-2, 14

13C-970801B9 1 GRILLE-RADIATOR (PAINTED) B-2, 14

14A1970601 1 FACIA-FRONT BUMPER BAR * B-2, 15

14A1970607 1 MESH-BUMPER OPENING-LWR

14A1970612 1 MESH-BUMPER OPENING-UPPER

14A1970608 1 PAINT PROTECTOR-FRT RH

14A1970609 1 PAINT PROTECTOR-FRT LH

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970604 1 FACIA-REAR BUMPER BAR* B-2, 18

14A2970607 1 PAINT PROTECTOR-RR RH

14A2970608 1 PAINT PROTECTOR-RR LH

* Unpainted parts for service.

VICE OPERATIONS

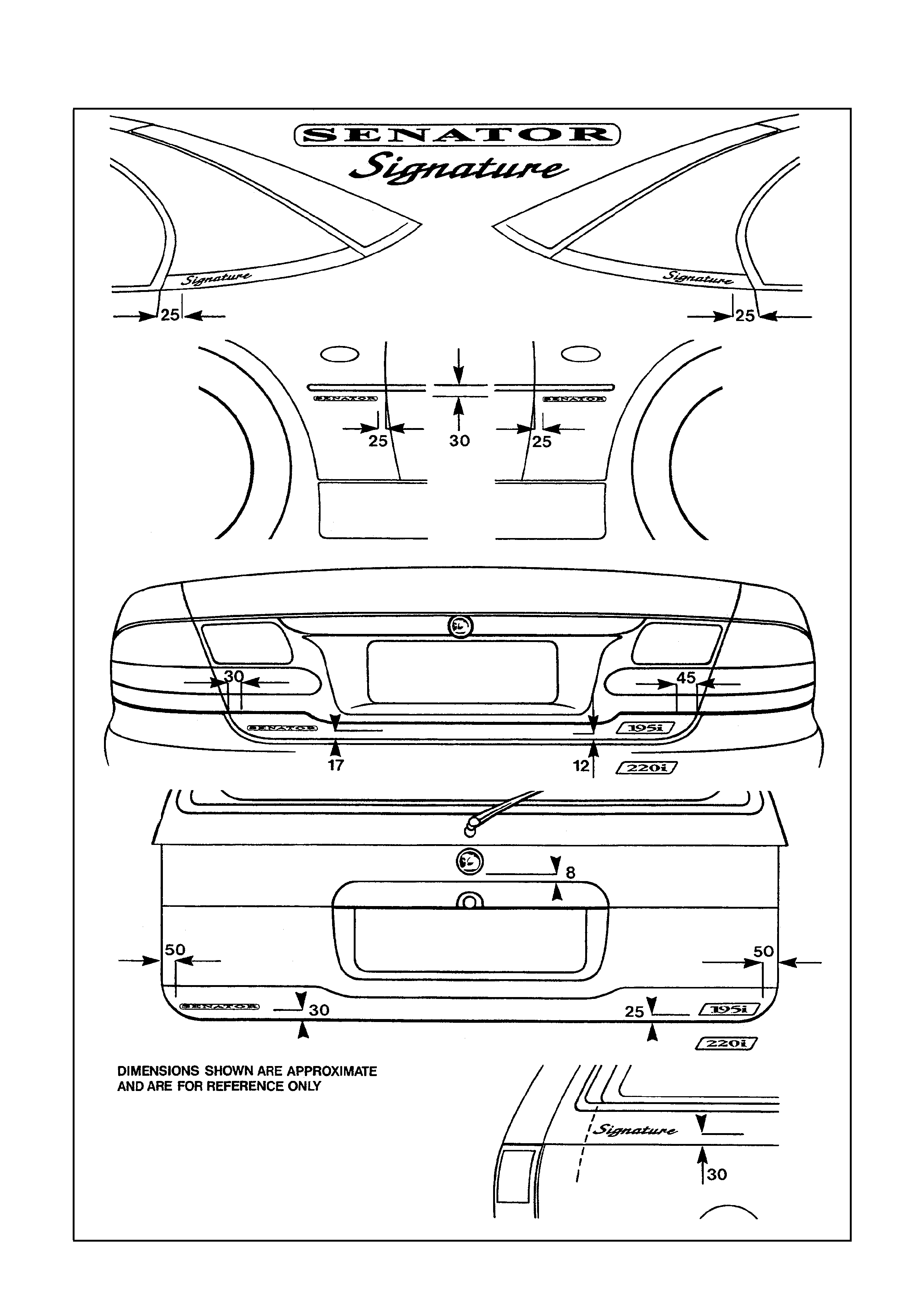

When servicing the Senator 195i and 220i Sedan body components, refer to Figures B-2, B-9 and B-12 to obtain

the necessary information on the correct location of each component.

BODY COMPONENTS SENATOR 195i AND 220i ESTATE

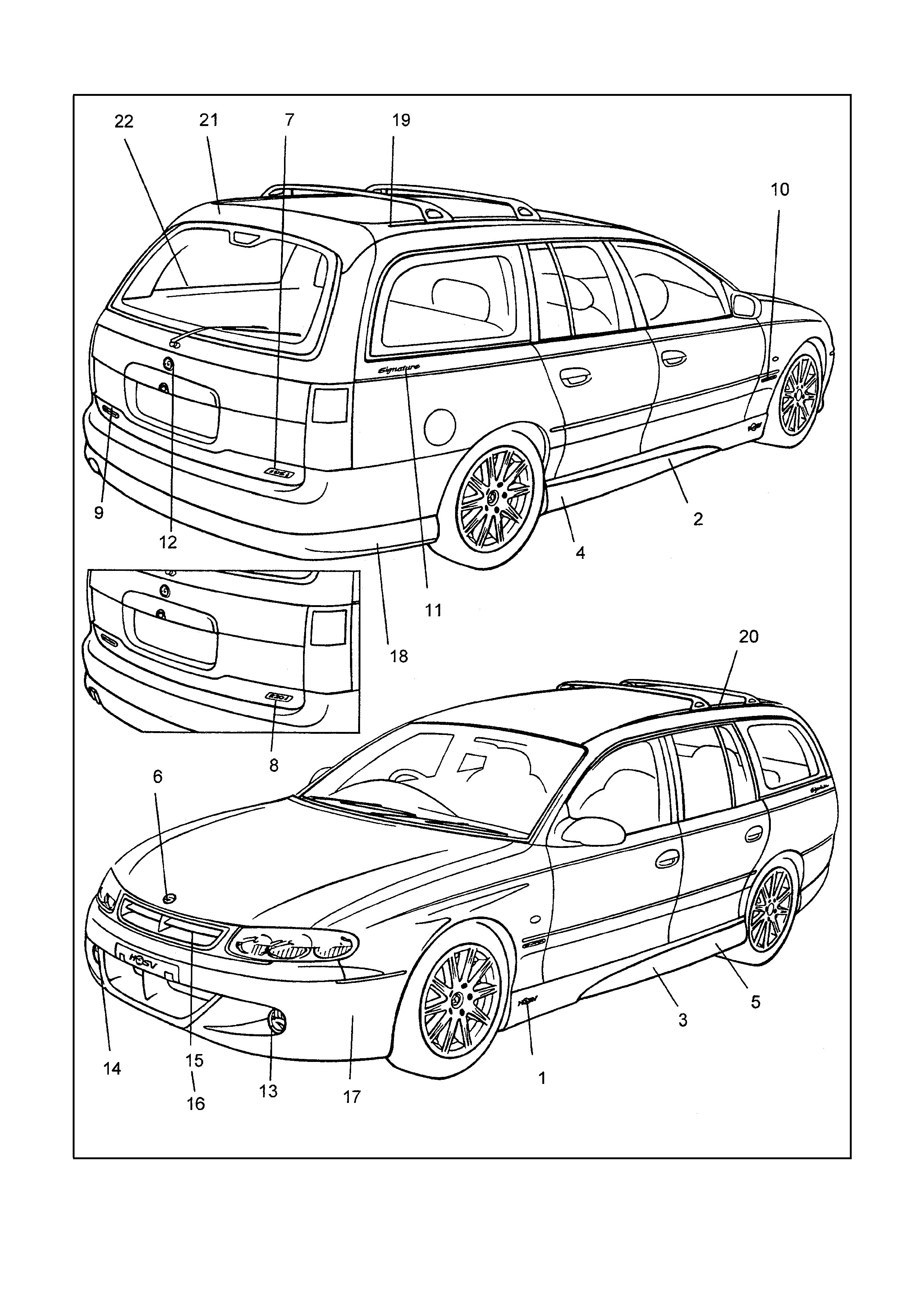

Figure - B-3 - Body Components Senator 195i and 220i Estates

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-970603 1 PAINT PROTECTOR-S/SKIRT FRT RH

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT LH

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR RH

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR LH

A08-970607 2 BADGE-HSV CORPORATE LOGO B-3, 1

A08-971001 1 SKIRT-ROCKER-ESTATE FRT RH B-3, 2

A08-971002 1 SKIRT-ROCKER-ESTATE FRT LH B-3, 3

A08-971003 1 SKIRT-ROCKER-ESTATE RR RH B-3, 4

A08-971004 1 SKIRT-ROCKER-ESTATE RR LH B-3, 5

C08-971001 1 MOULDING-ROOF SIDE RH B-3, 19

C08-971002 1 MOULDING-ROOF SIDE LH B-3, 20

C08-971003 1 DEFLECTOR TAILGATE B-3, 21

B08-970301 1 BADGE-LION & HELMET (BONNET) B-3, 6

E08-970304 1 BADGE-195i B-3, 7

E08-970702 1 BADGE-220i B-3, 8

E08-970802 1 BADGE-SENATOR REAR B-3, 9

E08-970804 2 BADGE-SENATOR-FRT FENDER B-3, 10

E08-970807 2 BADGE-SIGNATURE B-3, 11

E08-971001 1 BADGE-LION AND HELMET (ENDGATE) B-3, 12

H04-971001 1 GLASS ASM-TAILGATE SENATOR ESTATE B-3, 22

12C-970601 1 LAMP FOG LH B-3, 13

12C-970602 1 LAMP FOG RH B-3, 14

14A1970612 2 SPACER FOG LAMP

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

13C-970801B8 1 GRILLE-RADIATOR(CHROMED) B-3, 15

13C-970801B9 1 GRILLE-RADIATOR(PAINTED) B-3, 16

14A1970601 1 FACIA-FRONT BUMPER BAR B-3, 17

14A1970607 1 MESH-BUMPER OPENING-LWR

14A1970612 1 MESH BUMPER OPENING-UPPER

14A1970608 1 PAINT PROTECTOR-FRT BUMPER RH

14A1970609 1 PAINT PROTECTOR-FRT BUMPER LH

14A2970201 1 SKIRT-RR BUMPER LWR-ESTATE

VICE OPERATIONS

When servicing the Senator 195i and 220i Estate body components, refer to Figures B-3, B-9 and B-12 to obtain

the necessary information on the correct location of each component.

BODY COMPONENTS GTS 220i SEDAN

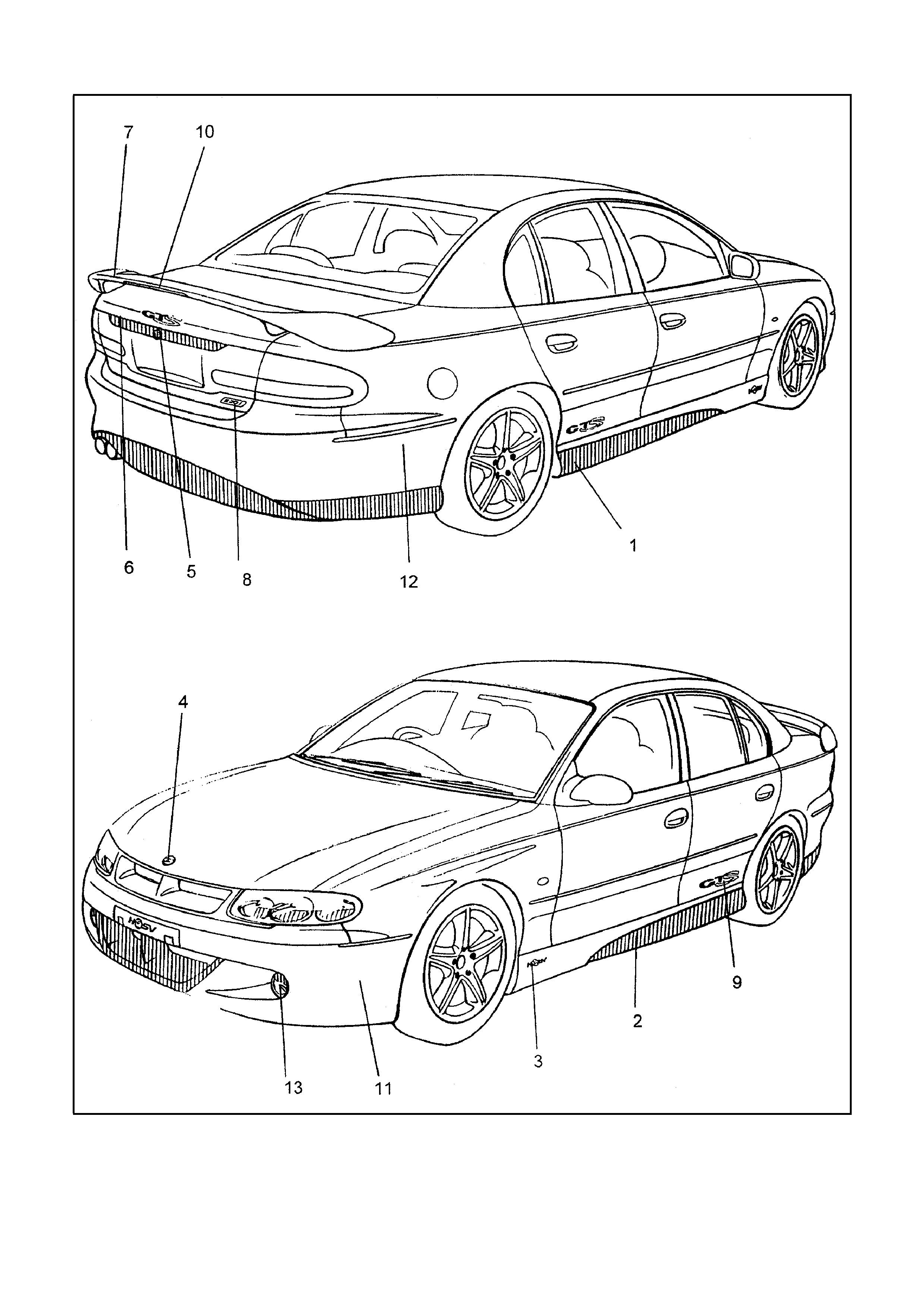

Figure - B-4 - Body Components - GTS

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-970601 1 SKIRT - ROCKER - RH* B-4, 1

A08-970602 1 SKIRT - ROCKER - LH* B-4, 2

A08-970607 2 BADGE-HSV CORPORATE LOGO B-4, 3

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT

A08-970603 1 PAINT PROTECTOR-S/SKIRT FRT

B08-970301 1 BADGE-LION & HELMET (BONNET) B-4, 4

E08-970306 1 BADGE-DECOR PANEL B-4, 5

E08-970305 1 MOULDING ASM-DECOR PANEL B-4, 6

E08-970601 1 SPOILER-REAR DECKLID * B-4, 7

E08-970702 1 BADGE-220i B-4, 8

E08-970701 3 BADGE-GTS B-4, 9

E08-970806 1 BADGE-DECOR, PANEL SINGLE RING

12C-970601 1 LAMP FOG LH B-4, 13

12C-970602 1 LAMP FOG RH

14A1970613 2 SPACER FOG L;AMP

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-4, 10

14A1970601 1 FACIA-FRONT BUMPER BAR* B-4, 11

14A2970604 1 FACIA-REAR BUMPER BAR* B-4, 12

14A1970607 1 MESH-BUMPER OPENING-LWR

14A1970612 1 MESH-BUMPER OPENING UPPER

14A1970608 1 PAINT PROTECTOR-FRT RH

14A1970609 1 PAINT PROTECTOR-FRT LH

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970607 1 PAINT PROTECTOR-RR RH

14A2970608 1 PAINT PROTECTOR-RR LH

* Unpainted parts for service.

VICE OPERATIONS

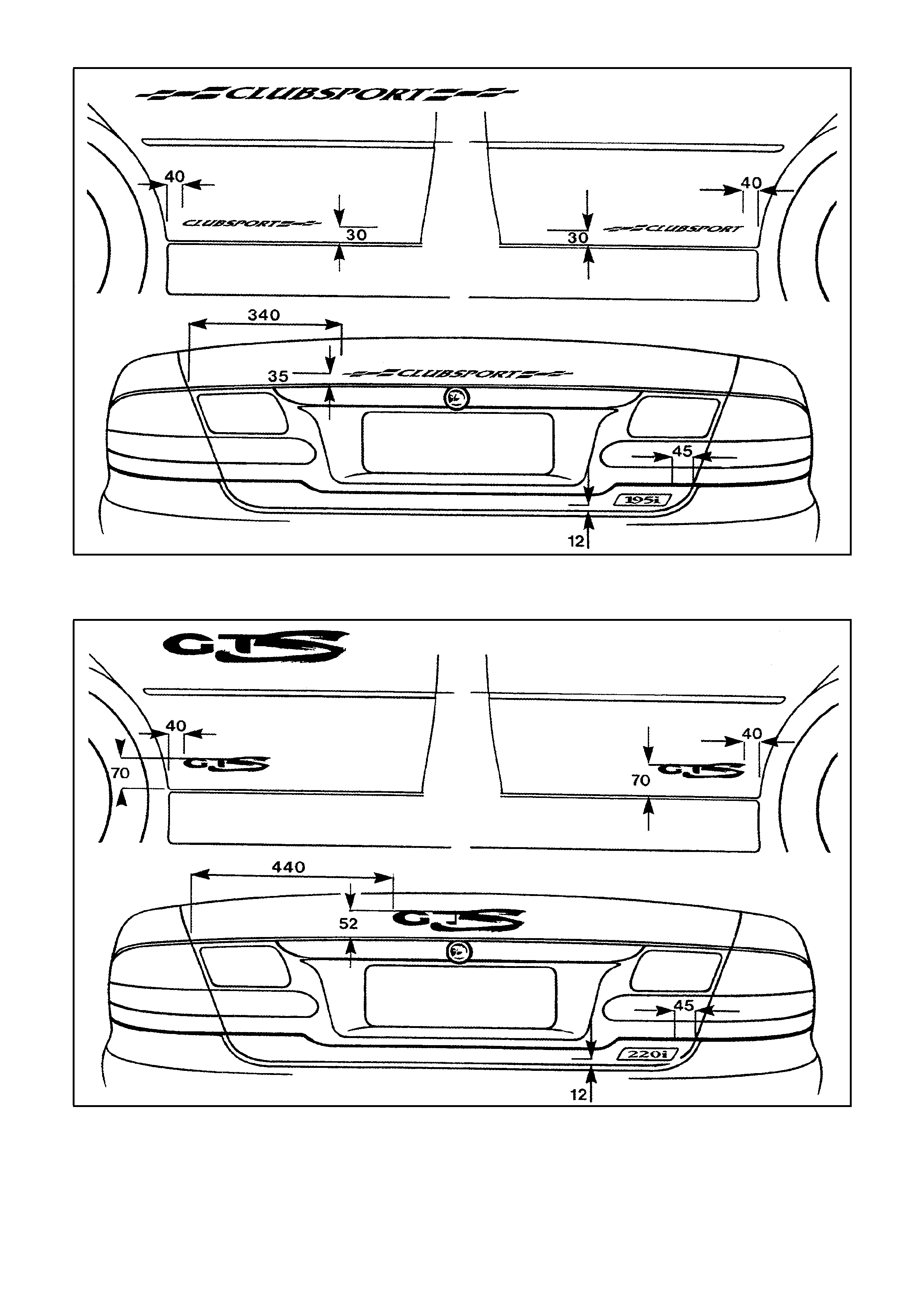

When servicing the GTS body components, refer to Figures B-4, B-11 and B-12 to obtain the necessary

information on the correct location of each component.

BODY COMPONENTS CLUBSPORT 195i SEDAN

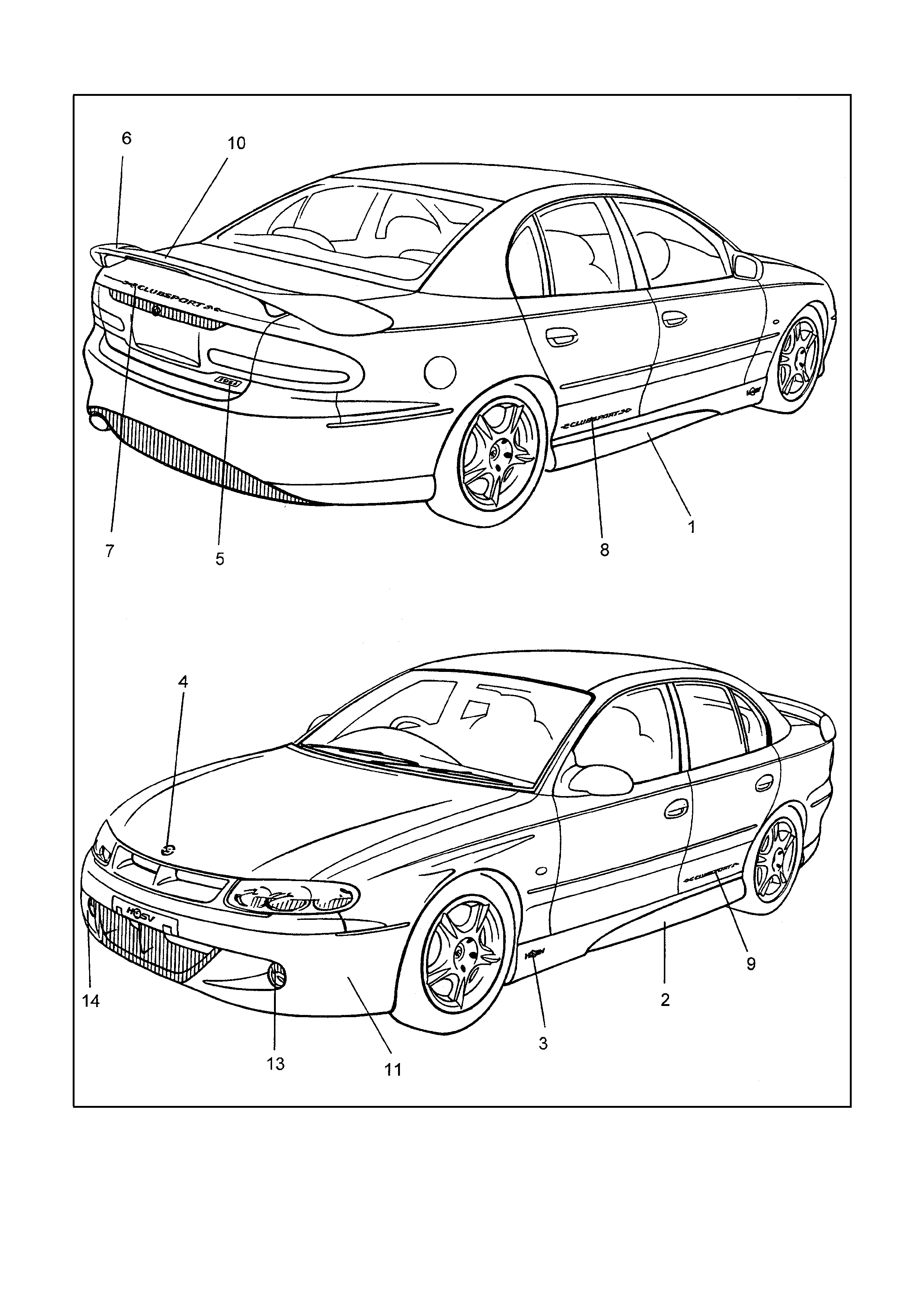

Figure - B-5 - Body Components - Clubsport

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-970601 1 SKIRT - ROCKER - RH* B-5, 1

A08-970602 1 SKIRT - ROCKER - LH* B-5, 2

A08-970603 1 PAINT PROTECTOR-S/SKIRT FRT

A08-970604 1 PAINT PROTECTOR-S/SKIRT-FRT

A08-970605 1 PAINT PROTECTOR-S/SKIRT-RR

A08-970606 1 PAINT PROTECTOR-S/SKIRT-RR

A08-970607 2 BADGE-HSV CORPORATE LOGO B-5, 3

B08-970301 1 BADGE-LION & HELMET (BONNET) B-5, 4

E08-970304 1 BADGE-195i B-5, 5

E08-970601 1 SPOILER-REAR DECKLID * B-5, 6

E08-970602 1 BADGE-CLUBSPORT-REAR B-5, 7

E08-970603 1 BADGE-CLUBSPORT RH B-5, 8

E08-970604 1 BADGE-CLUBSPORT LH B-5, 9

E08-970305 1 DECOR PANEL MOULDING

E08-970306 1 BADGE DECOR PANEL

E08-970806 1 BADGE-DECOR, PANEL SINGLE RING

12C-970601 1 LAMP FOG LH

12C-970602 1 LAMP FOG RH

14A1970613 2 SPACER FOG LAMP

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-5, 10

14A1970601 1 FACIA-FRONT BUMPER BAR* B-5, 11

14A2970604 1 FACIA-REAR BUMPER BAR* B-5, 12

14A1970612 1 MESH-BUMPER OPENING-UPPER

14A1970607 1 MESH-BUMPER OPENING-LWR

14A1970608 1 PAINT PROTECTOR-FRT RH

14A1970609 1 PAINT PROTECTOR-FRT LH

14A1970614 1 BRACKET-FRONT BUMPER ATTACHMENT RH

14A1970615 1 BRACKET-FRONT BUMPER ATTACHMENT LH

14A2970607 1 PAINT PROTECTOR-RR RH

14A2970608 1 PAINT PROTECTOR-RR LH

* Unpainted parts for service.

VICE OPERATIONS

When servicing the ClubSport 195i Sedan body components, refer to Figures B-5, B-10 and B-12 to obtain the

necessary information on the correct location of each component

BODY COMPONENTS MANTA 195i SEDAN

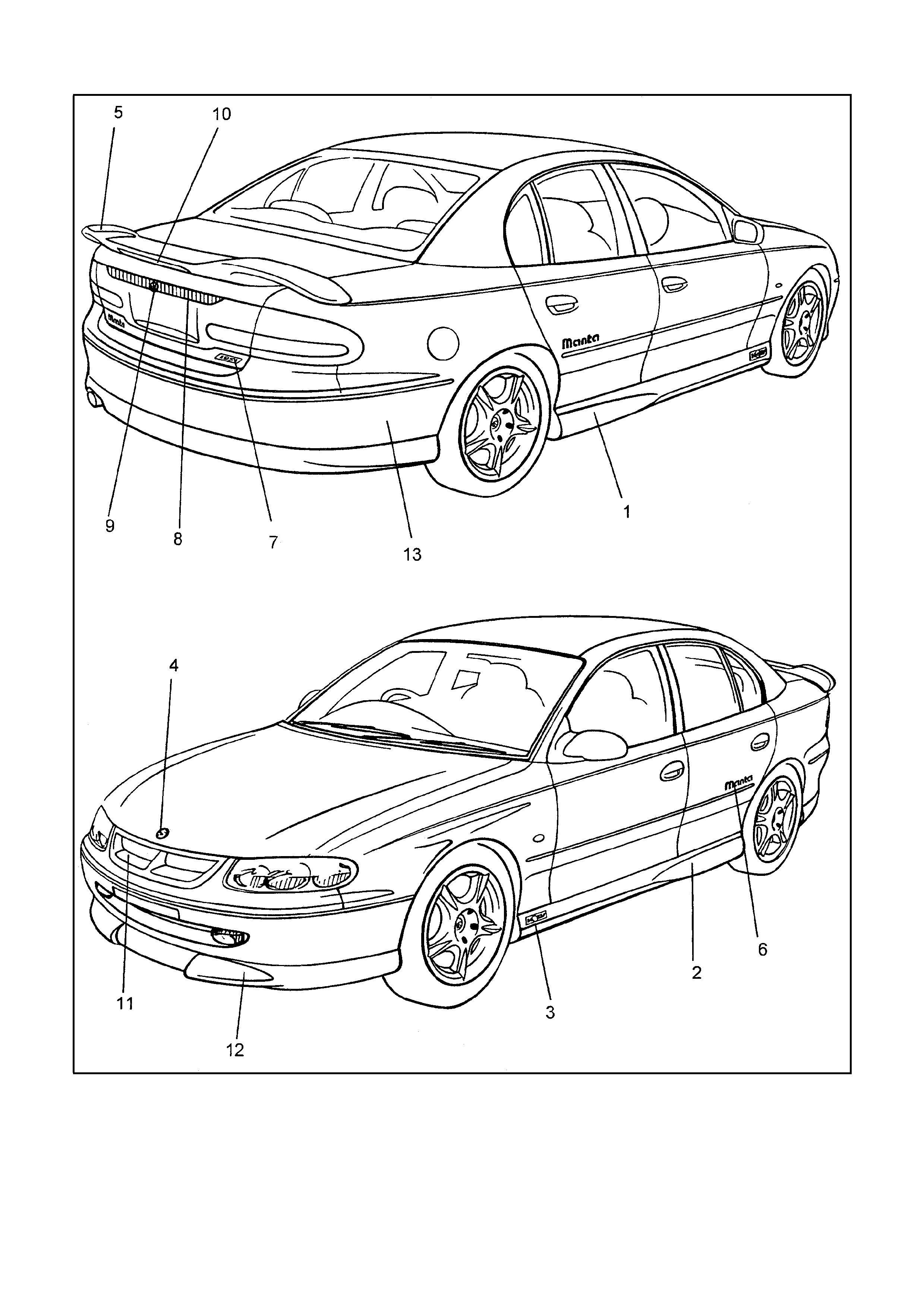

Figure - B-6 - Body Components - Manta

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-970301 1 SKIRT-ROCKER-RH* B-6, 1

A08-970302 1 SKIRT-ROCKER-LH* B-6, 2

B08-671902 2 BADGE- HSV B-6, 3

B08-970301 1 BADGE-LION & HELMET (BONNET) B-6, 4

E08-970301 1 SPOILER-REAR DECKLID B-6, 5

E08-970303 3 BADGE-MANTA B-6, 6

E08-970304 1 BADGE-195i B-6, 7

E08-970305 1 MOULDING ASM-DECOR PANEL B-6, 8

E08-970306 1 BADGE-DECOR PANEL B-6, 9

12C-970301 2 FOG LAMP B-6, 14

12E-970301 1 LAMP ASM-HI MOUNT STOPLIGHT B-6, 10

13C-970301 1 GRILLE-RADIATOR B-6, 11

14A1970301 1 BIB SPOILER-FRT B/BAR LWR* B-6, 12

14A2970304 1 SKIRT ASM-RR B/BAR LWR* B-6, 13

* Unpainted parts for service.

VICE OPERATIONS

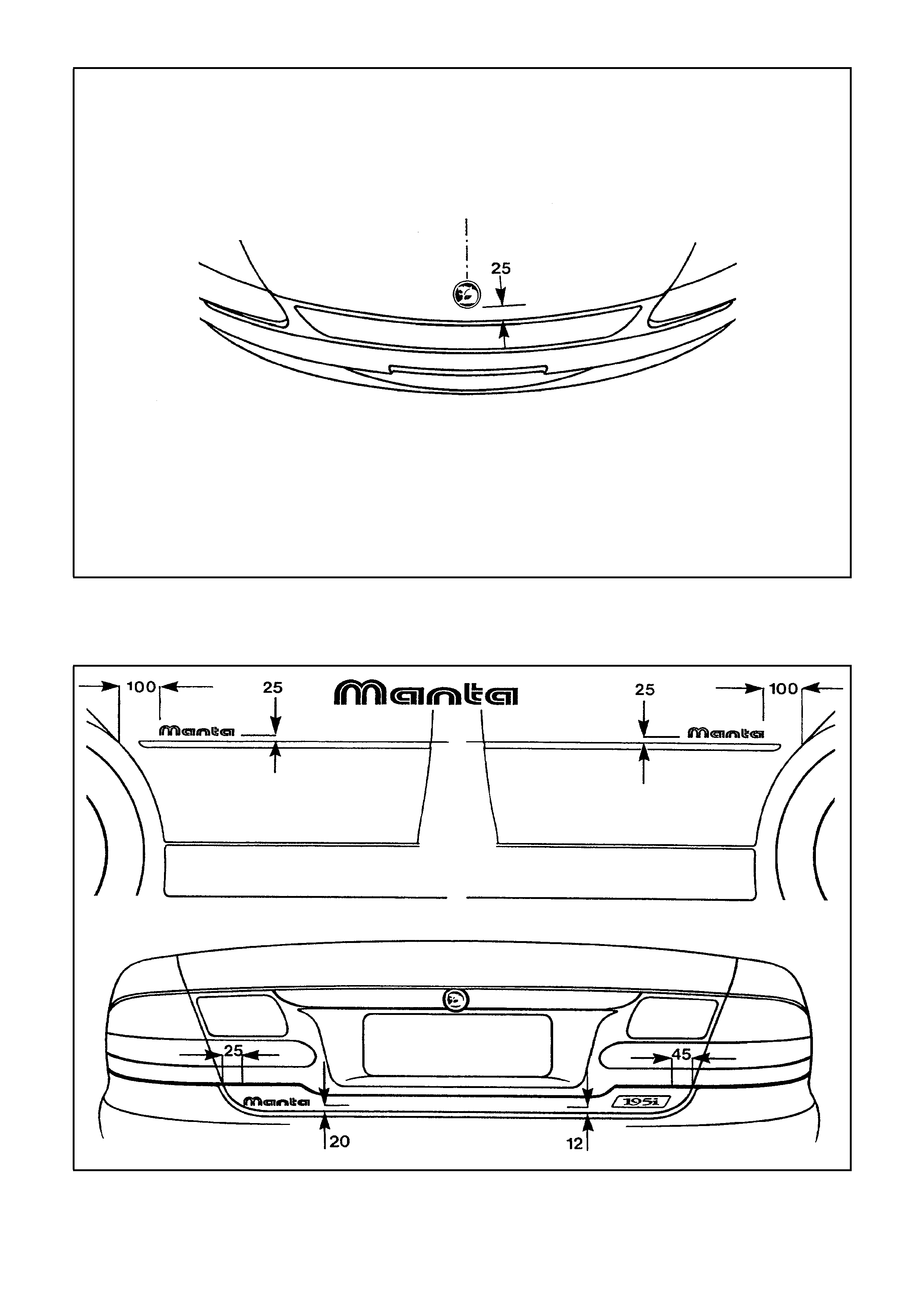

When servicing the Manta 195i Sedan body components, refer to Figures B-6, B-12 and B-13 to obtain the

necessary information on the correct location of each component.

BODY COMPONENTS GRANGE 185i AND 215i SEDANS

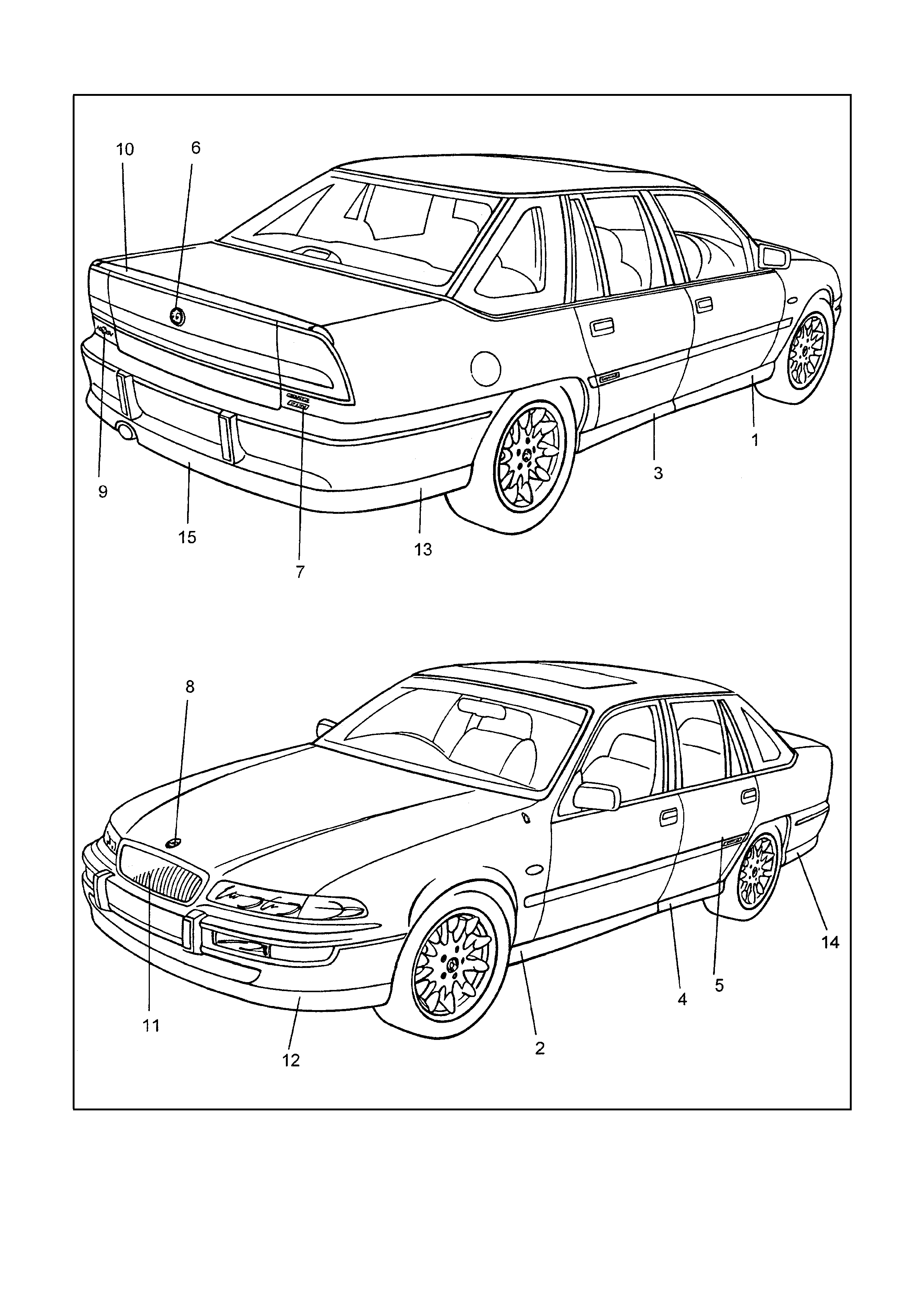

Figure - B-7 - Body Components - Grange 185i And 215i Sedans

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-671901 1 SKIRT - ROCKER - FRONT RH * B-7, 1

A08-671902 1 SKIRT - ROCKER - FRONT LH * B-7, 2

A08-683501 1 SKIRT - ROCKER - REAR RH * B-7, 3

A08-683502 1 SKIRT - ROCKER - REAR LH * B-7, 4

B07-961002 3 BADGE-GRANGE B-7, 5

B08-961001 1 BADGE-RR DECOR PNL-GRANGE B-7, 6

B08-961002 1 BADGE-215i GRANGE B-7, 7

B08 961003 1 BADGE-BONNET GRANGE B-7, 8

E08-671905 1 BADGE-HSV CORPORATE LOGO B-7, 9

E08-741901 1 SPOILER-REAR * B-7, 10

13C-961001 1 GRILLE ASM - RADIATOR B-7, 11

14A1741901 1 SPOILER - FRONT BIB* B-7, 12

14A2671901 1 SKIRT - REAR BUMPER LOWER - RH * B-7, 13

14A2671902 1 SKIRT - REAR BUMPER LOWER - LH * B-7, 14

14A2671903 1 SKIRT-RR BUMPER LWR CENTRE

14A2741901 1 SKIRT - REAR BUMPER CENTRE *

14A2741902 1 INSERT REAR BUMPER LHS

14A2741903 1 INSERT REAR BUMPER RHS

* Unpainted parts for service.

VICE OPERATIONS

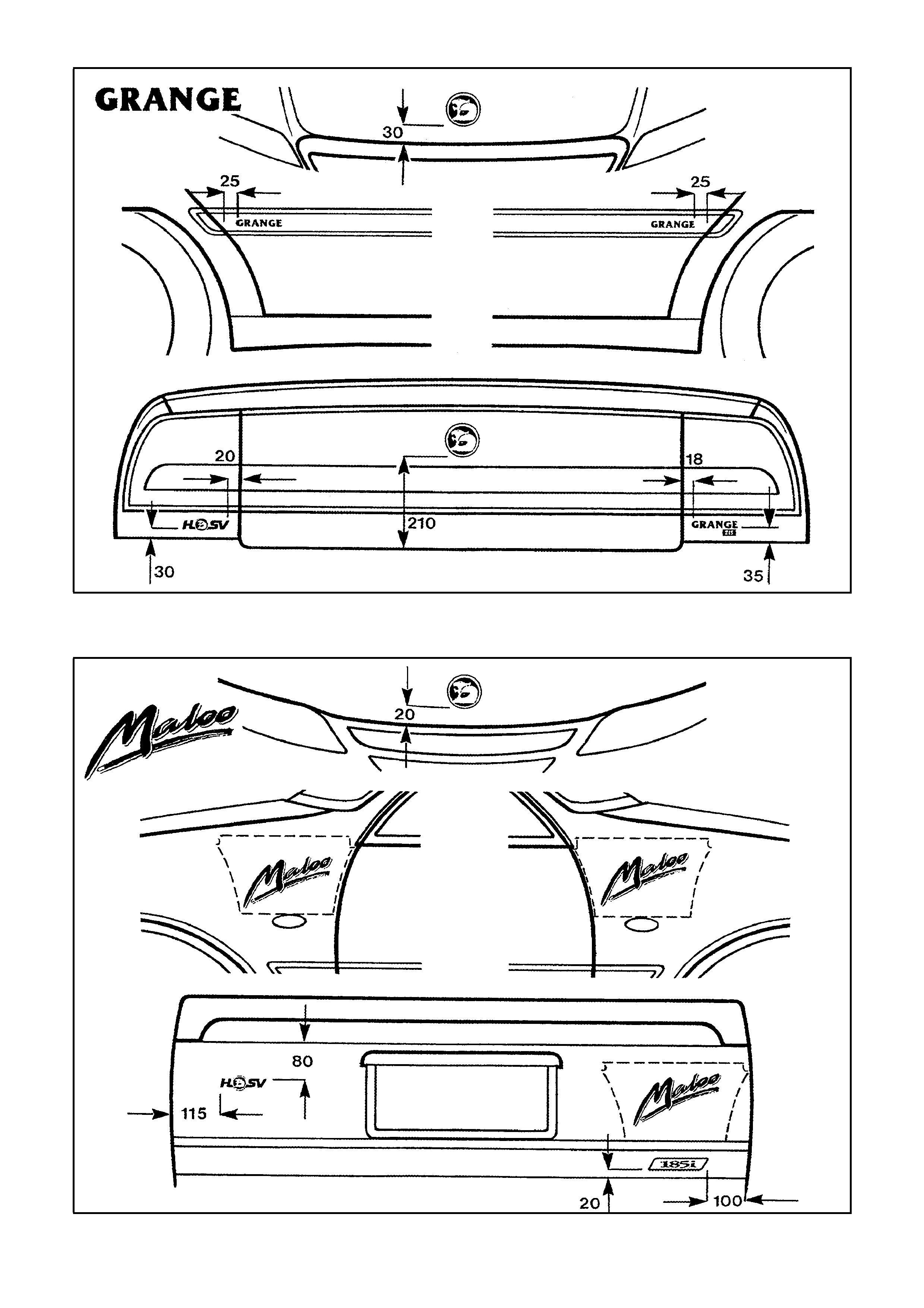

When servicing the Grange 185i and 215i Sedan body components, refer to Figures B-7 and B-14 to obtain the

necessary information on the correct location of each component.

BODY COMPONENTS MALOO 185i UTILITY

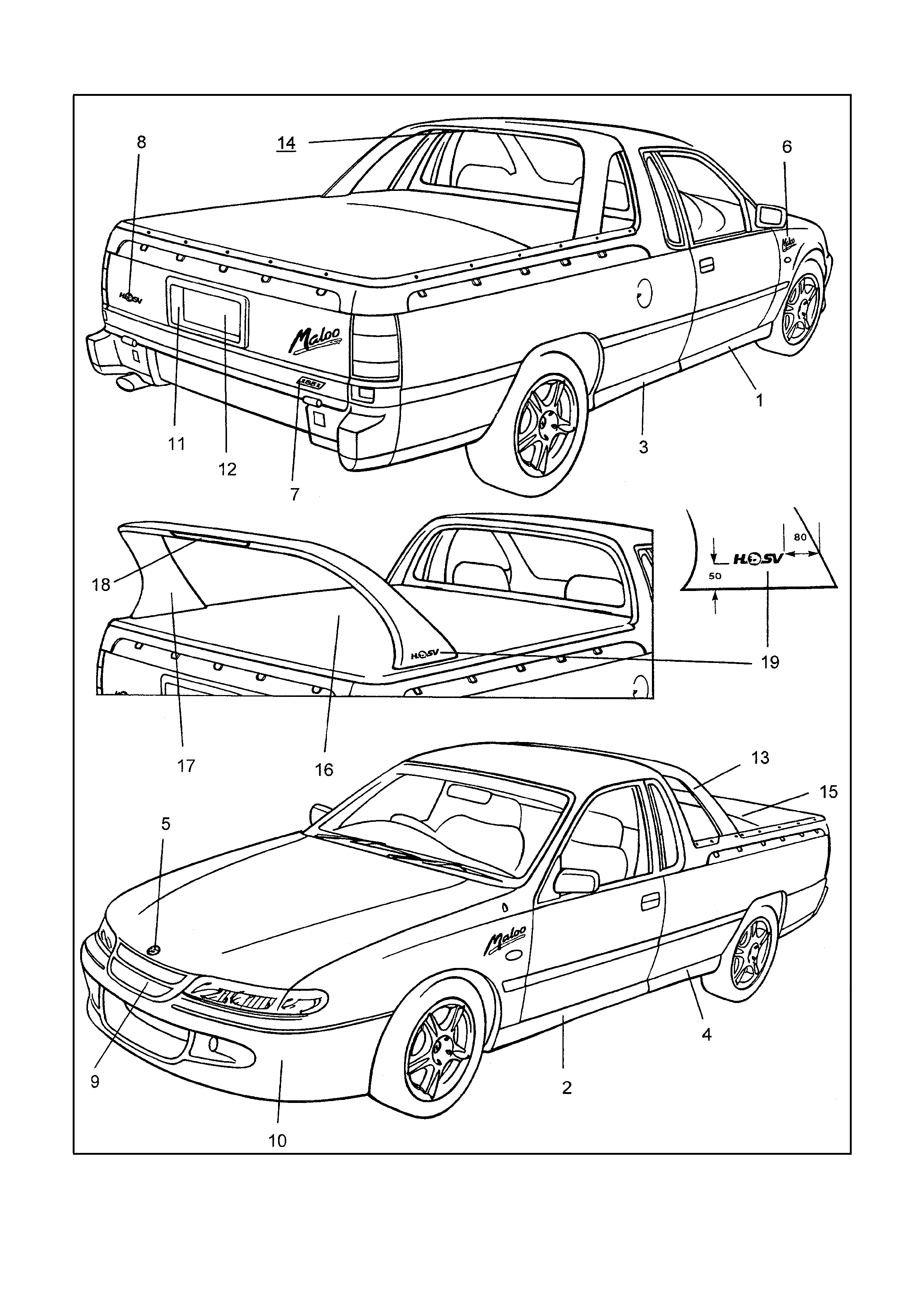

Figure - B-8 - Body Components - Maloo

CONTENTS OF BODY STYLING PACKAGE

PART No QTY DESCRIPTIONS FIGURE, REF No.

A08-671901 1 SKIRT-ROCKER-RH FRONT * B-8, 1

A08-671902 1 SKIRT-ROCKER-LH FRONT * B-8, 2

A08-728001 1 SKIRT-ROCKER-RH REAR * B-8, 3

A08-728002 1 SKIRT-ROCKER-LH REAR* B-8, 4

B08-671903 1 BADGE ASM-BONNET B-8, 5

E08-970501 3 BADGE-MALOO B-8, 6

E08-970502 1 BADGE-185i B-8, 7

A08-970607 1 BADGE-HSV CORPORATE LOGO B-8, 8

13C-950601 1 GRILLE-RADIATOR * B-8, 9

14A1691901 1 B/BAR FACIA FRONT* B-8, 10

14A1691902 1 MESH-BUMPER RADIATOR

14A1691903 2 MESH-BUMPER BRAKE DUCT

14A1691905 1 PROTECTOR-PAINT RH

14A1691906 1 PROTECTOR-PAINT LH

22H-208003 1 SURROUND LICENSE PLATE B-8, 11

H08-738005 1 HOLDER-LICENCE PLATE B-8, 12

H08-970502 1 LINER KIT- CARGO-HSV

H08-970513 1 STRIP-FINISHING-UTE SIDE FRT

H08-970514 1 STRIP-FINISHING-UTE SIDE REAR

H08-970515 1 STRIP-FINISHING-UTE ENDGATE

UTILITY OPTIONS

STANDARD FIT----SAILPLANE/SOFT TONNEAU

22C-468001 1 SAILPLANE MOULDING-UTE B-8, 13

12E-950801 1 LAMP ASM-HI MOUNT STOP CLEAR LENSE B-8, 14

12H3738001 1 HARNESS HI MOUNT STOP LAMP

22E-468001 1 TONNEAU SUIT SAILPLANE B-8, 15

OPTIONAL FIT----RIGID TONNEAU

H08-970501 1 TONNEAU-RIGID - MALOO B-8, 16

B08-671902 1 BADGE- HSV

H08-970503 4.5m PAINT PROTECTOR - TAPE - 50mm

H08-970516 1 PAINT PROTECTOR - UTE RH RR

H08-970517 1 PAINT PROTECTOR - UTE LH RR

E03-970502 1 STRUT ASM - GAS - RIGID TONNEAU (300 N)

E03-970503 2 BALL STRUT- RIGID TONNEAU

H03-970501 1 LOCK ASM - RIGID TONNEAU

12F- 970501 1 KEY SET - RIGID TONNEAU

H03-970502 1 HINGE - MALE - RIGID TONNEAU

H03-970503 1 HINGE - FEMALE - RIGID TONNEAU

12H-970502 1 LAMP- SURFACE (135X70) R/TONNEAU

H03-970504 1 STRIKER - LOCK - RIGID TONNEAU

UTE REAR WING

H08-970510 1 SPOILER - UTILITY REAR WING B-8, 17

12E-950801 1 LAMP ASM - HI MT STOP CLEAR B-8, 18

A08-970607 2 BADGE- HSV CORPORATE LOGO B-8, 19

H08-970512 2 PLATE REINFORCEMENT

E03-970501 2 STRUT ASM-GAS -UTE- WING (35O N)

* Unpainted parts for service.

VICE OPERATIONS

When servicing the Maloo body components, refer to Figures B-8 and B-15 to obtain the necessary information on

the correct location of each component.

LOCATION OF DE CALS AND BADGES

SENATOR

Figure B-9 - Senator - Location Of Decals And Badges

CLUBSPORT

Figure B-10 - Clubsport - Location Of Decals And Badges

GTS

Figure B-11 - GTS - Location Of Decals And Badges

BONNET - LOCATION OF BADGE

Figure B-12 - Bonnet - Location Of Badge

MANTA

Figure B-13 - Manta - Location Of Decals And Badges

GRANGE

Figure B-14 - Grange - Location Of Decals And Badges

MALOO

Figure B-15 - Maloo - Location Of Decals And Badges
