1 General Information

With the following exceptions, MY 2003 VY Series Cab Chassis General Information carries over from MY 2003 VY

Series vehicles. For information not contained within this Section, refer to Section 0A General Information in the MY 2003

VY and V2 Series Service Information.

• Hoist pad locatio ns.

• Heavy duty transmission for V8.

• Exterior dimensions.

• Vehicle weights.

• Rear suspension.

• Vehicle Identification Numbering (VIN) system.

1.1 Hoist Pad Locations

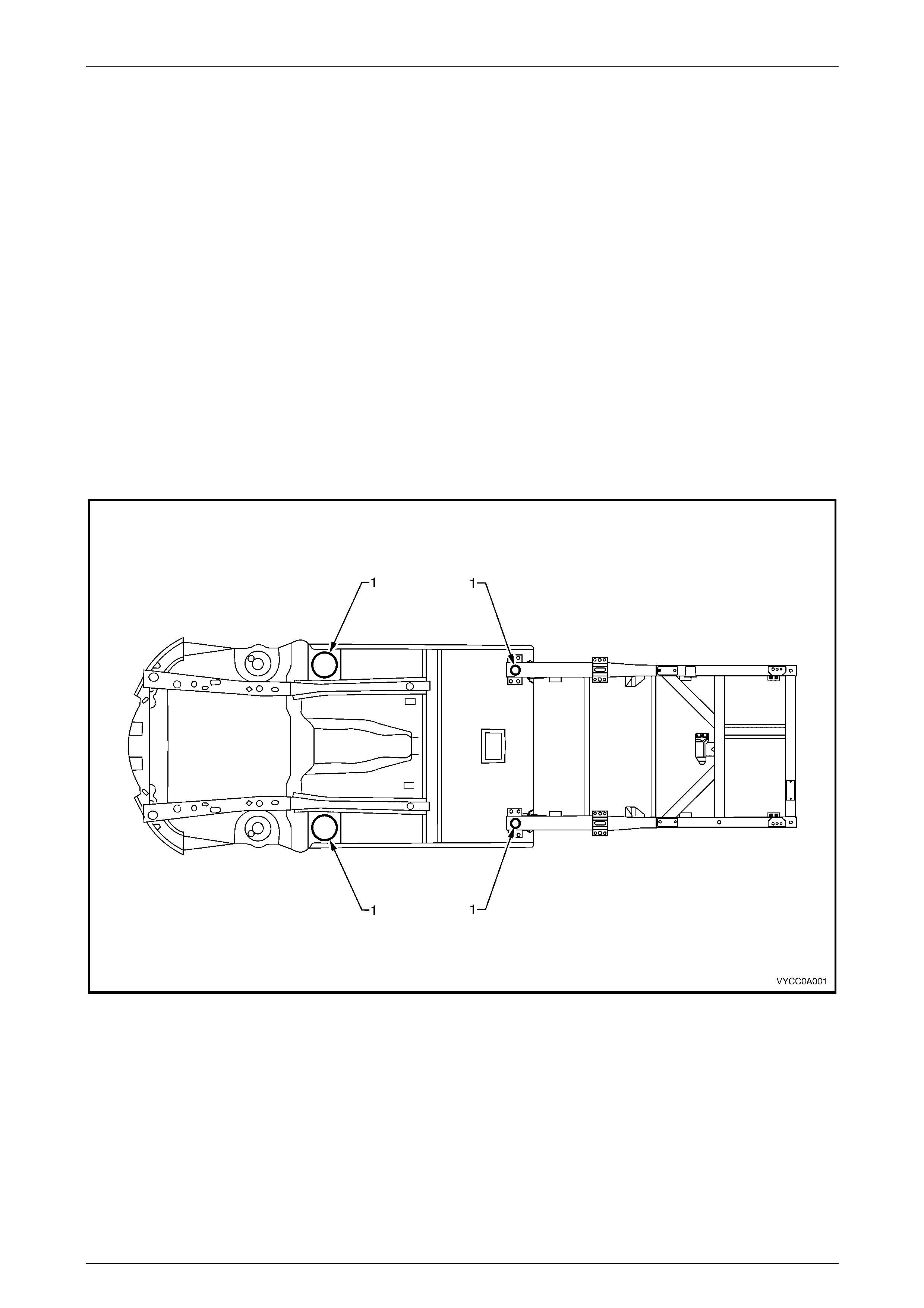

When using a trolley jack to raise the vehicle, it is important that the jack be positioned under the suspension cross

member or hoist pad (1) locations. Do not jack under the suspension control arm. The vehicle should always be

supported by jack stands at the hoist pad locations when raised.

Figure 0A – 1

General Information Page 0A–3

Page 0A–3

2 Model Availability and

Equipment

NOTE

For tyre and wheel information, refer to

Section 10 W heels and Tyres in the MY 2003 VY

and V2 Series Service Information.

BRAND NAME MODEL NAME LUXURY LEVEL

(DESCRIPTION) MODEL NO. BODY STYLE

(DOORS) ENGINE

(OPTION)

Regular Cab Level 1

(Base) 8VK03 Cab (2) V6

Holden Cab

Chassis Regular Cab S Level 1

(Base sport) 8VK03 Cab (2) V6, (V8)

General Information Page 0A–4

Page 0A–4

3 Major Option Codes

OPTION CODE DESCRIPTION

M30 Transmission, 4 speed automatic - V6 only

M32 Transmission, 4 speed automatic - heavy duty – V8 only

MM6 Transmission, 6 speed manual - V8 only

General Information Page 0A–5

Page 0A–5

4 Powertrain Combinations

ENGINE TRANSMISSION TYPE FIRST GEAR RATIO REAR AXLE RATIO

V6 3.8 LITRE PFI 4 Speed Automatic 4L60E 3.06:1 3.08:1

4 Speed Automatic - Heavy

Duty 4L65E 3.06:1 3.07:1

V8 5.7 LITRE PFI (GEN III) 6 Speed Manual 2.66:1 3.46:1

General Information Page 0A–6

Page 0A–6

5 Transmission Ratios

4 SPEED AUTOMATIC 4 SPEED AUTOMATIC –

HEAVY DUTY 6 SPEED MANUAL

1ST 3.06:1 3.06:1 2.66:1

2ND 1.63:1 1.63:1 1.78:1

3RD 1.00:1 1.00:1 1.30:1

4TH 0.70:1 0.70:1 1.00:1

5TH – – 0.74:1

6TH – – 0.50:1

REV 2.29:1 2.29:1 2.90:1

General Information Page 0A–7

Page 0A–7

6 Exterior Dimensions

BODY DIMENSIONS REGULAR CAB

VEHICLE LENGTH 5230 (to tail pipe)

VEHICLE WIDT H (excluding moulding) 1824

VEHICLE HEIGHT (from kerb groundline) 1507

WHEELBASE 3200

OVERHANG – FRONT 926

OVERHANG REAR 1108 to tail pipe

TRACK – FRONT: Base 1569

S and SS 1559

TRACK – REAR: Base 1597

S and SS 1587

NOTE

Figures are measured in millimetres.

General Information Page 0A–8

Page 0A–8

7 Vehicle Weights

7.1 Regular Cab

VEHICLE WEIGHTS V6 AUTO V8 MANUAL V8 AUTO

KERB MASS 1627 1667 1692

Front Axle 922 964 963

Rear Axle 705 703 728

GROSS VEHICLE MASS: Driver only 2675 2715 2716

Front Axle 917 965 966

Rear Axle 1758 1750 1750

Maximum Payload Rear Axle 1022 1030 1006

GROSS VEHICLE MASS: Driver + Passenger 2742 2750 2751

Front Axle 956 1000 1001

Rear Axle 1786 1750 1750

Maximum Payload 993 997 973

GROSS COMBINED MASS 2775 2775 2775

Minimum Front Axle Load 900 900 900

Maximum Front Axle Load 1180 1180 1180

Maximum Rear Axle Load 1800 1800 1800

TOWING: Gross Trailer Mass Rating 2100 1600 2100

Gross Combined Mass Rating 4579 4144 4579

Hitch Load Reduction 273 208 273

Hitch Load Reduction including towbar 296 231 296

TRAY LOAD: Maximum when towing 898 963 898

NOTE

Figures are estimates only for base models and are

measured in kilograms.

• Kerb mass is the mass of the base vehicle including all

fluid levels full, but without the driver, passengers or

luggage. The mass of the tray is estimated to be 106 kg.

• Gross Vehicle Mass (GVM) is the combined mass that

the vehicle is allowed to carry when fully loaded. This

includes luggage, passengers and a full tank of fuel.

• Payload includes accessories, fittings, luggage, goods,

passengers and a full tank of fuel. When towing, the

weight on the towbar ball must also be included. Towbar

mass of 23 kg and hitch load must be deducted from

payload figures.

• Maximum rear axle load is the maximum for all

conditions.

• Gross Combined Mass (GCM) is the maximum allowable

combined mass of the vehicle with driver, passengers,

luggage, a full tank of fuel and the weight of a loaded

trailer or caravan. Consideration needs to be taken into

account when the trailer or caravan has either over-run

brakes or electric brakes or is an unbraked trailer as the

GCM specification can alter depending on which braking

system the towed vehicle is fitted with. GCM must not

exceed GVM (unless the towed caravan or trailer has

brakes).

General Information Page 0A–9

Page 0A–9

8 Serial Numbers

8.1 Vehicle Identification Numbering System

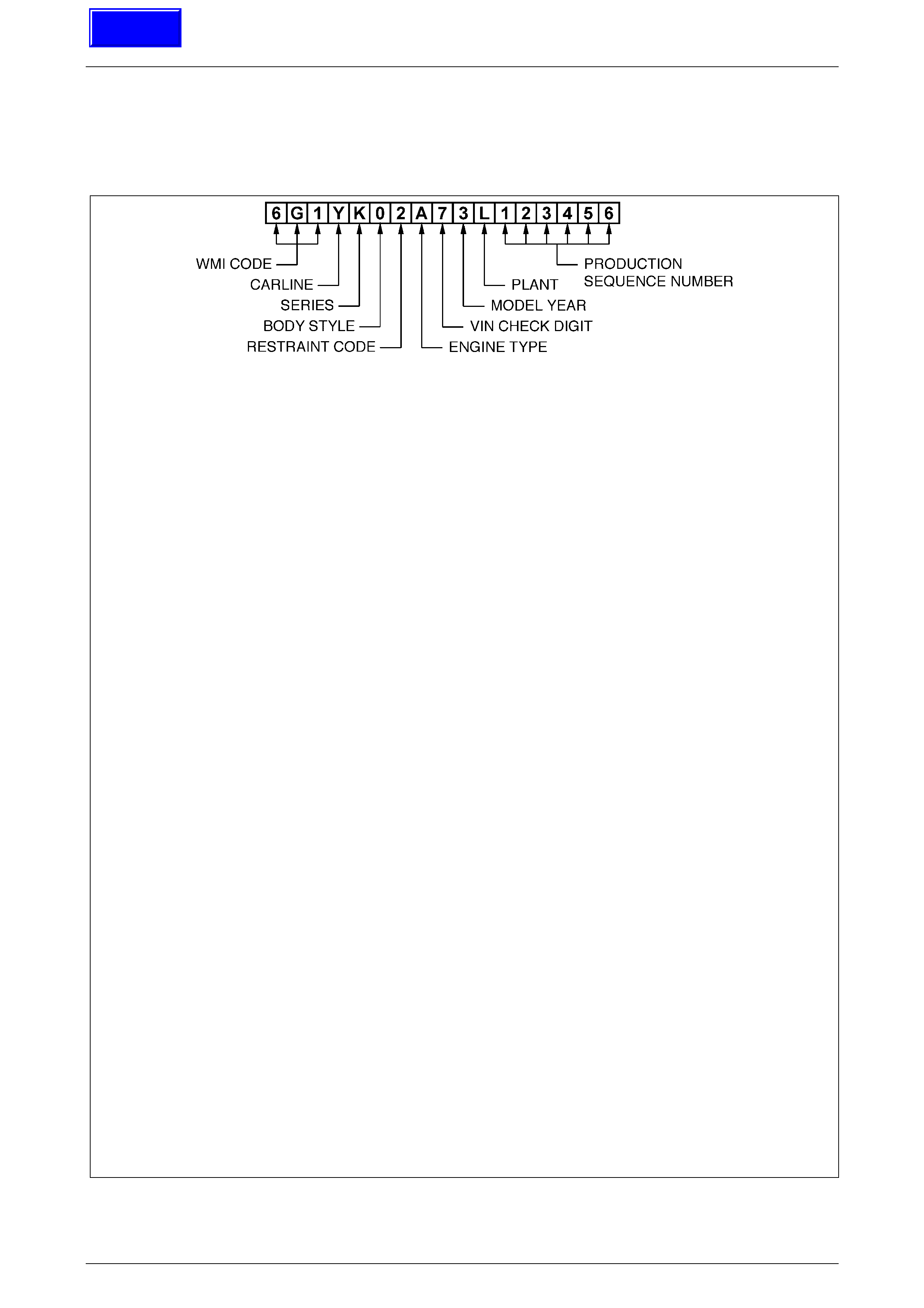

WMI CODE:

6 Oceania

G Australia

1 Holden

CARLINE:

Y VY series

LUXURY LEVEL:

K Level 1

BODY STYLE:

0 2 door Cab Chassis – Regular Cab

RESTRAINT CODE:

1 Active (manual) seatbelts

2 Active (manual) seatbelts with driver & passenger inflatable restraint system – frontal

3 Active (manual) seatbelts with driver inflatable restraint system – frontal

4 Active (manual) seatbelts with driver & passenger inflatable restraint system – frontal and side

ENGINE TYPE:

A 3.8 litre V6 engine (domestic variant)

F 5.7 litre GEN III V8 engine

VIN CHECK DIGIT:

Calculated check digit

MODEL YEAR:

3 2003

4 2004

PLANT:

L Adelaide (Elizabeth) South Australia

PRODUCTION SEQUENCE NUM BER:

123456

Sequential Production Serial Number. The production sequence number is sequentially allocated to each vehicle,

regardless of vehicle type.
